JSD5500

EFL focal length (mm):1.7

F/NO :2.4

Field of view:(D)166 / (H)126 / (V)92

Distortion:<19.13%

Mount :M8*0.35P/M7*P0.35/M12*P0.5

TTL:10

Diameter:Φ12.5

Image size:11/4" OV5640

Super wide angle view from 90°to 166°

Small size TTL from 7.43mm to 10.2mm

IR cut off switch compatible for day and night

M7x0.35, M8x0.5 and M12 mount available

Various image formats,1/4",1/3",1/2.7"

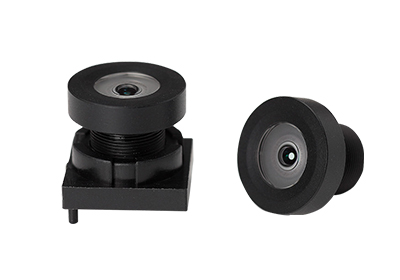

: Super Mini Fisheye Lens M7 Mount

Description

The JSD4011 is our top sell lens during those years, it has lowest distortion for FOV 160 degree on 1/4 sensor. Aperture F2.0 make it extremely perfect for some low-light condition, competitive price for tight budget project.

Application

l Driver Monitoring System

l Smart Home

l Video door bell

l Rearview Camera

Specification

Model

JSD4011

Image sensor

1/4” CMOS

Image Circle

5.12mm

Resolution

VGA

Focal Length

0.95mm

Aperture

F/2.0

TTL

9mm

FOV

DFOV 160° HFOV 125° VFOV 100°

Mount

M7*0.35

: Focal Length 2.6mm M12 Lens

Description

The JSD2624 is designed for smart home application, low TTL 14.5mm with only 0.4% distortion. Aluminum barrel with hybrid element make it achieve stable image quality.

Application

l Driver Monitoring System

l Smart Home

l Video door bell

Specification

Model

JSD2624

Image sensor

1/4” CMOS

Image Circle

5.3mm

Resolution

2MP

Focal Length

2.4mm

Aperture

F/2.6

TTL

15.4mm

FOV

DFOV 82° HFOV 73° VFOV 50°

Distortion

0.4%
