4.4mm No Distortion Lens

Focal length 4.4mm M8 Lens

Description

The JSD3420 is a M8 no distortion lens, it’s small size suitable for wearable camera. HFOV 65 degree on 1/2.7” sensor. Has M8 and M12 version.

Widely used for access control, biometric recognition, 3D tracking.

Application

l 3D printing

l Face recognition

l Access control system

Specification

: HFOV 125° M12 Wide-Angle M12 Lens

Description

The 2.8mm wide angle lens is designed for CAR DVR, with HFOV 125 degree on 1/2.7” image sensor. All glass and metal exterior make it support operating temperature -20℃ to 85℃

Widely use in DVR, sports camera system

Application

l Sports & Action Camera

l Surveillance & Security Camera

l Car DVR

Specification

Model

JSD2528

Image sensor

1/2.7” CMOS

Image Circle

7.5mm

Resolution

5MP

Focal Length

2.8mm

Aperture

F/2.8

TTL

22.8mm

FOV

DFOV 150° HFOV 125° VFOV70°

IR cut

650nm available

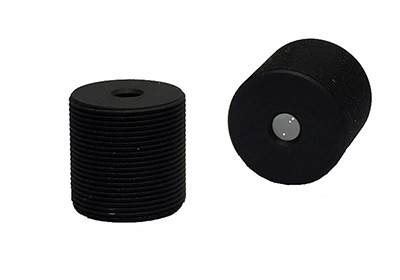

: 4.4mm M8 Lens

Description

The miniature lens has M8 and M12 mount available, TTL is only 7mm suitable for hidden cameras. No distortion with FOV 66 degrees, free samples available.

Application

l Biometric reader

l Face recognition

l Access control system

l Surveillance

Specification

Model

JS2635

Image sensor

1/2.7”

Image Circle

7mm

Resolution

3MP

Focal Length

4.4mm

Aperture

F2.4

TTL

7.04mm

FOV

DFOV 74° HFOV 66 VFOV 60°

Mount

M8 and M12 option
