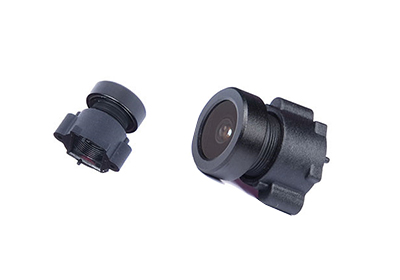

2.7mm Wide Angle M8 Lens

  • Description



    JSD4016 wide angle M8 lens has short TTL 11mm, widely used in AR&VR, FPV, Video doorbell.



    Specification





    Model

    JSD4016

    Image sensor

    1/4

    Image Circle

    4.8mm

    Resolution

    2MP

    Focal Length

    2.76mm

    Aperture

    F2.4

    TTL

    11.1mm

    FOV

    DFOV 130°   HFOV 101°  VFOV 90 °

    BFL

    2.6mm

  • Key Features

    • PN: JSD4016
    • HFOV 101°
    • TTL 11mm
    • Have M8 and M12 version
