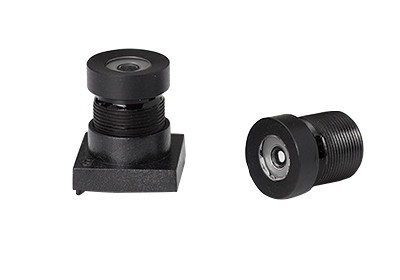

2.9mm M7 Lens

F2.9mm M7 Lens

Description

The 2928 miniature M7 lens TTL is only 9.7mm, suitable for small cameras.

Specification

HFOV 90° on 1/3 sensor

Have M7 and M12 version

: 2mm Wide Angle M12 Lens

Description

The compact wide angle M12 lens is suitable for 1/3” 8mp sensor, short TTL 15mm.

Also suitable for IMX335 sensor

Applications

l Security/Surveillance

l Body Cam

l Computer Vision/Robotics

Specification

Model

JSD0125

Image sensor

1/3”

Image Circle

6.8mm

Resolution

8MP

Focal Length

2.05mm

Aperture

F2.4

TTL

15mm

FOV

DFOV 140° HFOV 124° VFOV 76°

Distortion

12%

: EFL 1.9mm M7 Wide Angle Lens

Description

The compact wide angle lens is designed for indoor WI-FI security cameras, HFOV 130 degrees on 1/3” sensor, low TTL 11mm.

Applications

l WI-FI Security/Surveillance

l Automotive rearview

l Computer Vision/Robotics

Specification

Model

JSD1529

Image sensor

1/3”

Image Circle

6.3mm

Resolution

3MP

Focal Length

1.9mm

Aperture

F2.0

TTL

11mm

FOV

DFOV 147° HFOV 129° VFOV 79°

Mount

M7 and M12
