JSD1002
PN: JSD1002
F3.0
HFOV 34°
TTL 16.03mm
Thread M8 M7 M12
Distortion <1%
Image Sensor 1/3"
- Information
- Related Products
Description

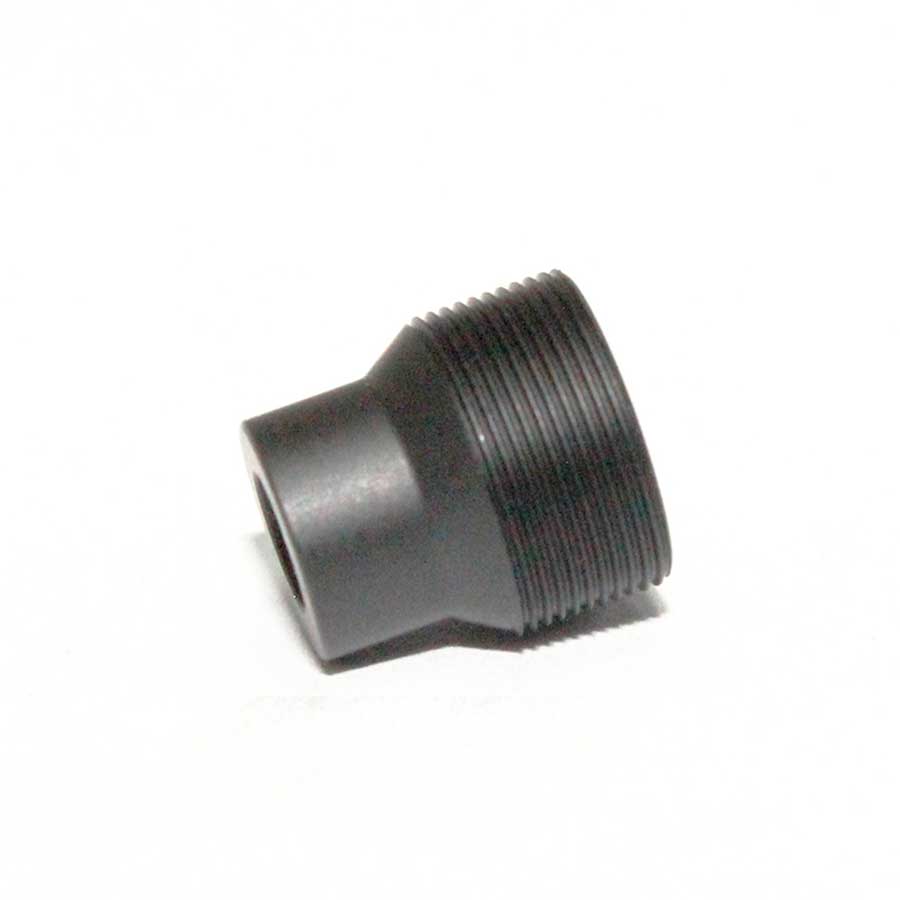

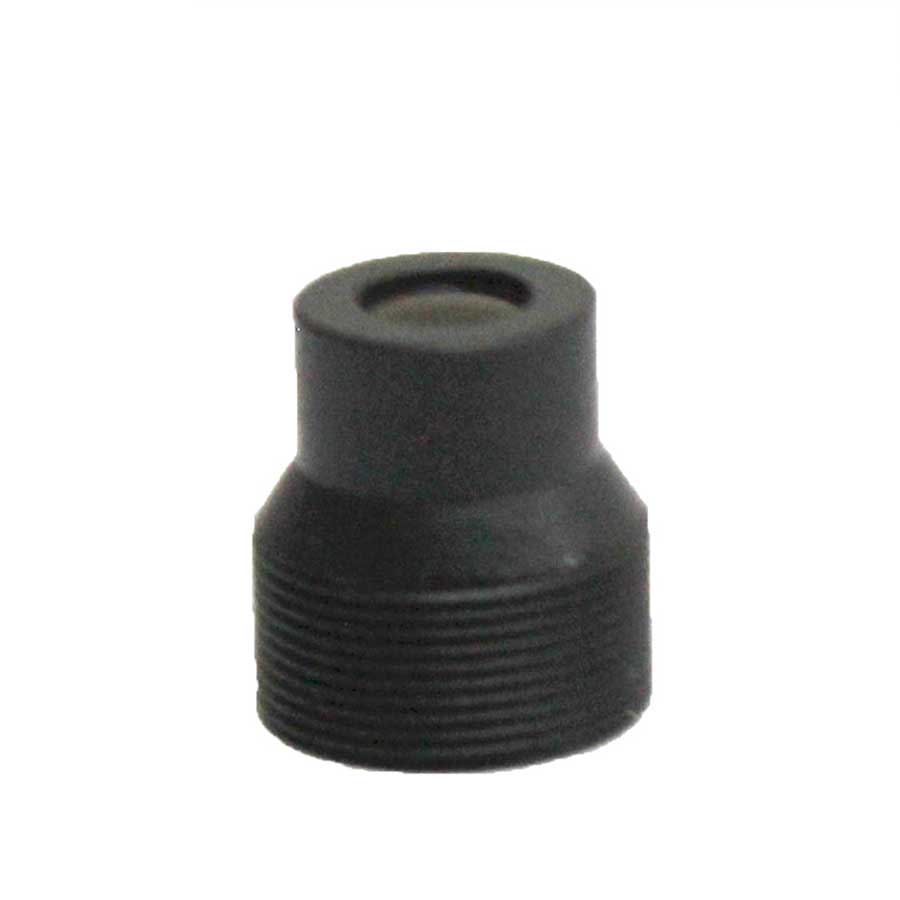

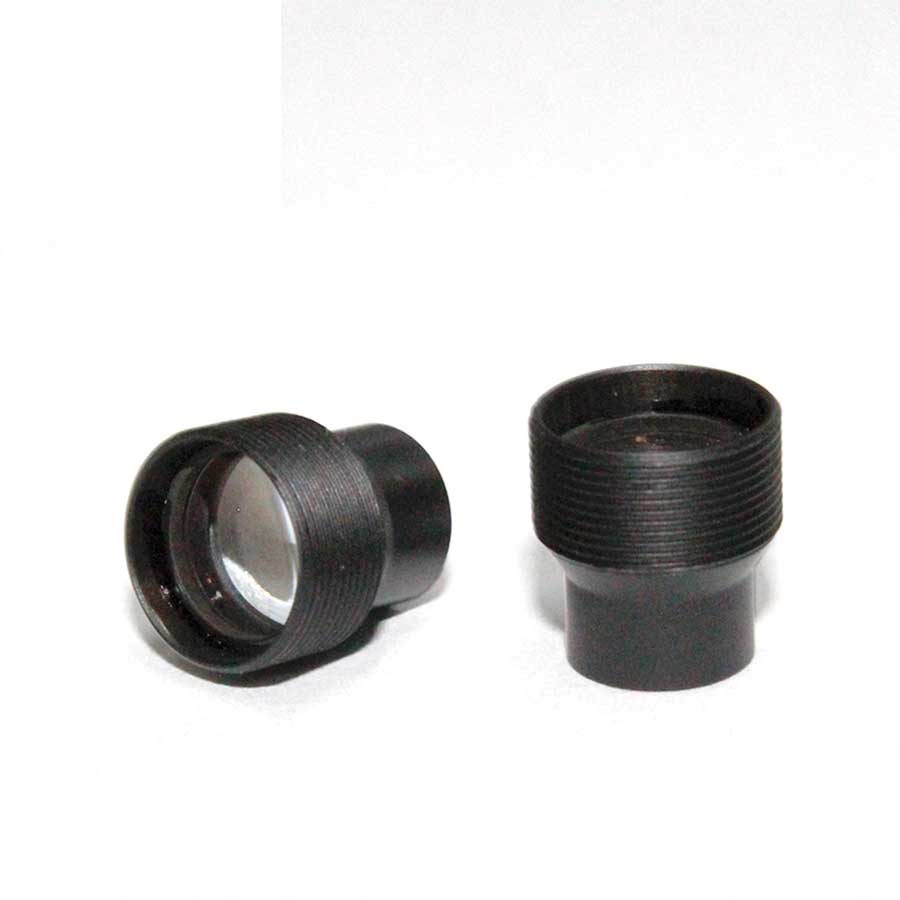

The compact 2.2mm no distortion M8 lens has a long BFL 9.5mm, suitable to use ICR switcher, HFOV 29 degree on 1/3” sensor, pinhole shape.
Specification
|
| |
Model | JSD1002 | |
Image sensor | 1/3” | |
Image Circle | 7.4mm | |
Resolution | 8MP | |
Focal Length | 10.36mm | |
Aperture | F3.0 | |
TTL | 16.3mm | |
FOV | DFOV 33° HFOV 29° VFOV 16° | |
Distortion | 0.5% | |
