JSD1918

PN: JSD1918
HFOV 185
EFL: 1.9mm
F/No 1.8
Image Circle 6.4mm
For 1/2.3" sensor

Products inquiry

Information
Related Products

Description

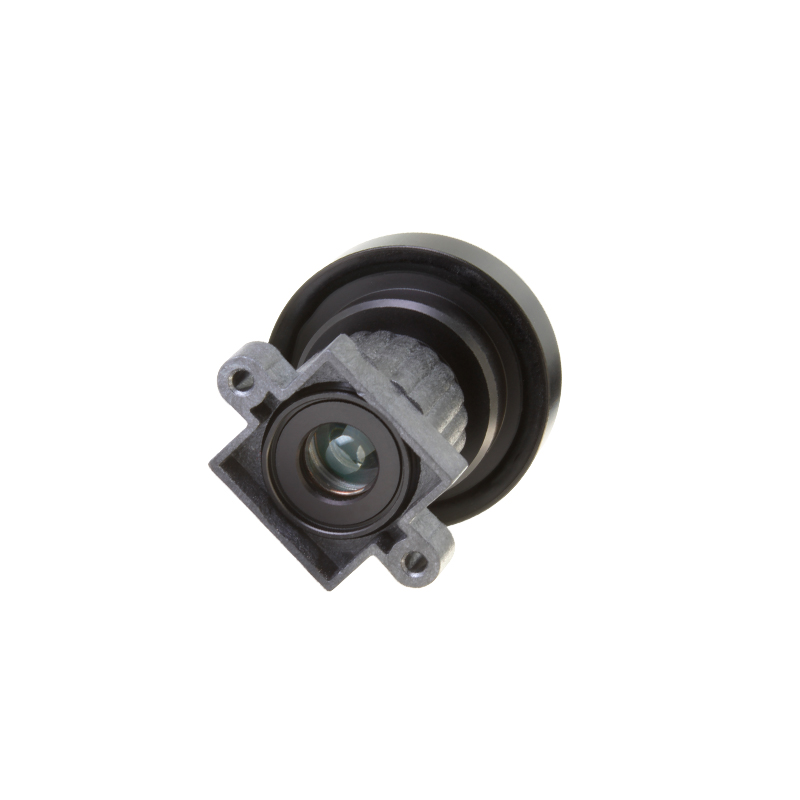

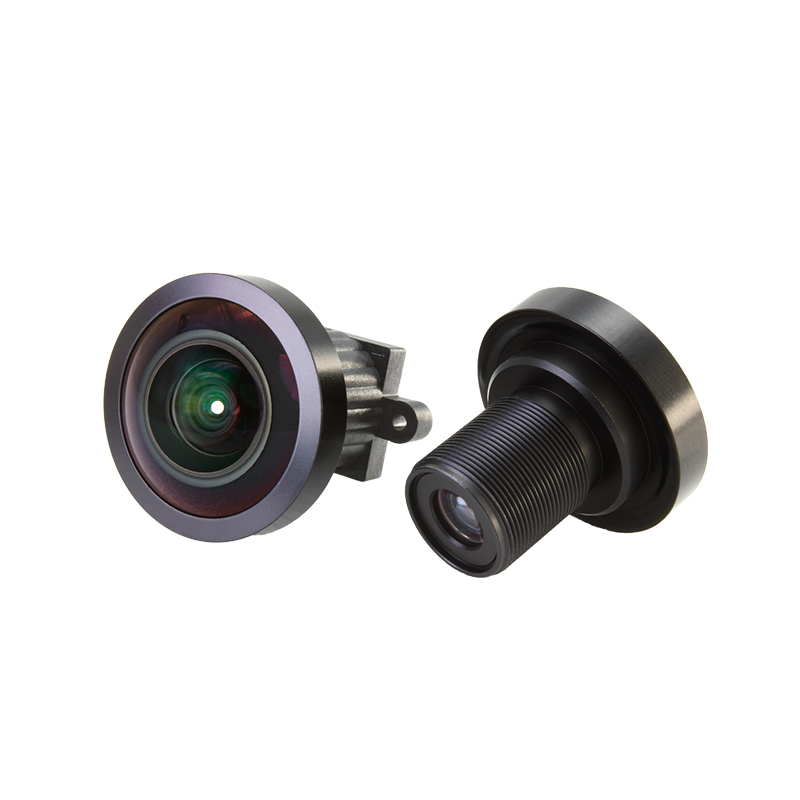

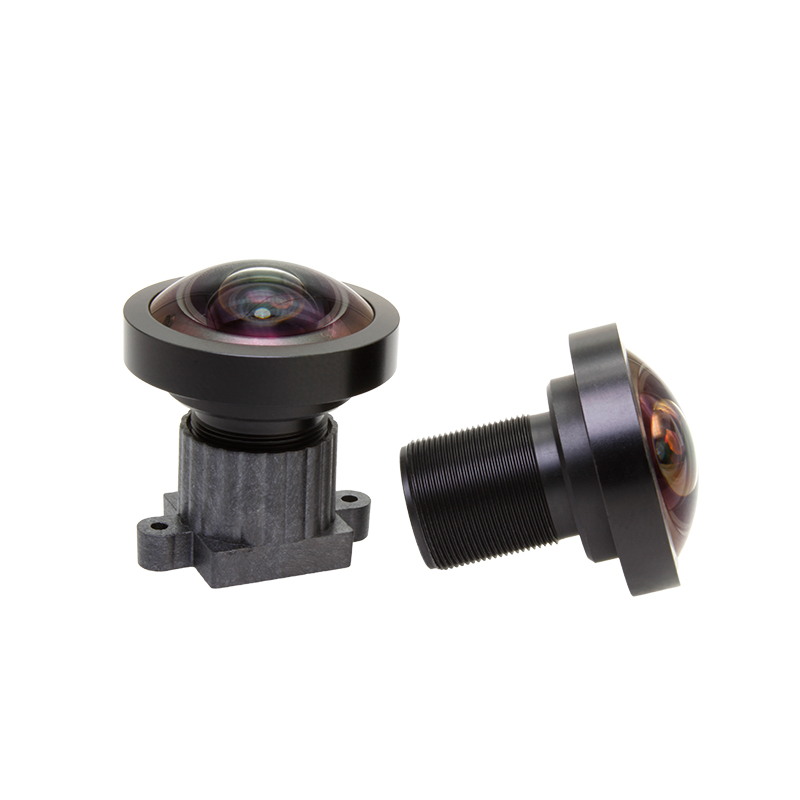

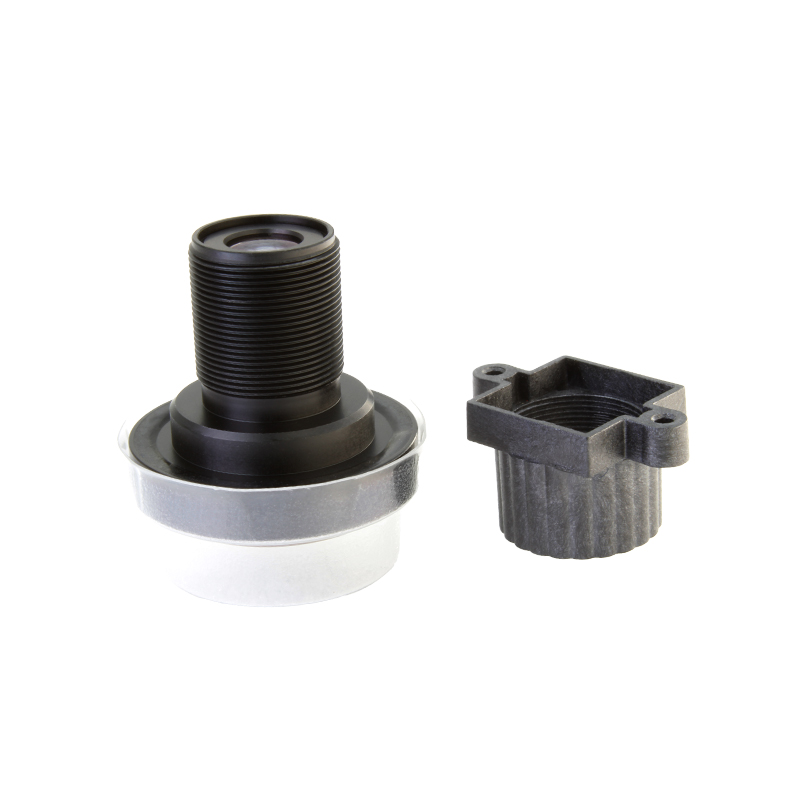

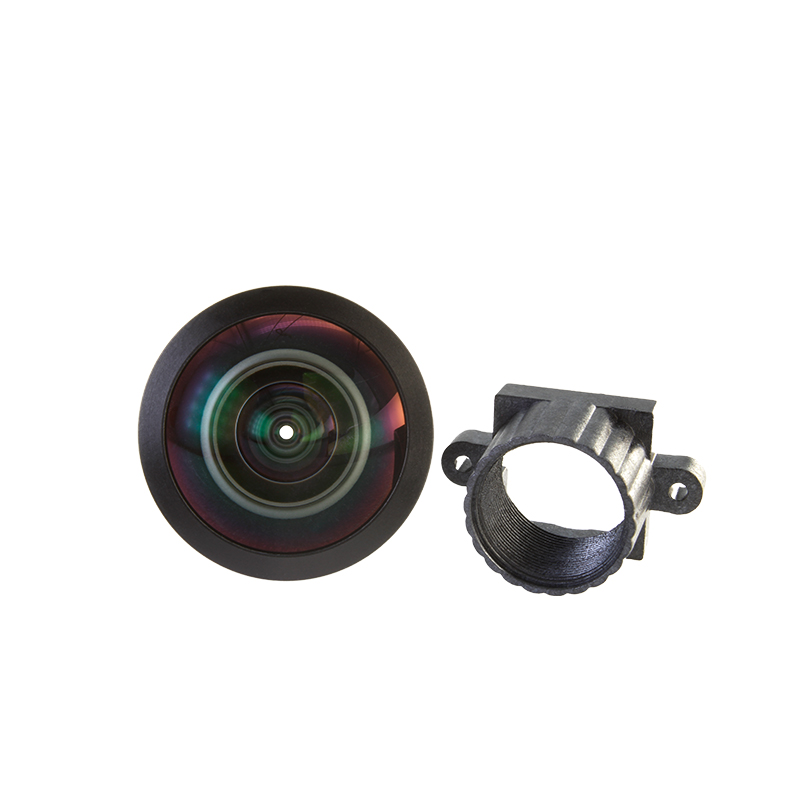

our latest 8MP fisheye lens is designed for the IMX577 sensor. With an impressive 185 degree field of view and a fast F1.8 aperture, this lens is perfect for capturing high-quality surveillance footage with exceptional clarity and detail.

The fisheye lens is made with precision optics and all glass structure, ensuring that every image is sharp and distortion-free. It's suitable for a wide range of security cameras. Whether you're monitoring a large area or need to capture fine details, our 8MP ultra-wide-angle lens is the perfect choice for any security application.

Application

l Sport Camera

l Robotic vision

l Surveillance camera

Specification


Model		JSD1918
Image sensor		1/2.3”IMX577
Image Circle		6.8mm
Resolution		12MP
Focal Length		1.9mm
Aperture		F/1.8
TTL		9.84mm
FOV		DFOV 195 HFOV 195 VFOV 158
CRA		12.9%
Mount		M12
