JSD2528

PN: JSD2528
HFOV：120°
All Glass and Metal Exterior
Suitable AR0233 sensor

Products inquiry

Information
Related Products

Description

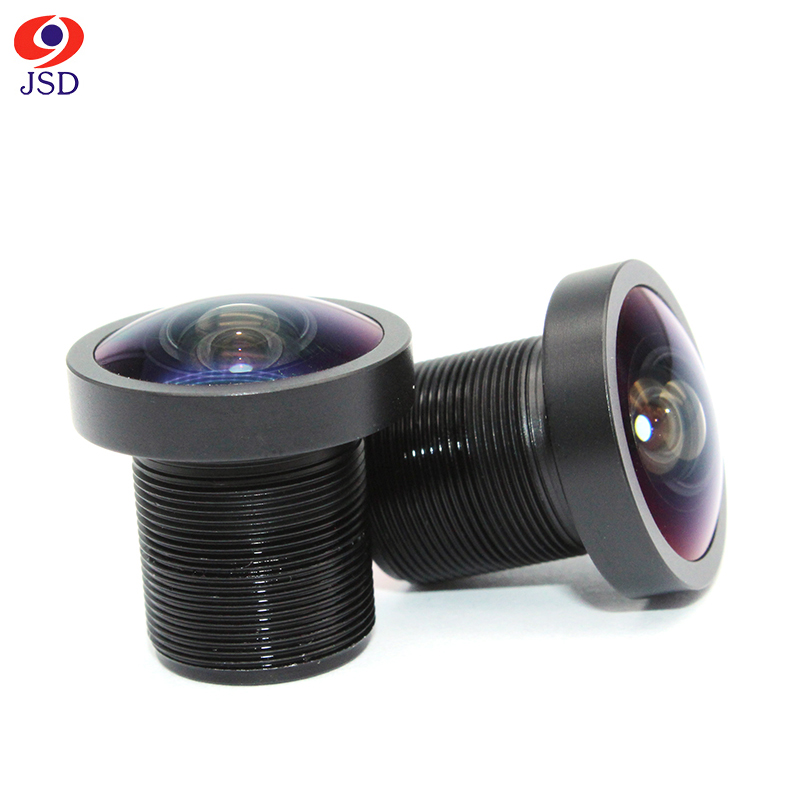

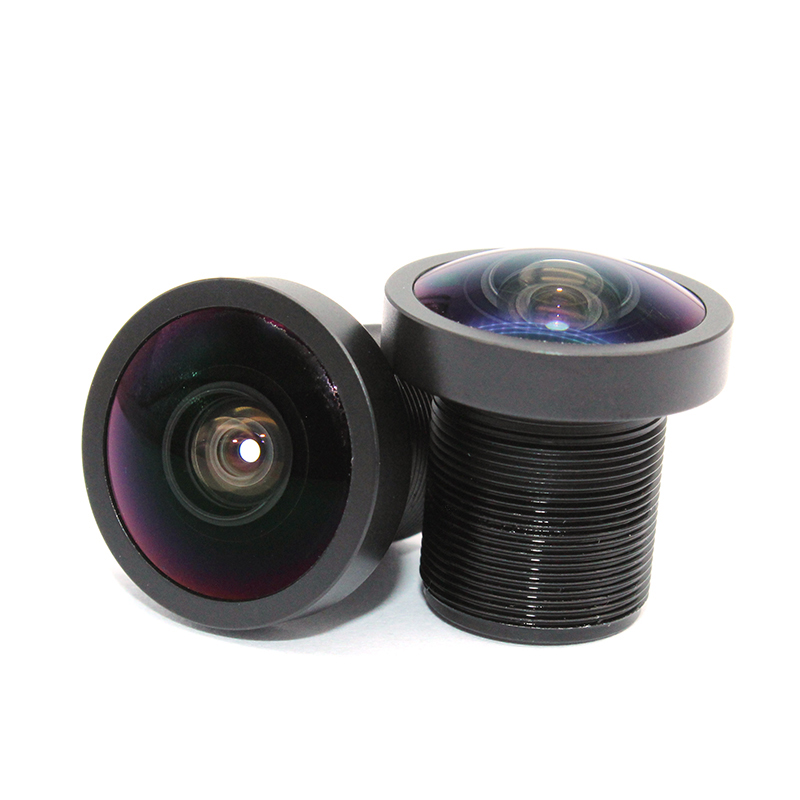

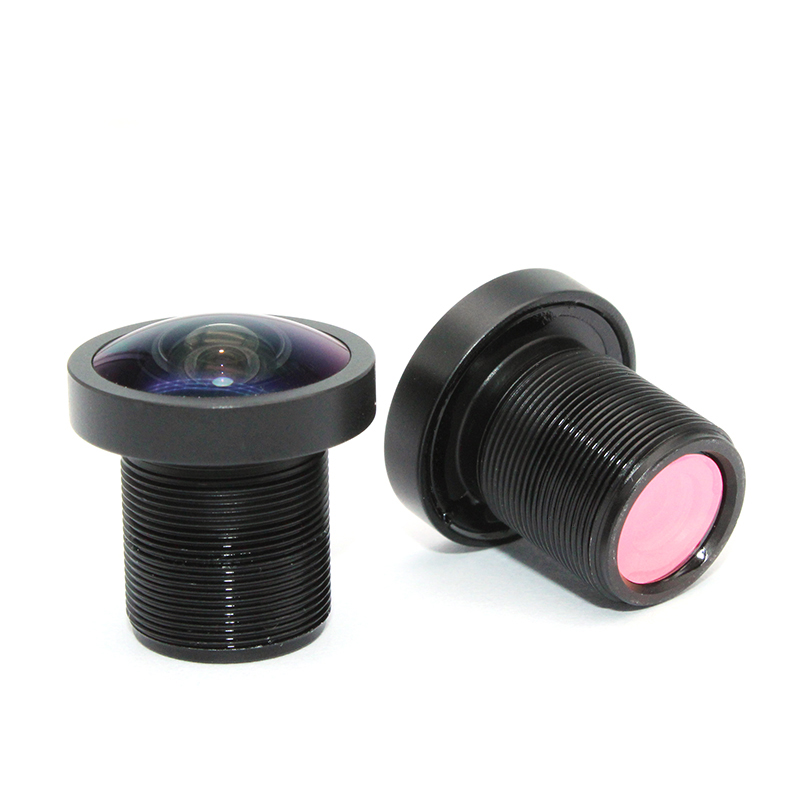

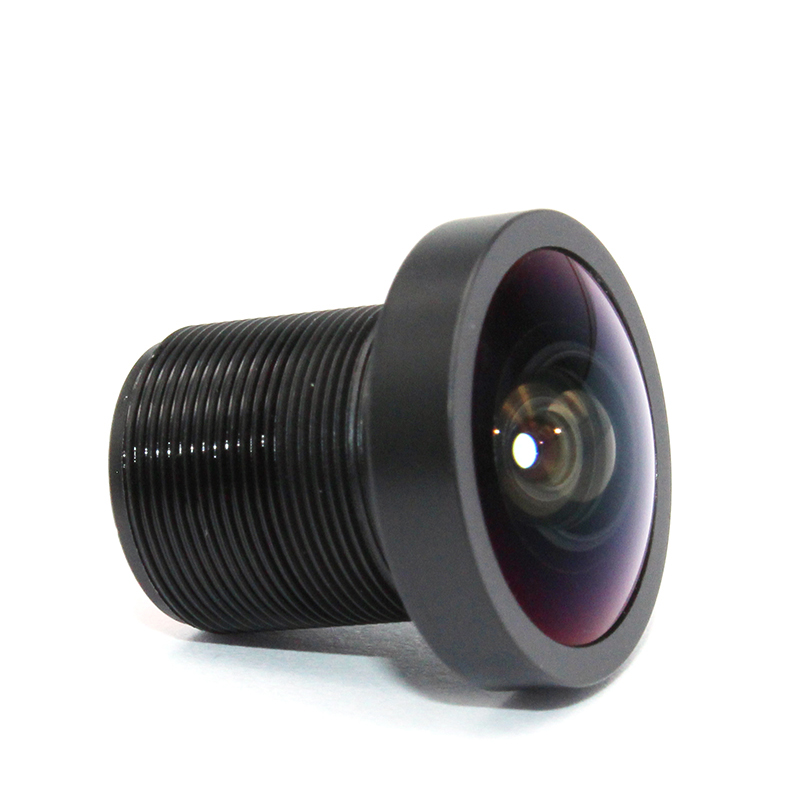

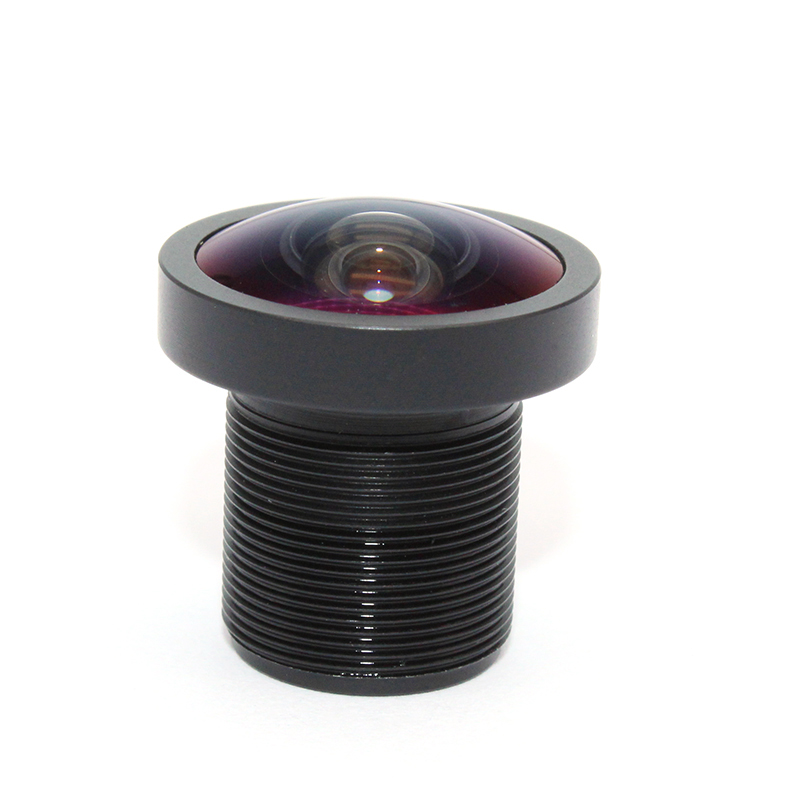

The 2.8mm wide angle lens is designed for CAR DVR, with HFOV 125 degree on 1/2.7” image sensor. All glass and metal exterior make it support operating temperature -20℃ to 85℃

Widely use in DVR, sports camera system

Application

l Sports & Action Camera

l Surveillance & Security Camera

l Car DVR

Specification


Model		JSD2528
Image sensor		1/2.7” CMOS
Image Circle		7.5mm
Resolution		5MP
Focal Length		2.8mm
Aperture		F/2.8
TTL		22.8mm
FOV		DFOV 150° HFOV 125° VFOV70°
IR cut		650nm available
