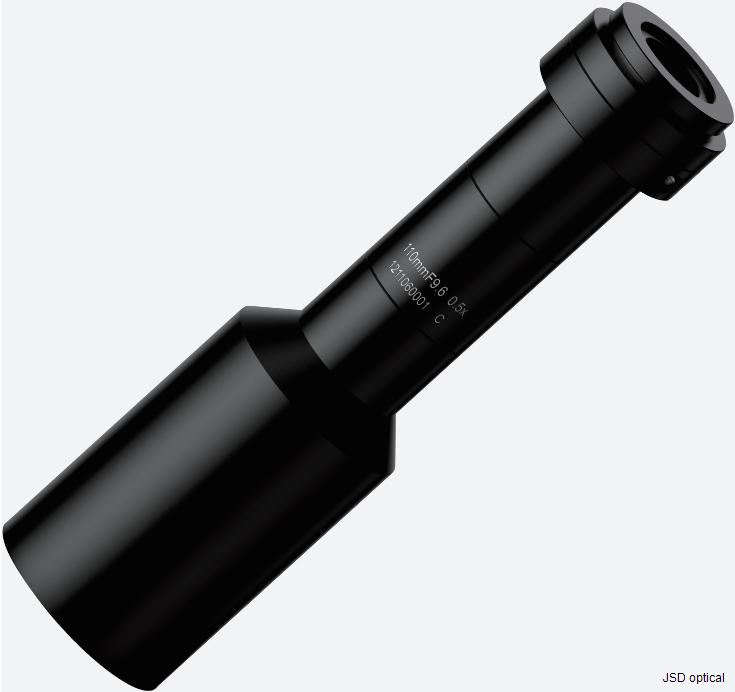

Telecentric Lens for 1.1\" Sensor C-Mount Ultra-Low Distortion
JSDL0122320D Ultra-Low Distortion Telecentric Lens
Model：1/1 sensor series
Img.Circle：φ17.6
EFL：0.0777
F #：F6.5-22
Distortion：0.03
WD Range：410
Mount：C
- Information
- Related Products
Lens Features
Ultra-Low Distortion
Distortion ranges from <0.01% to ≤0.05% for high-precision imaging.
C-Mount
All models feature a standard C-mount for easy integration.
Optical and Mechanical Specification Table
| Model | Img.Circle | Mag. | F# | Distortion(%) | WD (mm) | Conjugate Distance | Mount |
|---|---|---|---|---|---|---|---|
| JSDL0077410D | φ17.6 | 0.0777 | F6.5-22 | 0.03 | 410 | 1020 | C |
| JSDL0122320D | φ17.6 | 0.122 | F5.6-22 | 0.007 | 320 | 760 | C |
| JSDL016825D | φ17.6 | 0.168 | F5.6-22 | 0.008 | 250 | 604 | C |
| JSDL020150A | φ17.6 | 0.2 | F8 | 0.03 | 150 | 411 | C |
| JSDL020220A | φ17.6 | 0.2 | F8-22 | 0.05 | 220 | 400 | C |
| JSDL023220A | φ17.6 | 0.23 | F8-22 | 0.05 | 220 | 440 | C |
| JSDL024185A | φ17.6 | 0.24 | F10 | 0.03 | 185 | 447 | C |
| JSDL025225A | φ17.6 | 0.25 | F8-22 | 0.04 | 220 | 400 | C |
| JSDL287220A | φ17.6 | 0.287 | F8-22 | 0.04 | 220 | 399 | C |
| JSDL032185A | φ17.6 | 0.32 | F10 | 0.04 | 185 | 447 | C |
| JSDL0345220A | φ17.6 | 0.345 | F6.4-30 | 0.015 | 220 | 418 | C |
| JSDL037150A1_18C | φ17.6 | 0.37 | F8-22 | 0.05 | 150 | 413 | C |
| JSDL060185A | φ17.6 | 0.6 | F10 | 0.04 | 185 | 447 | C |
| JSDL100180A | φ17.6 | 1.0 | F8-22 | 0.03 | 180 | 414 | C |

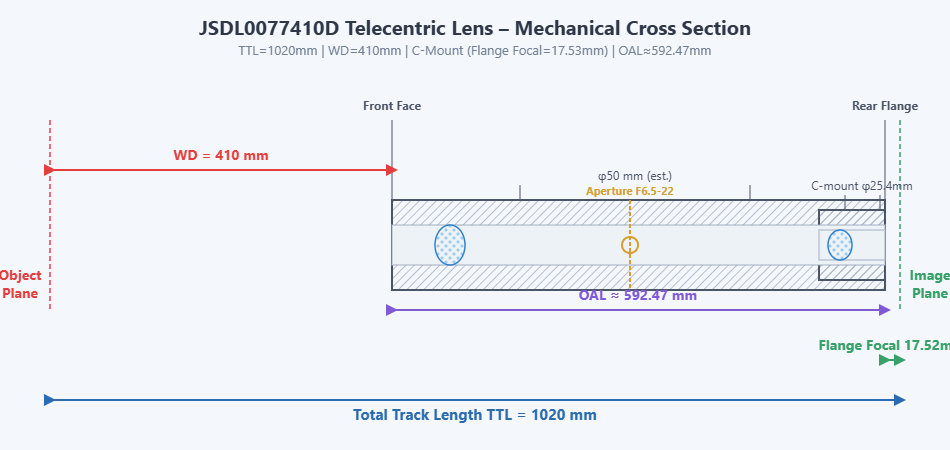

Mechanical Layout
Frequently Asked Questions
What image circle does the 1.1" Series support?
The 1.1" Series has an image circle of φ17.6 mm, compatible with 1.1" sensors.
What is the difference between JSDL and JSDC models?
JSDL models are standard non-coaxial lenses, while JSDC models feature built-in coaxial illumination for enhanced imaging.
What mount do all models use?
All models in the 1.1" Series use a C-mount for easy connectivity.
What is the magnification range of the 1.1" Series?
The magnification range spans from 0.0777× to 1.0×, covering a wide variety of applications.
The 1.1" Series from JSD Telecentric Lens delivers high-performance optical solutions designed for precision machine vision applications. With an image circle of φ17.6 mm compatible with 1.1" sensors, these lenses offer ultra-low distortion ranging from <0.01% to ≤0.05%, ensuring accurate and reliable image capture across a wide range of magnifications from 0.0777× to 1.0×.
The series includes both JSDL (non-coaxial) and JSDC (coaxial) models, with working distances from 80 mm to 410 mm. All models feature a standard C-mount and offer flexible aperture options, including fixed and adjustable iris configurations (e.g., F6.5-22, F8-22, F6-14). Choose the ideal lens for your application from our extensive lineup of 24 models.
