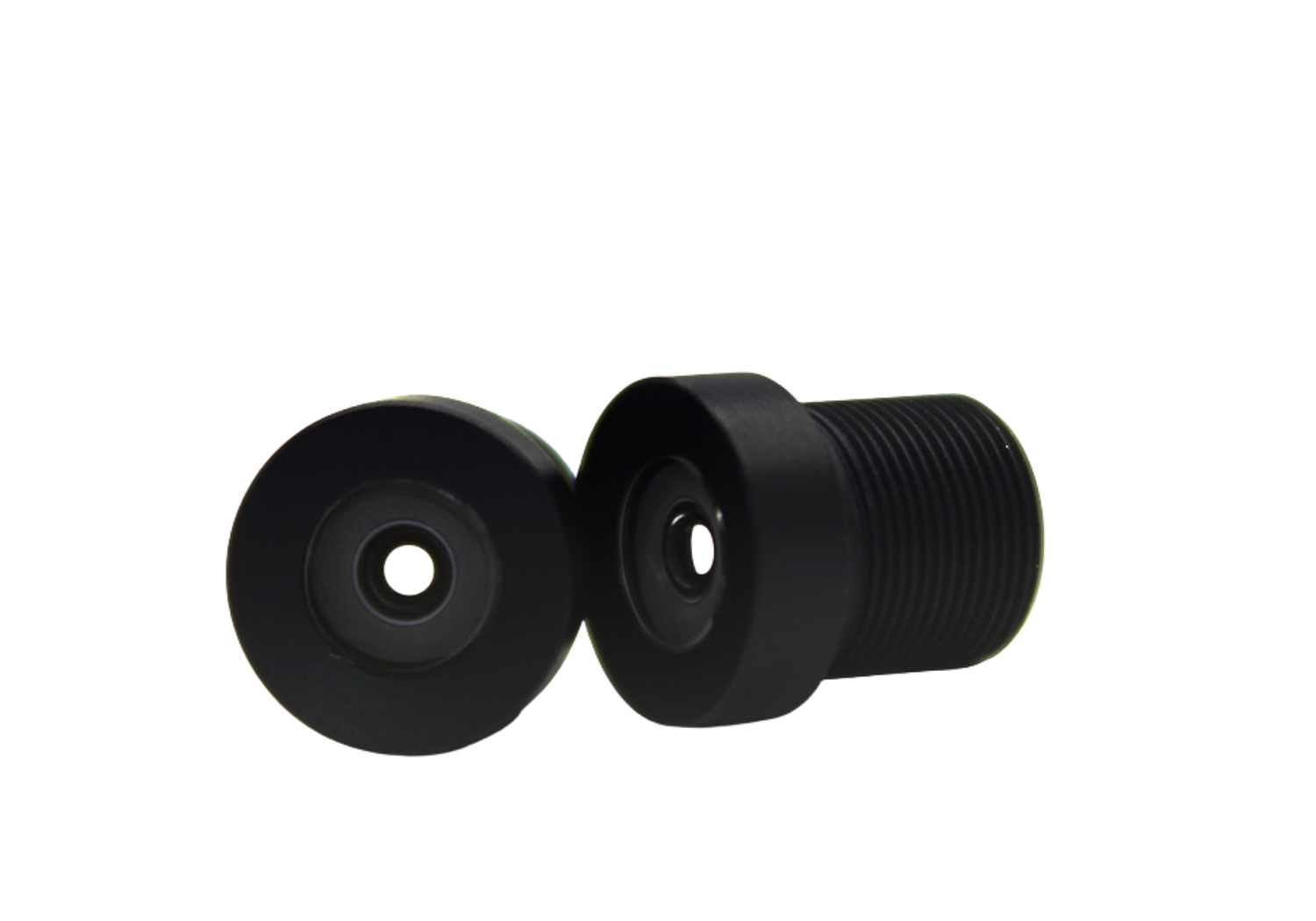

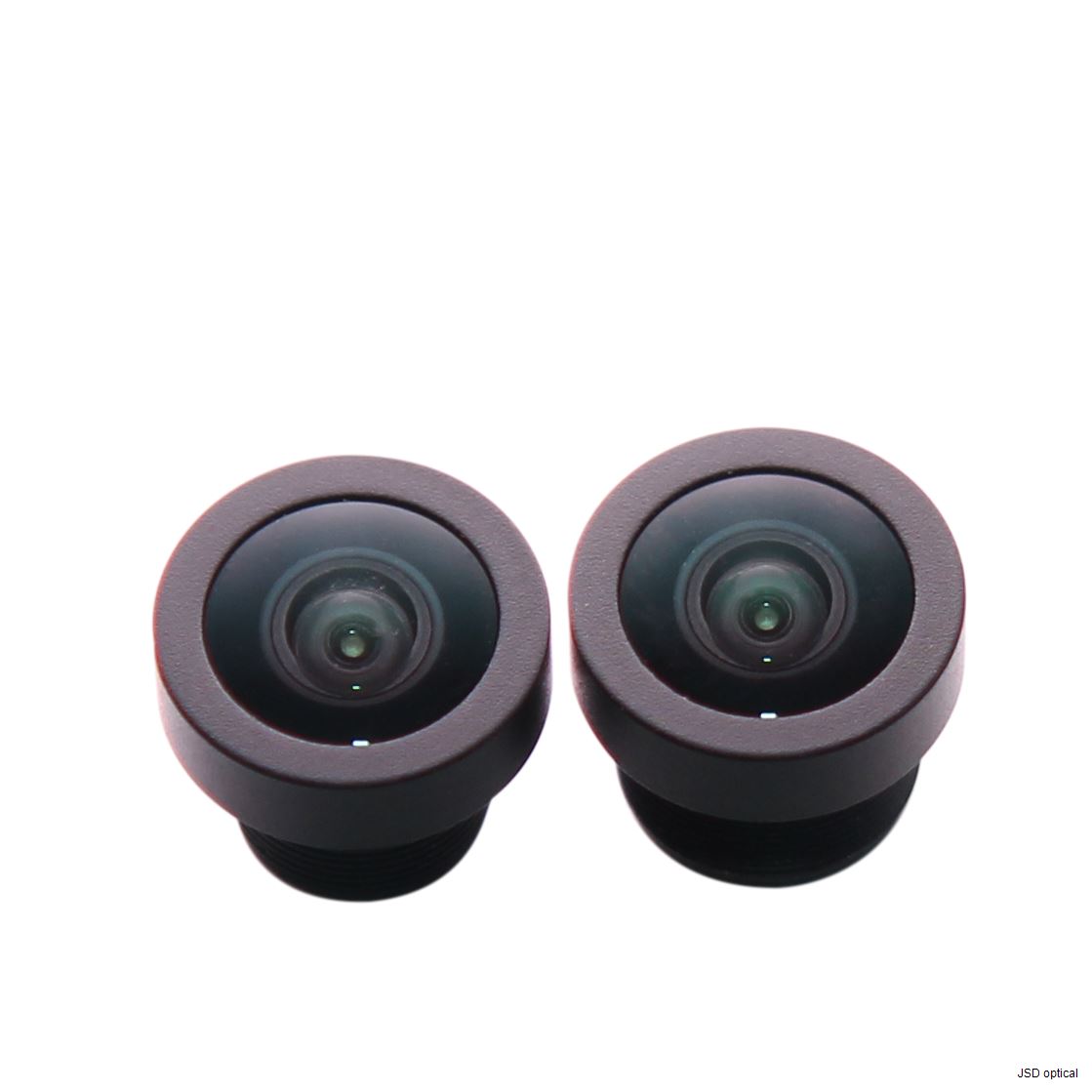

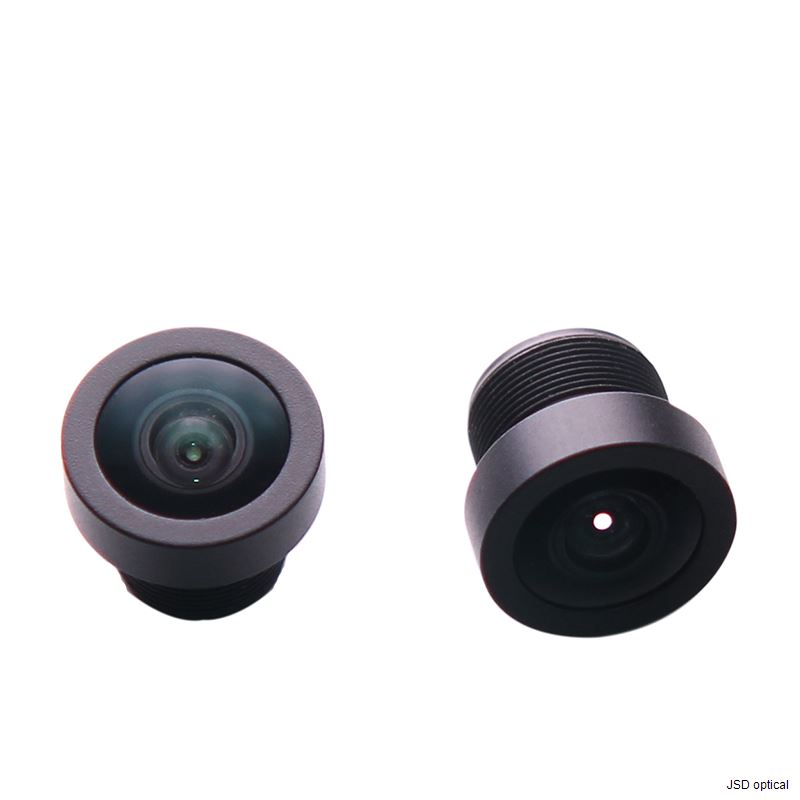

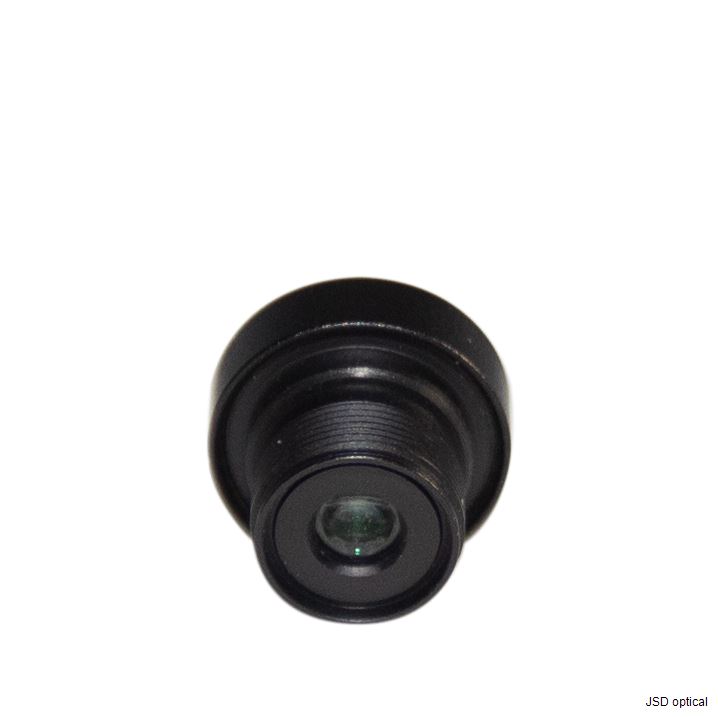

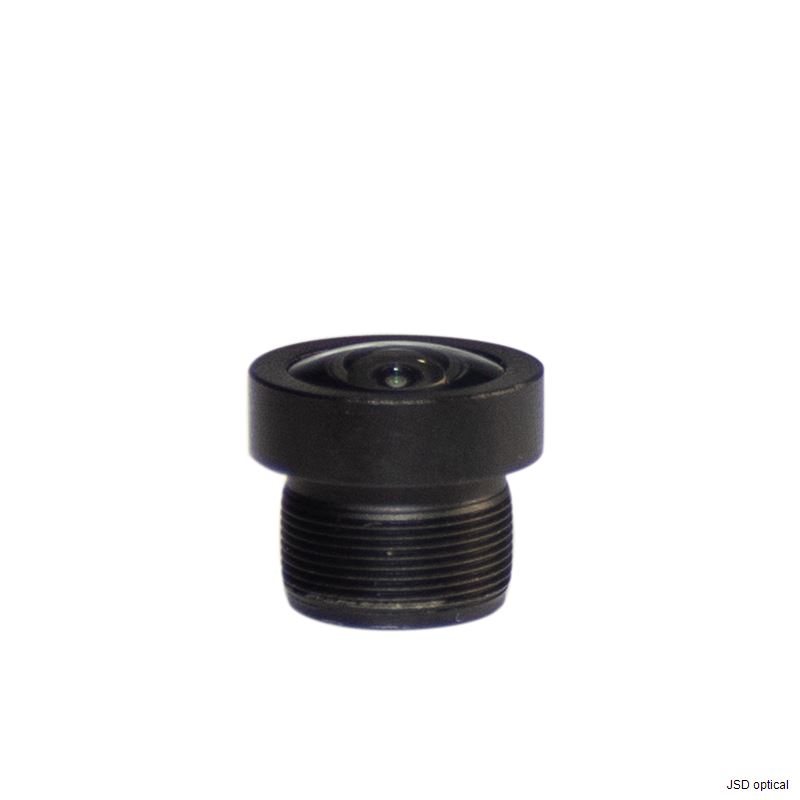

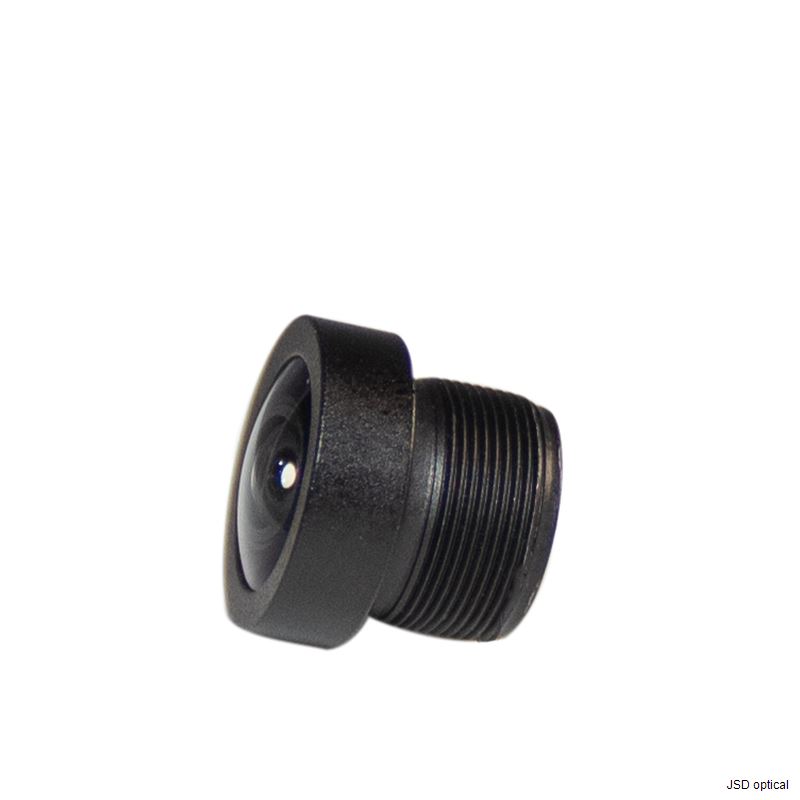

JSD1120

Description

The JSD1120 is a distinctive ultra-wide-angle fixed-focus lens with a total track length (TTL) of just 10mm, making it highly compact and compatible with 1/5-inch image sensors. Its large F2.0 aperture ensures exceptional low-light performance, significantly enhancing image brightness and detail capture in dim environments. With an extensive horizontal field of view (HFOV) of 135°, it covers remarkably broad scenes, though this results in noticeable barrel distortion (Distortion < -17.58%), a common characteristic in lenses of such wide angles that can typically be effectively corrected through post-processing software algorithms. The lens features an M7 threaded interface for easy installation and integration

Application

Security & Surveillance: e.g., panoramic surveillance cameras, compact fisheye lenses, which can cover large areas with a single lens

Smart Home Devices: e.g., ultra-wide-angle smart doorbells, household panoramic cameras

Mobile Device Accessories: External expansion lenses designed for smartphones or tablets

IoT (Internet of Things) Devices: e.g., environmental sensing lenses on wearable devices

Special Equipment: e.g., automotive electronics, drone auxiliary vision, and other applications requiring ultra-wide fields of view

Specification
