JSD1630

Description

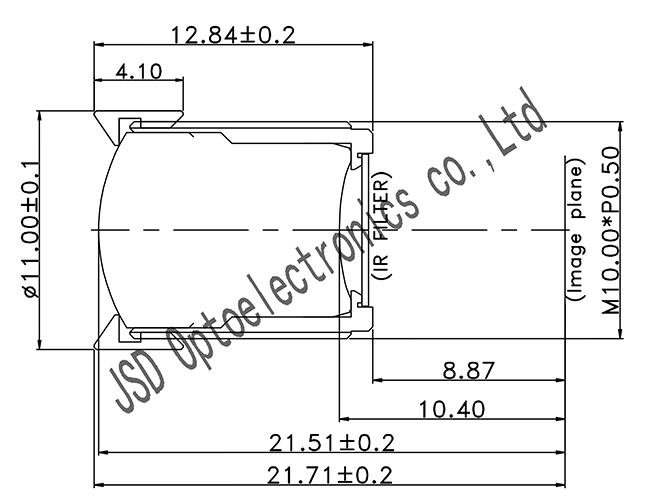

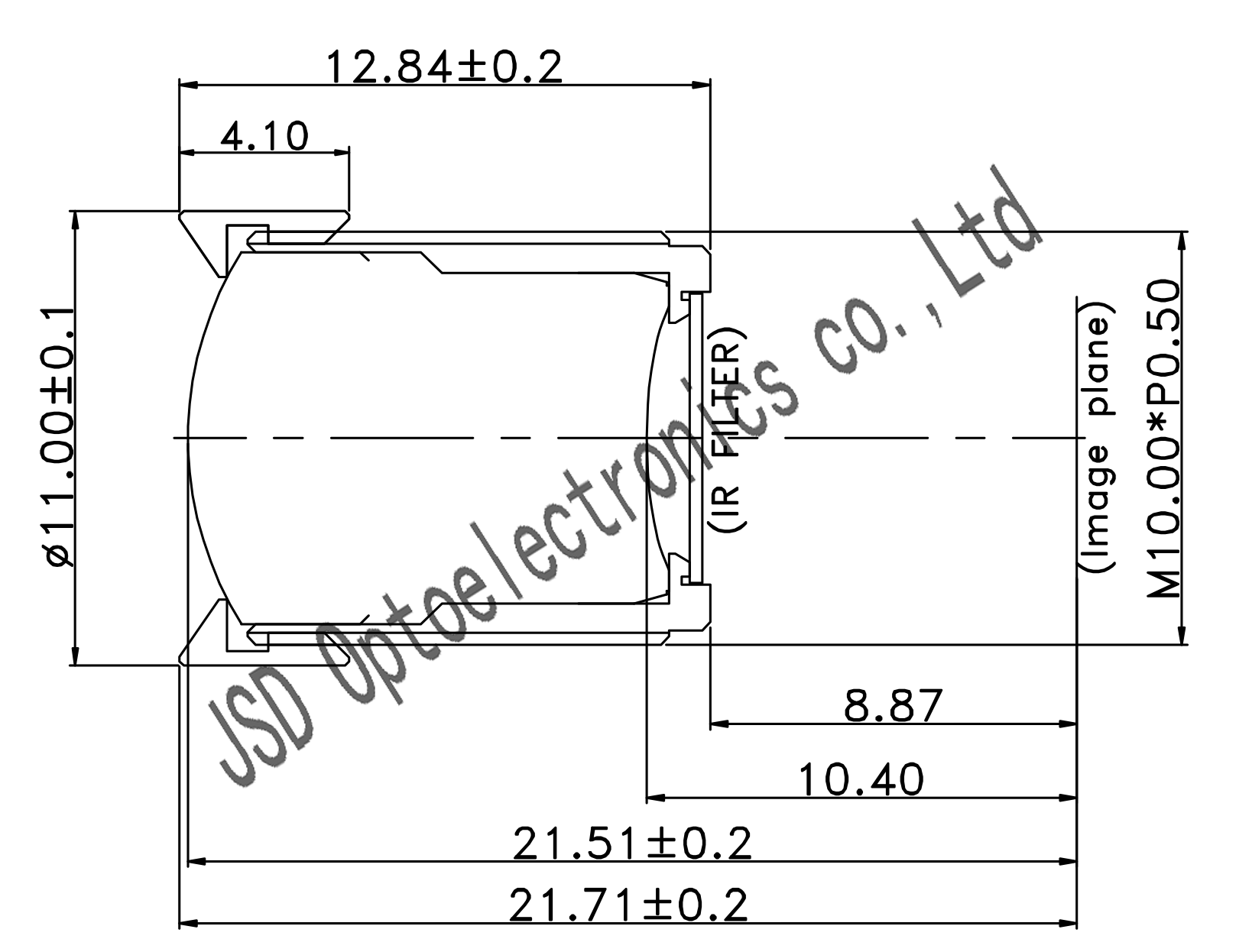

The industrial lens model JSD1630 is a telephoto fixed-focus lens. Its core feature is a narrow 17° horizontal field of view (HFOV), which provides a concentrated and magnified viewing perspective, making it highly suitable for detailed observation of distant targets. It employs an F3.0 aperture design. The lens has a compact structure with a total track length (TTL) of 21.7mm and offers two interface options (M12 and M10), enhancing installation flexibility in space-constrained embedded devices. It is specifically optimized for 1/3-inch image sensors. Its most prominent advantage is an extremely low optical distortion (<-0.04%), effectively ensuring image authenticity and significantly improving measurement and recognition accuracy. This lens is primarily aimed at machine vision scenarios that demand very high image quality and observation precision.

Application

Industrial Precision Measurement and Inspection: Suitable for high-precision measurement and defect detection of pin hole positions on circuit boards, and the dimensions and appearance of small electronic components (such as resistors, capacitors)

Scientific Research and Laboratory Analysis: Used in microscope systems or scientific instruments for observing and recording details of microscopic samples, such as cells and tissue sections

Security Monitoring: Its moderate focal length and narrow field of view make it applicable for scenarios requiring clear capture of details at medium to long distances, such as border patrol, perimeter protection of critical facilities, and license plate recognition

Intelligent Transportation Systems (ITS): Can be used for traffic flow monitoring, vehicle characteristic capture, and violation detection (e.g., illegal parking) to ensure clear and accurate images

Mechanical Part Dimension Measurement: Used in industries like automotive manufacturing and precision machining for non-contact high-precision measurement of dimensions of small parts such as springs, screws, and nuts

Pharmaceutical and Medical Equipment: Used for inspecting printed information on pharmaceutical packaging (e.g., batch number, expiration date), or integrated into certain medical imaging devices to assist in diagnosis

Specification
