JSD2916

Product Overview

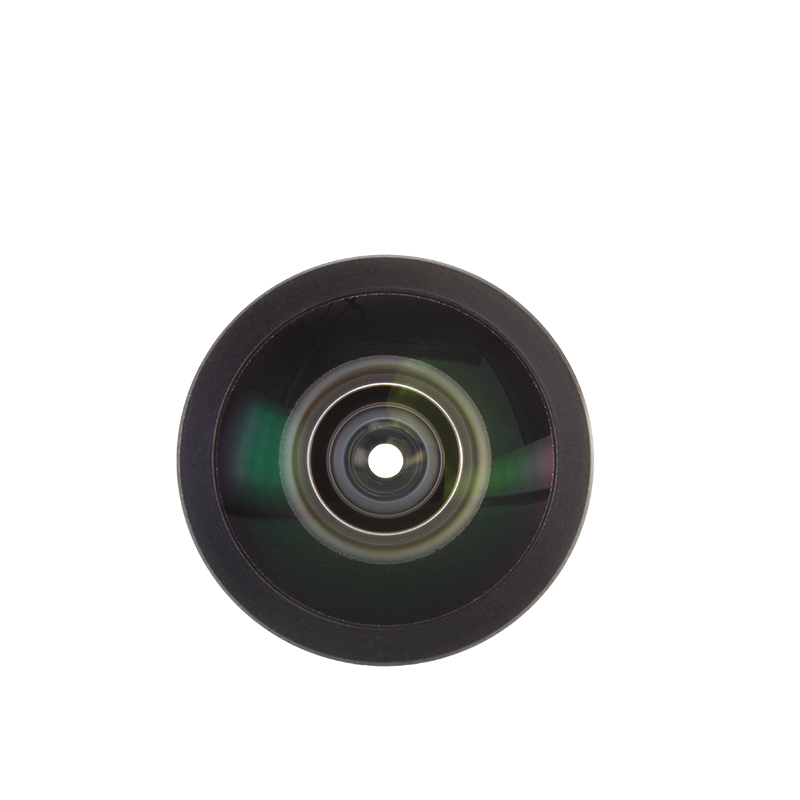

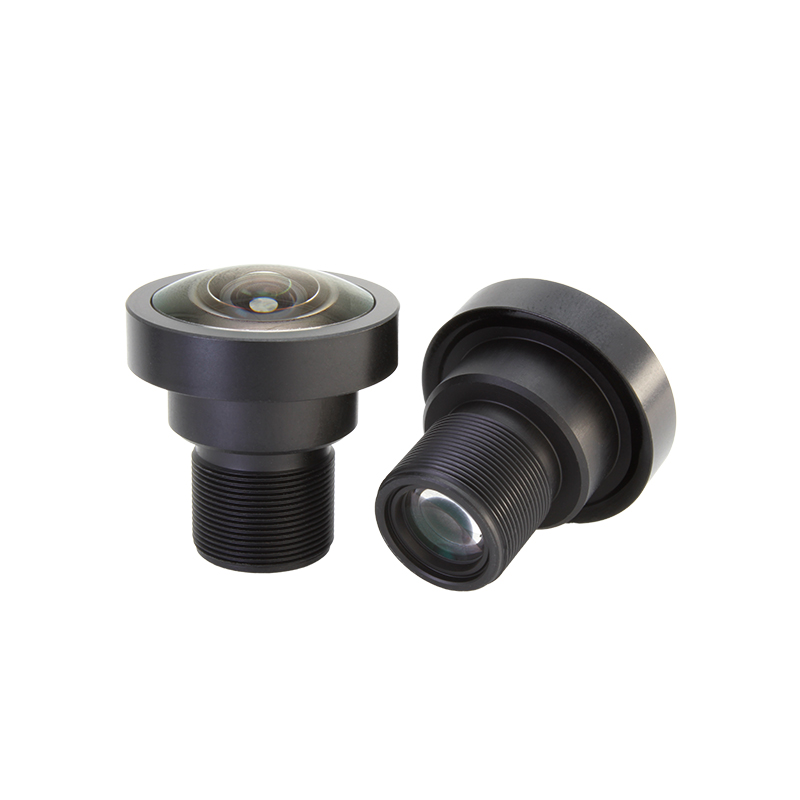

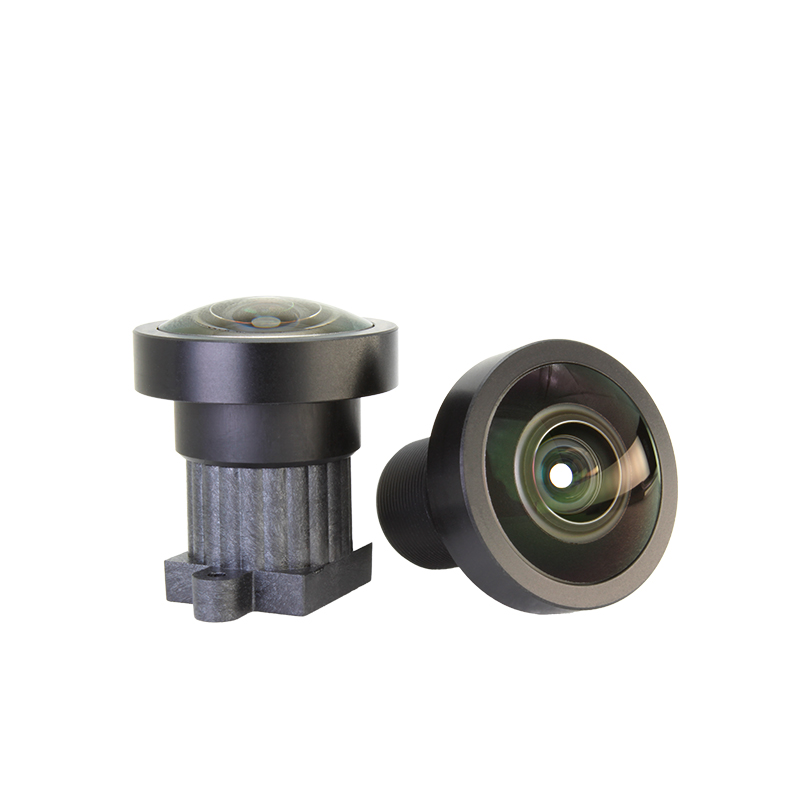

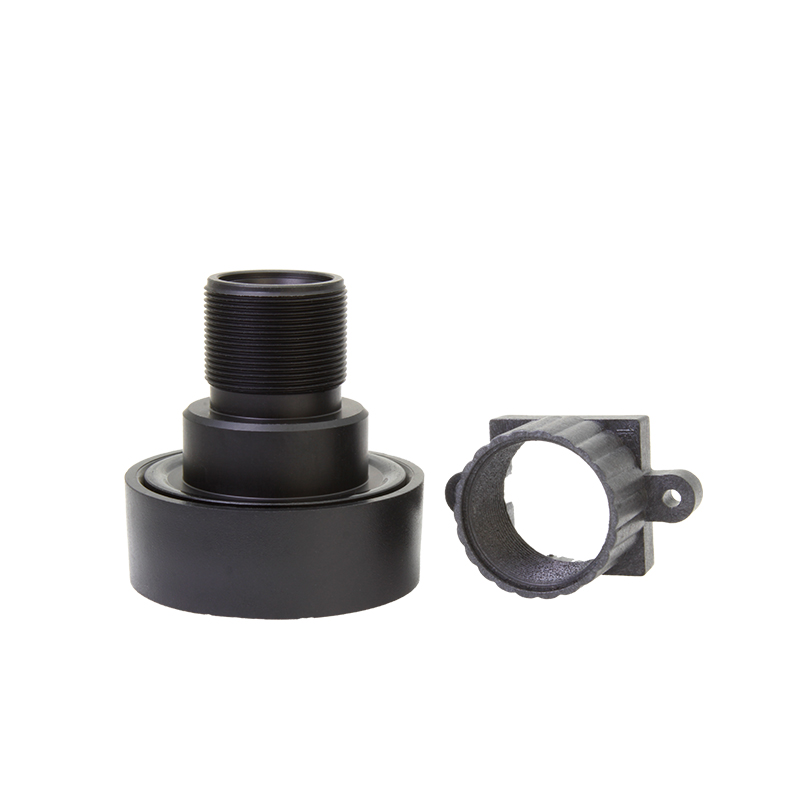

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and low distortion for wide-angle imaging applications. With a 2.9mm focal length and F1.6 aperture, it provides an ultra-wide 178° field of view, making it ideal for panoramic surveillance, expansive environment monitoring, and broad-area scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this lens ensures superior image sharpness and low distortion across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 178° FOV: Provides an extremely expansive field of view ideal for hemispheric surveillance, panoramic environment monitoring, and maximum coverage applications with minimal blind spots.

Low Distortion Design: Advanced optical optimization significantly reduces distortion across the entire ultra-wide field, maintaining geometric accuracy and true-to-life representations even at extreme angles.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Application Performance: Suited for panoramic surveillance, wide-area security, environmental monitoring, and immersive machine vision tasks requiring maximum field coverage.

Technical Specifications

Applications

Ultra-Wide Area Surveillance: Comprehensive coverage for open-space monitoring, large environment observation, and expansive area security.

Perimeter Protection Systems: Wide-angle monitoring for facility boundaries, property line coverage, and broad threat detection.

Environmental Monitoring: Full-scene capture for situational awareness, large-area event observation, and panoramic scene analysis.

Intelligent Transportation Systems (ITS): Intersection monitoring, traffic flow analysis, and wide-road vehicle detection.

Drone & Aerial Imaging: Broad field-of-view capture for aerial reconnaissance, wide-area mapping, and large-scale scene documentation.

Smart City Applications: Cityscape monitoring, public space surveillance, and infrastructure observation from elevated positions.

Intrusion Detection Systems: Maximum coverage for perimeter security, boundary monitoring, and unauthorized activity detection across wide areas.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
