JSD3028

Description

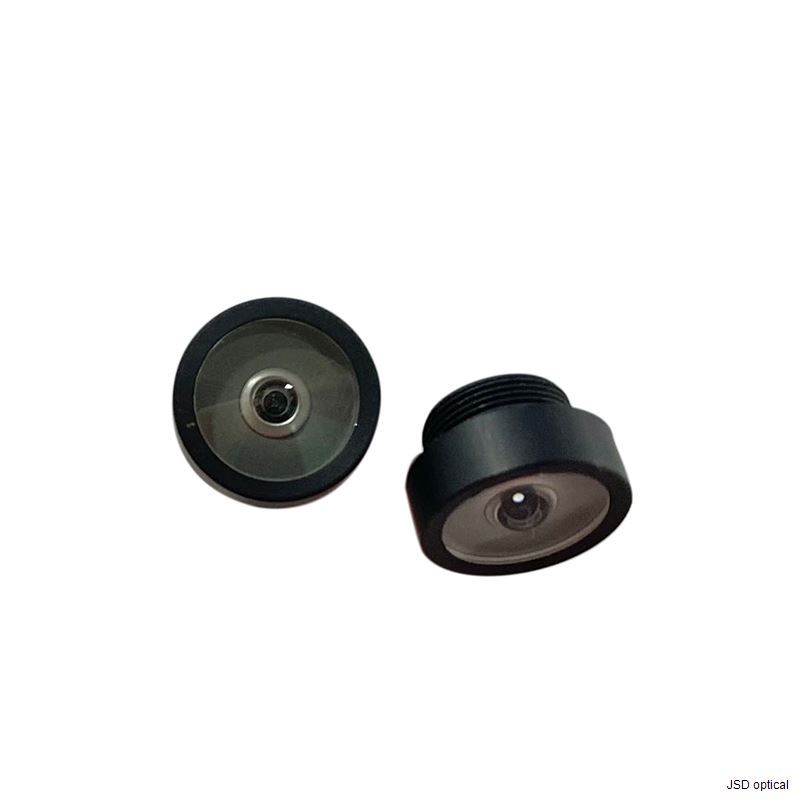

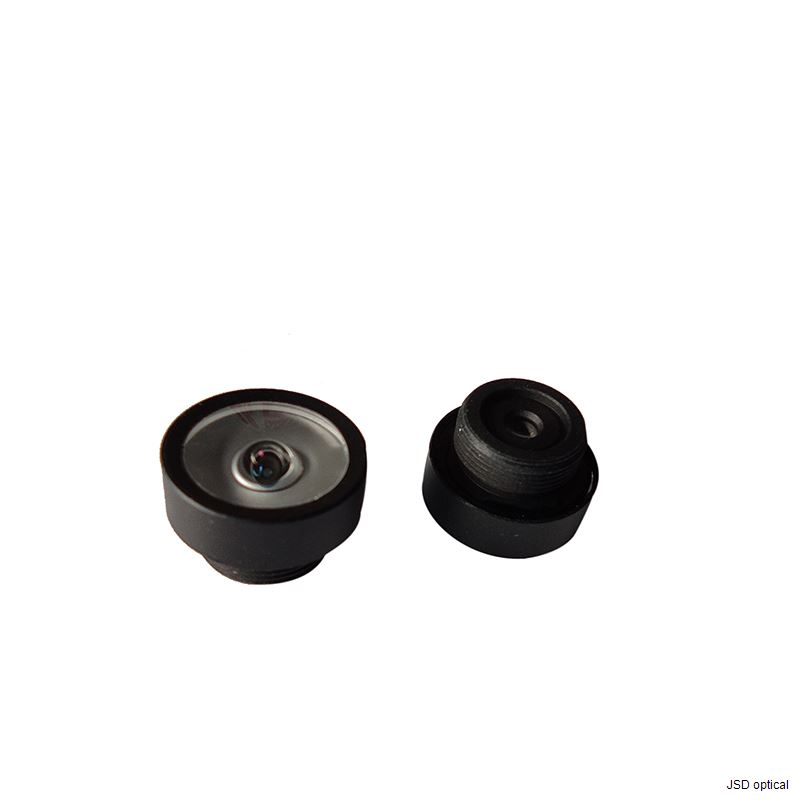

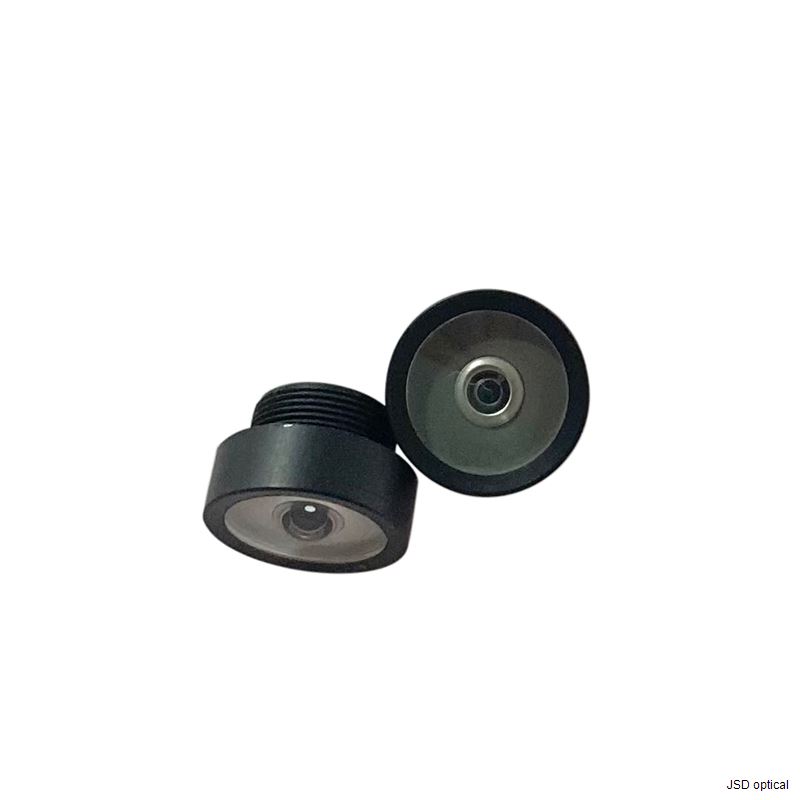

The JSD3028 is a compact wide-angle lens with an optical total length (TTL) of merely 7.6mm, compatible with a 1/6.5-inch image sensor. It features a large F2.8 aperture, ensuring sufficient light intake in low-light environments to enhance image brightness and clarity. With a 115° horizontal field of view (HFOV), it captures expansive scenes, though its distortion (Distortion < -25.9%) is relatively pronounced—a common characteristic in ultra-wide-angle designs that can be effectively corrected via software algorithms. The lens incorporates an M7 threaded interface for easy installation and integration

Application

Security Surveillance: Ultra-wide-angle characteristics are suitable for large-area monitoring, such as parking lots and public squares

Automotive Imaging and Smart Driving: Used as dashcam or surround-view system lenses, covering multi-angle road condition information

Smart Home and IoT Devices: Applicable to smart locks, home robots, and other devices requiring wide-angle visual perception

Industrial Inspection: In visual inspection, the wide field of view enables rapid screening of large-sized products or conveyor belts

Specification
