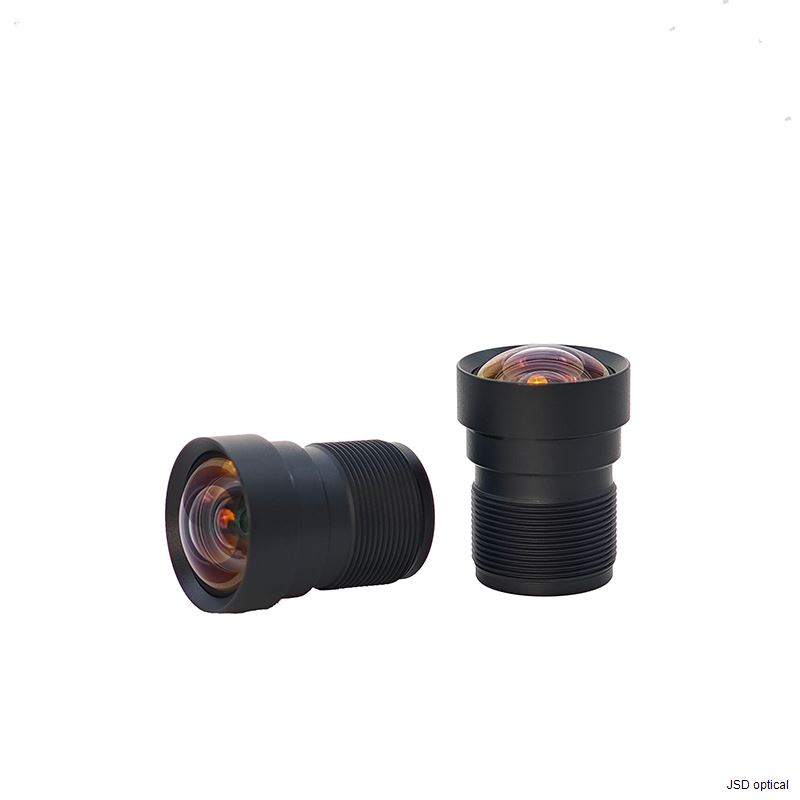

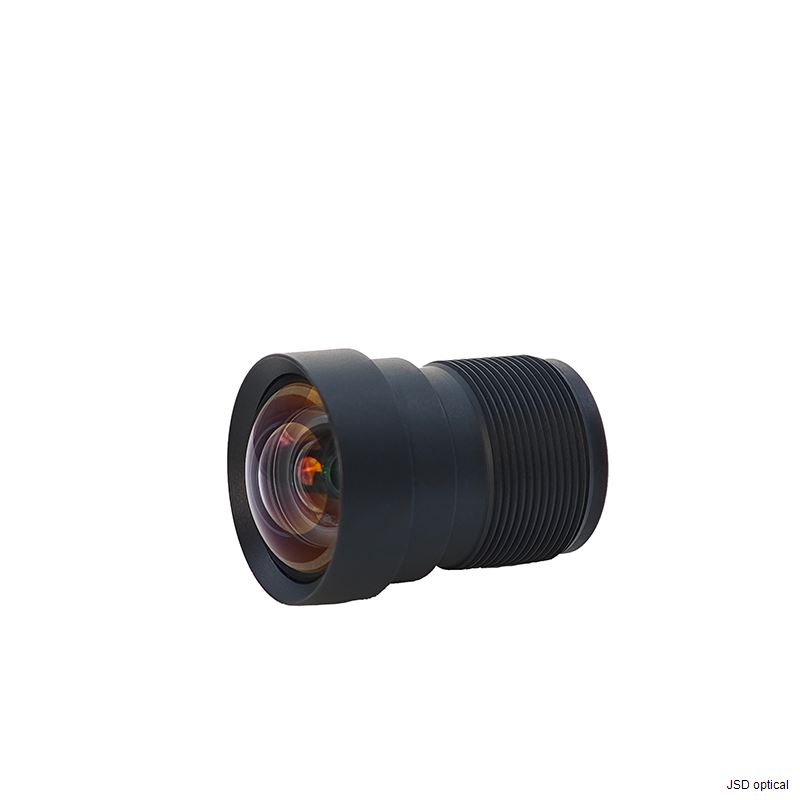

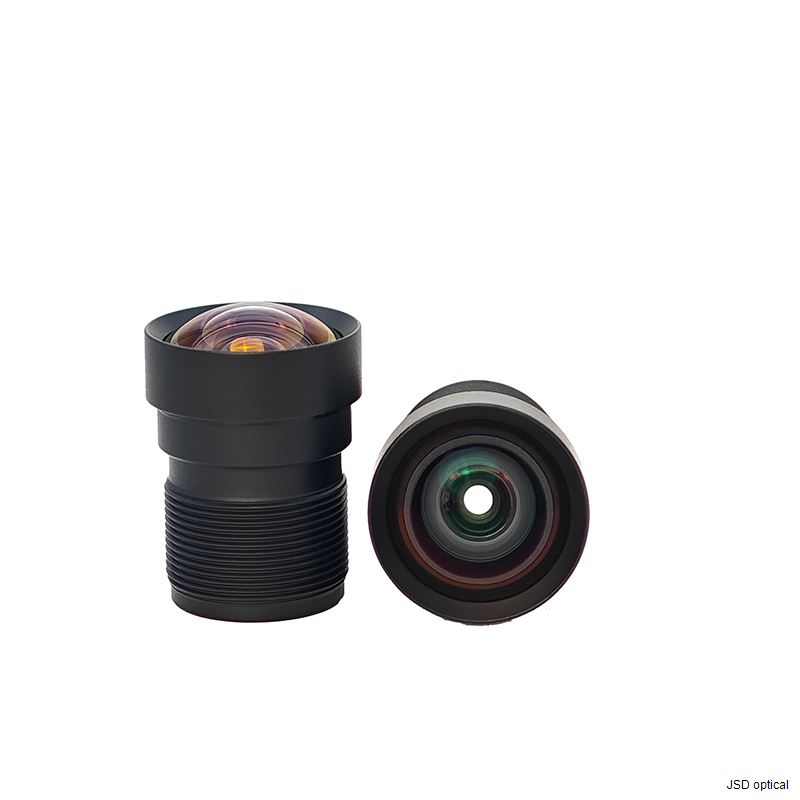

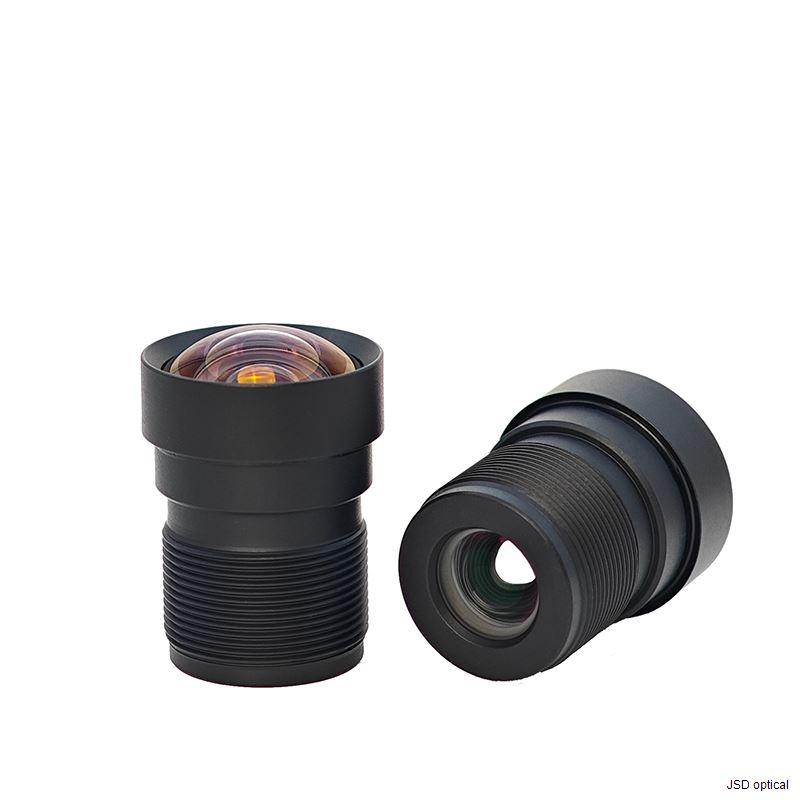

JSD3122

Description

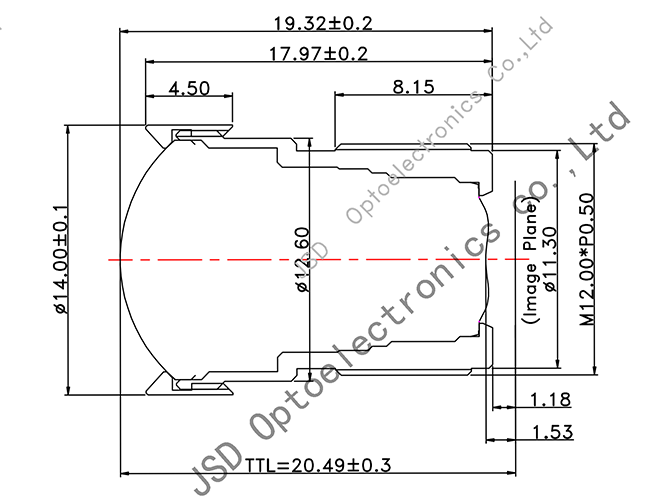

The JSD3122 is a fixed-focus lens featuring a large F2.2 aperture, delivering excellent low-light imaging performance. On a 1/2" image sensor, it achieves a 79° horizontal field of view (HFOV), providing a moderate field of coverage. With a compact design, the lens has a total track length (TTL) of just 20.49mm and incorporates a standard M12 interface for easy integration and installation. Its optical distortion is extremely low (<-1.54%), ensuring accurate scene reproduction and maintaining straight lines at the image edges, which enhances measurement and recognition precision.

Application

Security surveillance (e.g., entrance/exit monitoring, license plate recognition)

Industrial machine vision inspection (e.g., high-precision positioning and dimensional measurement)

Intelligent transportation systems

Consumer electronics (e.g., smart doorbells, AR/VR devices)

Specification
