JSD3925

Description

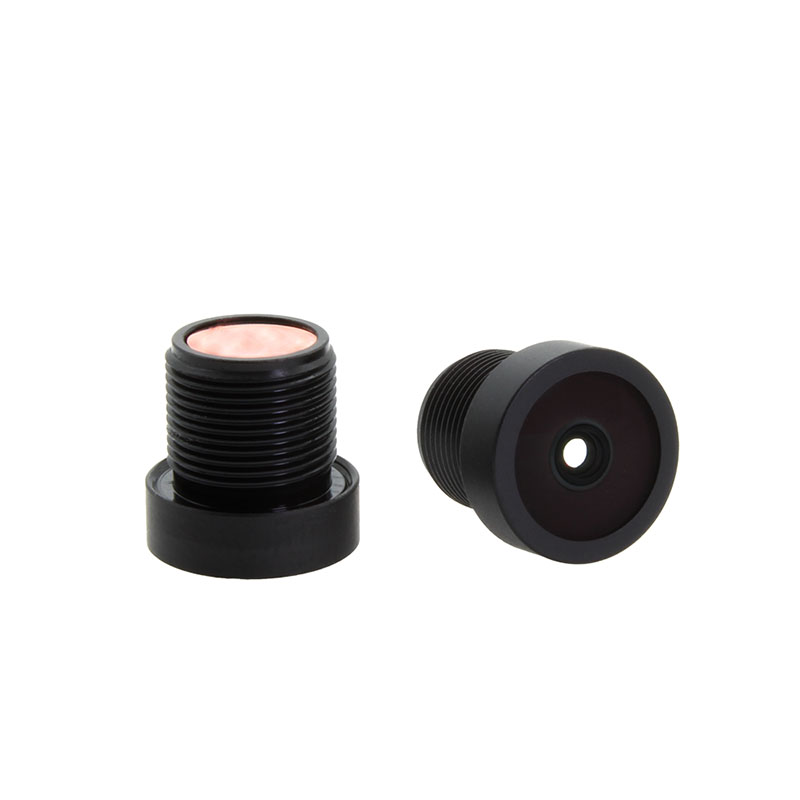

The JSD3925 is an ultra-wide-angle fixed-focus lens with a horizontal field of view (HFOV) of up to 110°, providing an exceptionally broad field of coverage. With a focal length (EFL) of 1.9mm and a maximum aperture of F2.6, it ensures strong low-light imaging performance. Its image circle size of 6.4mm perfectly matches a 1/2-inch image sensor, enabling efficient utilization of the sensor's target area. Additionally, it features a compact design (e.g., M12 interface) for easy integration into space-constrained devices

Application

Smart home monitoring (with comprehensive indoor coverage)

Aerial photography with drones (capturing broad ground imagery)

Automotive assistance systems (e.g., in-vehicle surround-view systems)

Visual perception modules for action cameras and VR/AR devices

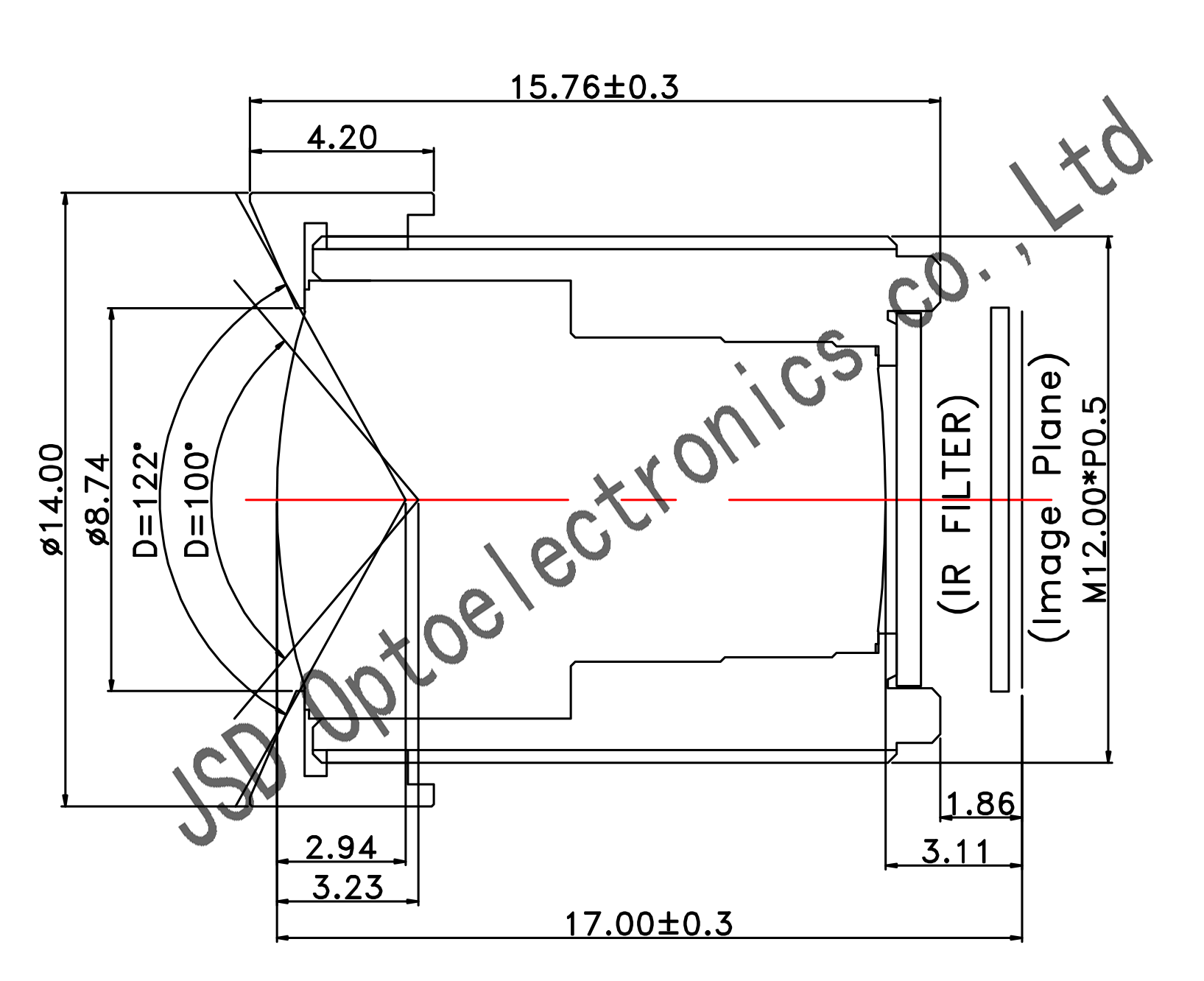

Specification
