JSD5500

Description

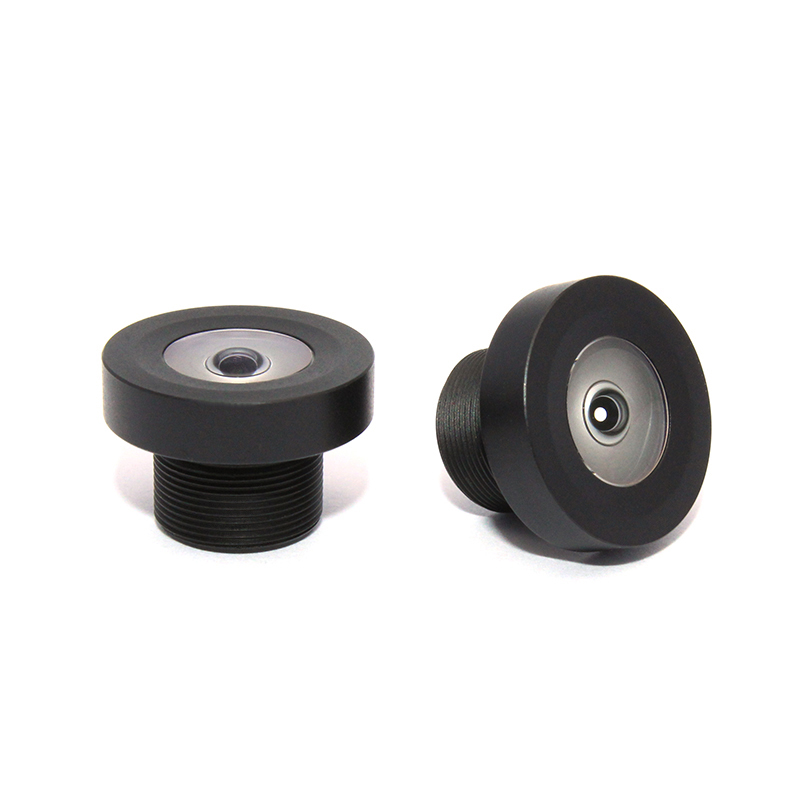

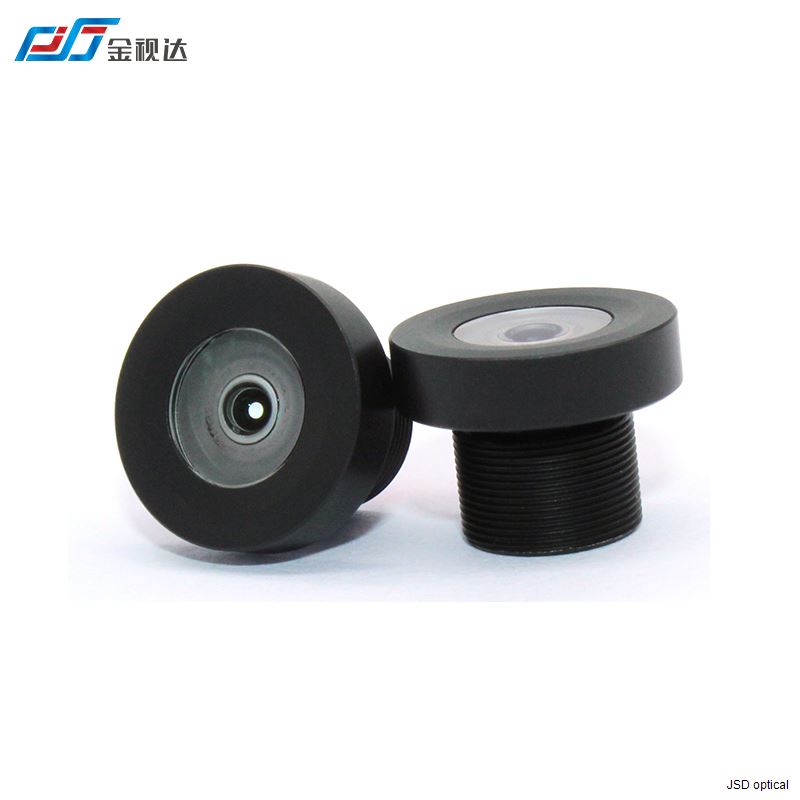

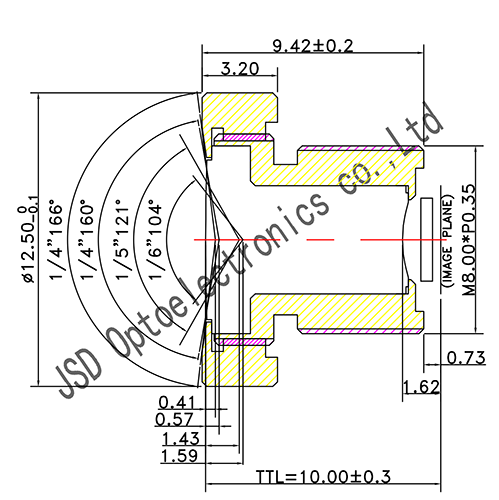

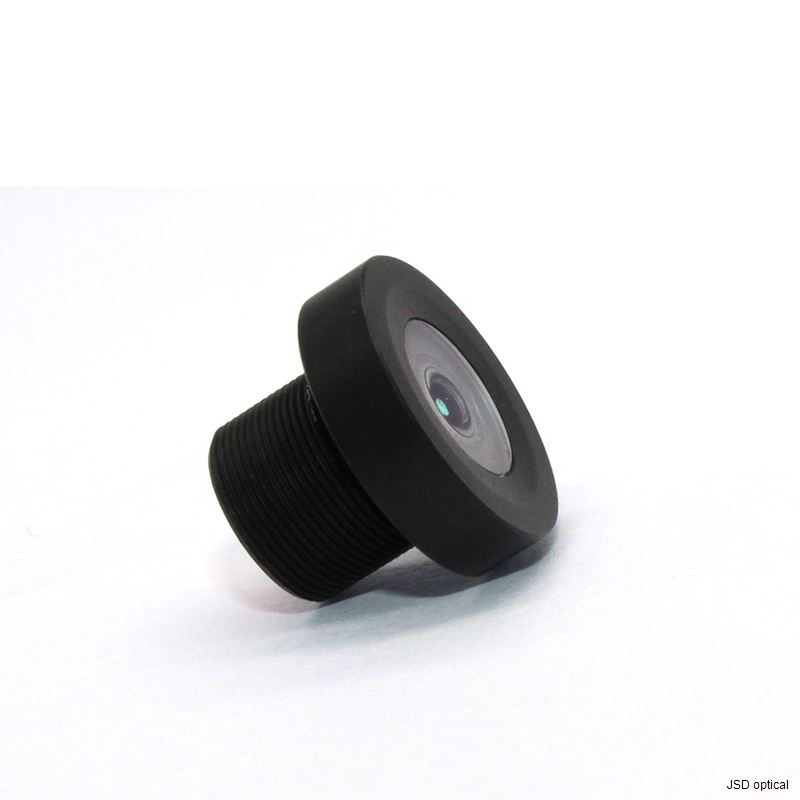

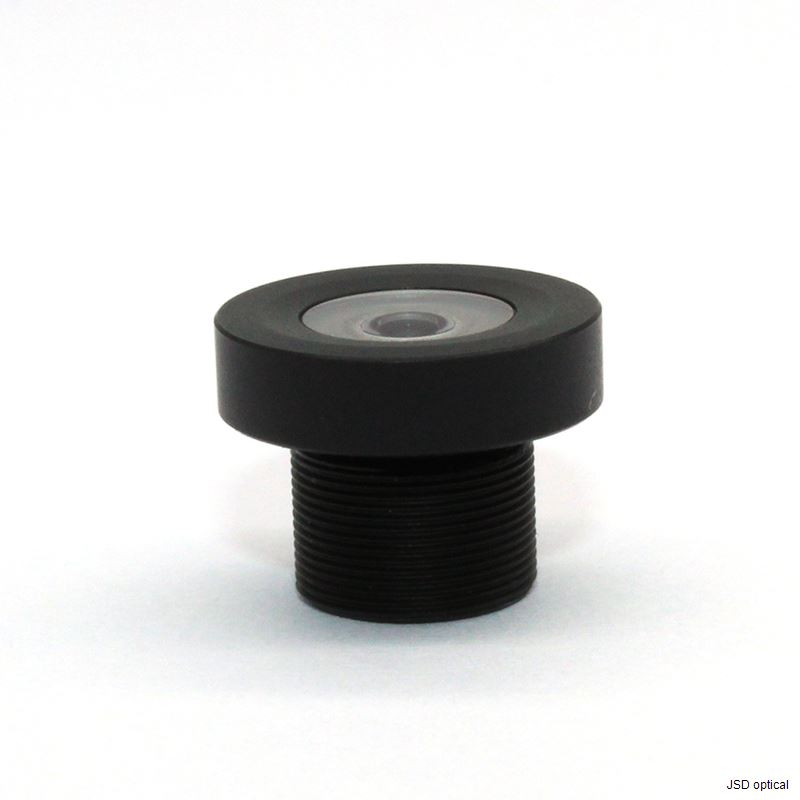

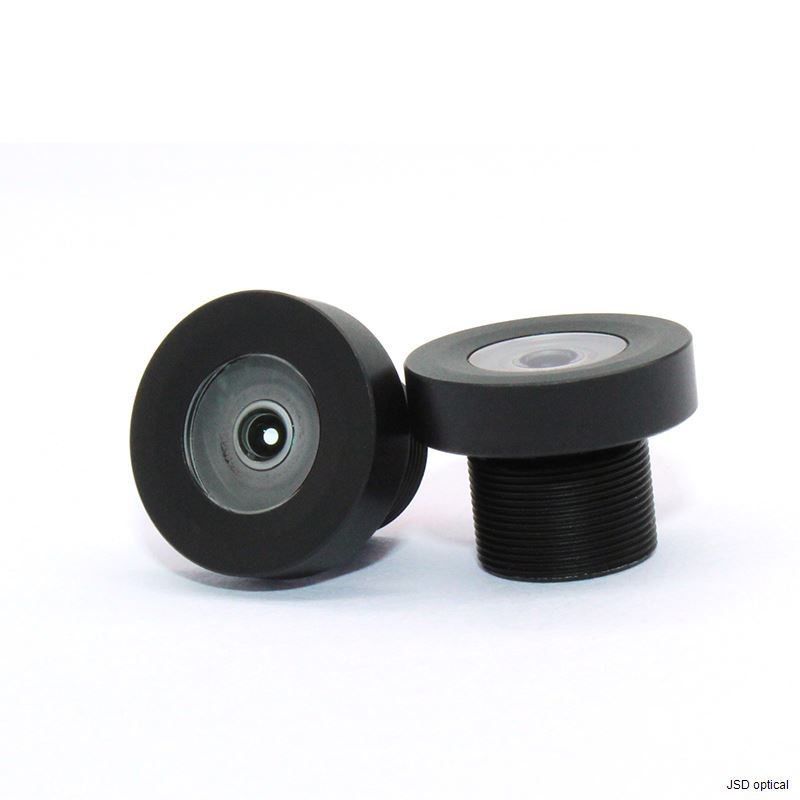

This ultra-wide-angle lens offers a variable field of view from 90° to 166°, covering a range from expansive scenes to near-panoramic coverage. With an extremely compact design, its total track length (TTL) is maintained within a minimal range of 7.43mm to 10.2mm. It supports an IR cut filter switching function for day/night operation, automatically adjusting the filter based on ambient light to ensure accurate color reproduction during the day and clear infrared imaging at night, effectively resolving issues of color shift and defocus in round-the-clock surveillance

. The lens provides multiple threaded interfaces, including M7x0.35, M8x0.5, and M12, enhancing compatibility and facilitating integration into various devices

. It supports multiple image formats and is compatible with 1/4-inch image sensors.

Application

Security & Surveillance: Suitable for elevators, lobbies, warehouses, and other areas requiring large-scale monitoring.

Smart Home Systems: e.g., wide-angle doorbells, panoramic cameras

Automotive Imaging Systems: Used as dash cams or blind spot monitoring probes

Industrial Vision: For inspection equipment with limited installation space

IoT (Internet of Things) Devices: Integrated into various smart hardware to enable visual functionalities.

Specification
