JSD6630

Description

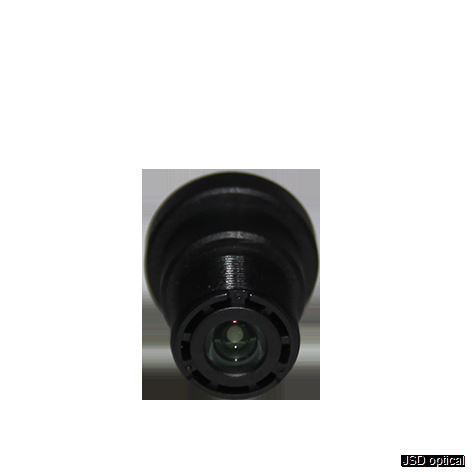

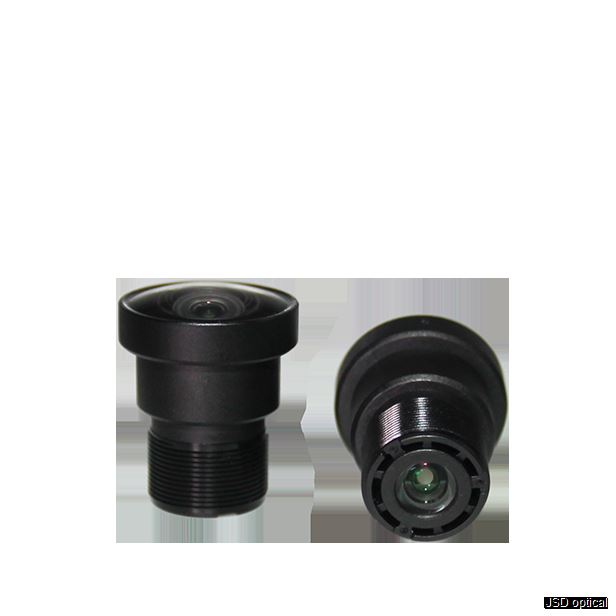

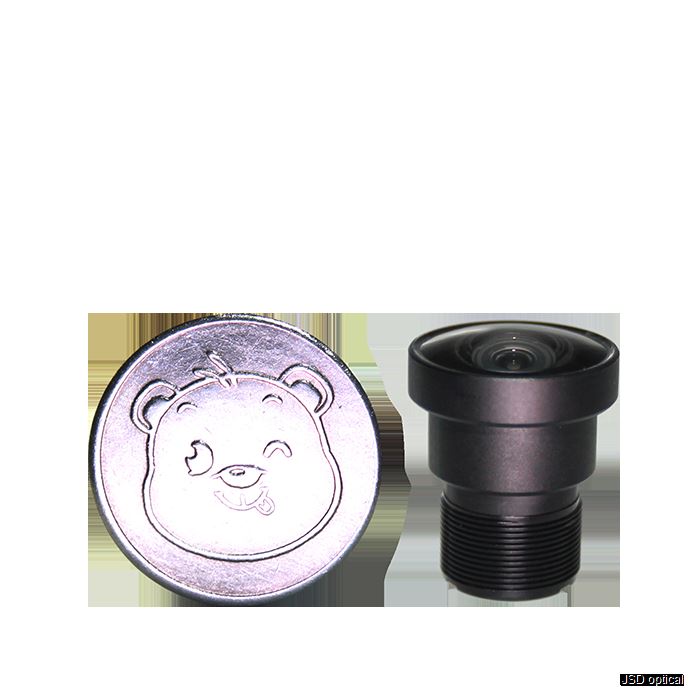

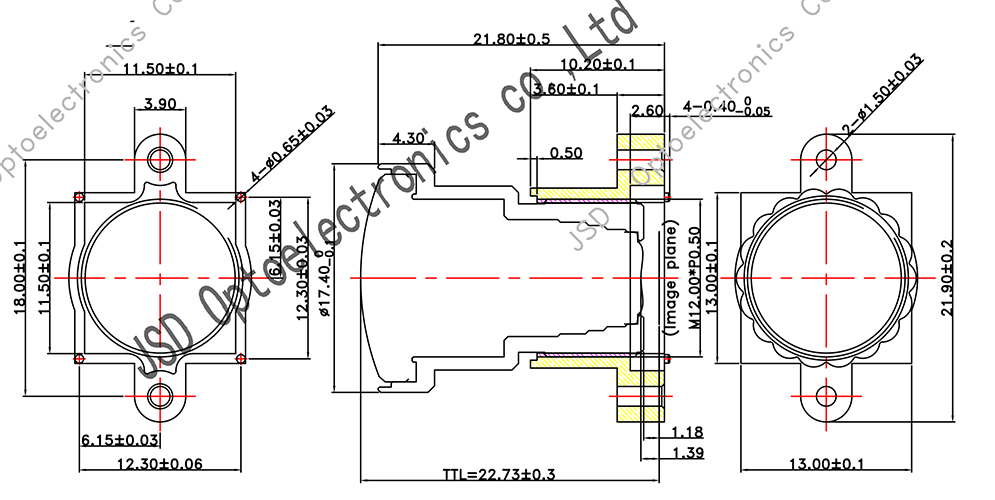

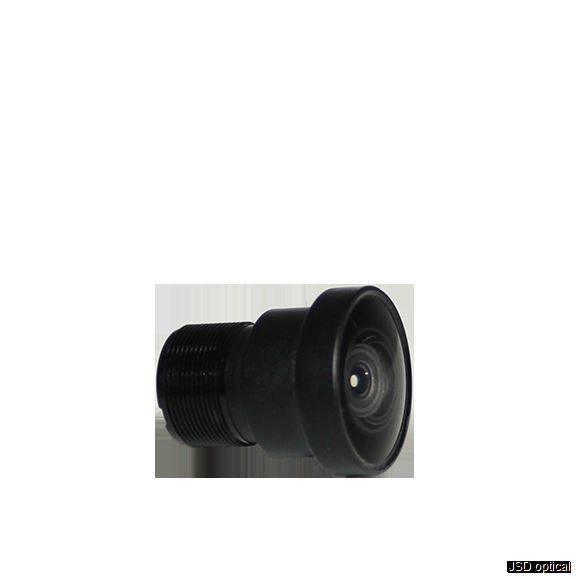

The JSD6630 is a high-performance ultra-wide-angle fixed-focus lens with an optical total length (TTL) of 22.73 mm, compatible with both 1/2.55-inch and 1/2.8-inch image sensors. It features a large F2.6 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments. The lens offers two horizontal field of view (HFOV) options: 125° and 110°, enabling coverage of expansive scenes. However, as commonly seen in ultra-wide-angle designs, it exhibits noticeable distortion (Distortion < -17% / < -13.6%), which can be effectively corrected via software algorithms.

Application

Security & Surveillance: Used for panoramic monitoring, and scenarios requiring large-area coverage such as elevators and lobbies

Smart Home & IoT Devices: e.g., wide-angle smart doorbells, household panoramic cameras, and visual modules for various smart hardware

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view

Automotive Imaging Systems: Served as dash cams or blind spot monitoring probes

Mobile Devices & Drones: Integrated into space-constrained consumer electronics or aerial photography equipment requiring wide-angle capabilities

Specification
