JSD9928

Description

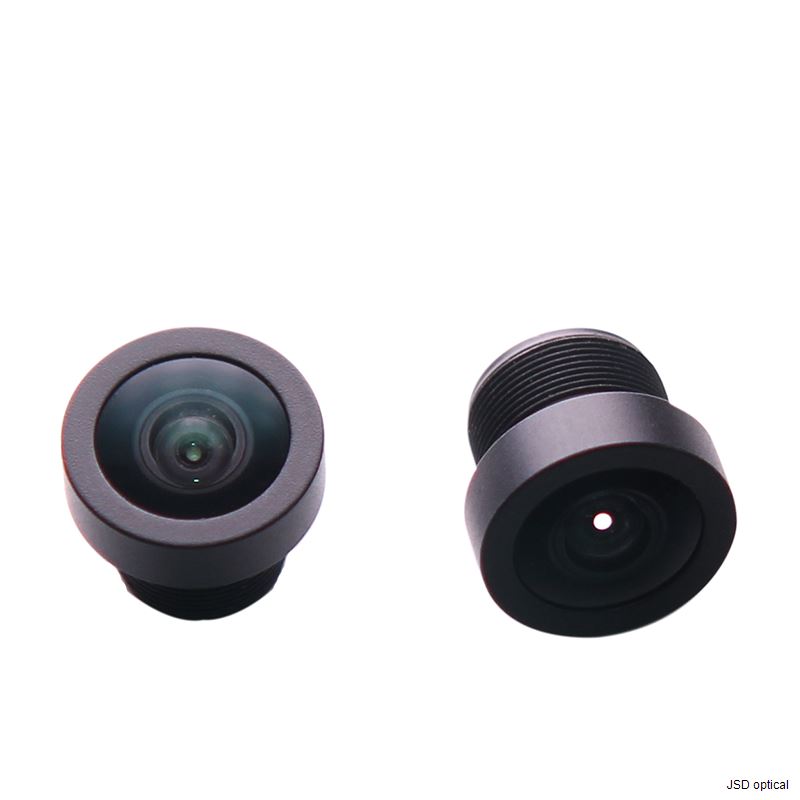

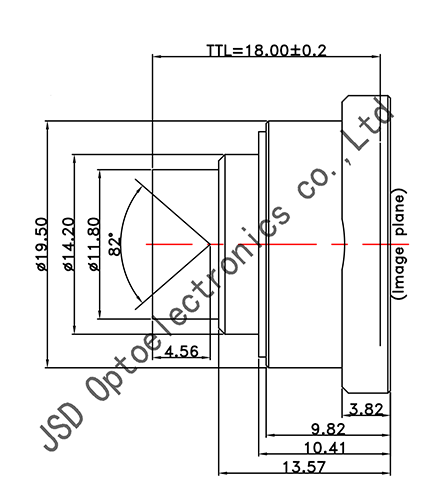

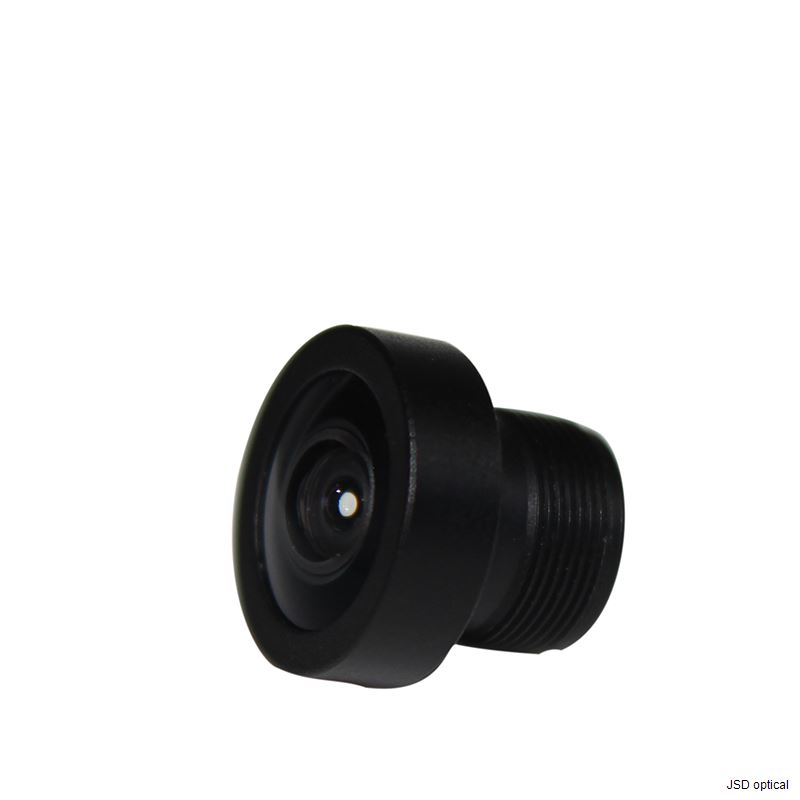

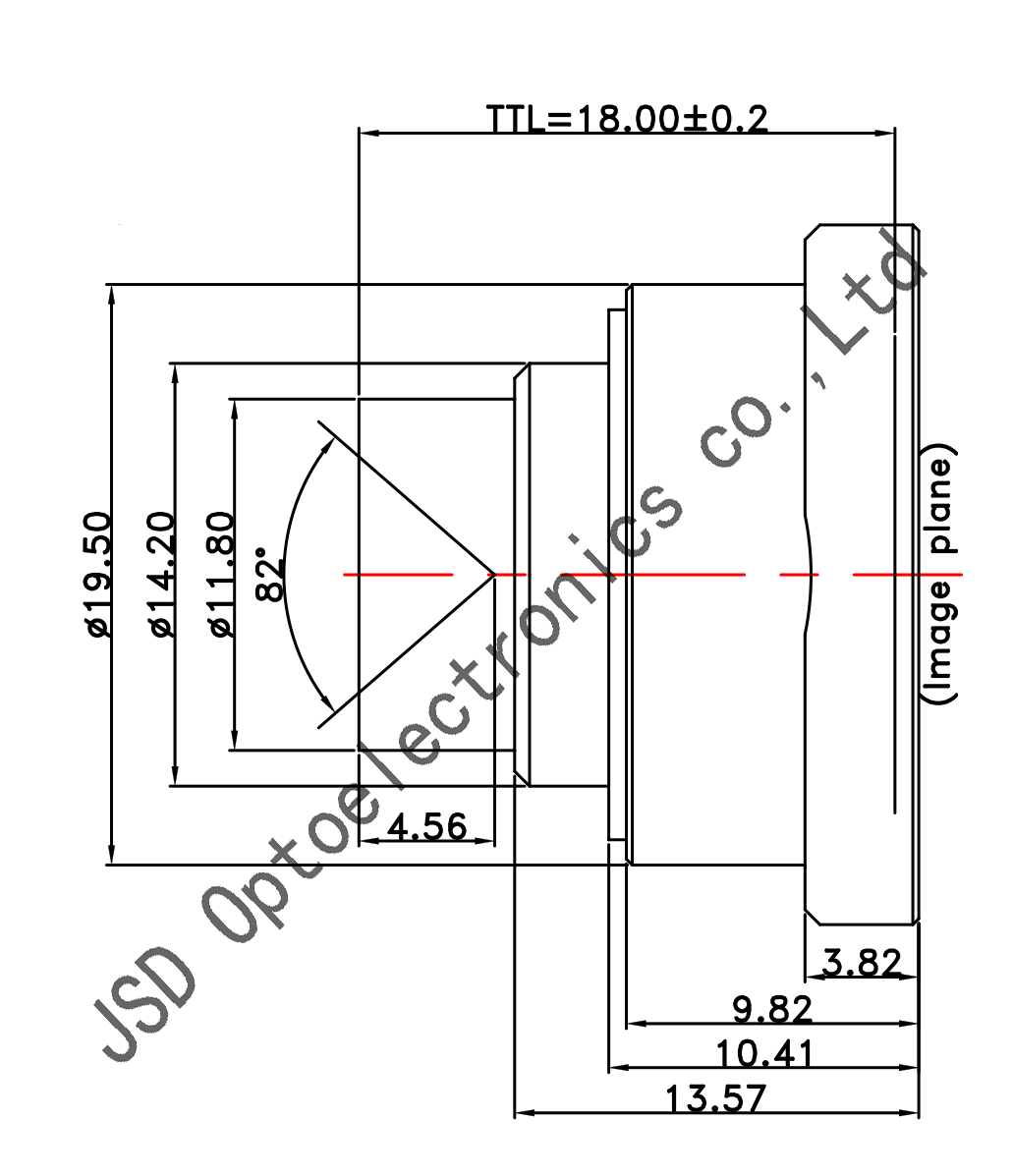

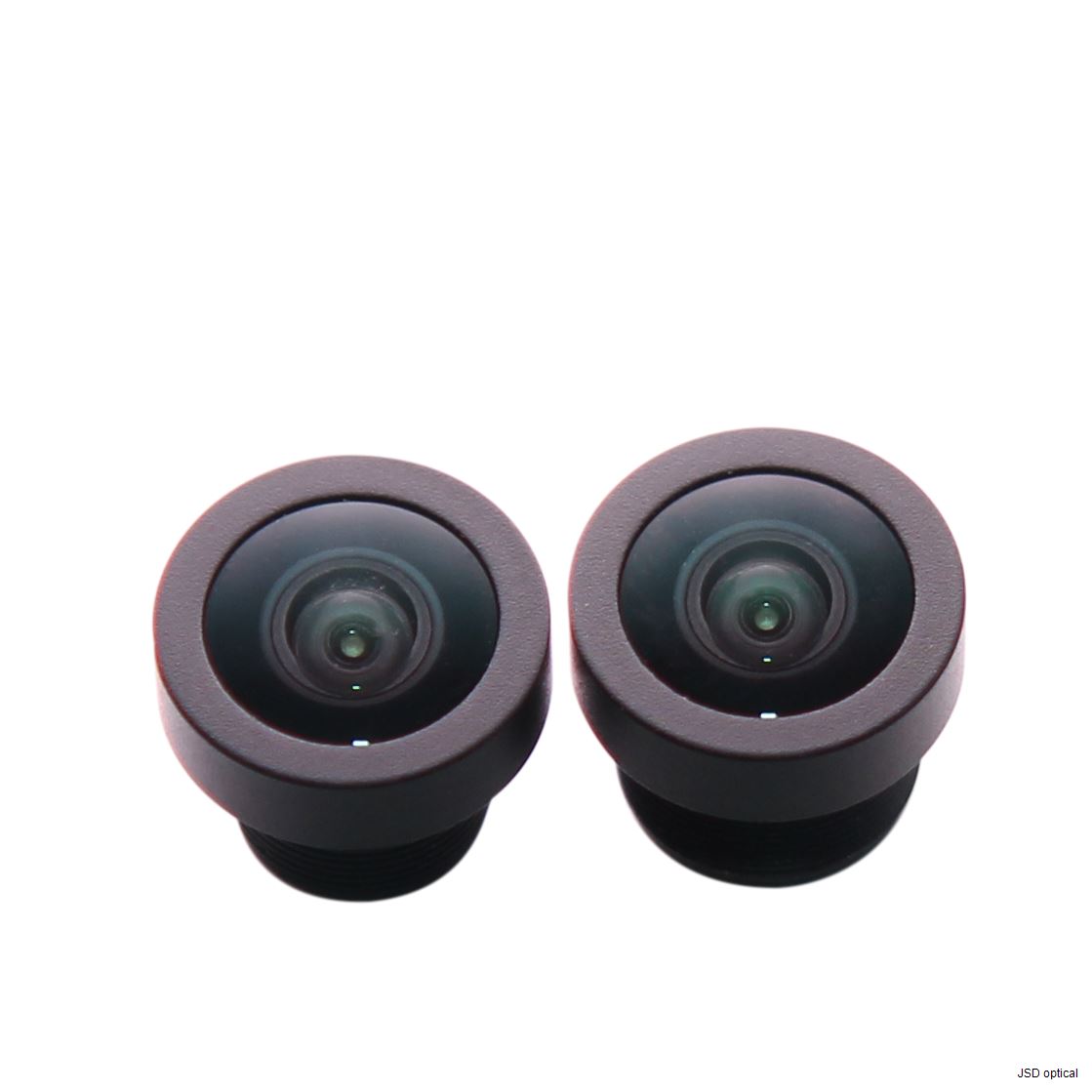

The JSD9928 is a fixed-focus lens with a large F2.8 aperture, delivering an 82° horizontal field of view (HFOV) on a 1/1" image sensor, providing a moderate and balanced field of coverage. With an extremely compact design, it features a total track length (TTL) of just 18mm and incorporates an M18 threaded interface for easy integration and installation. The lens’s key advantage lies in its exceptional optical performance, boasting an extremely low distortion rate (<0.2%), which ensures highly accurate scene reproduction and maintains straight lines at the image edges. This makes it critically important for applications requiring precise measurement

Application

High-end security surveillance (e.g., facial recognition, license plate recognition)

Industrial machine vision (high-precision positioning, dimensional measurement, and product quality inspection)

Intelligent transportation systems

Medical imaging devices

Consumer electronics

Specification
