Telecentric Lens 1.75\" sensor series – <0.05% Distortion for 1.2\" Sensor AOI Systems
Telecentric Lens 1.75\" sensor series
Model：Telecentric Lens 1.75" sensor series –
Img.Circle：Φ30
EFL：0.37
F #：F8-22
Distortion：0.02
WD Range：220
Mount：M42
- Information
- Related Products
Lens Features
Low Distortion
Low distortion ≤ 0.05%, with several models achieving ≤ 0.02%.
M42 Mount
Standard M42 mount for easy integration with industrial imaging systems.
Optical and Mechanical Specification Table
| Model | Img.Circle | Mag. | F# | Distortion(%) | WD (mm) | Conjugate Distance | Mount |
|---|---|---|---|---|---|---|---|
| JSDL037220A | φ30 mm | 0.37× | F8-22 | 0.02 | 220 | 450 | M42 |
| JSDL046220A | φ30 mm | 0.46× | F8-22 | 0.05 | 220 | 440 | M42 |
| JSDL055220A | φ30 mm | 0.55× | F8-22 | 0.05 | 220 | 449 | M42 |
| JSDL068220A | φ30 mm | 0.68× | F8-22 | 0.05 | 220 | 425 | M42 |
| JSDC031250A | φ30 mm | 0.31× | F8-22 | 0.05 | 250 | 582 | M42 |
| JSDC037250A | φ30 mm | 0.37× | F8-22 | 0.05 | 250 | 577 | M42 |
| JSDC046250A | φ30 mm | 0.46× | F9-22 | 0.03 | 250 | 580 | M42 |
| JSDC055250A | φ30 mm | 0.55× | F9-22 | 0.05 | 250 | 455 | M42 |
| JSDC079230A | φ30 mm | 0.79× | F11-22 | 0.03 | 230 | 560 | M42 |
| JSDC037150A | φ30 mm | 0.37× | F8-22 | 0.03 | 150 | 448 | M42 |
| JSDC046150A | φ30 mm | 0.46× | F9-22 | 0.03 | 150 | 440 | M42 |
| JSDC055150A | φ30 mm | 0.55× | F9-22 | 0.03 | 150 | 436 | M42 |
| JSDC068150A | φ30 mm | 0.68× | F10-32 | 0.03 | 150 | 445 | M42 |
| JSDC079150A | φ30 mm | 0.79× | F11-32 | 0.03 | 150 | 448 | M42 |
| JSDC110150A | φ30 mm | 1.1× | F12-44 | 0.03 | 150 | 444 | M42 |
| JSDC150110W | φ30 mm | 1.5× | F12-64 | 0.02 | 110 | 357 | M42 |
| JSDC200110W | φ30 mm | 2.0× | F13-64 | 0.02 | 110 | 395 | M42 |

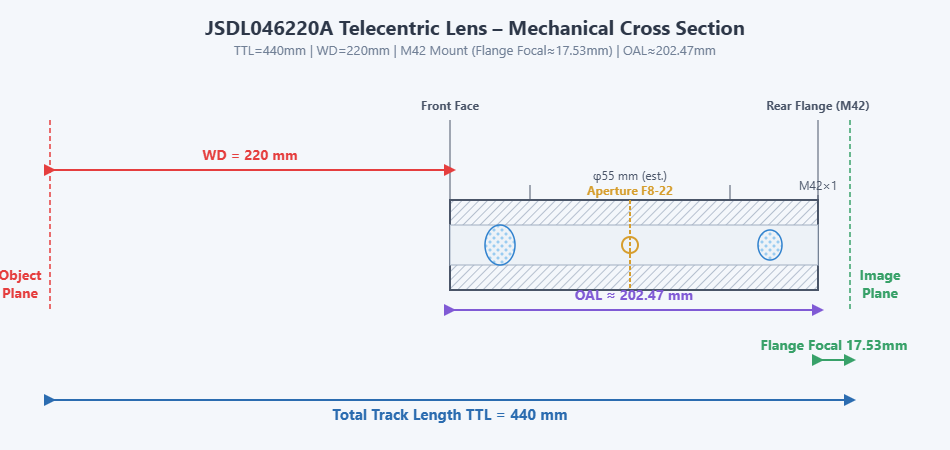

Mechanical Layout
Frequently Asked Questions
What is the image circle of this series?
The 1.75" series features an image circle of φ30 mm, compatible with 1.75" format sensors.
What mount type do these lenses use?
All models in this series use a standard M42 mount for easy integration.
What is the magnification range available?
The series offers a magnification range from 0.31× to 2.0×, covering a wide variety of imaging needs.
Here are the detailed specifications for the 1.75" series (image circle φ30 mm, M42 mount):
Key specs summary:
- Image circle: φ30 mm (1.75")
- Magnification range: 0.31× ~ 2.0×
- Mount: M42
- Working distance: 110 mm / 150 mm / 220 mm / 230 mm / 250 mm
- Aperture: Adjustable iris (varies by model)
- Distortion: Low distortion ≤ 0.05%, with several models achieving ≤ 0.02%
