65MP Telecentric Lens - M58 φ38mm Low Distortion & Coaxial Illumination
65MP Telecentric Lens
Model：65 million Telecentric Lens
Img.Circle：φ38
EFL：0.64
F #：F8-22
Distortion：0.05
WD Range：130
Mount：M58
- Information
- Related Products
Lens Features
65MP Resolution
Supports φ38 mm image circle for 65 MP large-format camera systems.
Coaxial Illumination
JSDC prefix design optimized for high-reflection surface defect inspection.
Optical and Mechanical Specification Table
| Model | Img.Circle | Mag. | F# | Distortion(%) | WD (mm) | Conjugate Distance | Mount |
|---|---|---|---|---|---|---|---|
| JSDC064130A1 | φ38 | 0.64× | F8–22 | 0.05 | 130 | 400 | M58 |
| JSDC091130A1 | φ38 | 0.91× | F8–22 | 0.02 | 130 | 393 | M58 |

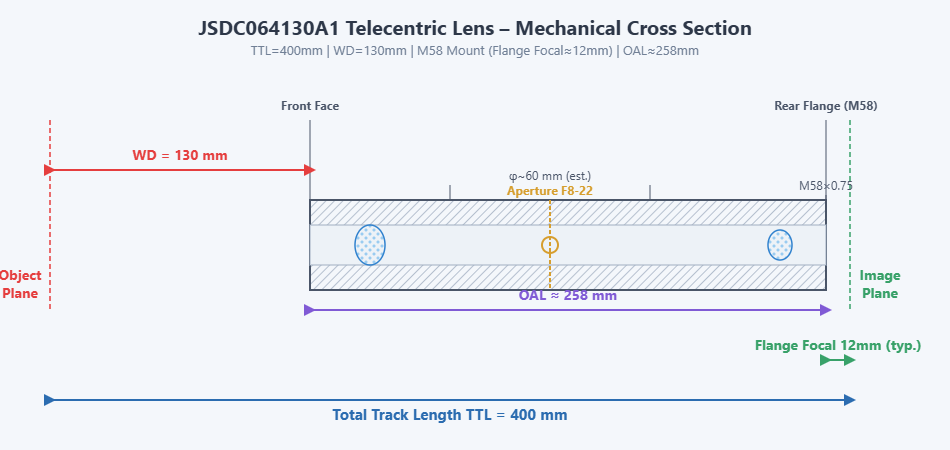

Mechanical Layout
Frequently Asked Questions
What is the image circle of the 65MP Series lenses?
Both models feature a φ38 mm image circle, designed to support 65 MP large-format industrial cameras for high-resolution imaging applications.
What type of illumination do these lenses support?
Both models are coaxial illumination type (JSDC prefix), making them suitable for inspecting high-reflection surfaces such as semiconductors and display panels.
What are the typical applications for the 65MP Series?
Typical applications include semiconductor inspection, LCD/OLED panel defect detection, and high-precision macro imaging where large-format resolution and low distortion are critical.
The 65MP Series telecentric lenses are engineered for demanding high-resolution machine vision applications. Both models — JSDC064130A1 and JSDC091130A1 — are designed with a φ38 mm image circle and M58 thread mount, ensuring stable, precise connection for 65 MP large-format camera systems.
Featuring the coaxial illumination (JSDC) design, these lenses deliver excellent performance for high-reflection surface inspection, including semiconductor inspection, LCD/OLED panel defect detection, and high-precision macro imaging. With magnification options of 0.64× and 0.91×, an aperture range of F8–F22, and ultra-low distortion of 0.02%–0.05%, the 65MP Series delivers outstanding telecentric performance and imaging accuracy at a working distance of 130 mm.
