JSD1102

Description

The JSD1102 is a fixed-focus lens specifically designed for high-precision imaging requirements. With a compact structure and a total track length (TTL) of 16.5 mm, it is compatible with a 1/2.5-inch image sensor. The lens features a small aperture of F11.08, which provides an extremely large depth of field, ensuring clear imaging of both near and distant objects. This makes it particularly suitable for scenarios demanding high depth of field. Its 28° horizontal field of view (HFOV) offers a narrower perspective, resulting in higher spatial resolution and facilitating the observation of distant details. The lens exhibits minimal distortion (<0.4%), ensuring high geometric fidelity of images and reducing the need for post-processing correction. It is equipped with an M8 threaded interface for easy installation and integration

Application

Industrial Inspection and Machine Vision: Used for dimensional measurement of precision parts, surface defect inspection, positioning, etc.

Security and Surveillance: Suitable for scenarios requiring long-distance detailed identification, such as license plate recognition (LPR) and facial recognition (at specific focal lengths).

Measurement and Surveying Systems: Integrated into various measuring instruments for high-precision non-contact measurement.

Intelligent Transportation Systems (ITS): Used for capturing clear images in traffic flow monitoring and violation capture.

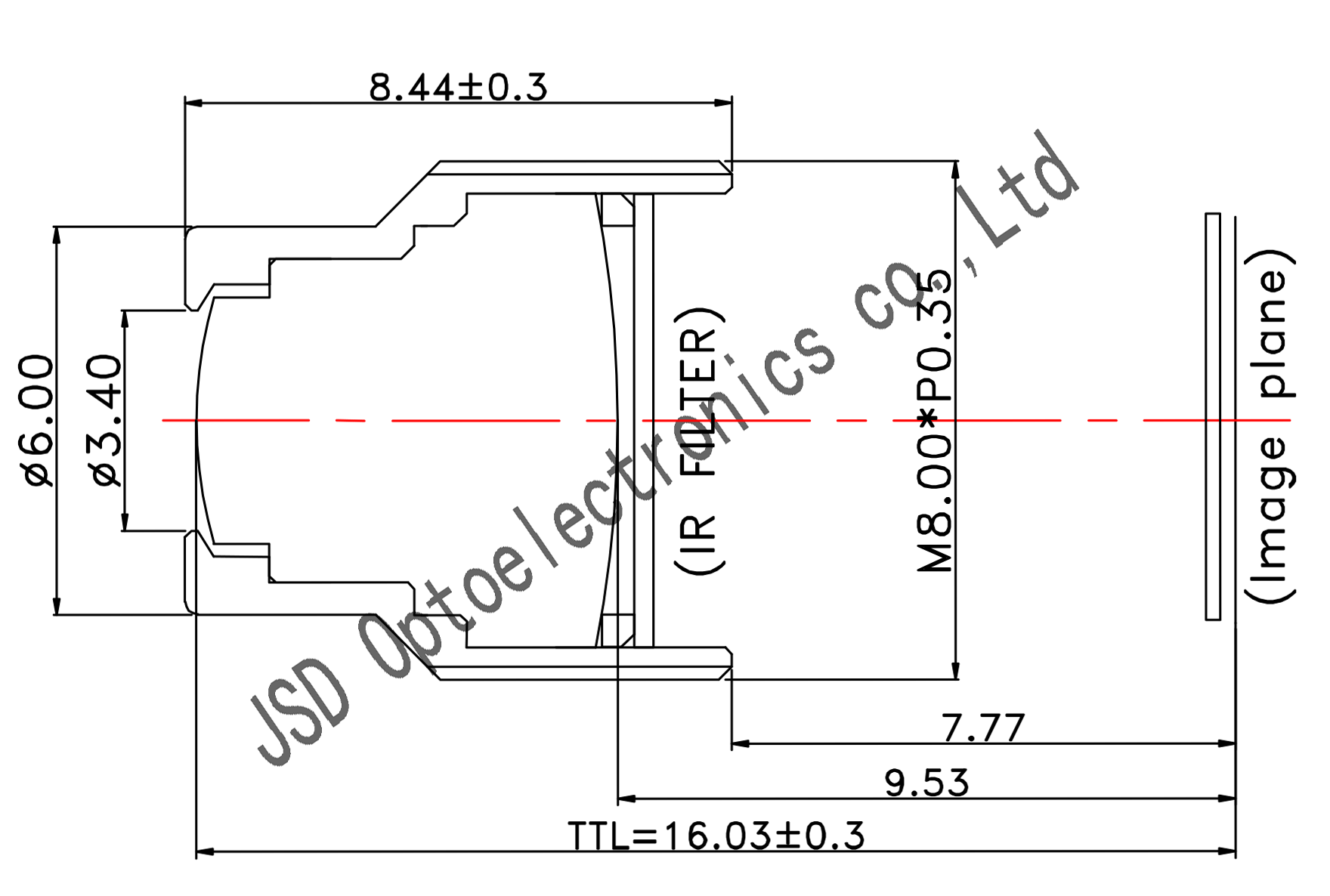

Specification
