JSD3526

Description

The JSD3526 is a high-performance fixed-focus lens with a maximum aperture of F2.6, ensuring exceptional imaging performance and sufficient light intake even in low-light environments. It features an 83° horizontal field of view (HFOV), providing a balanced field of coverage that combines both observation range and detail capture capability. With an ultra-compact design, the lens has a total track length (TTL) of just 15.5mm and incorporates a standard M12 threaded interface, facilitating integration into space-constrained devices. Its optical performance is outstanding, boasting extremely low distortion (<-0.44%), which enables highly accurate scene reproduction and ensures straight lines at the image edges remain perfectly horizontal and vertical—critical for applications requiring precise measurements. Designed specifically for 1/2.5-inch image sensors, it efficiently utilizes the sensor’s target area

Application

High-end security surveillance (e.g., facial recognition, vehicle recognition)

Industrial machine vision (e.g., high-precision product inspection, positioning, and dimensional measurement)

Intelligent transportation systems (e.g., in-vehicle cameras, electronic police systems)

Consumer electronics (e.g., smart doorbells, AR/VR devices)

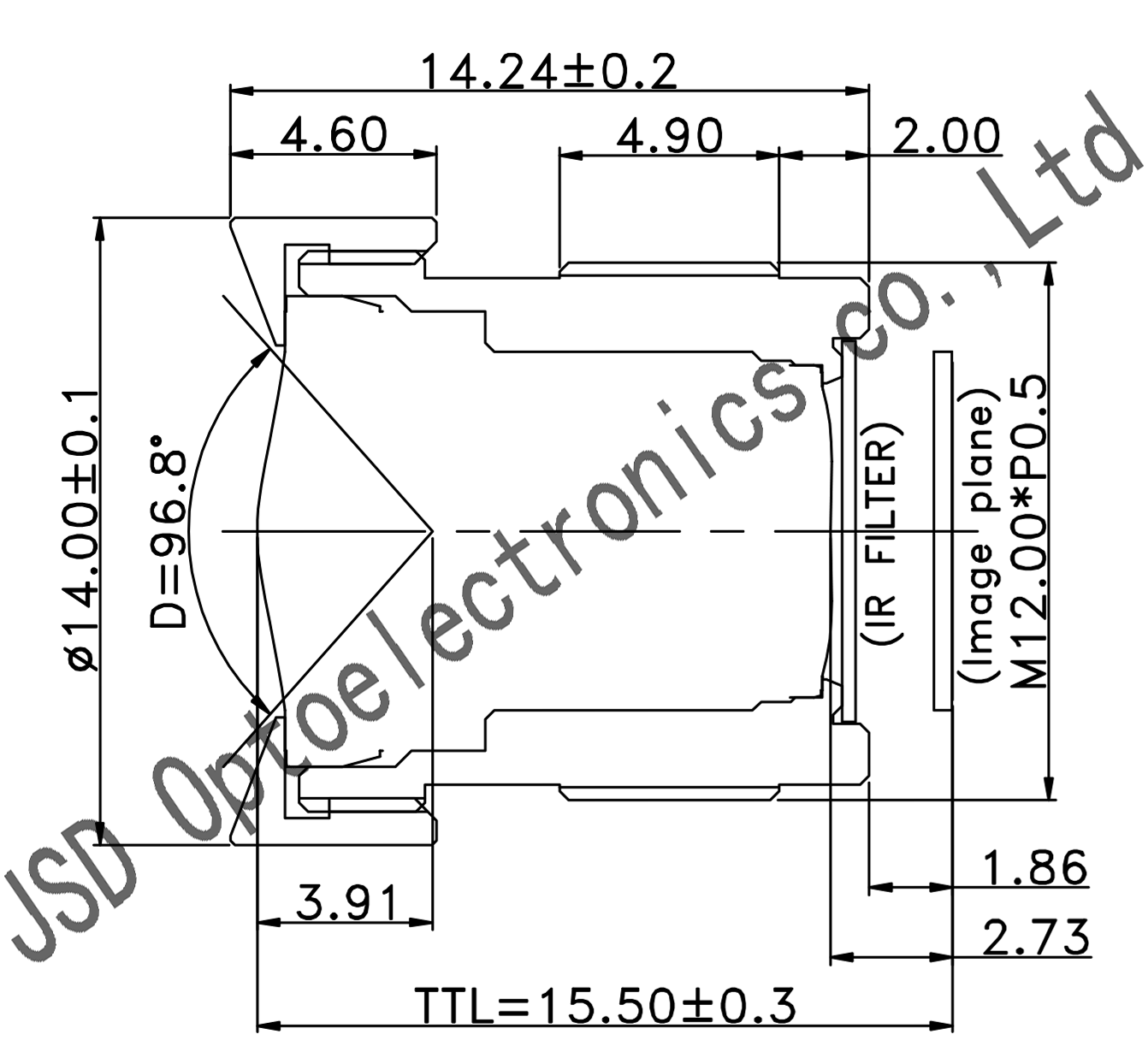

Specification
