JSD1529

Description

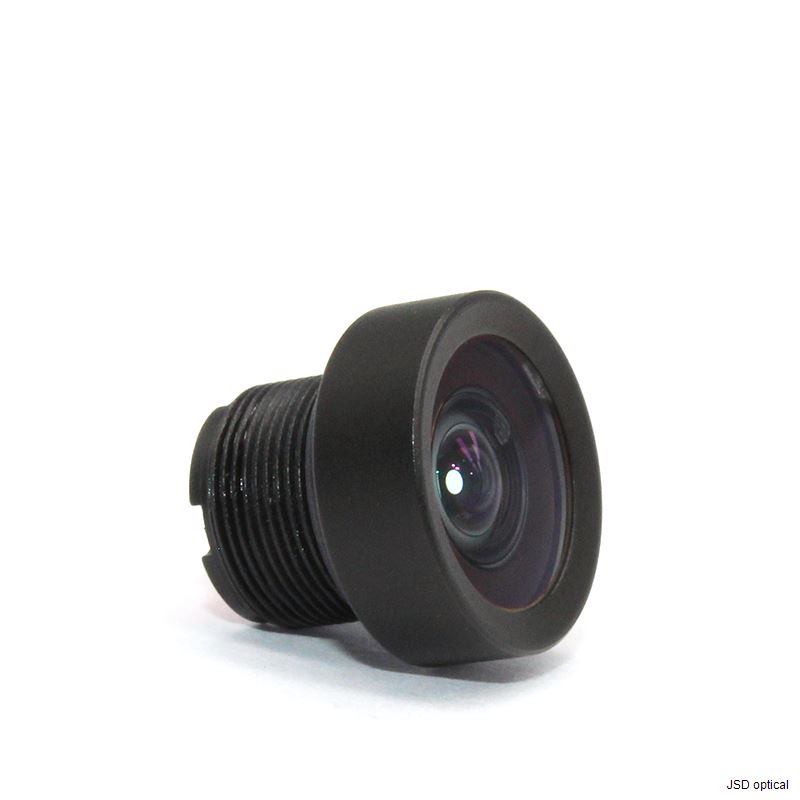

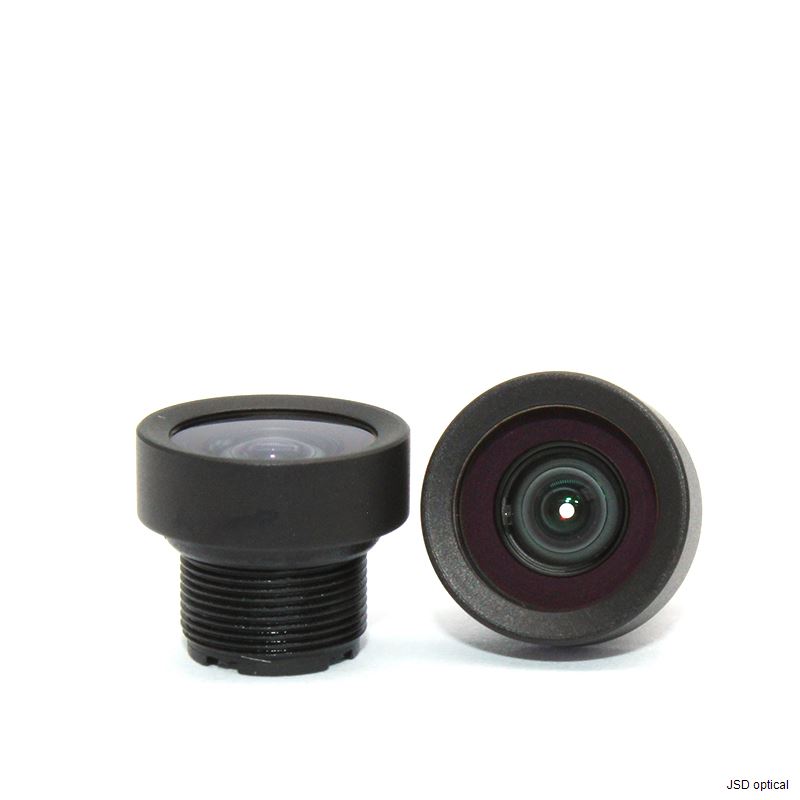

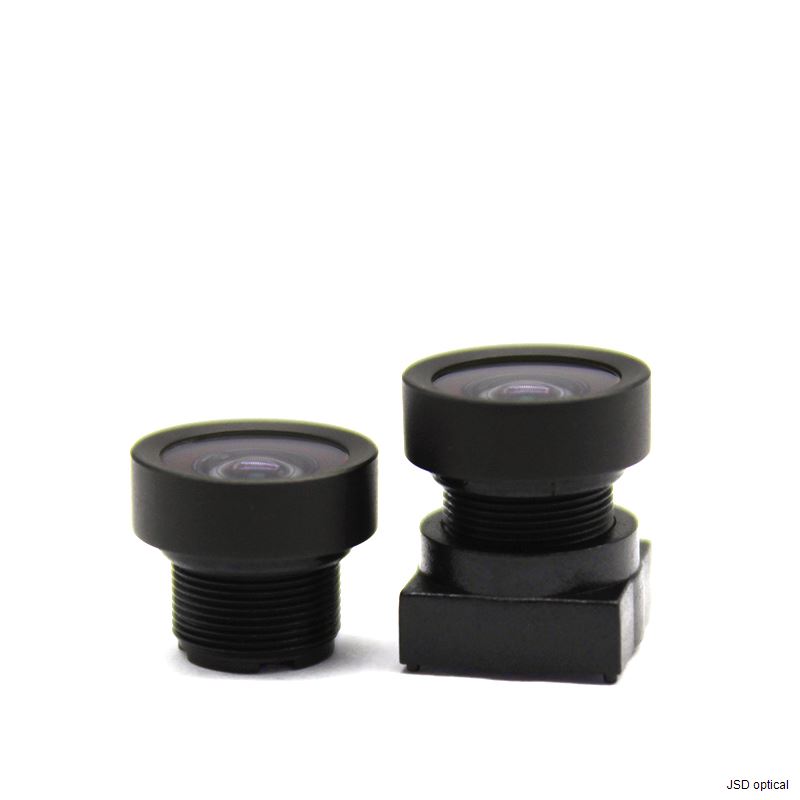

The industrial lens model JSD1529 is an ultra-wide-angle fixed-focus lens. Its core feature is an exceptionally wide 138° horizontal field of view (HFOV), providing extensive coverage. With an F2.0 large aperture design, it ensures good light intake even in low-light environments. The lens has an effective focal length (EFL) of 1.9mm and employs a 5-element (5P) optical structure, which helps balance aberrations under complex optical conditions. As an ultra-wide-angle lens, it exhibits relatively significant distortion (<-26%), typically manifested as barrel distortion, but this can be effectively corrected using algorithms in practical applications. This lens is primarily designed for embedded vision applications that require extensive field of view coverage and have potential constraints on installation size

Application

Security Monitoring: Its extremely wide field of view is particularly suitable for scenarios requiring coverage of very large areas, such as warehouses, parking lots, and traffic intersections. A single device can achieve extensive, uninterrupted, dead-zone-free surveillance

Industrial Inspection: On production lines, it can be used for the overview inspection of large products or items requiring simultaneous monitoring of multiple workstations, performing tasks such as appearance overview, presence inspection, or process monitoring

Smart Terminal and IoT Devices: The ultra-compact size and M8 interface make it an ideal choice for consumer and commercial devices like smart home doorbells, video conference cameras, and drone aerial photography, enabling an extremely wide shooting angle within a very small form factor

 Specification
