JSD1535

Description

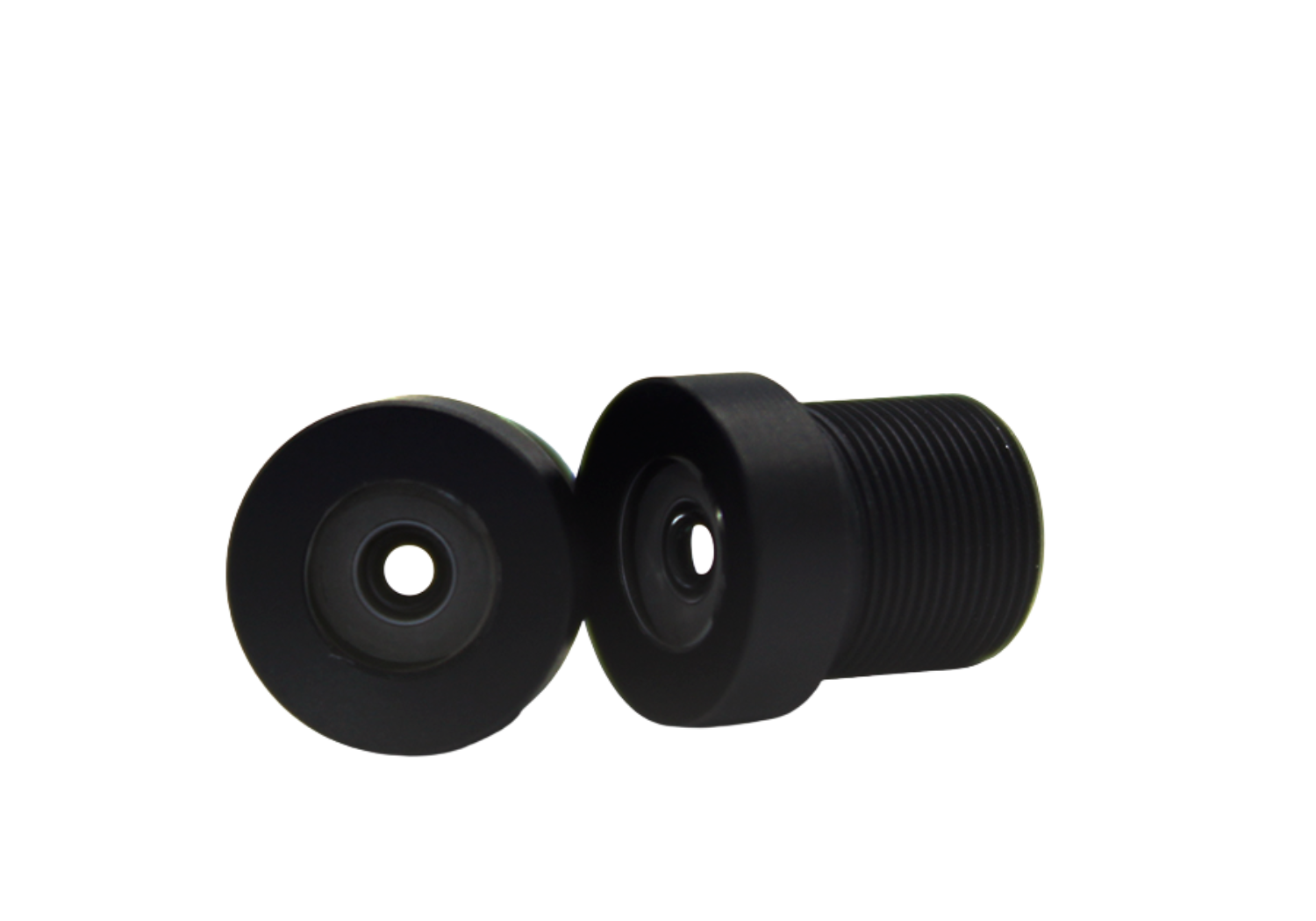

The JSD1535 is an ultra-wide-angle fixed-focus lens with a focal length of approximately 1.69mm and a large F2.5 aperture, ensuring excellent light transmission in low-light environments and maintaining optimal image brightness. It features a wide horizontal field of view (HFOV) ranging from 126° to 116°, enabling the capture of exceptionally broad scenes. With an optical total length (TTL) of merely 11.52mm, the lens boasts an extremely compact design and incorporates a standard M12 interface for easy integration and installation. It supports a 1/2.9-inch image sensor and controls optical distortion within -23.95%, a common characteristic for ultra-wide-angle lenses, making it suitable for applications where a wide field of view takes precedence over absolute precision

Application

Security and Surveillance (e.g., Panoramic Fisheye Monitoring)

Automotive 360° Surround-View System

Aerial Photography (Drone Photography)

Visual Capture Module for Immersive Experience Devices

Specification
