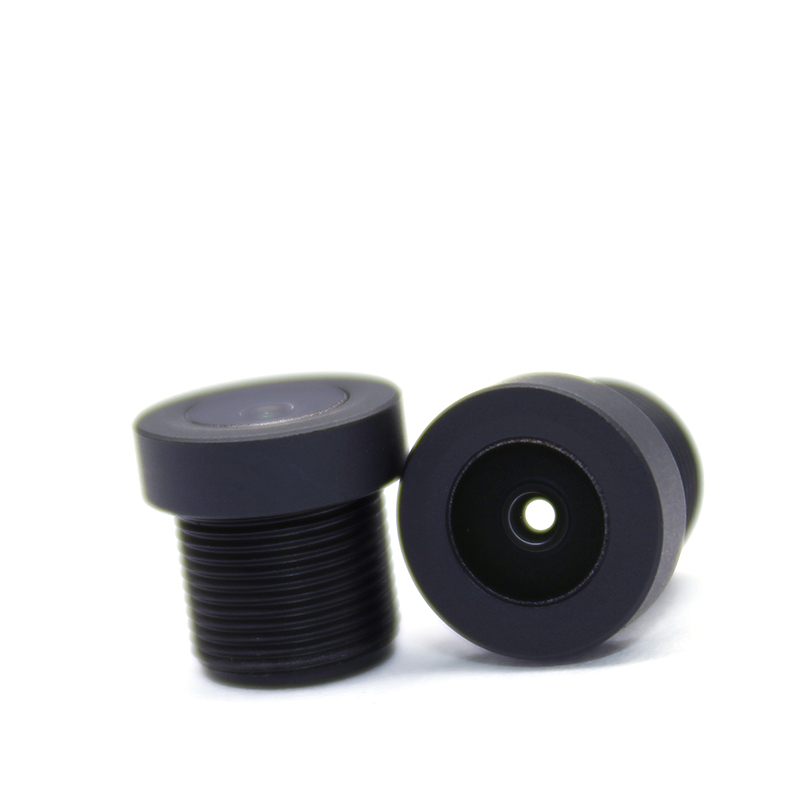

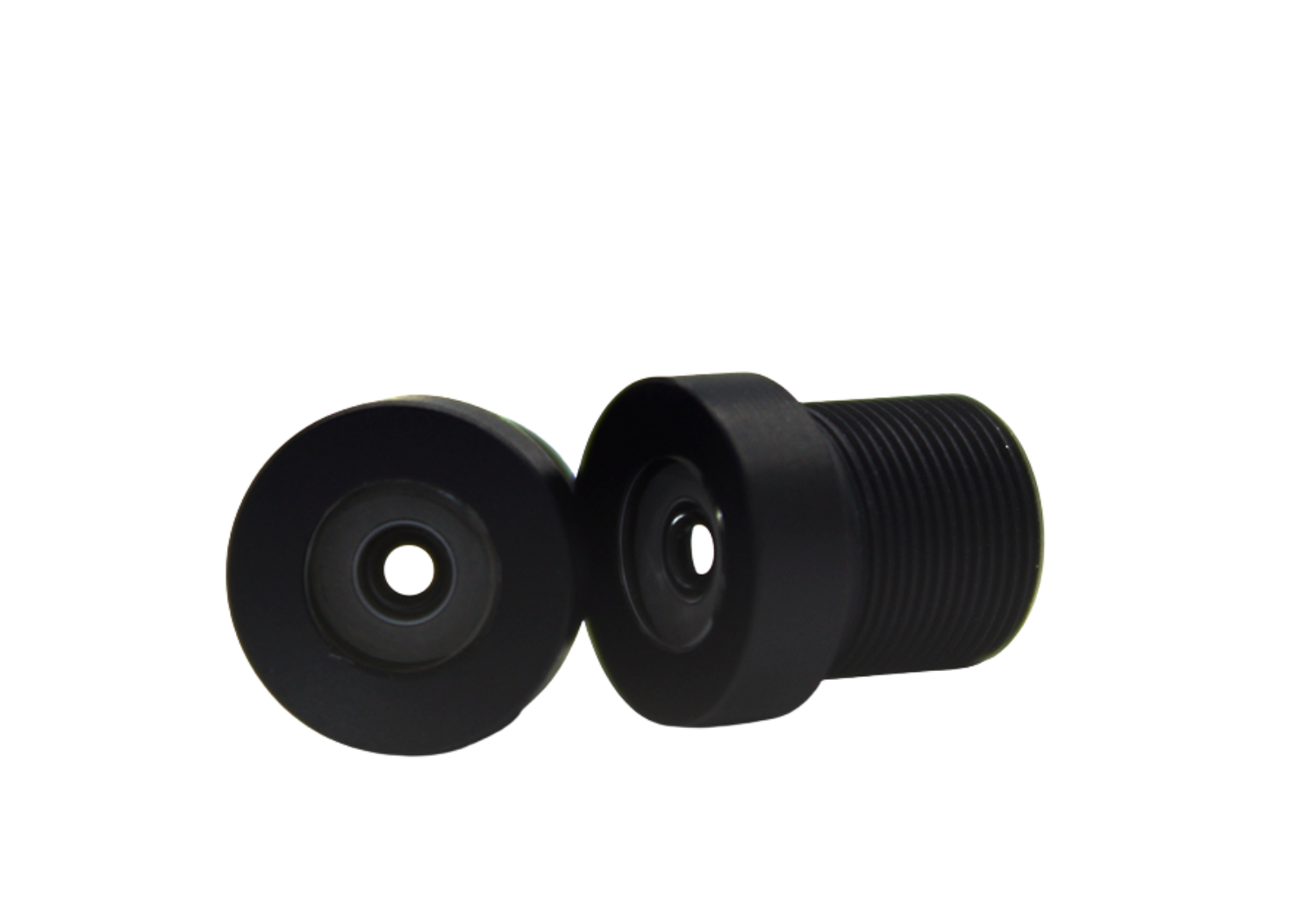

JSD7524

Description

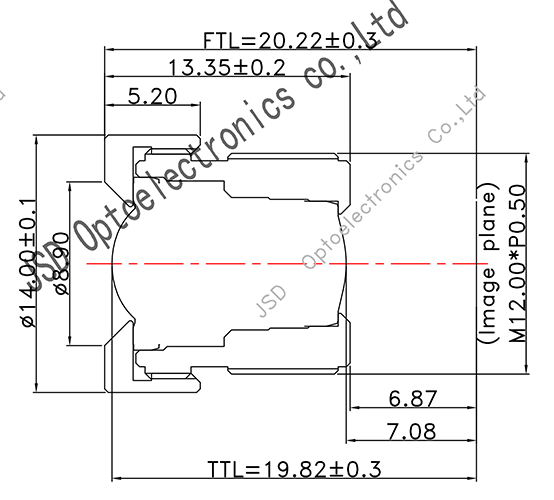

The JSD7524 is a medium-focal-length fixed-focus lens with a compact structure and a total track length (TTL) of 19.82 mm, compatible with 1/2.7-inch and 1/2.8-inch image sensors. It offers a horizontal field of view (HFOV) of 41°, which provides a relatively narrow perspective, making it more suitable for observing local details at medium to long distances. The lens exhibits excellent distortion control (Dis: 0.78% / < -0.67%), ensuring exceptional geometric fidelity in images and accurate reproduction of the subject's shape. This makes it highly suitable for scenarios requiring precise measurement. Equipped with a standard M12 threaded interface, it offers strong compatibility and facilitates easy installation and integration with various industrial cameras.

Application

Industrial Inspection and Machine Vision: Used for dimensional measurement of precision parts, surface defect inspection, positioning, and other links with extremely high requirements for image authenticity.

Security and Surveillance: Suitable for monitoring long and narrow areas such as corridors and exits, or for medium- to long-distance license plate and facial recognition (with corresponding focal lengths).

Intelligent Transportation Systems (ITS): Integrated into road surveillance systems to capture details such as lane conditions and vehicle characteristics.

Document Scanning and High-Precision Imaging: Used in scanners or other equipment requiring low distortion and high fidelity.

Specification
