JSD3012

Description

The JSD3012 is a wide-angle fixed-focus lens with a total track length (TTL) of 23.8 mm, compatible with 1/2.7-inch image sensors. It features an F2.4 aperture, ensuring sufficient light intake under various lighting conditions. With a horizontal field of view (HFOV) of 100.8°, it covers a broad range of scenes. However, it exhibits noticeable barrel distortion (Distortion < -15.5%), which is common in wide-angle designs and can be corrected via software algorithms. The lens is equipped with a standard M12 threaded interface for easy installation and integration.

Application

Security & Surveillance: Used for indoor and outdoor monitoring scenarios requiring large-area coverage, such as lobbies and warehouses.

Smart Home Devices: e.g., wide-angle smart doorbells, home security cameras.

Industrial Inspection & Machine Vision: Suitable for positioning or preliminary inspection scenarios demanding a wide field of view.

Automotive Imaging Systems: Serving as dash cams or visual sensors for assisted driving.

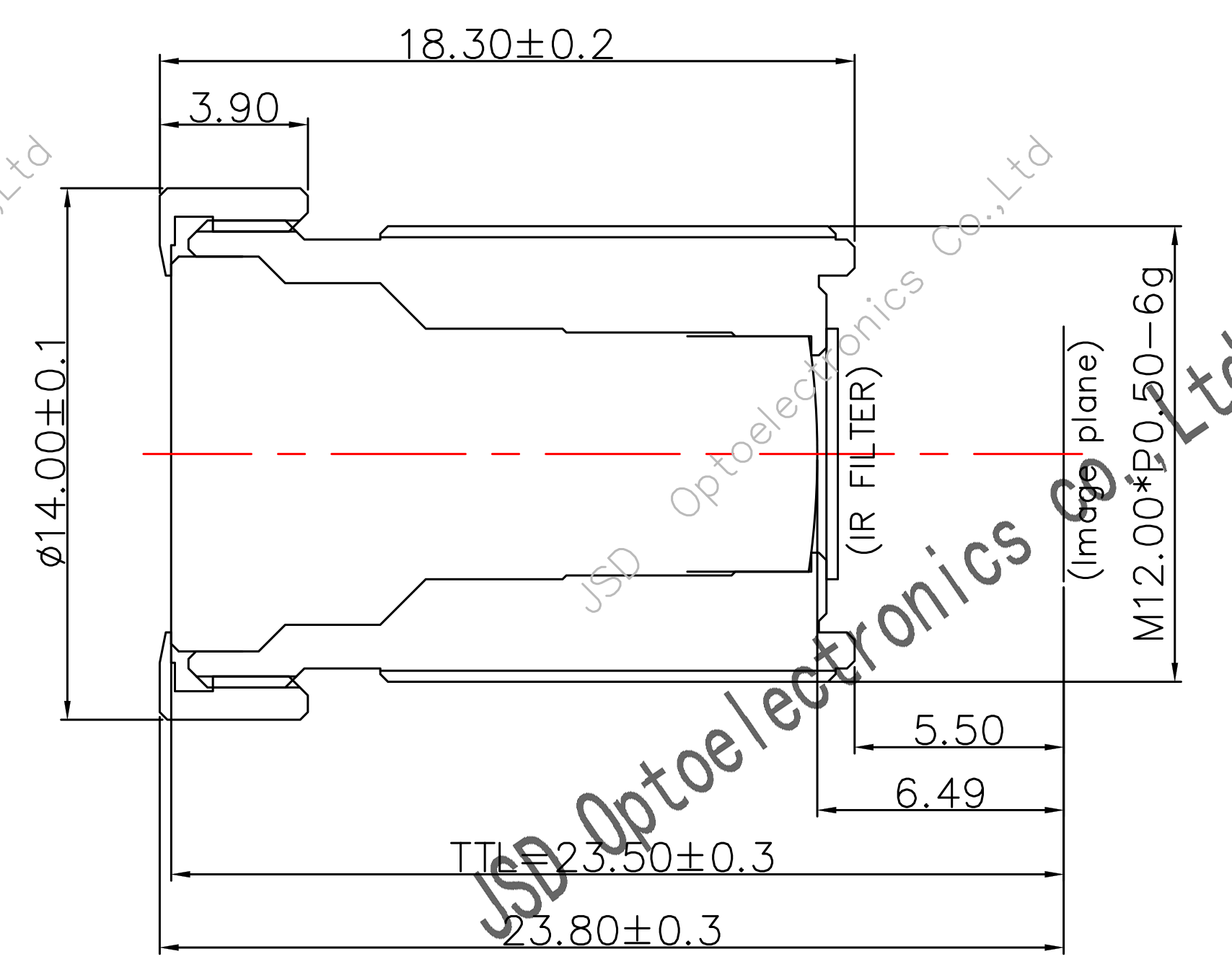

Specification
