JSD3516

Description

The JSD3516 is a high-performance fixed-focal-length lens constructed with an all-glass optical design and an aluminum external housing. It features a total track length (TTL) of 22.46 mm. With a large F1.6 aperture, it delivers exceptional low-light imaging capability, ensuring bright and clear image capture even in dim environments, along with excellent background blur (bokeh) effects. Its 84° horizontal field of view (HFOV) provides a moderate wide angle, balancing scene coverage and distortion control. The all-glass lens elements ensure outstanding optical clarity, refractive performance, and color accuracy, while the aluminum housing offers high rigidity, wear resistance, and excellent thermal stability, effectively resisting thermal deformation to guarantee lasting precision and durability in various operating environments

Application

Industrial Inspection and Machine Vision: Used for dimensional measurement of precision parts, surface defect inspection, positioning, etc., with exceptional performance particularly in low-light environments

Security and Surveillance: Suitable for venues requiring high-quality low-light monitoring, such as nighttime surveillance, ensuring clear imagery

Intelligent Transportation Systems (ITS): Applied in license plate recognition, traffic flow monitoring, etc., where high-precision imaging aids in detailed capture

High-End Smart Devices: Integrated into smart hardware demanding high imaging quality and durability

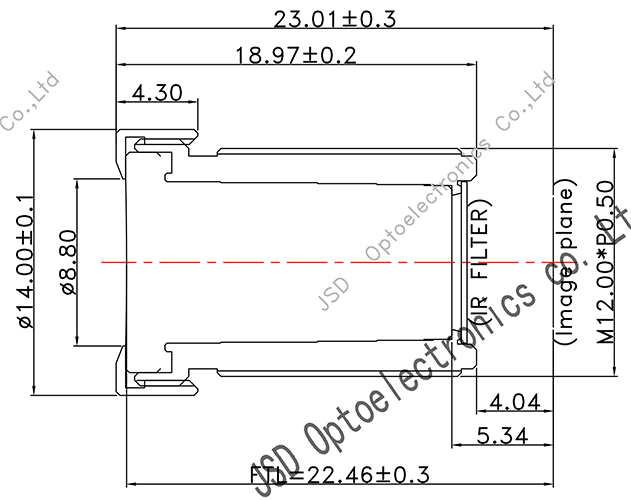

Specification
