JSD2022

Description

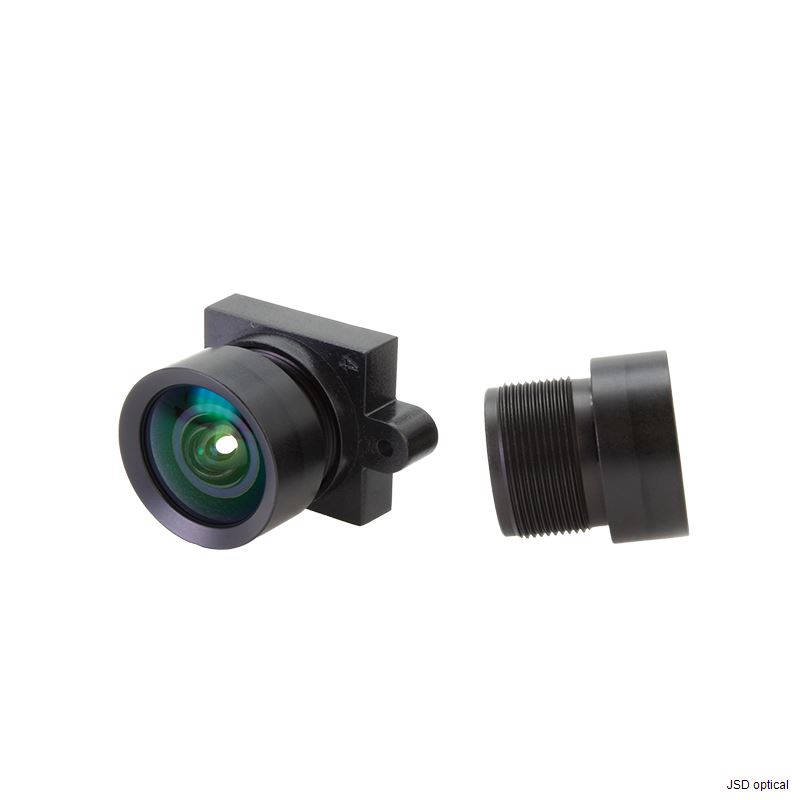

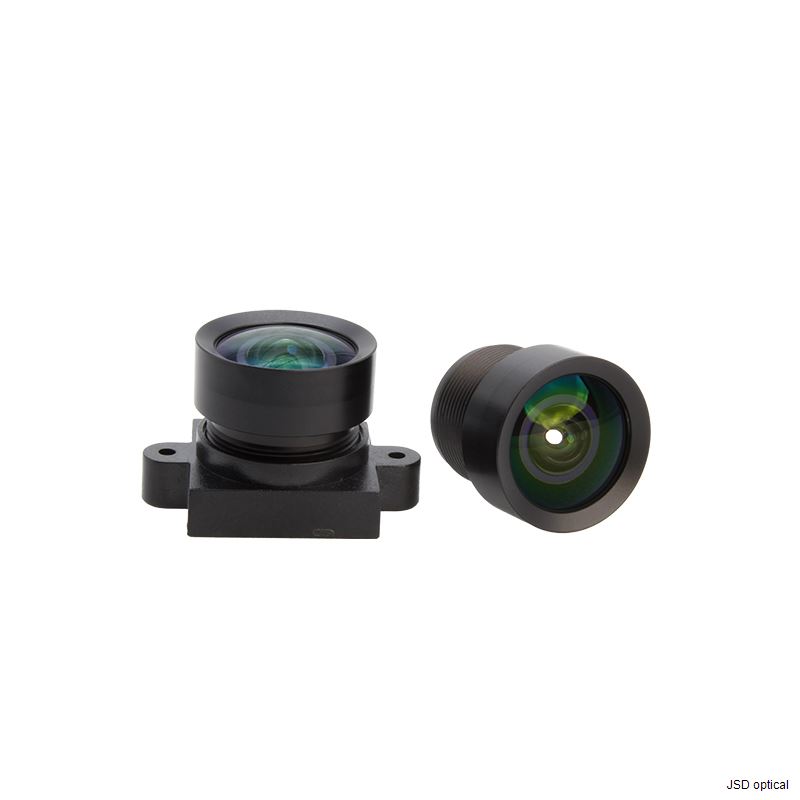

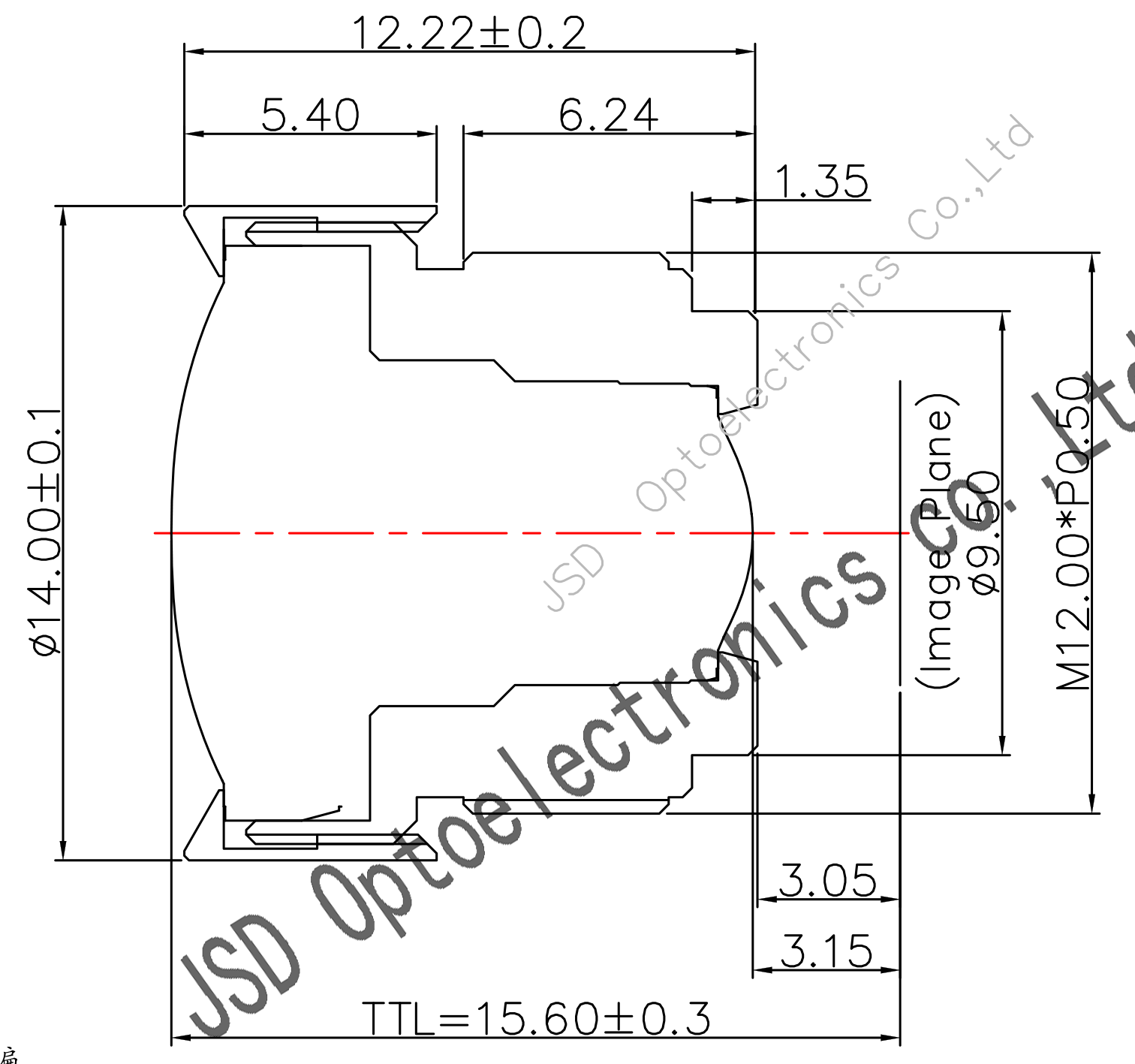

The JSD2022 is a high-performance wide-angle fixed-focus lens with a compact structure and a total track length (TTL) of 15.6 mm

. It features a large F2.0 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments

. The lens exhibits minimal distortion (< -2%), ensuring high geometric fidelity of images and reducing the need for post-processing correction

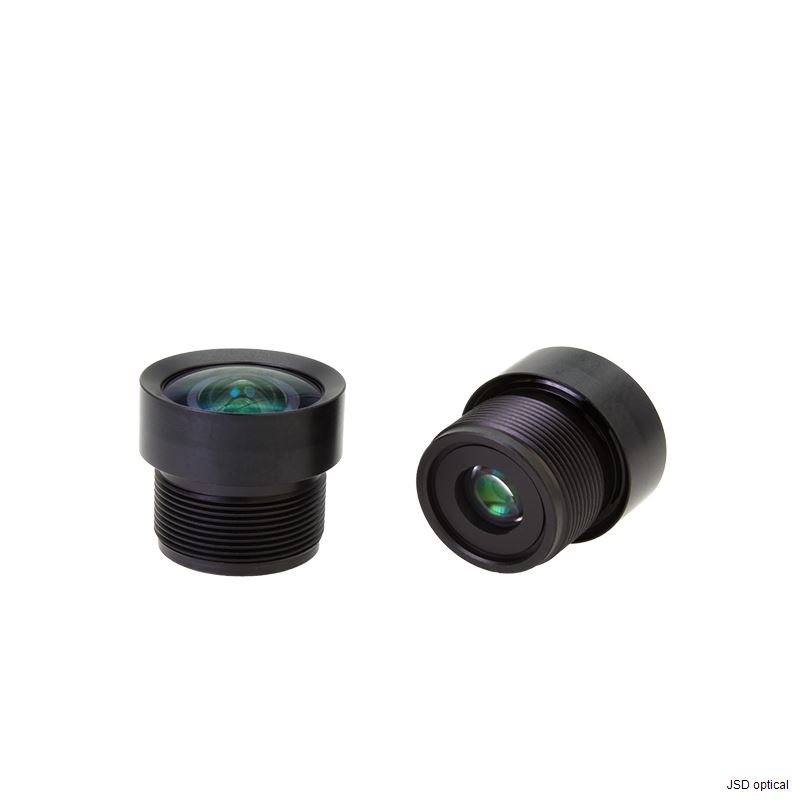

. It is compatible with 1/2.8-inch image sensors and supports both M8 and M12 threaded interfaces, providing flexible installation options

Application

Security & Surveillance: Used for indoor and outdoor monitoring scenarios requiring large-area coverage and high image authenticity.

Machine Vision & Industrial Inspection: Suitable for applications demanding high measurement accuracy and low distortion, such as visual positioning and dimensional measurement.

Smart Home Devices: e.g., high-end smart doorbells and home security cameras, capable of operating in complex lighting conditions.

Automotive Imaging Systems: Serving as dash cams or auxiliary driving cameras, providing a wide and realistic field of view.

Other Consumer Electronics: Integrated into drones, action cameras, and other devices with requirements for both compact size and imaging quality.

Specification
