JSD2420

Description

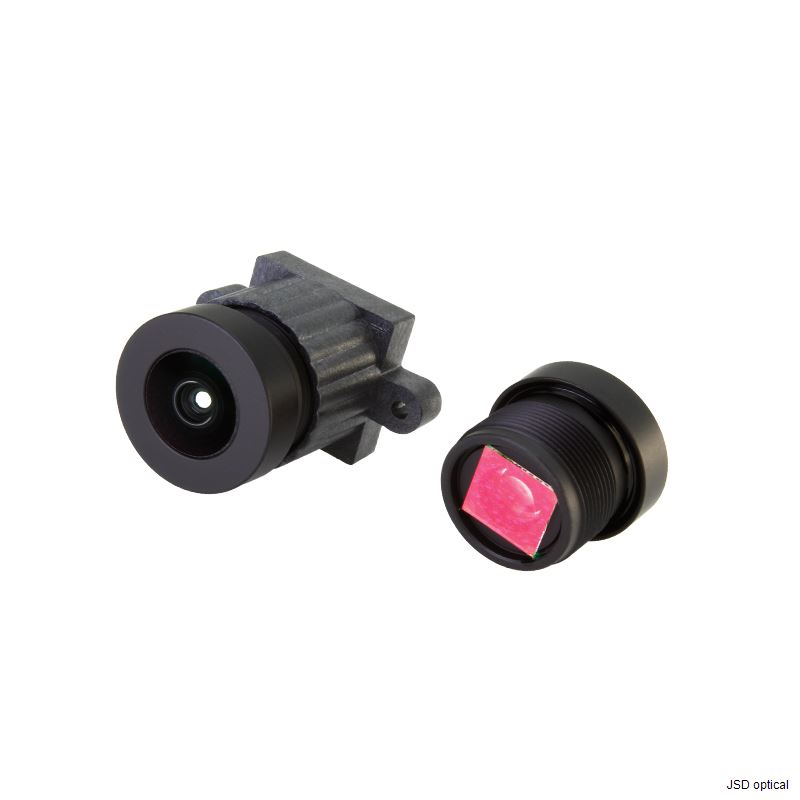

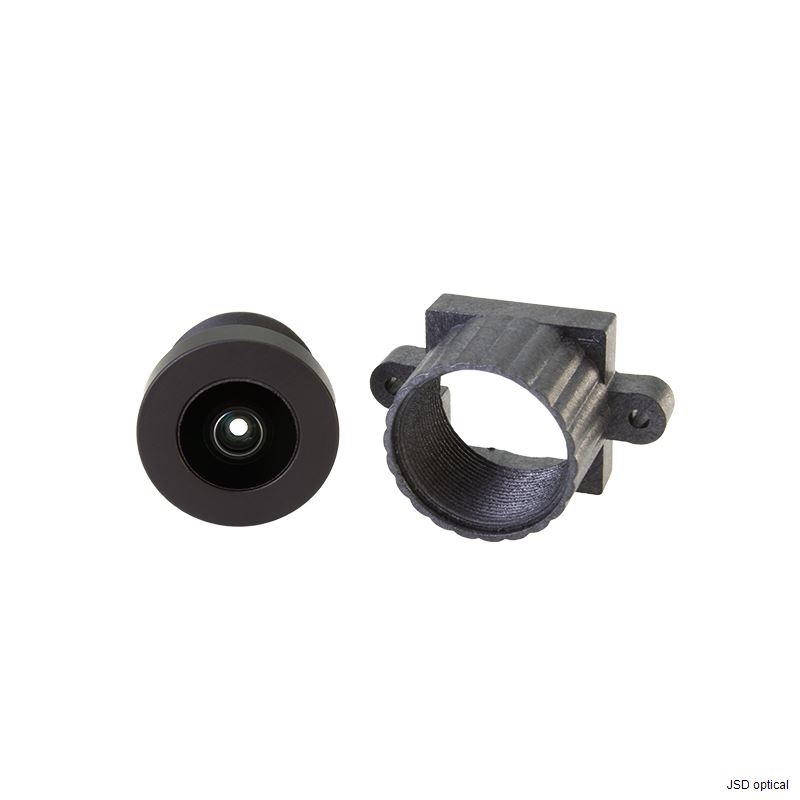

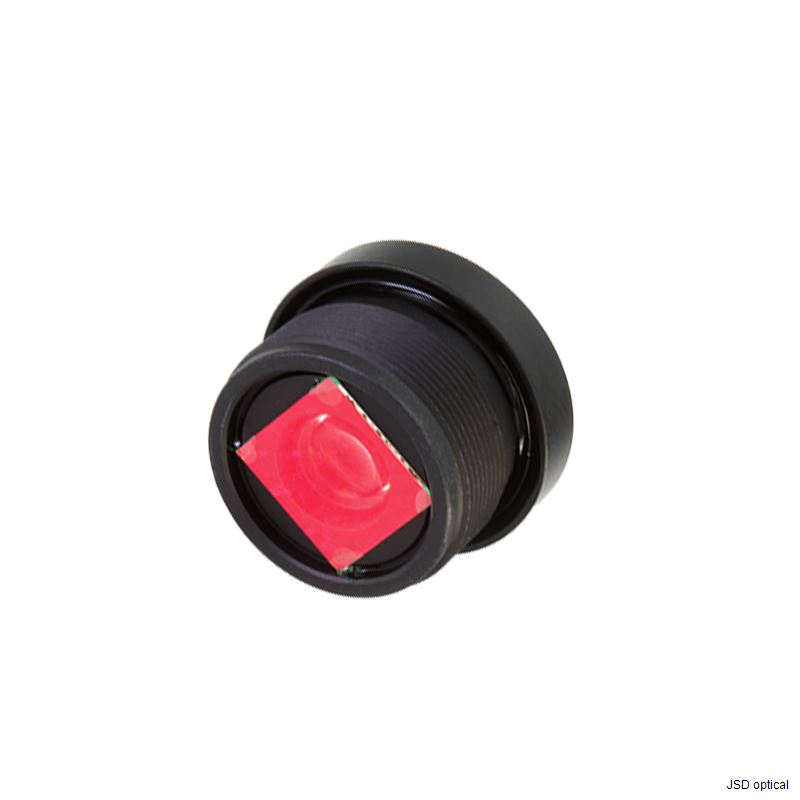

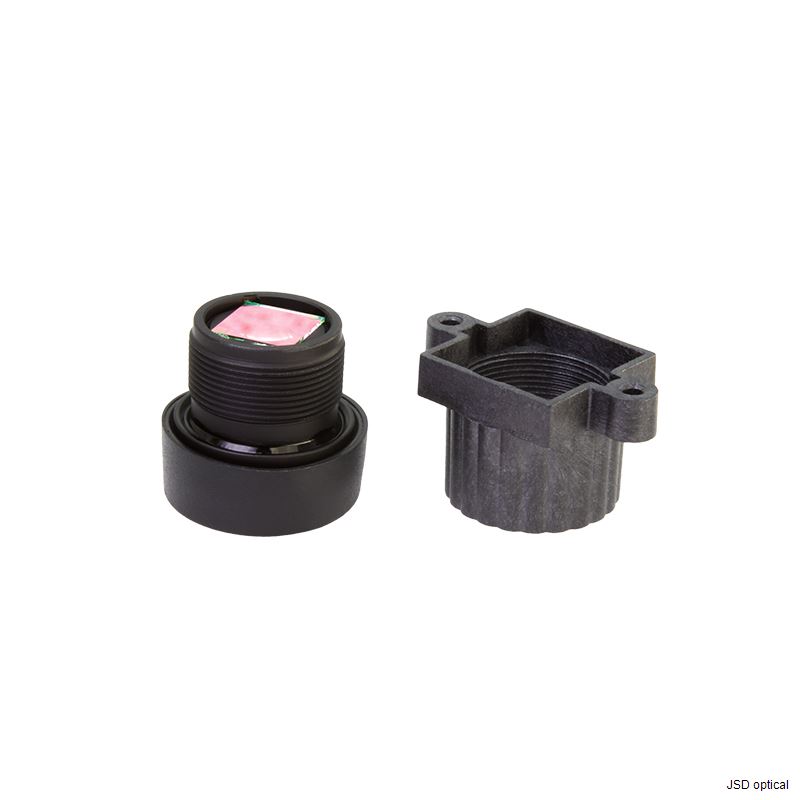

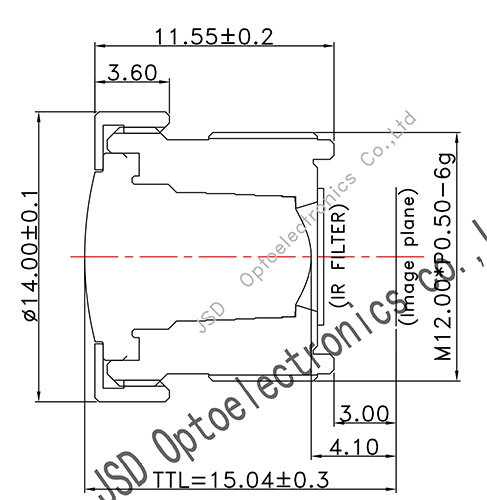

The JSD2420 is an ultra-wide-angle fixed-focus lens with a compact structure and a total track length (TTL) of 15.4 mm. It features a large F2.0 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments. With an expansive horizontal field of view (HFOV) of 134°, it covers extremely wide scenes. However, this design results in noticeable barrel distortion (Distortion < -22%), which is common in ultra-wide-angle lenses and requires correction via software algorithms. The lens is compatible with 1/2.8-inch image sensors and supports both M18 and M12 threaded interfaces, offering flexible installation options

Application

Security & Surveillance: Used in elevators, warehouses, lobbies, and other scenarios requiring single-lens ultra-wide-area coverage, as well as panoramic cameras.

Smart Home & IoT Devices: e.g., ultra-wide-angle smart doorbells, household panoramic cameras.

Automotive Imaging Systems: Serving as dash cams or blind spot monitoring cameras, providing a broad field of view.

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view.

Special Equipment & Consumer Electronics: Such as mobile device external lenses requiring ultra-wide perspectives

Specification
