Are you a maker, an embedded systems engineer, or a DIY surveillance enthusiast? If you are building your own vision systems—whether it’s for a custom home security rig, a drone project, or an industrial inspection robot—you know the struggle. You pick a high-end board camera, but the stock lens that comes with it is... well, underwhelming.

It’s time to talk about adaptability. It’s time to talk about the JSD3122.

While this lens isn't designed for the average consumer’s point-and-shoot camera, it is an absolute gem for anyone working with Camera Modules and S-Mount (M12) interfaces. Here is why the JSD3122 is the perfect upgrade for your next custom build.

1. The "Sensor Size" Sweet Spot: 1/2" Image Circle

In the world of DIY camera modules, many makers are upgrading to larger, more powerful sensors (like the Sony IMX series) to get better low-light performance. The problem? Most standard M12 lenses are built for tiny 1/3" or 1/4" sensors, leading to dark corners (vignetting) when used on larger chips.

The JSD3122 solves this instantly. It features a massive 1/2" Image Circle. This means it provides full coverage for larger sensor formats, ensuring that your high-end module utilizes every single pixel without cropping or vignetting.

2. S-Mount Simplicity (M12 Thread)

The M12 thread is the universal language of board cameras. The JSD3122 fits right into this ecosystem. Whether you are prototyping with a Raspberry Pi High Quality Camera (with an M12 adapter), an NVIDIA Jetson module, or a custom industrial PCB, this lens screws right in.

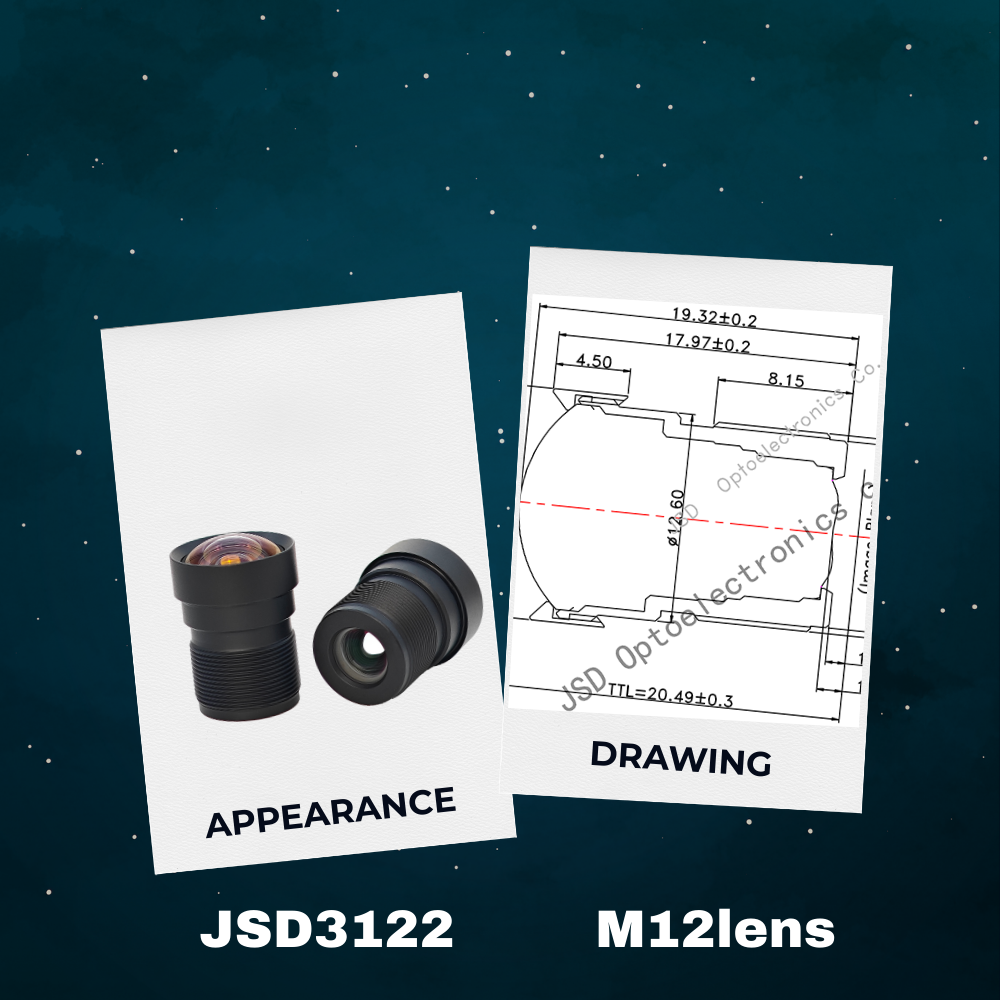

Pro Tip: With a TTL (Total Track Length) of 20.49mm, it is compact enough to fit inside standard weatherproof domes or 3D-printed housings without protruding awkwardly.

3. Distortion Free... Almost! (<-1.54%)

If you are coding your own surveillance software or running object detection models on a microcontroller, the last thing you want to burn processing power on is "dewarping" a fisheye image.
The JSD3122 offers a wide 92° Field of View (FOV)—perfect for monitoring a whole room or a factory floor—but keeps the optical distortion incredibly low at < -1.54%.

The Result: Straight lines stay straight. Door frames don't curve. You get a natural, "rectilinear" view right out of the hardware.

4. 12MP Clarity for Critical Details

This isn't old-school CCTV graininess. The JSD3122 is rated for 12MP resolution. Combined with a specific focal length of 3.94mm and a bright F/2.2 aperture, this lens is tuned for sharpness. If your DIY project involves reading text, identifying faces, or spotting defects, the high resolving power of this lens is non-negotiable.

Adaptability Checklist: Is the JSD3122 for you?

Project Type: Custom Surveillance, Industrial Machine Vision, Embedded Systems.

Mount Required: M12 x 0.5 (S-Mount).

Sensor Requirement: Up to 1/2" format.

Goal: High resolution (12MP) with a wide natural view (92°).

Stop letting cheap stock lenses bottleneck your expensive camera modules. The JSD3122 brings professional optical quality to the DIY and Industrial integration space. It’s the perfect balance of size, performance, and adaptability.

Upgrade your module’s vision today with the JSD3122.
