Solution

Description

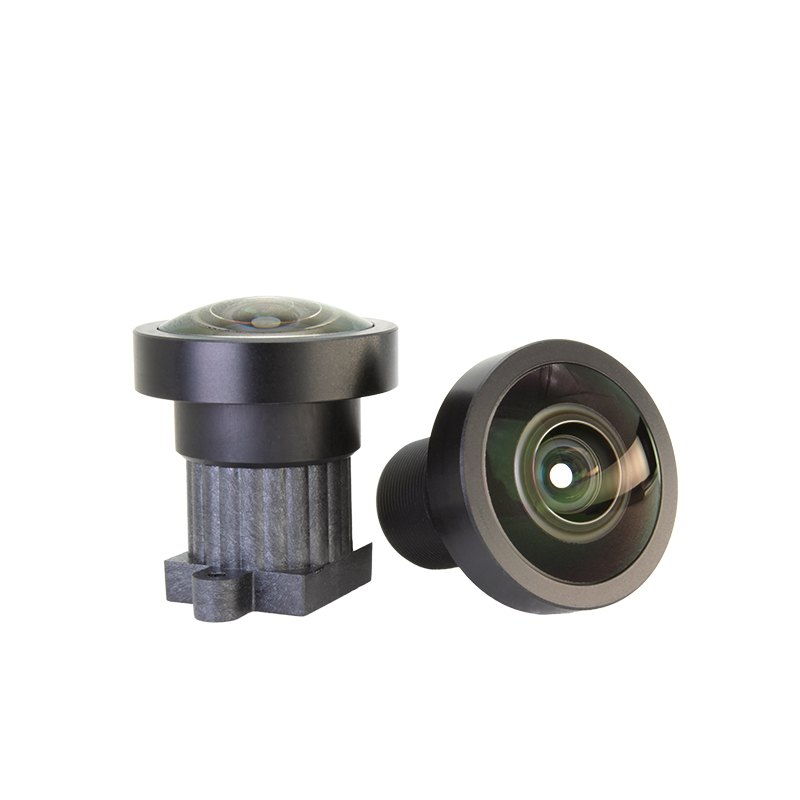

our latest 8MP fisheye lens is designed for the IMX577 sensor. With an impressive 185 degree field of view and a fast F1.8 aperture, this lens is perfect for capturing high-quality surveillance footage with exceptional clarity and detail.

Application

l  Sport Camera

l  Robotic vision

l  Surveillance camera

Specification

Description

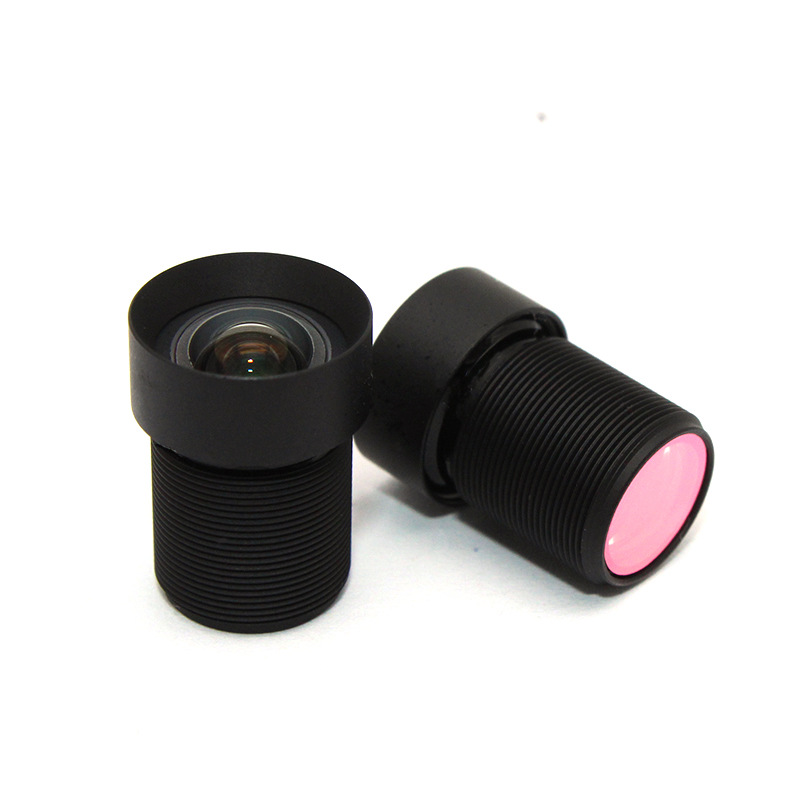

The JSD5108 is a compact fixed-focal-length lens with a focal length of 2.9mm. Its large F2.2 aperture ensures excellent light transmission in low-light environments, thereby maintaining optimal image brightness. Featuring a horizontal field of view (HFOV) of 90° (or 73°), it falls under the wide-angle category, enabling coverage of expansive scenes. With an optical total length (TTL) of merely 15.3mm, the lens boasts a highly compact structure and incorporates a standard M12 interface for easy integration and installation. It supports a 1/2.5-inch image sensor and controls optical distortion within 1.5%, effectively reproducing realistic scenes with minimal deformation

Application

Video Conference System

Intelligent Access Control System with Face Recognition

Embedded Vision Devices

Security and Surveillance

Specification

Description

The JSD2420 is an ultra-wide-angle fixed-focus lens with a compact structure and a total track length (TTL) of 15.4 mm. It features a large F2.0 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments. With an expansive horizontal field of view (HFOV) of 134°, it covers extremely wide scenes. However, this design results in noticeable barrel distortion (Distortion < -22%), which is common in ultra-wide-angle lenses and requires correction via software algorithms. The lens is compatible with 1/2.8-inch image sensors and supports both M18 and M12 threaded interfaces, offering flexible installation options

Application

Security & Surveillance: Used in elevators, warehouses, lobbies, and other scenarios requiring single-lens ultra-wide-area coverage, as well as panoramic cameras.

Smart Home & IoT Devices: e.g., ultra-wide-angle smart doorbells, household panoramic cameras.

Automotive Imaging Systems: Serving as dash cams or blind spot monitoring cameras, providing a broad field of view.

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view.

Special Equipment & Consumer Electronics: Such as mobile device external lenses requiring ultra-wide perspectives

Specification

Description

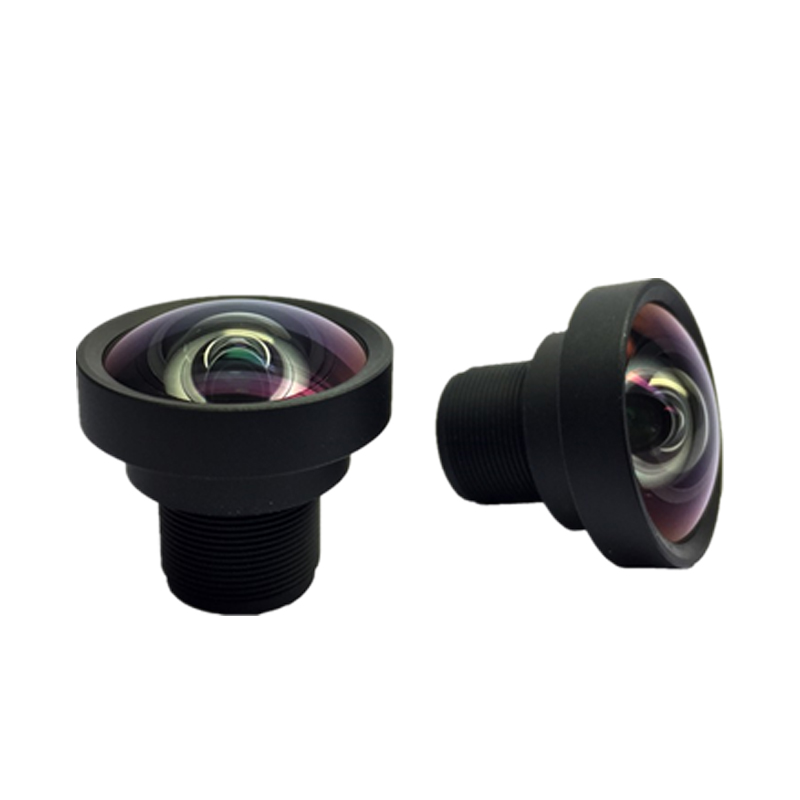

The JSD2629 lens is a low distortion 2.2mm wide angle lens for 1/2.3”IMX477 sensor with 4K resolution. Aperture F1.8 make this lens is perfect for low light condition, available for NIR application, distortion is very low 4%.

Different F/No version available.

Application

l  Sports & Action Camera

l  Security & Security Camera

l  4K Video Conference Camera

Specification

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With a 5.83mm focal length and F1.6 aperture, it provides a balanced 77° field of view, making it ideal for medium-range surveillance, expanded area monitoring, and comprehensive scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and low distortion across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Wide-Angle 77° FOV: Provides a balanced wide field of view ideal for medium-range surveillance, environmental monitoring, and expanded area coverage with minimal blind spots.

Versatile Wide-Angle Applications: Suited for medium-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring balanced wide coverage.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Enhanced Low-Light Performance: Exceptional F1.6 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Low Distortion Optics: Advanced optical design minimizes distortion across the field of view, maintaining accurate image geometry and true-to-life representations.

Technical Specifications

Applications

Crowd Monitoring: Effective tracking of group movements in medium-density areas, gathering analysis, and expanded people monitoring with balanced perspective.

Wide-Angle Imaging: Exceptional coverage for medium-range environments with 77° FOV, providing expansive scene capture and broad field observation with minimal blind spots.

Facility Surveillance: Interior monitoring of medium to large rooms, open area security assessment, and structured environment observation.

Traffic Analysis: Vehicle tracking across multiple lanes, intersection coverage, and traffic flow observation with enhanced peripheral vision.

Perimeter Security: Enhanced coverage for site boundaries, fence lines, and extended security perimeters with broader visibility.

Intrusion Detection: Peripheral vision enhancement with wide coverage, boundary monitoring, and broadened threat detection capabilities.

Industrial Inspection: Medium-range component examination, equipment monitoring, and quality control assessments with low distortion and balanced field of view.

Environmental Assessment: Panoramic scene capture, landscape monitoring, and situational awareness for comprehensive analysis.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Description

The JSD2112 is a high-performance ultra-wide-angle fixed-focus lens with a compact structure and a total track length (TTL) of 17.41 mm. It features an exceptionally large F1.2 aperture, delivering outstanding low-light imaging capability to ensure bright and clear image capture even in dimly lit environments, along with excellent background blur (bokeh) effects. The lens offers two horizontal field of view (HFOV) options—150° and 144.8°—enabling coverage of extremely wide scenes. This design is characteristic of fisheye or ultra-wide-angle lenses, which typically exhibit noticeable barrel distortion that can be corrected through post-processing software algorithms

. It is compatible with both 1/2.7-inch and 1/2.8-inch image sensors.

Application

Security & Surveillance: Used in elevators, warehouses, lobbies, and other scenarios requiring single-lens large-area coverage, as well as panoramic cameras.

Smart Home & IoT Devices: e.g., ultra-wide-angle smart doorbells, household panoramic cameras.

Automotive Imaging Systems: Serving as dash cams or blind spot monitoring cameras, providing a broad field of view.

Industrial Inspection & Machine Vision: Suitable for inspection scenarios requiring a wide field of view.

Special Equipment & Consumer Electronics: Such as drone-assisted vision, action cameras, and mobile device external lenses requiring ultra-wide perspectives.

Specification

Description

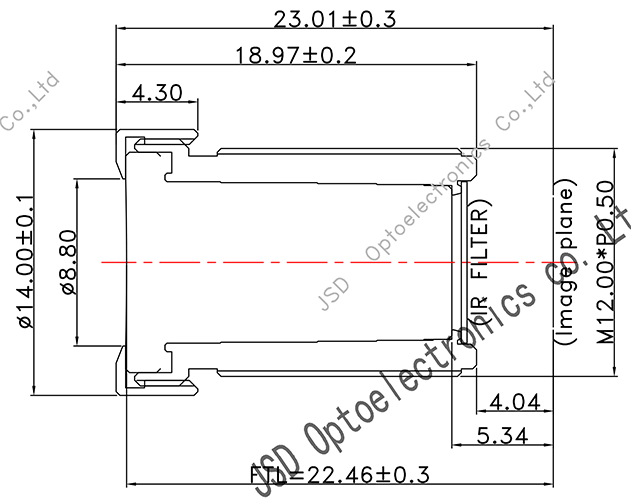

The JSD3516 is a high-performance fixed-focal-length lens constructed with an all-glass optical design and an aluminum external housing. It features a total track length (TTL) of 22.46 mm. With a large F1.6 aperture, it delivers exceptional low-light imaging capability, ensuring bright and clear image capture even in dim environments, along with excellent background blur (bokeh) effects. Its 84° horizontal field of view (HFOV) provides a moderate wide angle, balancing scene coverage and distortion control. The all-glass lens elements ensure outstanding optical clarity, refractive performance, and color accuracy, while the aluminum housing offers high rigidity, wear resistance, and excellent thermal stability, effectively resisting thermal deformation to guarantee lasting precision and durability in various operating environments

Application

Industrial Inspection and Machine Vision: Used for dimensional measurement of precision parts, surface defect inspection, positioning, etc., with exceptional performance particularly in low-light environments

Security and Surveillance: Suitable for venues requiring high-quality low-light monitoring, such as nighttime surveillance, ensuring clear imagery

Intelligent Transportation Systems (ITS): Applied in license plate recognition, traffic flow monitoring, etc., where high-precision imaging aids in detailed capture

High-End Smart Devices: Integrated into smart hardware demanding high imaging quality and durability

Specification

Description

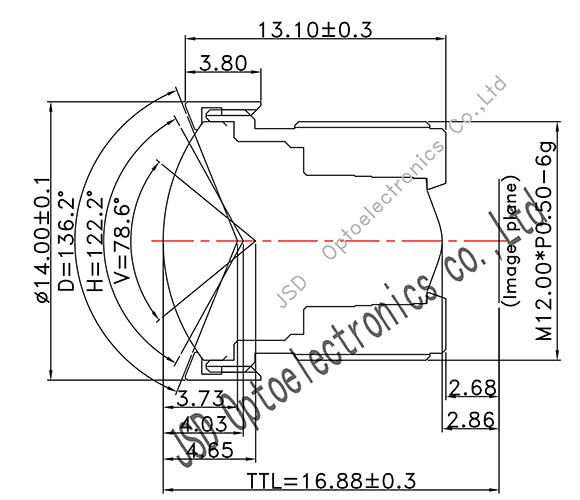

The industrial lens model JSD2120 is a wide-angle fixed-focus lens. Its core feature is a large 122.2° horizontal field of view (HFOV), which provides broad coverage and makes it highly suitable for monitoring large areas within confined spaces. It employs an F2.0 large aperture design, ensuring good light intake and image brightness even in low-light environments. The lens has an effective focal length (EFL) of 1.88mm and utilizes a hybrid optical structure comprising 2 glass elements and 4 plastic elements (2G4P). This design helps achieve the required optical performance while maintaining cost control. As a wide-angle lens, its distortion is kept within a reasonable range (<-11.02%), typically manifested as barrel distortion, which can be effectively corrected using algorithms in practical applications. This lens is primarily aimed at embedded vision applications that require a large field of view and are cost-sensitive.

Application

Security Monitoring: Its wide field of view is particularly suitable for indoor scenarios requiring coverage of large areas, such as offices, warehouses, and retail stores. A single device can achieve extensive surveillance.Industrial Inspection: On production lines, it can be used for the overview inspection of large-sized products or components, performing tasks such as appearance overview, presence detection, or process monitoring—for example, checking the overall placement or general distribution of products

Smart Terminal and IoT Devices: The compact optical design and wide viewing angle make it an ideal choice for devices like smart home doorbells and video conference cameras, enabling an extremely wide shooting angle within a small form factor

Specification

Description

The industrial lens model JSD2015 is an ultra-wide-angle fixed-focus lens. Its most prominent feature is an exceptionally wide 182° horizontal field of view (HFOV), which provides extremely broad coverage and makes it highly suitable for monitoring very large areas within confined spaces. It employs an F2.0 large aperture design, ensuring good light intake and enhanced image brightness even in low-light environments. The lens has an effective focal length (EFL) of 1.4mm, classifying it as a short focal length lens. This short EFL directly contributes to the large field of view but also typically introduces a certain degree of distortion. With a compact design, the total track length (TTL) is controlled at 15mm, facilitating easy integration. Its optical structure utilizes a hybrid design comprising 2 glass elements and 4 plastic elements (2G4P), which helps balance cost control and aberration correction

Application

Panoramic Security Monitoring: Its extremely wide field of view is particularly suitable for large-area scenarios requiring dead-angle-free coverage, such as warehouses, plazas, and transportation hubs. A single device is sufficient for large-scale monitoring.

Industrial Wide-Field Inspection: On production lines, it can be used for overview inspection, presence detection, or process monitoring of large-sized equipment or situations requiring simultaneous monitoring of multiple workflow stages.

Smart IoT Devices: The ultra-wide-angle design and compact size make it an ideal choice for smart home doorbells, video conference cameras, drones, and similar devices, enabling immersive wide-angle shooting within a small form factor.

Specification

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With a 4.2mm focal length and F1.8 aperture, it provides a balanced 93° field of view, making it ideal for medium-wide surveillance, expanded area monitoring, and comprehensive scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and enhanced peripheral visibility across diverse lighting conditions.

Key Features & Benefits

Wide-Angle 93° FOV: Provides a generously wide field of view ideal for medium-range surveillance, environmental monitoring, and expanded area coverage with minimal blind spots.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Versatile Wide-Angle Applications: Suited for medium-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring balanced wide coverage.

Enhanced Low-Light Performance: Exceptional F1.8 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Technical Specifications

Applications

Wide-Area Surveillance: Exceptional coverage for spacious environment monitoring, large interior spaces, and broad field observation with minimal blind spots.

Crowd Observation: Effective tracking of medium-density group movements, gathering analysis, and expanded area people monitoring capabilities.

Traffic Monitoring: Wide vehicle tracking, multi-lane coverage, and intersection area comprehensive observation with enhanced peripheral vision.

Perimeter Protection: Enhanced coverage for extended site boundaries, fence lines, and security perimeters with broader visibility.

Facility Oversight: Maximum interior monitoring, large room coverage, and open area security assessment with expansive field of view.

Environmental Analysis: Panoramic scene capture, landscape monitoring, and expanded field situational awareness for comprehensive analysis.

Intrusion Detection: Enhanced peripheral vision with wide coverage, boundary monitoring, and broadened threat detection capabilities.

Industrial Inspection: Medium-range component examination, equipment monitoring, and focused quality control assessments with balanced perspective.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Description

The 2.3mm wide angle lens is designed for automotive  application, with HFOV 140 degree on 1/2.7” image sensor. All glass and metal exterior make it support operating temperature from -20℃ to 85℃. Also suitable for IMX335 sensor

Application

l Sports & Action Camera

l ADAS

l Car DVR

Specification

Description

The no distortion 3.6mm M12 lens has HFOV 80° on IMX307 sensor, aperture F2.0 achieve good performance even in low light situation.

widely used in barcode scanner, computer vision, face recognition, VR

Specification

Description

The JSD3023 has HFOV 126 degree on 1/2.7” sensor, 6.7mm support up to 1/3” image sensor.

Low F# F1.8 enable this lens achieve good performance in low light situation, all glass and aluminium exterior make thermal stability

Application

l DVR

l Mobile Robotics

l Security & Surveillance

Specification

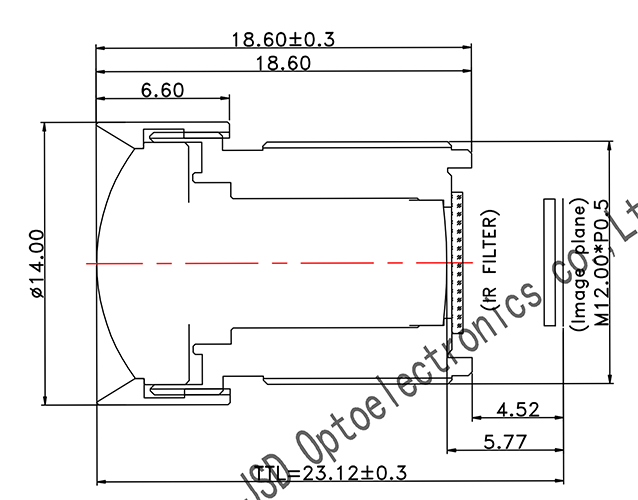

Description

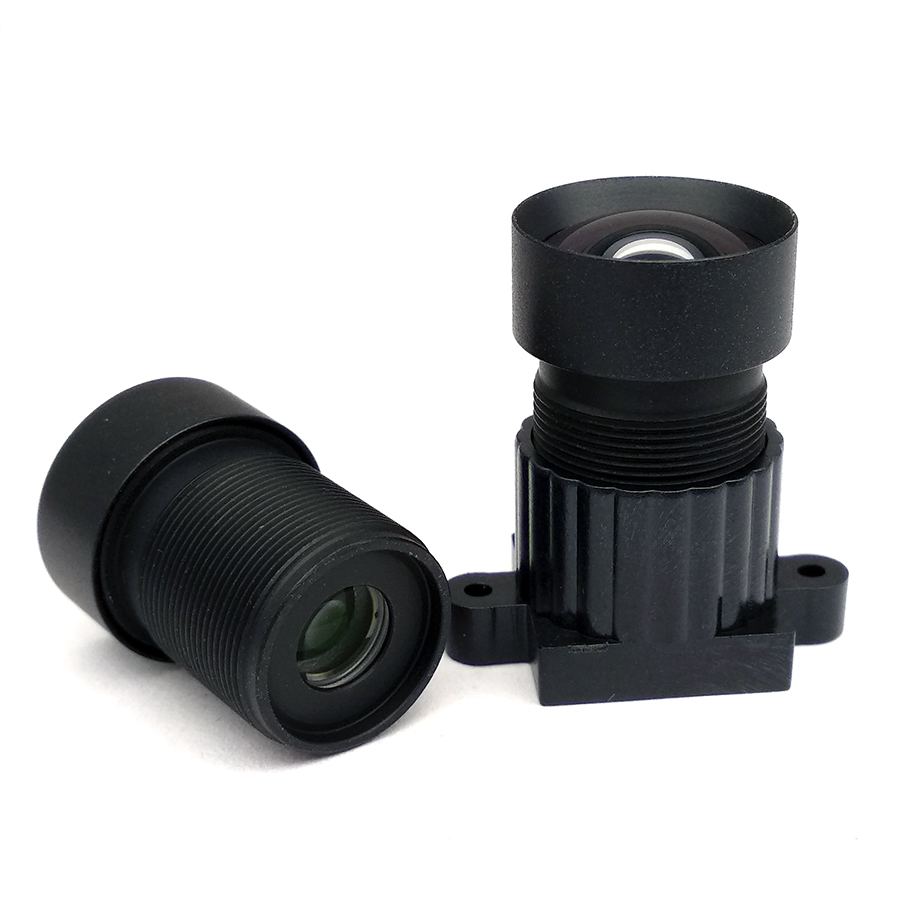

The JSD6016 is a high-performance wide-angle fixed-focus lens with a total track length (TTL) of 23.12 mm, compatible with 1/2.7-inch image sensors. It features a large F1.8 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments, along with certain background blur (bokeh) effects. With a horizontal field of view (HFOV) of 80°, it covers relatively large scenes. However, noticeable barrel distortion (Distortion < -10%)—common in wide-angle designs—requires correction via software algorithms. The lens is equipped with a standard M12 threaded interface for easy installation and integration

Application

Security & Surveillance: Used for indoor and outdoor monitoring scenarios requiring good low-light performance and wide field of view coverage.

Smart Home & IoT Devices: e.g., smart doorbells, home security cameras.

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding wide field of view and performance in low-light environments.

Automotive Imaging Systems: Served as dash cams or visual sensors for assisted driving.

Consumer Electronics: Integrated into mobile devices or external lenses requiring visual functionality.

Specification

Description

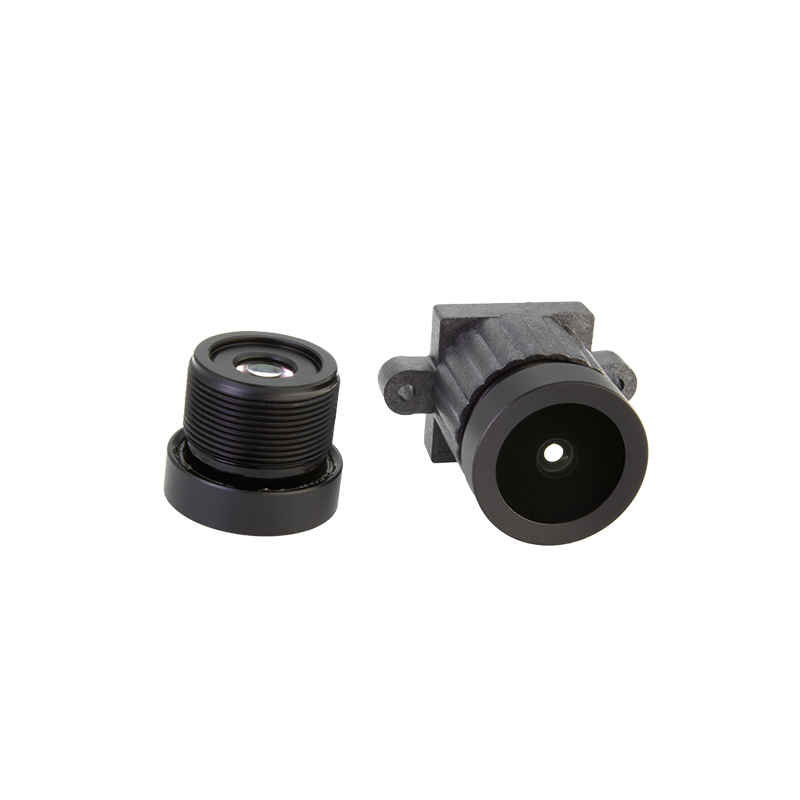

The JSD3021 is a high-performance ultra-wide-angle fixed-focus lens with a compact structure and a total track length (TTL) of 15.21 mm. It features a large F2.0 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments. The lens offers two horizontal field of view (HFOV) options—120° and 104°—enabling extensive scene coverage. However, as commonly seen in ultra-wide-angle designs, it exhibits noticeable barrel distortion (Distortion < -19.36% / < -14.48%), which can be corrected via software algorithms. It is compatible with both 1/2.7-inch and 1/2.8-inch image sensors and is equipped with a standard M12 threaded interface for easy installation and integration

Application

Security & Surveillance: Used in elevators, warehouses, lobbies, and other scenarios requiring single-lens large-area coverage, as well as panoramic cameras

Smart Home & IoT Devices: e.g., ultra-wide-angle smart doorbells, household panoramic cameras

Automotive Imaging Systems: Serving as dash cams or blind spot monitoring cameras, providing a broad field of view

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view

Consumer Electronics: Integrated into mobile devices or external lenses requiring visual functionality.

Specification

Description

The JSD1922 is an ultra-compact wide-angle fixed-focus lens with a total track length (TTL) of only 13.54 mm, making it compatible with 1/2.7-inch image sensors

. It features a large F2.2 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments

. With an expansive horizontal field of view (HFOV) of 158°, it covers extremely wide scenes, making it suitable for panoramic monitoring applications

Application

Security & Surveillance: Used in elevators, warehouses, lobbies, and other scenarios requiring single-lens ultra-wide-area coverage for panoramic monitoring.

Smart Home Devices: e.g., ultra-wide-angle smart doorbells, household panoramic cameras.

Automotive Imaging Systems: Serving as dash cams or blind spot monitoring cameras, providing a broad field of view.

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view.

Consumer Electronics: Integrated into IoT devices requiring visual functionality.

Specification

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and low distortion for wide-angle imaging applications. With a 2.9mm focal length and F1.6 aperture, it provides an ultra-wide 178° field of view, making it ideal for panoramic surveillance, expansive environment monitoring, and broad-area scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this lens ensures superior image sharpness and low distortion across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 178° FOV: Provides an extremely expansive field of view ideal for hemispheric surveillance, panoramic environment monitoring, and maximum coverage applications with minimal blind spots.

Low Distortion Design: Advanced optical optimization significantly reduces distortion across the entire ultra-wide field, maintaining geometric accuracy and true-to-life representations even at extreme angles.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Application Performance: Suited for panoramic surveillance, wide-area security, environmental monitoring, and immersive machine vision tasks requiring maximum field coverage.

Technical Specifications

Applications

Ultra-Wide Area Surveillance: Comprehensive coverage for open-space monitoring, large environment observation, and expansive area security.

Perimeter Protection Systems: Wide-angle monitoring for facility boundaries, property line coverage, and broad threat detection.

Environmental Monitoring: Full-scene capture for situational awareness, large-area event observation, and panoramic scene analysis.

Intelligent Transportation Systems (ITS): Intersection monitoring, traffic flow analysis, and wide-road vehicle detection.

Drone & Aerial Imaging: Broad field-of-view capture for aerial reconnaissance, wide-area mapping, and large-scale scene documentation.

Smart City Applications: Cityscape monitoring, public space surveillance, and infrastructure observation from elevated positions.

Intrusion Detection Systems: Maximum coverage for perimeter security, boundary monitoring, and unauthorized activity detection across wide areas.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

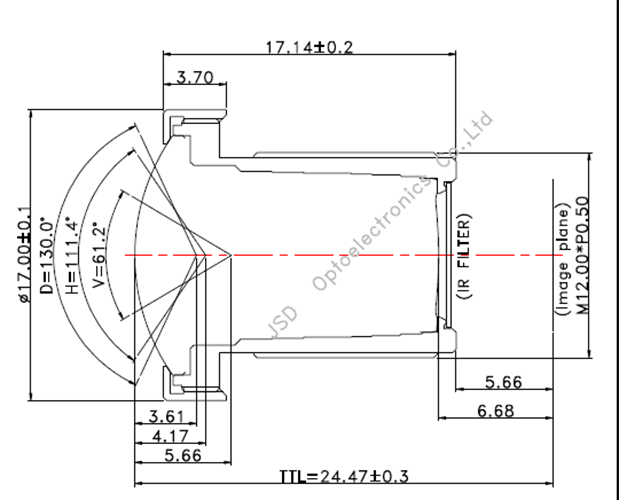

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With an 8mm focal length and F1.8 aperture, it provides an expansive 130° field of view, making it ideal for panoramic surveillance, broad-area monitoring, and wide-scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and enhanced peripheral visibility across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Wide 130° FOV: Provides an ultra-wide field of view ideal for panoramic surveillance, broad environmental monitoring, and large-area scene capture with minimal blind spots.

Enhanced Optical Performance: Advanced lens design maintains image clarity across the entire wide field, balancing brightness and detail even at the periphery.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Wide-Angle Applications: Suited for wide-area monitoring, traffic scene analysis, security surveillance, and machine vision tasks requiring extensive coverage.

Technical Specifications

Applications

Wide-Area Surveillance: Broad coverage for open-space monitoring, large environment oversight, and expansive area observation.

Perimeter Protection: Comprehensive coverage for site boundaries, fence lines, and extended security perimeters.

Crowd Monitoring: Effective tracking of group movements, gathering analysis, and high-density area surveillance.

Traffic Flow Analysis: Wide-angle vehicle tracking, multi-lane monitoring, and intersection activity observation.

Facility Management: Expanded interior monitoring, large room coverage, and open area security assessment.

Environmental Observation: Panoramic scene capture, landscape monitoring, and wide field situational awareness.

Intrusion Detection: Enhanced peripheral vision, boundary monitoring, and expanded threat detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and immersive fisheye perspective for advanced imaging applications. With a 3.8mm focal length and F1.5 aperture, it provides an ultra-wide 146° field of view, making it ideal for panoramic surveillance, full-room monitoring, and 360° scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this fisheye lens ensures superior image sharpness and maximum peripheral visibility across diverse lighting conditions.

Key Features & Benefits

Enhanced Low-Light Performance: Exceptional F1.5 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 146° FOV: Provides an exceptionally wide fisheye field of view ideal for panoramic surveillance, broad environmental monitoring, and maximized area coverage with minimal blind spots.

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Versatile Fisheye Applications: Suited for expansive area monitoring, security surveillance, immersive machine vision, and 360° scene analysis requiring maximum field coverage.

Technical Specifications

Applications

Ultra-Fisheye Wide-Angle Surveillance: Exceptional 146° FOV coverage for complete 360° environment immersion, extreme corner-to-corner visibility, and maximized scene capture with true fisheye perspective.

Crowd Dynamics Analysis: Superior tracking of large group movements, mass gathering analysis, and ultra-high-density area surveillance with minimal occlusion.

Comprehensive Traffic Monitoring: Ultra-wide vehicle tracking across multiple lanes, complete intersection coverage, and panoramic traffic pattern observation with single-lens solution.

Perimeter Security Enhancement: Holistic site boundary coverage, extensive fence line monitoring, and maximized security perimeter protection with 360° visibility.

Facility Wide-Area Management: Complete interior monitoring, extra-large room coverage, and broad open area security assessment with seamless corner-to-corner visibility.

Environmental Panoramic Assessment: Maximum panoramic scene capture, wide landscape monitoring, and enhanced field situational awareness for comprehensive analysis.

Intrusion Detection System Optimization: Enhanced peripheral vision with maximum radial coverage, extended boundary monitoring, and broadened threat detection across all angles.

Immersive Machine Vision: Complete scene acquisition for panoramic inspection, full-field measurement, and 360° defect detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This ultra-compact M7 mount fixed focal lens (PN: JSD1120) is expertly engineered for miniature 1/5-inch sensors, delivering expansive coverage and reliable clarity for space-constrained imaging applications. With an extremely short 1.1mm focal length and a bright F2.0 aperture, it provides a massive 164° field of view, making it ideal for immersive visual systems, medical devices, and compact monitoring tools. Featuring 2MP resolution and a tiny form factor, this lens ensures superior scene capture capabilities where standard lenses cannot fit.

Key Features & Benefits

2MP HD Resolution:Designed to support 2 Megapixel sensors, offering sharp image definition and detail suitable for miniature cameras and endoscopic applications.

Ultra-Wide 164° FOV:Provides a massive 164-degree field of view, allowing for panoramic scene capture and immersive imaging with a single lens.

Miniature M7 Mount:Features a specialized, small-format M7 thread with a Total Track Length (TTL) of just 10mm, specifically designed for ultra-compact devices and embedded systems.

Perfect Sensor Match:Engineered specifically for 1/5" sensors, ensuring the 164° view is fully projected onto the sensor with a compatible image circle.

Bright F2.0 Aperture:The wide aperture allows for excellent light intake, ensuring clear performance even in challenging or low-light environments.

Controlled Optical Design:With distortion controlled at <-17.58%, the lens balances an extreme wide-angle perspective with image usability, typical for fisheye-style micro lenses.

Wide Application Versatility:Perfectly suited for miniature electronics, medical imaging, and industrial inspection tasks requiring maximum coverage in minimum space.

Applications

Medical Endoscopes & Boroscopes

Miniature Surveillance Cameras

Wearable Body Cameras

Drone FPV (First Person View) Systems

IoT Sensors & Smart Home Devices

Industrial Inspection (Pipe/Tube cameras)

Automotive Interior Monitoring

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This ultra-wide M12 mount fisheye lens is expertly engineered for 1/4-inch sensors, delivering immersive panoramic imaging for advanced visual applications. With an extremely short 0.94mm focal length and a bright F2.0 aperture, it provides a massive 195° field of view, making it the perfect solution for 360° surveillance, virtual reality (VR) capture, and automotive safety systems. Featuring 2MP resolution and a compact form factor, this lens ensures comprehensive area coverage with a single camera, significantly reducing the number of devices needed for blind-spot monitoring.

Key Features & Benefits

Extreme 195° Ultra-Wide FOV:Offers a Super-Wide hemispherical field of view that exceeds standard limits, allowing for complete panoramic scene capture and elimination of blind spots.

High-Definition 2MP Resolution:Delivers sharp and clear video quality suitable for security monitoring, video doorbells, and situational awareness systems.

Bright F2.0 Aperture:Ensures excellent light intake, providing clear visibility in varying lighting environments, from indoor spaces to outdoor night monitoring.

Optimized Sensor Match:Designed specifically for 1/4" image sensors to maximize the image circle usage without dark corners in the active area.

Controlled Optical Distortion:With distortion controlled at <-14.9%, this lens is optimized for use with de-warping software and wide-angle algorithms to produce usable panoramic imagery.

Compact & Durable Architecture:Features a standard M12*P0.5 thread and a Total Track Length (TTL) of 13.96mm, allowing for easy integration into compact housings and discreet security devices.

Applications

360° Panoramic Surveillance

Virtual Reality (VR) & AR Content Creation

Automotive Surround View & Reversing Cameras

Smart Video Doorbells

Robotics & Obstacle Avoidance

Sports Action Cameras

Pipe & Pipeline Inspection

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This wide-angle M12 mount lens is engineered for 1/4-inch image sensors, providing expansive area coverage for security and automotive applications. With a short 2.05mm focal length and a bright F2.0 aperture, it delivers a broad 134° field of view, making it ideal for video doorbells, dashcams, and indoor monitoring where peripheral visibility is crucial. Featuring 2MP resolution, this lens ensures clear, high-definition video capture with a standard S-mount design for easy integration..

Key Features & Benefits

Clear 2MP Resolution:Optimized for HD (1080p) imaging, providing sharp detail retention for facial recognition, object detection, and general video recording tasks.

Ultra-Wide 134° FOV:Delivers an expansive field of view that maximizes scene coverage, significantly reducing blind spots in small rooms, entryways, or automotive cabin views.

Bright F2.0 Aperture:The large aperture allows for superior light intake, ensuring reliable performance and reduced noise in low-light or indoor environments.

Perfect Sensor Match:Designed specifically for 1/4" optical formats, ensuring the image circle (Image Circle: 1/4") matches the sensor active area efficiently.

Wide-Angle Optical Design:Engineered to capture a wider perspective (Distortion <-54.78%), this lens utilizes barrel distortion to fit more of the scene into the frame, typical for wide-angle monitoring.

Standard Integration:Features a common M12*P0.5 thread and a Total Track Length (TTL) of 16.8mm, ensuring compatibility with a vast range of board cameras and housing designs.

Applications

Smart Video Doorbells

Automotive Dashcams (DVR)

Indoor Security & Nanny Cams

Rear-View/Backup Cameras

IoT Monitoring Devices

Robotics Visual Navigation

Video Conferencing

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This specialized M12 mount fisheye lens (PN: JSD8016) is expertly engineered for 1/3-inch image sensors, delivering immersive panoramic imaging with extreme coverage. With an ultra-short 1.43mm focal length and F2.0 aperture, it provides a massive 200° field of view, exceeding the standard hemispherical limit to eliminate blind spots effectively. Featuring 5MP resolution support, this lens is the ideal solution for 360° surveillance, VR content creation, and robotic navigation, ensuring sharp image capture and comprehensive scene awareness.

Key Features & Benefits

Extreme 200° Ultra-Wide FOV:Delivers a super-wide fisheye perspective with a 200° field of view, allowing for complete panoramic surveillance (ceiling mount) or immersive 360° video capture with zero blind spots.

5MP High-Definition Resolution:Optimized to support 5 Megapixel sensors, providing high-clarity imaging essential for distinguishing details in wide-angle scenes.

Perfect Sensor Match:Designed specifically for 1/3" image formats, featuring an image circle tailored to fully utilize the sensor area without unexpected cropping.

Bright F2.0 Aperture:The F2.0 aperture ensures efficient light intake, maintaining image brightness and quality even in variable lighting environments.

Compact Fisheye Design:With a Total Track Length (TTL) of just 14.5mm and standard M12 thread, this lens offers a compact profile suitable for small form-factor devices like VR cameras and drones.

Controlled Optical Performance:Engineered with characteristic fisheye distortion (<-22%) typical for this focal length, optimized to maximize field coverage for software de-warping or raw hemispherical viewing.

Applications

360° Panoramic Surveillance (Ceiling/Wall Mount)

Virtual Reality (VR) & Augmented Reality (AR) Cameras

Immersive Video Conferencing

Robotics & SLAM (Simultaneous Localization and Mapping)

Automotive Surround View Systems

Drone & Aerial 360° Imaging

Smart Home Security

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens (Model: JSD2816) is expertly engineered for 1/3-inch sensors, delivering bright, high-definition imaging for advanced surveillance and automotive applications. With a short 2.18mm focal length and an impressive F1.6 aperture, it provides a wide 121° field of view while maximizing light intake for superior low-light performance. Featuring 5MP resolution and a controlled optical design (Distortion <-8%), this lens ensures exceptional clarity and expansive scene capture, making it ideal for security cameras and video doorbells requiring broad coverage.

Key Features & Benefits

5MP High Definition:Delivers crisp, high-resolution imaging that maximizes the potential of 5MP sensors, ensuring detailed video capture for security analysis and object detection.

Bright F1.6 Aperture:Significantly brighter than standard F2.0 lenses, the large F1.6 aperture allows for excellent light transmission. This ensures clear, low-noise images even in dim lighting conditions, critical for 24/7 surveillance.

Wide 121° FOV:Provides an expansive field of view, ideal for covering wide areas such as entrance ways, rooms, or traffic scenes with a single camera, minimizing blind spots.

Perfect Sensor Match:Engineered specifically for 1/3" sensors, featuring an image circle that fully utilizes the sensor's capabilities to deliver balanced sharpness from center to edge.

Low Distortion Design:With distortion controlled to <-8%, the lens offers a wide viewing angle while maintaining a natural look, avoiding the extreme curvature found in fisheye lenses.

Manual Focus Control:The standard M12 mount allows for precise manual focus adjustments to suit specific working distances and installation requirements.

Robust Optical Build:Featuring a standard M12*P0.5 thread and a Total Track Length (TTL) of 23.8mm, this lens utilizes a multi-element glass design to correct aberrations and ensure durability.

Applications

Smart Video Doorbells

Indoor/Outdoor Security Cameras

Low-Light Surveillance

Automotive Dash Cams

Robot Vision & Obstacle Avoidance

Pet Monitoring Cameras

IoT Imaging Devices

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This reliable M12 mount fixed focal lens (PN: JSD4520) is expertly engineered for 1/3-inch image sensors, delivering consistent clarity and natural geometry for standard imaging applications. With a 4.5mm focal length and F2.0 aperture, it provides a focused 75° field of view, making it ideal for targeted surveillance, facial recognition, and object detection where detail at a moderate distance is key. Featuring 2MP (1080p) resolution support and a low optical distortion design (< -5.5%), this lens ensures true-to-life image representation with straight-line accuracy across diverse lighting conditions.

Key Features & Benefits

2MP HD Resolution:Delivers clear, high-definition 1080p imaging with sufficient detail retention, ensuring reliability for standard security and monitoring needs.

Natural 75° Field of View:Provides a focused viewing angle that balances coverage with object magnification, offering a natural perspective ideal for identifying faces or monitoring specific areas (corridors, entryways) without the "fish-eye" effect.

Low Distortion Design:Optical distortion is strictly controlled at < -5.5%, minimizing barrel distortion to maintain straight edges and accurate spatial geometry, which is critical for machine vision and recognition tasks.

Perfect Sensor Match:Engineered specifically for 1/3" sensors, utilizing the full image circle to eliminate vignetting and maximize sensor performance.

Bright F2.0 Aperture:The F2.0 aperture ensures adequate light intake, producing clear images in both indoor and outdoor environments.

Standard & Robust Build:Features a standard M12 thread and a Total Track Length (TTL) of 25mm, ensuring easy integration into standard bullet cameras, dome cameras, and industrial housings.

Applications

Standard CCTV Surveillance (Indoor/Outdoor)

Facial Recognition Systems

Video Doorphones & Intercoms

Industrial Inspection & Automation

Object Detection & Tracking

Biometrics & Access Control

Wildlife Scouting Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-precision M8 mount fixed focal lens is expertly engineered for 1/2.8-inch sensors, delivering exceptional clarity and virtually zero distortion for advanced imaging applications. With a 2.8mm focal length and F2.5 aperture, it provides a wide 98° field of view, making it ideal for biometrics, document scanning, and precision machine vision. Featuring True 8MP resolution and an ultra-low distortion rate of less than -0.45%, this lens ensures superior image sharpness and accurate geometric representation across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution:Delivers crisp, high-definition imaging with exceptional detail retention, perfectly supporting 4K UHD resolution for complex scene analysis.

Ultra-Low Distortion (<-0.45%):Advanced optical design achieves extremely low barrel distortion (less than 0.45%), ensuring straight lines remain straight and providing true-to-life image representation without software correction.

Perfect Sensor Match:Engineered specifically for 1/2.8" sensors, featuring a precise image circle that eliminates vignetting and fully utilizes sensor capabilities.

Wide 98° FOV:Provides a comprehensive 98-degree field of view, ideal for standard wide-angle monitoring, facial recognition, and close-range capture with no blind spots.

Compact & Precision Build:Standard M8 thread and a Total Track Length (TTL) of 14.7mm ensure seamless integration into compact, space-constrained devices while maintaining optical durability.

High Contrast & Aperture:The F2.5 aperture balances light intake with depth of field, offering sharp focus and high contrast for OCR (Optical Character Recognition) and detailed inspection tasks.

Applications

Facial Recognition & Biometrics

Document Scanning / OCR

Compact Machine Vision

Portable Medical Imaging Devices

Video Conferencing Systems

Handheld Barcode Scanners

IoT & Smart Home Devices

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This wide-angle M12 mount fixed focal lens is expertly engineered for 1/2.8-inch sensors, delivering expansive scene coverage and reliable performance for broad imaging applications. With a short 2.6mm focal length and a bright F2.0 aperture, it provides a super-wide 149° field of view, making it ideal for panoramic surveillance, automotive imaging, and immersive scene capture. Featuring 5MP high resolution, this lens ensures excellent image clarity and detail retention across diverse lighting conditions.

Key Features & Benefits

5MP High-Definition Resolution:Delivers sharp, clear imaging with excellent detail, supporting up to 5 Megapixel sensors for reliable visual data in security and monitoring tasks.

Super-Wide 149° FOV:Provides a massive 149-degree field of view, allowing for panoramic capture and eliminating blind spots in corner-mounted or wide-area applications.

Bright F2.0 Aperture:The large aperture allows for superior light intake, ensuring bright and clear images even in low-light environments or challenging lighting scenarios.

Perfect Sensor Match:Engineered specifically for 1/2.8" sensors, featuring a precise image circle that maximizes sensor area usage without dark corners.

Compact & Robust Build:Standard M12 thread and a Total Track Length (TTL) of 18.45mm ensure easy integration into compact devices, housings, and camera modules.

Wide Application Versatility:Specifically designed for scenarios requiring maximum coverage from a single camera, such as automotive view systems and panoramic security.

Applications

Panoramic Surveillance

Automotive Cameras (Rear/Surround View)

Video Doorbells & Intercoms

VR/AR & 360° Imaging

Sports & Action Cameras

Robot Navigation (SLAM)

Conference Room Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens (Model: JSD3018) is expertly engineered for 1/2.8-inch sensors, delivering high-definition clarity and expansive coverage for advanced imaging applications. With a 2.85mm focal length and a bright F1.8 aperture, it provides an impressive ultra-wide 150° field of view, making it ideal for panoramic surveillance, automotive imaging, and immersive machine vision. Featuring 5MP resolution and superior light-gathering capabilities, this lens ensures sharp, vivid images even in challenging low-light conditions.

Key Features & Benefits

High-Resolution 5MP:Delivers crisp, high-definition imaging with exceptional detail retention, ensuring clarity for security analysis and object recognition tasks.

Bright F1.8 Aperture:Superior to standard F2.0 lenses, the large F1.8 aperture allows for maximum light intake, providing excellent performance in low-light environments and reducing noise.

Ultra-Wide 150° FOV:Provides a massive field of view, significantly wider than standard lenses. This expansive coverage is ideal for minimizing blind spots in surveillance and capturing panoramic scenes in a single frame.

Perfect Sensor Match:Engineered specifically for 1/2.8" sensors, featuring an image circle that fully utilizes the sensor's capabilities to deliver a balanced and focused image.

Robust M12 Build:Featuring a standard M12 thread and a durable structure with a TTL of 22.5mm, this lens is designed for seamless integration into various camera housings and industrial devices.

Wide Application Versatility:The combination of wide-angle coverage and high resolution makes it suited for broad-area monitoring, smart home devices, and automotive applications requiring extensive scene capture.

Applications

Panoramic Surveillance Cameras

Automotive & Dash Cams (Rear/Surround View)

Video Doorbells & Smart Home Security

VR/AR Imaging Devices

Drone & Aerial Imaging (FPV)

Machine Vision (Wide-area inspection)

Video Conferencing Systems

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This compact M8 mount fixed focal lens (PN: JSD2422) is expertly engineered for 1/2.8-inch sensors, designed to deliver maximum scene coverage for space-constrained imaging applications. With a short 2.4mm focal length and F2.2 aperture, it provides a massive 171° field of view, making it ideal for panoramic surveillance, wearable cameras, and compact IoT devices. Featuring reliable 2MP resolution and a miniature form factor, this lens captures clear, broad-area imagery, effectively eliminating blind spots in complex environments.

Key Features & Benefits

High-Definition 2MP Resolution:Optimized for standard HD sensors, delivering clear and reliable 1080P imaging suitable for security, video conferencing, and general-purpose video applications.

Super-Wide 171° FOV:Provides an extreme 171° diagonal field of view (Fisheye effect), allowing a single camera to cover an entire room or wide exterior area with virtually no blind spots.

Miniature M8 Mount Design:Features a standard M8*P0.5 thread, specifically designed for compact devices where space is at a premium, such as drones, mini-cameras, and biometric modules.

Perfect Sensor Match:Engineered specifically for 1/2.8" sensors, featuring an image circle tailored to fully utilize the sensor area without unexpected black corners.

Compact & Lightweight:With a Total Track Length (TTL) of just 12.65mm, this lens is exceptionally compact, ensuring seamless integration into small housings.

Bright F2.2 Aperture:The F2.2 aperture strikes a balance between light intake and depth of field, ensuring clear images in varying lighting conditions.

Immersive Panoramic Capture:While featuring typical wide-angle barrel distortion (<-26%), the optical design prioritizes maximizing the viewing angle for superior situational awareness.

Applications

Miniature Security Cameras

Wearable Body Cameras

Drones (FPV & Aerial Imaging)

Video Doorbells & Smart Intercoms

Biometric & Face Recognition Modules

IoT & Smart Home Devices

Automotive Interior Monitoring

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This wide-angle M12 mount lens (Model: JSD2529) is expertly engineered for 1/2.5-inch sensors, designed to deliver high-definition imaging with expansive scene coverage. With a short 2.6mm focal length and a bright F2.0 aperture, it provides an impressive 162° ultra-wide field of view, making it an excellent choice for panoramic security, automotive viewing, and immersive vision systems. Featuring 5MP resolution support, this lens ensures sharp, detailed image capture across the entire image circle, optimized for applications requiring maximum visibility with a compact form factor.

Key Features & Benefits

High-Definition 5MP Resolution:Delivers crisp, clear imaging capable of resolving fine details, ensuring superior performance in HD security and machine vision systems.

Ultra-Wide 162° FOV:Provides a massive field of view (Diagonal 162°), allowing a single camera to capture panoramic scenes and significantly reducing blind spots in monitoring applications.

Optimized for 1/2.5" Sensors:Specifically designed with a 1/2.5" image circle to perfectly match compatible sensors, eliminating dark corners and maximizing sensor utilization.

Bright F2.0 Aperture:The large aperture ensures excellent light intake, providing clear and bright images even in challenging low-light environments.

Compact M12 Design:Features a standard M12 thread with a Total Track Length (TTL) of 22.29mm, ensuring easy integration into compact devices and housing units.

Wide-Angle Optical Performance:With distortion controlled at <-32%, this lens achieves an extreme wide-angle perspective (Fisheye effect), ideal for seeing the "bigger picture" in confined or large spaces.

Applications

Panoramic Surveillance Systems

Automotive Rear/Surround View Cameras

Video Doorbells & Smart Home Security

VR/AR & 360° Imaging

Sports Action Cameras

Robotics & Obstacle Avoidance

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This wide-angle M12 mount fixed focal lens (PN: JSD2520) is expertly engineered for 1/2.5-inch sensors, delivering immersive imaging with extensive coverage. With a short 2.5mm focal length and a bright F2.0 aperture, it provides a super-wide 156° field of view, making it ideal for panoramic surveillance, automotive vision, and VR applications. Featuring 5MP resolution, this lens captures sharp details across the entire image circle, ensuring reliable performance even in low-light environments thanks to its fast aperture.

Key Features & Benefits

5MP High Definition:Delivers clear, high-resolution imaging compatible with 5 Megapixel sensors, ensuring sharpness and detail retention for critical video analysis.

Super-Wide 156° FOV:Provides a massive field of view, allowing a single camera to cover entire rooms or broad outdoor areas, significantly reducing the need for multiple cameras and eliminating blind spots.

Bright F2.0 Aperture:The large F2.0 aperture allows more light to reach the sensor, providing superior image quality in low-light conditions and night-time monitoring.

Optimized for 1/2.5" Sensors:Engineered specifically for 1/2.5" image formats, ensuring full sensor coverage with a specialized optical design.

Broad Area Coverage:With distortion at <-16.64%, this lens offers a classic wide-angle perspective (fisheye effect), prioritizing maximum scene information and peripheral vision over linear geometry.

Compact Integration:Featuring a standard M12*P0.5 thread and a Total Track Length (TTL) of 17.51mm, it is designed for seamless integration into security domes, action cameras, and compact devices.

Applications

Panoramic Surveillance (180°/360° Cameras)

Automotive Rear View & ADAS

Action Cameras & Wearables

Virtual Reality (VR) Content Creation

Video Doorbells

Robotics & Drone Navigation

Conference Room Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
