Solution

Description

The JSD2636 is a non distortion lens for 1/2.5” 4k sensor, diagonal FOV is 100 degree. Image circle 8.5mm support up to 1/3” image sensor.

Application

l  Sports & Action Camera

l  Security & Security Camera

l  4K Video Conference Camera

l  Drone

Specification

Description

The JSD3528 is designed for 1/2.5” image format with HFOV 89 degree on Sony IMX317. Have 650nm IRCF, 850nm IRCF and 940nm IRCF version, good choice for drone and robotic application.

Application

l  Aerial Image

l  Robotics

l  Wearable Camera

l  Video Conference Camera

Specification

Description

The 3.9mm wide angle lens is designed for 4K sensor with non distortion, HFOV 76° on 1/2.3” IMX206 sensor, best option for camcorder application.

Application

l  Camcorder

l  Robotics

l  Drone

l  Video Conference Camera

Specification

Description

The JSD1326 wide angle lens has image circle 7.8mm, it’s suitable for 1/2.3” 4K sensor. It has 650nm and NIR version available from stock.

Application

l  Sports & Action Camera

l  Security & Security Camera

l  4K Video Conference Camera

l  Robotics

Specification

Description

The JSD2636 is a high-performance wide-angle lens with a focal length of 1.8mm, delivering an ultra-wide 123° horizontal field of view (HFOV), making it highly suitable for applications requiring broad scene coverage. It supports a 1/2.5-inch sensor and offers 8MP high resolution, capturing detailed and clear images. The F2.8 aperture design enhances light intake in low-light environments, while its minimal distortion of only 4% effectively maintains image authenticity and reduces edge deformation. With an optical total length (TTL) of 24.5mm and an image circle of 7mm, it ensures excellent compatibility with compact modules

Specification

Description

This optical lens features an effective focal length (EFL) of 2.93mm and a large F2.8 aperture, ensuring high light intake and excellent image brightness even in low-light environments, while also delivering a relatively shallow depth of field to emphasize the subject.

With an ultra-wide 116° horizontal field of view (HFOV), it captures expansive scenes, making it ideal for applications requiring broad coverage or capturing more contextual information in confined spaces.

The lens demonstrates well-controlled distortion: a value of -14.7% indicates barrel distortion (inward curvature at the edges), which is common in ultra-wide-angle lenses and can typically be corrected via software algorithms.

Its compact design, with a total length (TTL) of just 12.25mm, facilitates device miniaturization. Additionally, it offers both M11 and M12 threaded interfaces for flexible installation and enhanced compatibility.

Application

Security and Surveillance: The ultra-wide field of view (FOV) is particularly suitable for large-area monitoring scenarios such as public squares and warehouses

Automotive Electronics: Applications like automotive surround-view systems and blind spot monitoring benefit from the broad perspective, capturing extensive surrounding environmental information

Industrial Inspection: Useful for appearance inspection, positioning, and counting under large-field conditions

Intelligent Recognition: Applicable to AIoT fields such as facial recognition and behavior analysis

Drones and Robotics: With compact dimensions and wide angles, they are ideal for obstacle avoidance navigation and visual perception tasks

Specification

Description

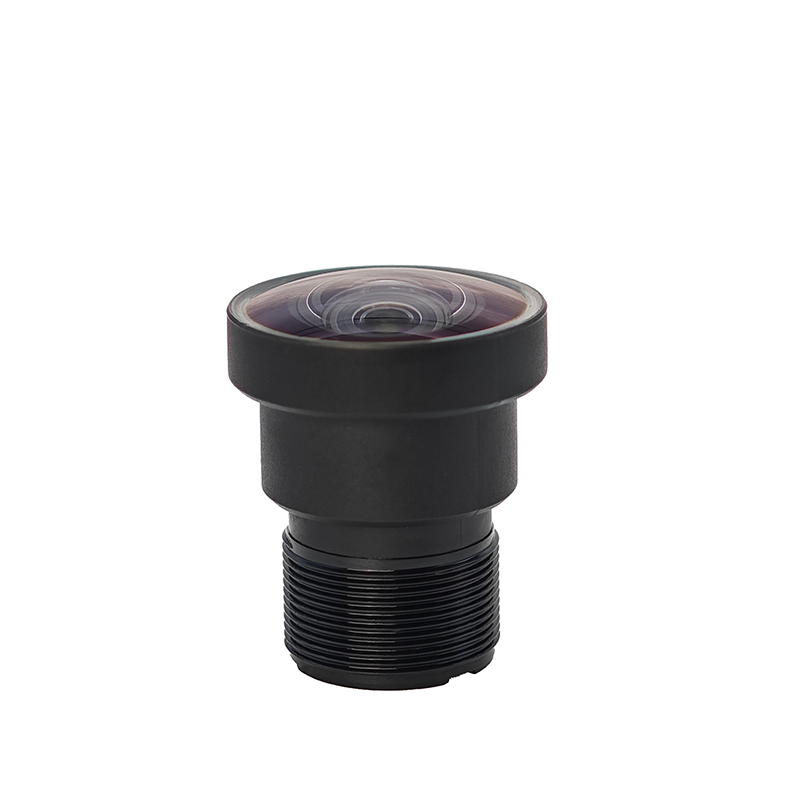

The JSD6630 is a high-performance ultra-wide-angle fixed-focus lens with an optical total length (TTL) of 22.73 mm, compatible with both 1/2.55-inch and 1/2.8-inch image sensors. It features a large F2.6 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments. The lens offers two horizontal field of view (HFOV) options: 125° and 110°, enabling coverage of expansive scenes. However, as commonly seen in ultra-wide-angle designs, it exhibits noticeable distortion (Distortion < -17% / < -13.6%), which can be effectively corrected via software algorithms.

Application

Security & Surveillance: Used for panoramic monitoring, and scenarios requiring large-area coverage such as elevators and lobbies

Smart Home & IoT Devices: e.g., wide-angle smart doorbells, household panoramic cameras, and visual modules for various smart hardware

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view

Automotive Imaging Systems: Served as dash cams or blind spot monitoring probes

Mobile Devices & Drones: Integrated into space-constrained consumer electronics or aerial photography equipment requiring wide-angle capabilities

Specification

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With an 8mm focal length and F1.8 aperture, it provides an expansive 130° field of view, making it ideal for panoramic surveillance, broad-area monitoring, and wide-scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and enhanced peripheral visibility across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Wide 130° FOV: Provides an ultra-wide field of view ideal for panoramic surveillance, broad environmental monitoring, and large-area scene capture with minimal blind spots.

Enhanced Optical Performance: Advanced lens design maintains image clarity across the entire wide field, balancing brightness and detail even at the periphery.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Wide-Angle Applications: Suited for wide-area monitoring, traffic scene analysis, security surveillance, and machine vision tasks requiring extensive coverage.

Technical Specifications

Applications

Wide-Area Surveillance: Broad coverage for open-space monitoring, large environment oversight, and expansive area observation.

Perimeter Protection: Comprehensive coverage for site boundaries, fence lines, and extended security perimeters.

Crowd Monitoring: Effective tracking of group movements, gathering analysis, and high-density area surveillance.

Traffic Flow Analysis: Wide-angle vehicle tracking, multi-lane monitoring, and intersection activity observation.

Facility Management: Expanded interior monitoring, large room coverage, and open area security assessment.

Environmental Observation: Panoramic scene capture, landscape monitoring, and wide field situational awareness.

Intrusion Detection: Enhanced peripheral vision, boundary monitoring, and expanded threat detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and expansive coverage for advanced imaging applications. With a 4.26mm focal length and F2.8 aperture, it provides a wide 93° field of view, making it ideal for broad-area surveillance, environmental monitoring, and panoramic scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and ultra-low distortion across diverse lighting conditions.

Key Features & Benefits

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20, SONY IMX334), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Balanced Aperture Performance: Optimized F2.8 aperture provides versatile light gathering for both indoor and outdoor environments, ensuring consistent image quality.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Ultra-Low Distortion Optics: Advanced optical design minimizes distortion across the entire field of view, maintaining geometric accuracy and true-to-life image representation.

True 8MP Resolution: Delivers exceptional, high-definition imaging with outstanding detail reproduction, ensuring crisp visuals for advanced imaging applications.

Versatile Wide-Angle Applications: Suited for wide-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring extensive field coverage.

Wide-Angle 93° FOV: Provides an expansive wide field of view ideal for broad-area surveillance, environmental monitoring, and large scene coverage with minimal blind spots.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Technical Specifications

Applications

Facility Surveillance: Interior monitoring of large rooms, open area security assessment, and structured environment observation with comprehensive coverage.

Perimeter Security: Enhanced coverage for site boundaries, fence lines, and extended security perimeters with broader visibility and wide-angle field.

Environmental Assessment: Panoramic scene capture, landscape monitoring, and situational awareness for comprehensive analysis with maximum field coverage.

Ultra-Low Distortion Imaging: Precision optical design maintains geometric accuracy with ultra-low distortion, ensuring true-to-life image representation across the entire 93° field of view.

Industrial Inspection: Medium to long-range component examination, equipment monitoring, and quality control assessments with ultra-low distortion and wide field of view.

Traffic Analysis: Vehicle tracking across multiple lanes, intersection coverage, and traffic flow observation with enhanced peripheral vision and wide field awareness.

Crowd Monitoring: Effective tracking of group movements in medium to large density areas, gathering analysis, and expanded people monitoring with wide perspective.

Wide-Angle Imaging: Exceptional coverage for spacious environments with 93° FOV, providing expansive scene capture and broad field observation with minimal blind spots.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Description

The compact 2.52mm wide angle lens has image circle 6.4mm support up to 1/2.9” sensor, short TTL 15mm with low distortion.

Applications

l Body Cam

l Sports camera

l Computer Vision

Specification

Description

The compact 2.2mm wide angle lens also support up to 1/2.7” sensor, very low distortion 5%, aperture F2.0 achieve good performance in low light situation.

Applications

l Video Conference

l Sports camera

l Computer Vision

Specification

Description

The 2.7mm a miniature M8 lens is designed for 8.3MP 1/2.7” cmos sensor, image circle 6.8mm enable it suitable for sensor up to 1/2.8” IMX415 sensor. TTL is only 14.5mm, have M8 and M12 mount version available from stock.

Application

l  Consumer Surveillance Cameras

l  Smart Home

l  Cost Effective Sport Cameras

l  Smart Home and IoT Cameras

l  Camcorder

l  Video Conference Camera

Specification

Description

The JSD2019 is a compact wide-angle fixed-focus lens with a total track length (TTL) of 16.7 mm, featuring a lightweight structural design. It incorporates an F2.4 aperture, ensuring sufficient light intake to deliver adequately bright images under various lighting conditions. With a horizontal field of view (HFOV) of 110°, it covers a broad range of scenes, making it suitable for wide-angle monitoring and photography. However, it exhibits noticeable barrel distortion (Distortion < -14%), which is common in wide-angle designs and typically requires correction via software algorithms. The lens is compatible with 1/2.8-inch image sensors and is equipped with a standard M12 threaded interface for easy installation and integration

Application

Security & Surveillance: Used for indoor and outdoor monitoring scenarios requiring large-area coverage, such as lobbies, warehouses, and smart home security systems

Smart Home Devices: e.g., wide-angle smart doorbells, household surveillance cameras

Industrial Inspection & Machine Vision: Suitable for vision positioning or preliminary inspection scenarios demanding a wide field of view

Automotive Imaging Systems: Serving as dash cams or visual sensors for assisted driving, providing a broad field of view

Consumer Electronics: Integrated into IoT devices requiring visual functionality

Specification

Description

The JSD3319 wide angle 4K lens has HFOV 78° on 1/2.8” sensor, distortion is only 0.4%.

widely used on robotic, Scanning, Tracking, Video conference.

Specification

Description

The industrial lens model JSD3520 is a large-aperture wide-angle lens. Its F2.0 large aperture design ensures excellent light throughput, enabling it to capture bright images even in low-light environments. Its core feature is an ultra-wide 107.1° horizontal field of view (HFOV), which provides extensive coverage and makes it highly suitable for monitoring large areas. With a compact design, the total track length (TTL) of the lens is controlled at 17.68mm, and it features a universal M12 mount for easy integration and installation. It is important to note that, as a wide-angle lens, it exhibits relatively significant distortion (<-16.25%), typically manifesting as barrel distortion. However, this can be effectively corrected using algorithms in practical applications. The lens is matched with a 1/2.8-inch image sensor and is primarily intended for embedded vision applications with stringent requirements for field of view and spatial constraints.

Application

Security Monitoring: Its wide field of view is particularly suitable for scenarios requiring coverage of large areas, such as parking lots, warehouses, and traffic intersections. A single device can achieve large-area surveillance

Industrial Inspection: In production lines, it can be used for appearance inspection, positioning, or process monitoring of large-sized products or components, for example, detecting the presence/absence or general distribution of entire products

Smart Terminal and IoT Devices: Its compact size makes it an ideal choice for consumer and commercial devices like smart home doorbells and video conference cameras, enabling a wide shooting angle within a small form factor

Specification

Description

The JSD2623 is a HFOV 100° wide angle M12 lens designed for 1/2.5” 4K sensor, with very low distortion 1.28%. Also suitable for 1/2.8” IMX415 sensor.

Application

l  Sports & Action Camera

l  Security & Security Camera

l  4K Video Conference Camera

l  Robotics

Specification

Description

The 2.8mm wide angle lens has HFOV 100° on 1/2.5” cmos sensor with extremely low distortion 1.1%, designed for video conference system. Compatible for ICR switcher.

Application

l  Sports Camera

l  Security

l  Drone

l  Video Conference Camera

Specification

Description

The JSD2629 lens is a low distortion 2.2mm wide angle lens for 1/2.3”IMX477 sensor with 4K resolution. Aperture F1.8 make this lens is perfect for low light condition, available for NIR application, distortion is very low 4%.

Different F/No version available.

Application

l  Sports & Action Camera

l  Security & Security Camera

l  4K Video Conference Camera

Specification

Description

The 2.7mm wide-angle lens is designed for 12MP 1/2.3” cmos sensor, image circle 8.3mm enable it suitable for sensor up to 1/2.8” IMX415 sensor. HFOV 100 degrees on IMX317 sensor while distortion is only 1.5%.

Application

l  Aerial Imaging

l  Mobile Robotics

l  Digital Still Camera

l  Scanning

l  Camcorder

l  Video Conference Camera

Specification
