Solution

Description

The JSD1314 M12 lens has HFOV 106 degree on 1/2.5” IMX317 sensor, 8MP resolution with image circle 8mm suitable up to 1/2.3” 4K sensor. Provide M12 mount holder with this lens

Application

l  Sports & Action Camera

l  Security & Security Camera

l  4K Video Conference Camera

Specification

Description

The 8015 is a non distortin M12 lens for IMX217 sensor, has 650nm and 850nm IR cut filter version available.

Specification

Description

The JSD2636 is a high-performance wide-angle lens with a focal length of 1.8mm, delivering an ultra-wide 123° horizontal field of view (HFOV), making it highly suitable for applications requiring broad scene coverage. It supports a 1/2.5-inch sensor and offers 8MP high resolution, capturing detailed and clear images. The F2.8 aperture design enhances light intake in low-light environments, while its minimal distortion of only 4% effectively maintains image authenticity and reduces edge deformation. With an optical total length (TTL) of 24.5mm and an image circle of 7mm, it ensures excellent compatibility with compact modules

Specification

Description

The 4.3mm wide angle lens is a high resolution lens with non-distortion and metal construction. It’s designed for computer vision applications in the Aerial image, Robotics, Security and Machine Vision markets.

Application

l  Aerial Image

l  Robotics

l  Security/Surveillance cameras

l  Video Conference Camera

Specification

Description

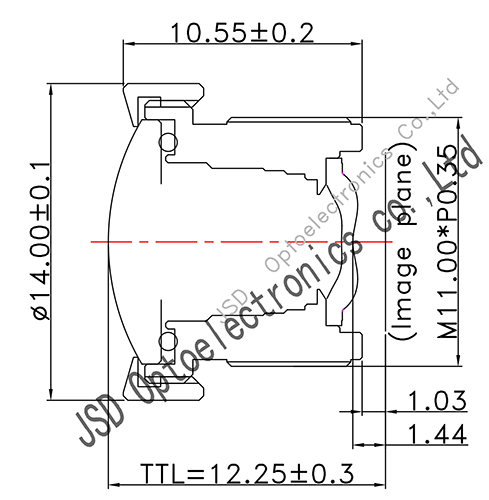

This optical lens features an effective focal length (EFL) of 2.93mm and a large F2.8 aperture, ensuring high light intake and excellent image brightness even in low-light environments, while also delivering a relatively shallow depth of field to emphasize the subject.

With an ultra-wide 116° horizontal field of view (HFOV), it captures expansive scenes, making it ideal for applications requiring broad coverage or capturing more contextual information in confined spaces.

The lens demonstrates well-controlled distortion: a value of -14.7% indicates barrel distortion (inward curvature at the edges), which is common in ultra-wide-angle lenses and can typically be corrected via software algorithms.

Its compact design, with a total length (TTL) of just 12.25mm, facilitates device miniaturization. Additionally, it offers both M11 and M12 threaded interfaces for flexible installation and enhanced compatibility.

Application

Security and Surveillance: The ultra-wide field of view (FOV) is particularly suitable for large-area monitoring scenarios such as public squares and warehouses

Automotive Electronics: Applications like automotive surround-view systems and blind spot monitoring benefit from the broad perspective, capturing extensive surrounding environmental information

Industrial Inspection: Useful for appearance inspection, positioning, and counting under large-field conditions

Intelligent Recognition: Applicable to AIoT fields such as facial recognition and behavior analysis

Drones and Robotics: With compact dimensions and wide angles, they are ideal for obstacle avoidance navigation and visual perception tasks

Specification

Description

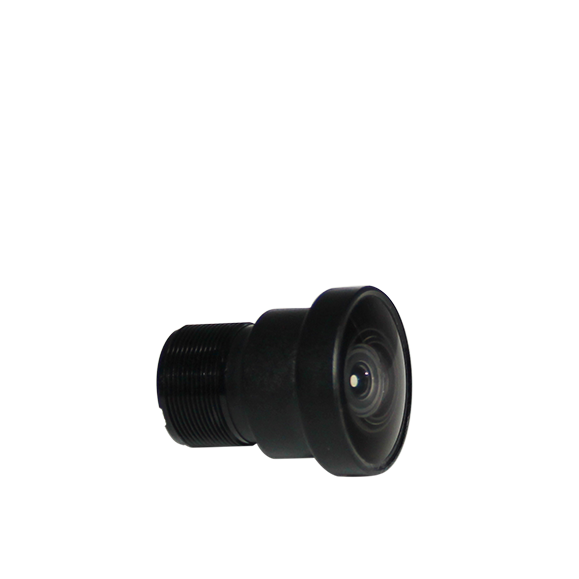

The JSD6630 is a high-performance ultra-wide-angle fixed-focus lens with an optical total length (TTL) of 22.73 mm, compatible with both 1/2.55-inch and 1/2.8-inch image sensors. It features a large F2.6 aperture, delivering excellent low-light imaging capability to ensure bright and clear image capture even in dim environments. The lens offers two horizontal field of view (HFOV) options: 125° and 110°, enabling coverage of expansive scenes. However, as commonly seen in ultra-wide-angle designs, it exhibits noticeable distortion (Distortion < -17% / < -13.6%), which can be effectively corrected via software algorithms.

Application

Security & Surveillance: Used for panoramic monitoring, and scenarios requiring large-area coverage such as elevators and lobbies

Smart Home & IoT Devices: e.g., wide-angle smart doorbells, household panoramic cameras, and visual modules for various smart hardware

Industrial Inspection & Machine Vision: Suitable for inspection scenarios demanding a wide field of view

Automotive Imaging Systems: Served as dash cams or blind spot monitoring probes

Mobile Devices & Drones: Integrated into space-constrained consumer electronics or aerial photography equipment requiring wide-angle capabilities

Specification

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and zero distortion for precision imaging applications. With an 8mm focal length and F2.8 aperture, it provides a balanced 58° field of view, making it ideal for medium-range surveillance, targeted machine vision tasks, and focused scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this lens ensures superior image sharpness and zero distortion across diverse lighting conditions

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Balanced 58° FOV: Provides a focused field of view ideal for medium-range surveillance, targeted machine vision tasks, and precise scene capture with optimal detail concentration.

Zero Distortion Design: Advanced optical optimization eliminates distortion across the entire image, maintaining geometric accuracy and true-to-life representations.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Application Performance: Suited for medium-range monitoring, object inspection, industrial quality control, and machine vision tasks requiring focused field coverage.

Technical Specifications

Applications

Medium-Range Surveillance: Targeted coverage for entrance monitoring, facility perimeters, and mid-distance security observation.

Industrial Inspection: Detailed examination of components, equipment monitoring, and focused quality control assessments.

Machine Vision: Precision inspection, targeted object measurement, and focused field defect detection.

Facial Recognition Systems: Optimized for controlled-distance identification, access control, and authentication terminals.

Retail Analytics: Customer behavior monitoring, point-of-sale area tracking, and focused traffic pattern analysis.

Traffic Monitoring: Lane-specific vehicle analysis, mid-range vehicle identification, and traffic pattern observation.

Building Security Systems: Focused area surveillance, hallway monitoring, and structured environment observation

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

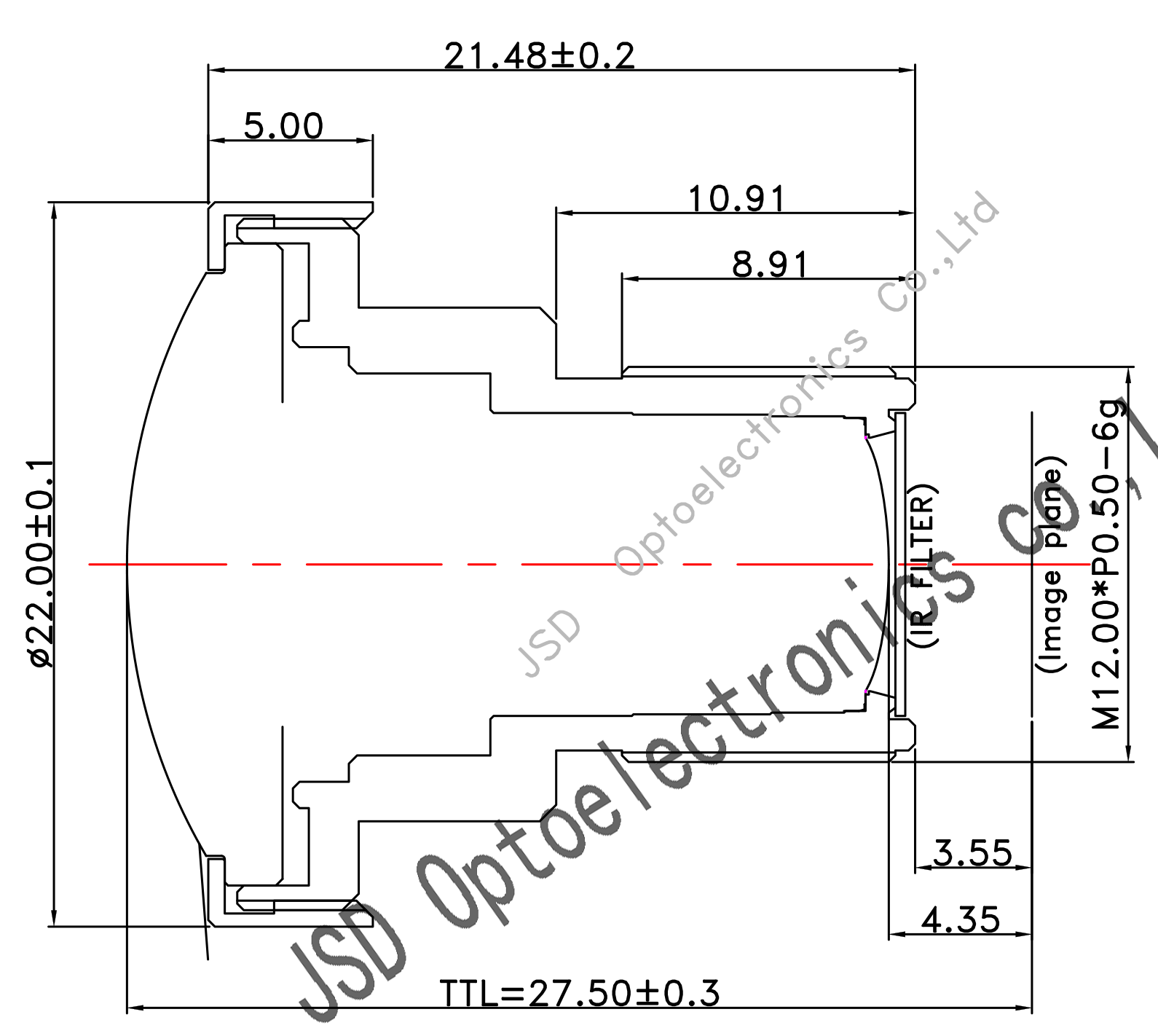

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With an 8mm focal length and F1.8 aperture, it provides an expansive 130° field of view, making it ideal for panoramic surveillance, broad-area monitoring, and wide-scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and enhanced peripheral visibility across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Wide 130° FOV: Provides an ultra-wide field of view ideal for panoramic surveillance, broad environmental monitoring, and large-area scene capture with minimal blind spots.

Enhanced Optical Performance: Advanced lens design maintains image clarity across the entire wide field, balancing brightness and detail even at the periphery.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Wide-Angle Applications: Suited for wide-area monitoring, traffic scene analysis, security surveillance, and machine vision tasks requiring extensive coverage.

Technical Specifications

Applications

Wide-Area Surveillance: Broad coverage for open-space monitoring, large environment oversight, and expansive area observation.

Perimeter Protection: Comprehensive coverage for site boundaries, fence lines, and extended security perimeters.

Crowd Monitoring: Effective tracking of group movements, gathering analysis, and high-density area surveillance.

Traffic Flow Analysis: Wide-angle vehicle tracking, multi-lane monitoring, and intersection activity observation.

Facility Management: Expanded interior monitoring, large room coverage, and open area security assessment.

Environmental Observation: Panoramic scene capture, landscape monitoring, and wide field situational awareness.

Intrusion Detection: Enhanced peripheral vision, boundary monitoring, and expanded threat detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

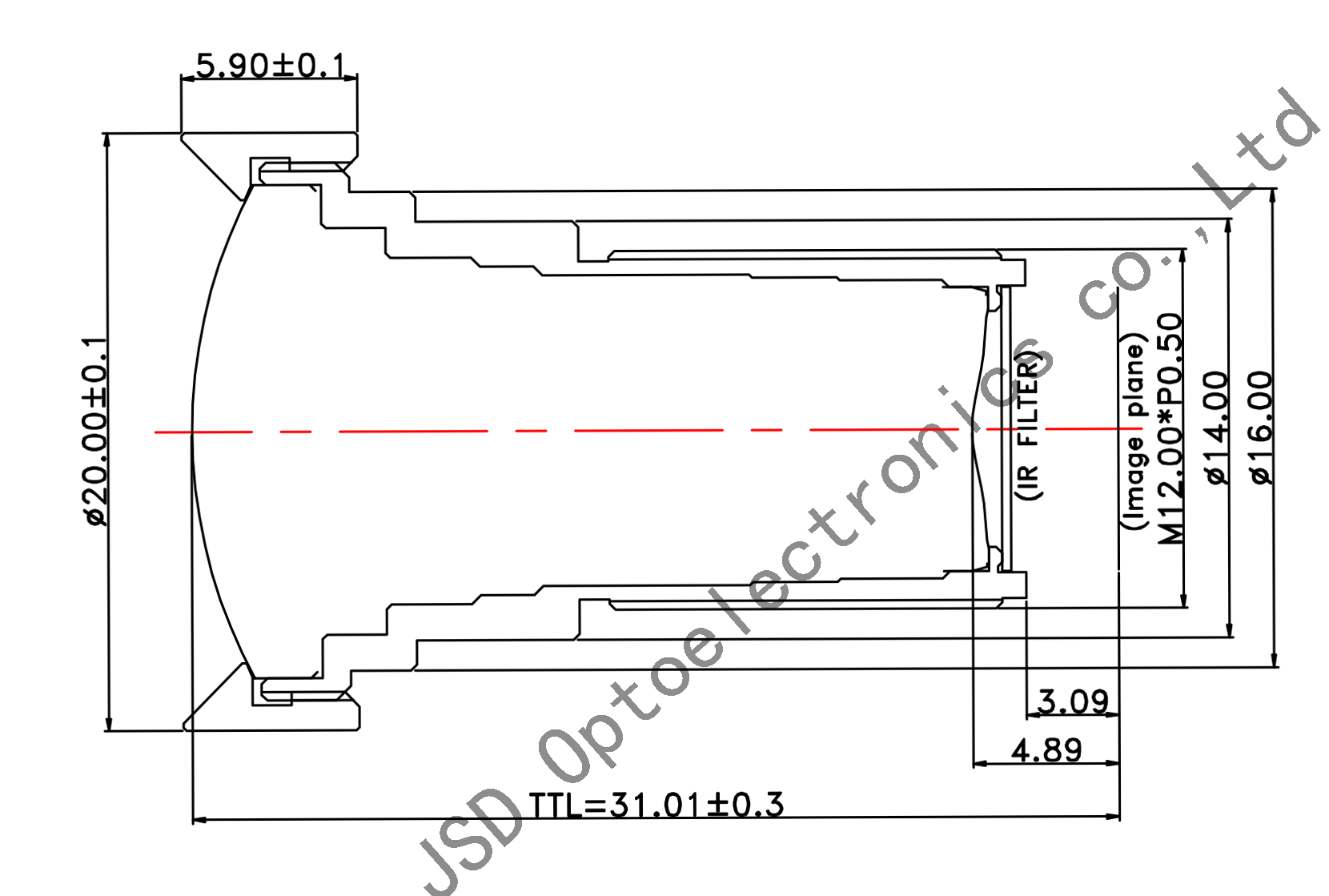

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and immersive fisheye perspective for advanced imaging applications. With a 3.8mm focal length and F1.5 aperture, it provides an ultra-wide 146° field of view, making it ideal for panoramic surveillance, full-room monitoring, and 360° scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this fisheye lens ensures superior image sharpness and maximum peripheral visibility across diverse lighting conditions.

Key Features & Benefits

Enhanced Low-Light Performance: Exceptional F1.5 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 146° FOV: Provides an exceptionally wide fisheye field of view ideal for panoramic surveillance, broad environmental monitoring, and maximized area coverage with minimal blind spots.

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Versatile Fisheye Applications: Suited for expansive area monitoring, security surveillance, immersive machine vision, and 360° scene analysis requiring maximum field coverage.

Technical Specifications

Applications

Ultra-Fisheye Wide-Angle Surveillance: Exceptional 146° FOV coverage for complete 360° environment immersion, extreme corner-to-corner visibility, and maximized scene capture with true fisheye perspective.

Crowd Dynamics Analysis: Superior tracking of large group movements, mass gathering analysis, and ultra-high-density area surveillance with minimal occlusion.

Comprehensive Traffic Monitoring: Ultra-wide vehicle tracking across multiple lanes, complete intersection coverage, and panoramic traffic pattern observation with single-lens solution.

Perimeter Security Enhancement: Holistic site boundary coverage, extensive fence line monitoring, and maximized security perimeter protection with 360° visibility.

Facility Wide-Area Management: Complete interior monitoring, extra-large room coverage, and broad open area security assessment with seamless corner-to-corner visibility.

Environmental Panoramic Assessment: Maximum panoramic scene capture, wide landscape monitoring, and enhanced field situational awareness for comprehensive analysis.

Intrusion Detection System Optimization: Enhanced peripheral vision with maximum radial coverage, extended boundary monitoring, and broadened threat detection across all angles.

Immersive Machine Vision: Complete scene acquisition for panoramic inspection, full-field measurement, and 360° defect detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

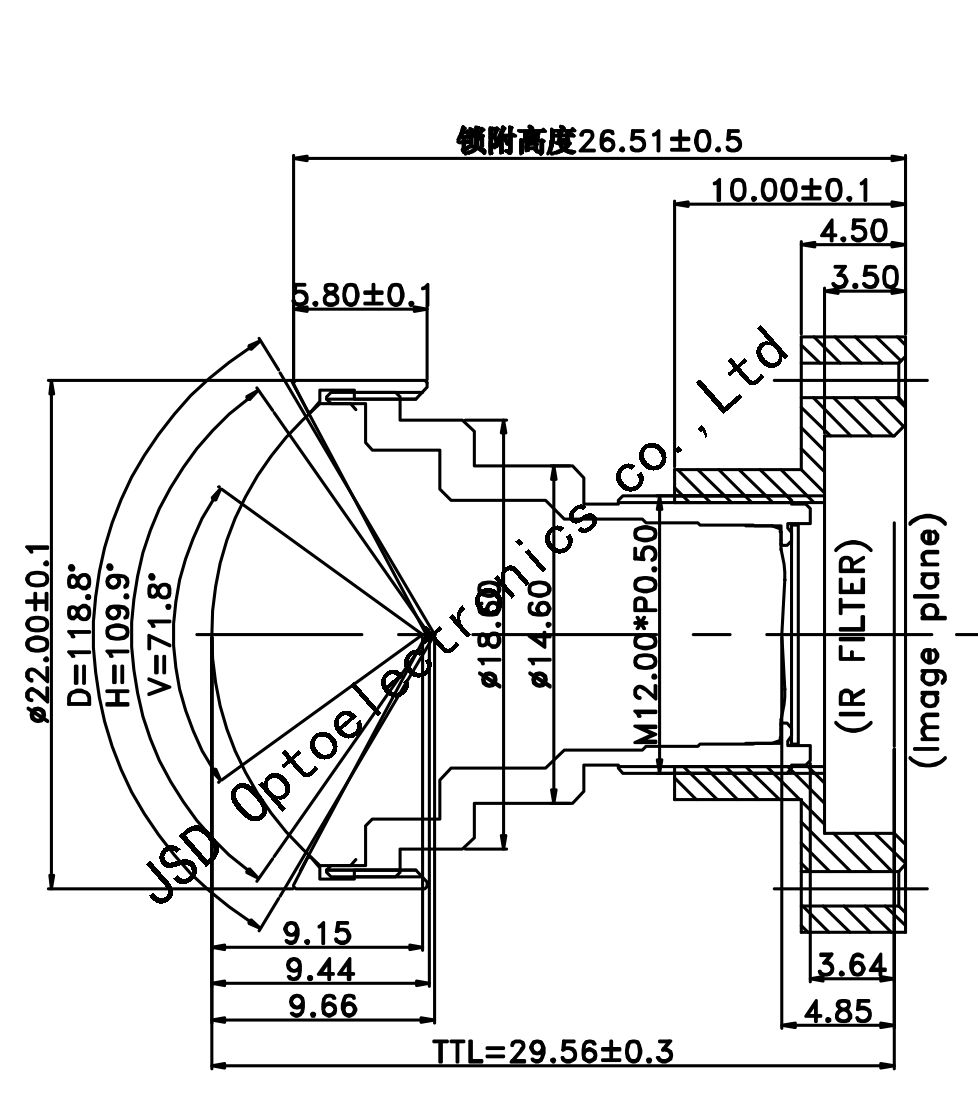

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With a 5.83mm focal length and F1.6 aperture, it provides a balanced 77° field of view, making it ideal for medium-range surveillance, expanded area monitoring, and comprehensive scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and low distortion across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Wide-Angle 77° FOV: Provides a balanced wide field of view ideal for medium-range surveillance, environmental monitoring, and expanded area coverage with minimal blind spots.

Versatile Wide-Angle Applications: Suited for medium-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring balanced wide coverage.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Enhanced Low-Light Performance: Exceptional F1.6 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Low Distortion Optics: Advanced optical design minimizes distortion across the field of view, maintaining accurate image geometry and true-to-life representations.

Technical Specifications

Applications

Crowd Monitoring: Effective tracking of group movements in medium-density areas, gathering analysis, and expanded people monitoring with balanced perspective.

Wide-Angle Imaging: Exceptional coverage for medium-range environments with 77° FOV, providing expansive scene capture and broad field observation with minimal blind spots.

Facility Surveillance: Interior monitoring of medium to large rooms, open area security assessment, and structured environment observation.

Traffic Analysis: Vehicle tracking across multiple lanes, intersection coverage, and traffic flow observation with enhanced peripheral vision.

Perimeter Security: Enhanced coverage for site boundaries, fence lines, and extended security perimeters with broader visibility.

Intrusion Detection: Peripheral vision enhancement with wide coverage, boundary monitoring, and broadened threat detection capabilities.

Industrial Inspection: Medium-range component examination, equipment monitoring, and quality control assessments with low distortion and balanced field of view.

Environmental Assessment: Panoramic scene capture, landscape monitoring, and situational awareness for comprehensive analysis.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering clear imaging and wide coverage for versatile imaging applications. With a 6.19mm focal length and F2.8 aperture, it provides a balanced 72° field of view, making it ideal for medium-range surveillance, environmental monitoring, and comprehensive scene capture. Featuring True 5MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and ultra-low distortion across diverse lighting conditions.

Key Features & Benefits

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Wide-Angle 72° FOV: Provides a balanced wide field of view ideal for medium-range surveillance, environmental monitoring, and expanded area coverage with minimal blind spots.

Versatile Wide-Angle Applications: Suited for medium-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring balanced wide coverage.

Balanced Aperture Performance: Optimized F2.8 aperture provides versatile light gathering for both indoor and outdoor environments, ensuring consistent image quality.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Ultra-Low Distortion Optics: Advanced optical design minimizes distortion across the entire field of view, maintaining geometric accuracy and true-to-life image representation.

True 5MP Resolution: Delivers clear, high-quality imaging with reliable detail reproduction, ensuring crisp visuals for standard-definition applications.

Technical Specifications

Applications

Wide-Angle Imaging: Exceptional coverage for medium-range environments with 72° FOV, providing expansive scene capture and broad field observation with minimal blind spots.

Crowd Monitoring: Effective tracking of group movements in medium-density areas, gathering analysis, and expanded people monitoring with balanced perspective.

Facility Surveillance: Interior monitoring of medium to large rooms, open area security assessment, and structured environment observation.

Traffic Analysis: Vehicle tracking across multiple lanes, intersection coverage, and traffic flow observation with enhanced peripheral vision.

Perimeter Security: Enhanced coverage for site boundaries, fence lines, and extended security perimeters with broader visibility.

Industrial Inspection: Medium-range component examination, equipment monitoring, and quality control assessments with ultra-low distortion and balanced field of view.

Environmental Assessment: Panoramic scene capture, landscape monitoring, and situational awareness for comprehensive analysis.

Ultra-Low Distortion Imaging: Precision optical design maintains geometric accuracy with ultra-low distortion, ensuring true-to-life image representation.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Product Overview

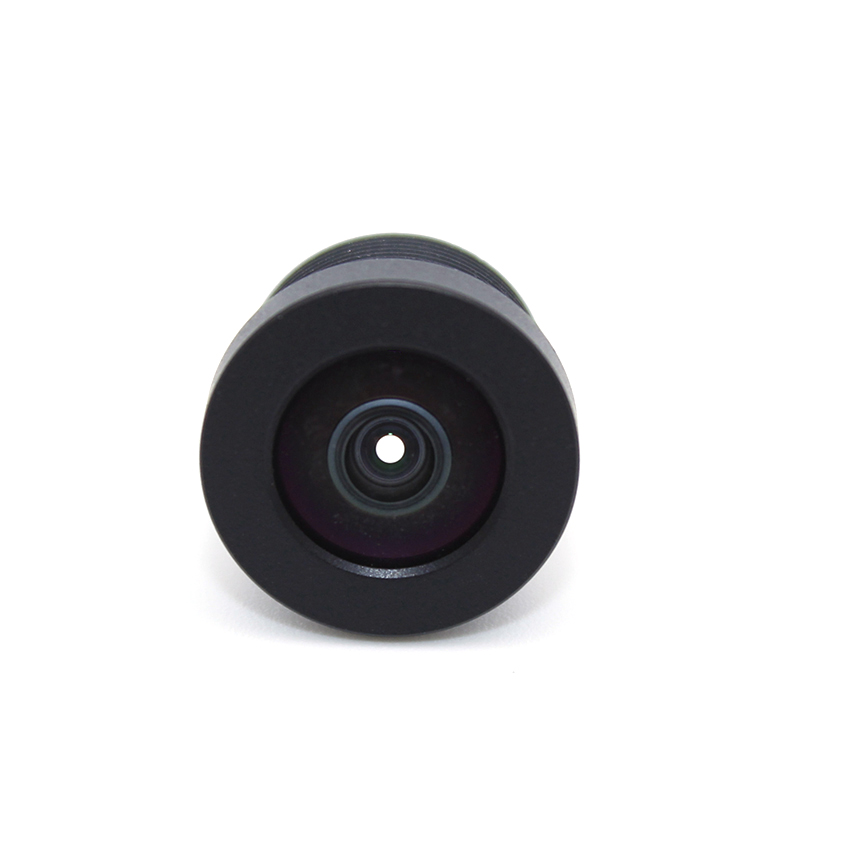

The JSD0127 is a high-definition M12 mount fixed focal lens expertly engineered for 1/3-inch image sensors, delivering crystal-clear performance for 4K imaging applications. With a 2.52mm focal length and F2.4 aperture, it provides a wide 120° field of view, striking a perfect balance between broad scene coverage and image detail. Featuring True 8MP resolution, this lens ensures superior image sharpness and is designed to meet the demands of high-end security, video conferencing, and smart home devices.

Key Features & Benefits

True 8MP Resolution:Delivers crisp, high-definition 4K imaging with exceptional detail retention, ensuring clarity for facial recognition and complex scene analysis.

Wide 120° FOV:Provides an expansive field of view ideal for room-scale surveillance, video conferencing, and dashboard cameras, capturing the full scene effectively.

Perfect Sensor Match: Engineered specifically for 1/3" sensors, featuring an image circle optimized to eliminate vignetting and fully utilize sensor pixels.

Optical Performance:Designed with controlled distortion (<18%), offering a wide viewing angle while maintaining good image geometry for standard wide-angle applications.

Compact Integration:Features a standard M12 thread and a precise Total Track Length (TTL) of 15.21mm, ensuring seamless integration into space-constrained housings and IoT devices.

F2.4 Aperture:Provides consistent light intake and optimal depth of field, suitable for various indoor and outdoor lighting environments.

Applications

4K Security & Surveillance

Video Conferencing Systems & Webcams

Smart Home Devices (Video Doorbells, Pet Cameras)

Automotive Dash Cameras (DVR)

Face Recognition Terminals

Drones & Aerial Imaging

Robotics & Machine Vision

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

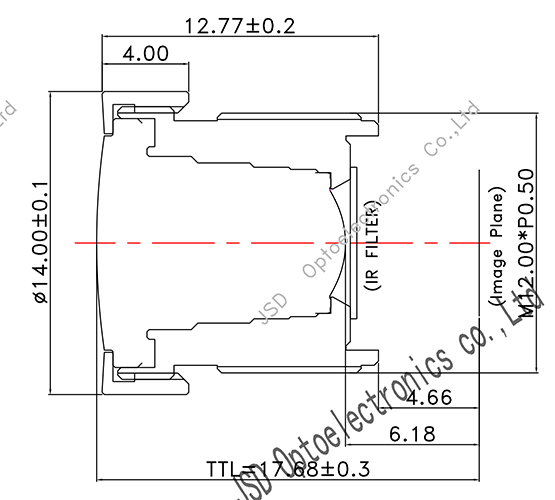

drawing

Product Overview

This high-performance M12 mount fixed focal lens (PN: JSD3808) is precision-engineered for 1/3-inch image sensors, delivering 4K ultra-high-definition clarity for advanced imaging systems. With a short 2.25mm focal length and F2.0 aperture, it provides a wide 116° field of view while maintaining remarkable optical correction. Distinguished by its low distortion design (< -6.2%), this lens ensures natural, true-to-life images with straight lines, making it ideal for high-precision machine vision, facial recognition, and wide-area security applications where image geometry is critical

Key Features & Benefits

True 8MP Resolution:Optically designed to support 8 Megapixel sensors, delivering crisp, high-definition 4K imaging with exceptional detail retention for complex scene analysis.

Exceptional Low Distortion:Features an advanced optical design with distortion controlled at < -6.2%, significantly reducing the "fish-eye" effect common in wide-angle lenses and ensuring accurate spatial representation.

Optimized for 1/3" Sensors:Perfectly matched for standard 1/3" format sensors, utilizing the full image circle to provide edge-to-edge sharpness without vignetting.

Wide 116° Field of View:Offers a broad 116° viewing angle, allowing for extensive scene coverage in surveillance and monitoring devices while maintaining high pixel density.

Fast F2.0 Aperture:Provides a balanced light intake, ensuring bright and clear images across various lighting environments, from office settings to outdoor monitoring.

Professional M12 Integration:Built with a standard M12 thread and a Total Track Length (TTL) of 23.49mm, ensuring compatibility with a wide range of board cameras and compact housings.

Applications

High-End Security Surveillance

Facial Recognition Systems

Machine Vision & Industrial Inspection

Video Conferencing & Smart Home Devices

Drone & UAV Imaging (mapping/surveying)

Automotive Dash Cams

Biometric Scanning

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens is expertly engineered for 1/2.8-inch sensors, delivering exceptional clarity and expansive coverage for advanced imaging applications. With a short 2.11mm focal length and F2.4 aperture, it provides an ultra-wide 128° field of view, making it ideal for broad-area surveillance, automotive imaging, and panoramic scene capture. Featuring True 8MP resolution, this lens ensures superior image sharpness and high-definition detail retention across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution:Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex wide-angle scenes.

Ultra-Wide 128° FOV:Provides an expansive 128-degree field of view, ideal for panoramic surveillance, environmental monitoring, and capturing large areas with a single camera.

Perfect Sensor Match:Engineered specifically for 1/2.8" sensors, featuring a precise image circle that eliminates vignetting and fully utilizes sensor capabilities.

High-Definition Optical Design:optimized to handle high-resolution sensors, maintaining sharpness from the center to the edge despite the wide viewing angle (Distortion <-14%).

Compact & Robust Build:Standard M12 thread and a Total Track Length (TTL) of 16.7mm ensure seamless integration into space-constrained devices while maintaining mechanical durability.

Wide Application Versatility:Suited for broad-area monitoring, video doorbells, automotive modules, and machine vision tasks requiring wide coverage.

Applications

Wide-Area Surveillance

Automotive Cameras (Dash Cams/Reversing)

Video Doorbells & Intercoms

Smart City Applications

Drone (FPV) & Aerial Imaging

Sports & Action Cameras

VR/AR Content Capture

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-definition M12 mount fixed focal lens (Model: JSD2639) is precision-engineered for 1/2.8-inch sensors, delivering superior 4K clarity with advanced optical correction. With a short 2.1mm focal length and F2.4 aperture, it offers a wide 116° field of view while maintaining exceptional geometric accuracy. Distinguished by its low distortion design (<-4%), this lens eliminates the significant "fish-bowl" curvature typically found in wide-angle optics, making it ideal for high-precision machine vision, facial recognition, and professional surveillance where straight lines and true-to-life representation are critical.

Key Features & Benefits

True 8MP Resolution:Supports high-definition 4K UHD imaging, capturing intricate details with sharpness from center to edge, perfect for high-resolution sensors.

Low Distortion Design (<-4%):Features an advanced optical structure that drastically reduces barrel distortion to less than -4%, ensuring straight lines remain straight and images look natural.

Wide 116° Field of View:Provides a broad viewing angle for comprehensive scene coverage without the heavy visual deformation associated with standard fisheye lenses.

Optimized for 1/2.8" Sensors:Specifically designed with a 1/2.8" image circle to perfectly match popular CMOS sensors, ensuring full sensor coverage without vignetting.

Precision Aperture:The F2.4 aperture balances light intake with depth of field, ensuring sharp focus across the scene.

Compact & Durable:Built with a standard M12 thread and a TTL of 24.5mm, this lens offers a robust solution for integration into compact cameras, drones, and industrial devices.

Applications

Face Recognition & Biometrics

High-End Video Conferencing

Document Scanning / OCR

Drone & Aerial Mapping (UAV)

Machine Vision Inspection

Action Cameras

Wide-Angle Security Surveillance

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens (PN: JSD3520) is expertly engineered for 1/2.8-inch sensors, delivering exceptional clarity and wide coverage for advanced imaging applications. With a 3.23mm effective focal length (EFL) and a bright F2.0 aperture, it provides an expansive 129° field of view, making it ideal for broad-area surveillance, smart home monitoring, and video conferencing. Featuring 8MP high resolution and a compact design with a Total Track Length (TTL) of 17.68mm, this lens ensures superior image sharpness and reliable performance across diverse lighting conditions.

Key Features & Benefits

High-Definition 8MP Resolution:Designed to support up to 8MP sensors, delivering crisp, clear images with exceptional detail retention, perfect for 4K UHD video applications.

Optimized for 1/2.8" Sensors:Specifically calculated image circle tailored for 1/2.8-inch formats, ensuring full sensor coverage without dark corners (vignetting).

Wide 129° Field of View:Offers a broad 129° diagonal viewing angle, allowing for extensive scene capture and reducing the number of cameras needed to cover a specific area.

Bright F2.0 Aperture:The F/NO 2.0 aperture allows for sufficient light intake, ensuring good performance in low-light environments while maintaining depth of field.

Controlled Optical Distortion:Engineered with a distortion rate of <-16.25%, balancing an ultra-wide viewing angle with natural visual perception for surveillance and scanning tasks.

Compact & Durable Design:Features a standard M12 thread and a TTL of 17.68mm, making it easy to integrate into compact housings, security bullets, or board cameras.

Manual Focus Capability:Standard M12 mount design allows for precise manual focus adjustment during assembly to achieve the sharpest possible image for specific object distances.

Applications

Security & Surveillance (CCTV)

Video Conferencing Systems

Smart Home Devices (Doorbells, Pet Cameras)

AI & Machine Vision

Face Recognition Terminals

Drones (UAV) & Aerial Imaging

Automotive Dash Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens (PN: JSD2623) is expertly engineered for 1/2.5-inch sensors, delivering exceptional clarity and ultra-low distortion for advanced imaging applications. With a 2.6mm focal length and F2.5 aperture, it provides a wide 112° field of view, making it ideal for broad-area surveillance, precision machine vision, and high-quality video conferencing. Featuring 8MP resolution and an advanced optical design capable of keeping distortion under 1.28%, this lens ensures superior image sharpness and geometrically accurate scene capture across diverse environments.

Key Features & Benefits

True 8MP Resolution:Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes and facilitating high-accuracy recognition tasks.

Ultra-Low Distortion (<1.28%):Advanced optical optimization minimizes barrel distortion to less than 1.28%, maintaining straight-line accuracy and true-to-life image representation, which is critical for measurement and strictly linear capture requirements.

Perfect Sensor Match:Engineered specifically for 1/2.5" sensors, featuring an image circle designed to eliminate vignetting and fully utilize the sensor's pixel capabilities.

Wide 112° FOV:Provides an expansive field of view ideal for panoramic surveillance, environmental monitoring, and wide-angle scene capture without the severe warping found in standard wide-angle lenses.

Compact & Robust Build:Features a standard M12 thread and a Total Track Length (TTL) of 23mm, ensuring seamless integration into space-constrained devices while maintaining optical stability.

Wide Application Versatility:Perfectly suited for facial recognition, document scanning, distortion-free surveillance, and machine vision tasks requiring wide coverage with geometric precision.

Applications

High-End Surveillance Systems

Machine Vision & Industrial Inspection

Video Conferencing Cameras

Facial Recognition Terminals

Document Scanning / OCR

Drone & Aerial Imaging

Smart Home Devices

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

The JSD2625 is a high-performance M12 S-Mount fixed focal lens, expertly engineered for 1/2.5-inch image sensors to deliver exceptional clarity in advanced imaging applications. With a 2.8mm focal length and F2.4 aperture, it provides a wide 112° field of view while maintaining superior geometric accuracy with less than 1.1% distortion. Featuring True 8MP (4K) resolution, this lens ensures sharp, high-definition image capture, making it an ideal solution for precision machine vision, facial recognition, and high-quality surveillance where detail and edge-to-edge sharpness are critical.

Key Features & Benefits

True 8MP Resolution: Optimized for high-density sensors, delivering crisp 4K UHD imaging with exceptional detail retention for complex scene analysis.

Ultra-Low Distortion (<1.1%): Features an advanced optical design that reduces distortion to under 1.1%, ensuring straight lines remain straight and providing true-to-life spatial representation—essential for measurement and recognition tasks.

Optimized for 1/2.5" Sensors: Specifically designed to match the optical format of 1/2.5" sensors, featuring a precision image circle that eliminates vignetting and maximizes sensor performance.

Wide 112° Field of View: Offers a broad 112° viewing angle, perfect for covering large areas or capturing wide scenes with minimal blind spots.

Robust M12 Design: Built with a standard M12x0.5 thread and a Total Track Length (TTL) of 22mm, ensuring durable and seamless integration into various camera modules and compact devices.

High Optical Consistency: The F2.4 aperture combined with high-quality glass elements ensures consistent brightness and contrast across the entire image plane.

Applications

High-Precision Machine Vision

Facial Recognition & Biometrics

Document Scanning & OCR

Video Conferencing Systems

Wide-Area Security Surveillance

Drone & Aerial Mapping

Smart Home Devices

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount fixed focal lens (PN: JSD2629) is expertly engineered for 1/2.3-inch sensors, delivering superior low-light performance and exceptional clarity. With a short 2.2mm focal length and a bright F1.8 aperture, it provides an impressive 124° ultra-wide field of view, making it ideal for wide-area surveillance, action cameras, and immersive panoramic capture. Featuring advanced optical correction with distortion < -4%, this lens ensures true-to-life images with straight lines, maintaining high sharpness across diverse lighting conditions.

Key Features & Benefits

Superior Low-Light Performance: Equipped with a large F1.8 aperture, this lens allows more light intake compared to standard F2.0 lenses, ensuring bright and clear imaging even in dim environments.

Perfect Sensor Match: Engineered specifically for 1/2.3" sensors, featuring an image circle designed to eliminate dark corners (vignetting) while fully utilizing the sensor's resolution capabilities.

Ultra-Wide 124° FOV: Provides an expansive field of view, ideal for covering large spaces, environmental monitoring, and wide-angle security tasks with minimal blind spots.

Low Distortion Optical Design: With optical distortion controlled at < -4%, it minimizes the "fisheye" effect typically seen in wide-angle lenses, maintaining accurate spatial representation.

Robust & Precise Build: Features a standard M12 thread and a TTL (Total Track Length) of 24mm, offering a solid optical structure that balances performance with ease of integration into housing units.

Manual Focus Compatibility: The threaded M12 design allows for manual focus adjustments during assembly, enabling precise focal tuning for optimal sharpness at specific object distances.

Applications

Wide-Area Security & Surveillance

Action Cameras & Sports Imaging

Video Conferencing Systems

Drone (UAV) & Aerial Imaging

Automotive ADAS / Dash Cams

Smart Home Monitoring

VR/AR Content Creation

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing

Product Overview

This high-performance M12 mount (S-Mount) fixed focal lens, Part Number JSD2631, is expertly engineered for 1/2.3-inch sensors, delivering exceptional clarity and superior geometric accuracy. With a 2.7mm focal length and F2.8 aperture, it provides a wide 113° field of view, making it an excellent choice for applications requiring broad coverage without the heavy "fisheye" effect. Featuring high-definition 8MP resolution and a specialized optical design that achieves <-1.5% distortion, this lens ensures true-to-life image sharpness and straight-line accuracy across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition imaging suitable for 4K applications with exceptional detail retention, ensuring clarity even in complex visual environments.

Superior Low Distortion (<-1.5%): Advanced optical correction minimizes barrel distortion to less than 1.5%, maintaining straight edges and accurate spatial representation, which is critical for measurement and computer vision tasks.

Perfect Sensor Match: Engineered specifically for 1/2.3" sensors, featuring an image circle that eliminates vignetting and maximizes the pixel performance of the sensor.

Wide 113° Field of View: Provides an expansive viewing angle ideal for surveillance and environmental monitoring, capturing large areas effectively with a single camera.

Robust Mechanical Design: Features a standard M12 thread and a Total Track Length (TTL) of 22.5mm, ensuring stable integration into various housing designs and board cameras.

Wide Application Versatility: Perfectly suited for security monitoring, action cameras, face recognition systems, and machine vision tasks requiring wide coverage with high fidelity.

Applications

High-Resolution Surveillance

Action Cameras & Sports Imaging

Facial Recognition Terminals

Machine Vision & Automation

Video Conferencing Devices

Drone & Aerial Mapping

Smart Home Security

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
