In the world of industrial automation, "close enough" doesn't cut it. A millimeter of error can mean a rejected batch, a failed assembly, or a robot arm grabbing thin air.

Precision measurement requires optical perfection. But traditionally, if you wanted high precision, you needed bulky, expensive C-mount lenses. If you wanted compact M12 lenses, you had to accept fish-eye distortion.

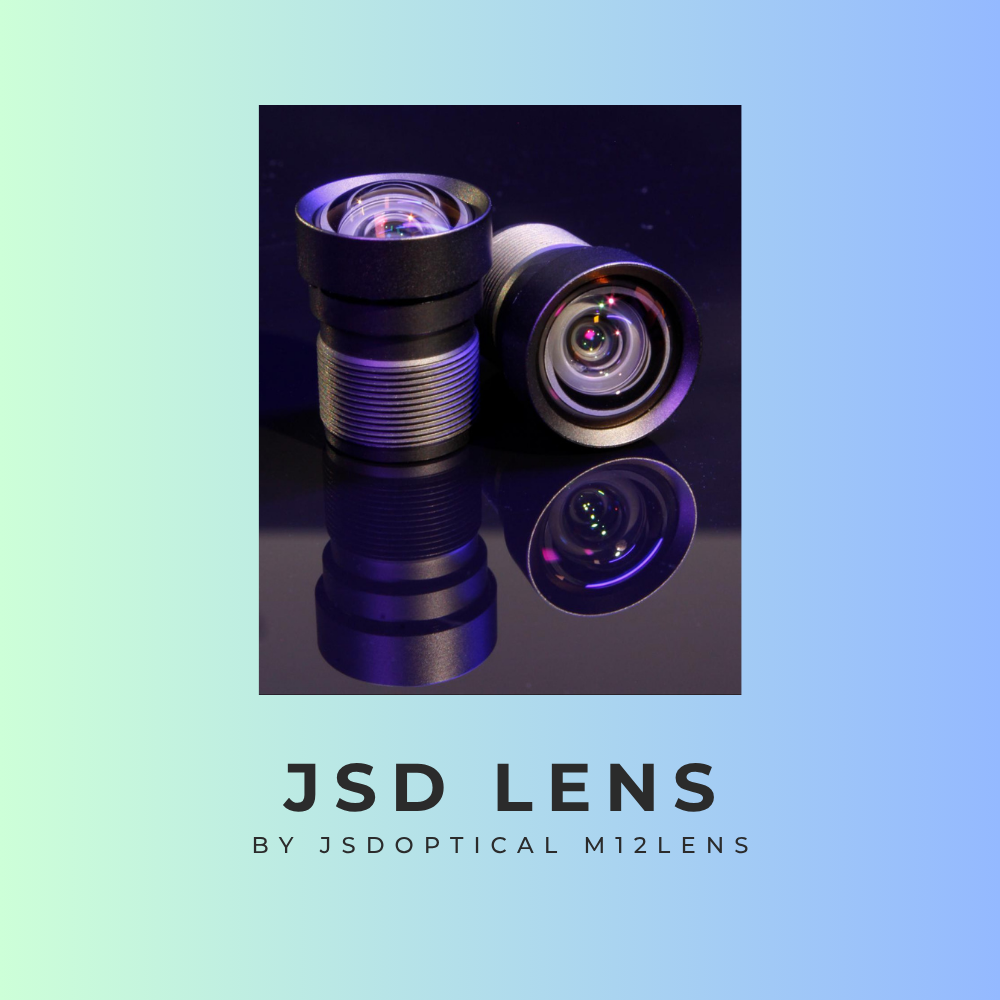

The JSD3840 is here to break that compromise.

This isn't a lens for your holiday photos; it is a specialized industrial tool designed to turn visual data into precise metric values. Here is why the JSD3840 is becoming the go-to glass for engineers working on dimensional measurement and rigorous inspection.

1. The "Zero-Bend" Policy: <0.4% Distortion

When you are measuring the dimensions of a machined part, a straight line must look like a straight line. Most wide-angle M12 lenses warp the image (barrel distortion), forcing your software to work overtime on de-warping algorithms—which eats up processing power and introduces errors.

The JSD3840 changes the game. Despite having a wide 100° Field of View, it maintains optical distortion at <0.4%.

The benefit? What the sensor sees is geometrically true to reality. You get accurate spatial data right off the sensor, making edge detection and gauging tasks faster and more reliable.

2. 20MP Resolution: Every Micron Counts

Blurry edges are the enemy of measurement. To measure accurately, you need to know exactly where a pixel starts and ends.

With support for 20MP resolution, the JSD3840 is distinct from standard "webcam-grade" lenses. It resolves incredibly fine details across the entire 1/1.8" Image Circle. Whether you are inspecting PCB traces or checking the tolerance of injection-molded plastic, this lens provides the contrast and sharpness your algorithms crave.

3. See More, Move Less (3.76mm EFL)

Space inside a machine is premium real estate. You often don't have the luxury of mounting the camera high up to get a wide shot.

With a short Effective Focal Length (EFL) of 3.76mm, the JSD3840 gives you a broad view from a close working distance. You can capture a large tray of parts without building a massive tower for your camera.

4. F4.0: Focus You Can Trust

Why did we choose an F4.0 aperture? Because in measurement, depth matters.

If a component has height variations (like a tall capacitor on a circuit board), you need the top and the bottom to both be in focus for accurate measurement. The F4.0 aperture provides a deep depth of field, ensuring that slightly uneven surfaces remain sharp. It eliminates the "hunting" for focus and ensures consistent lighting intake.

5. Compact Powerhouse

Despite its heavy-hitting specs, the JSD3840 retains the tiny M12 form factor with a Total Track Length (TTL) of just 15.8mm. It easily integrates into robotic arms, compact inspection stations, and tight gantries where larger lenses simply cannot fit.

The JSD3840 is the bridge between the compact convenience of board lenses and the rigorous demands of metrology. It offers the wide angle you need, the resolution you want, and the low distortion you absolutely require.

Stop fighting with warped images and fuzzy edges. Upgrade your machine vision system with the JSD3840.

Need high-precision optics for your next project? Contact us for JSD3840 datasheets and samples!
