Breaking the Wide-Angle Distortion Curse: How JSD6628 Achieves <3% Distortion at 102° FOV?

We all know the "fisheye nightmare." You want a wide field of view to see the whole scene, but the moment you widen the angle, your straight lines start to bend like bananas. For a consumer taking a selfie? No big deal. For a machine trying to measure dimensions, scan a barcode, or map a terrain? It’s a disaster.

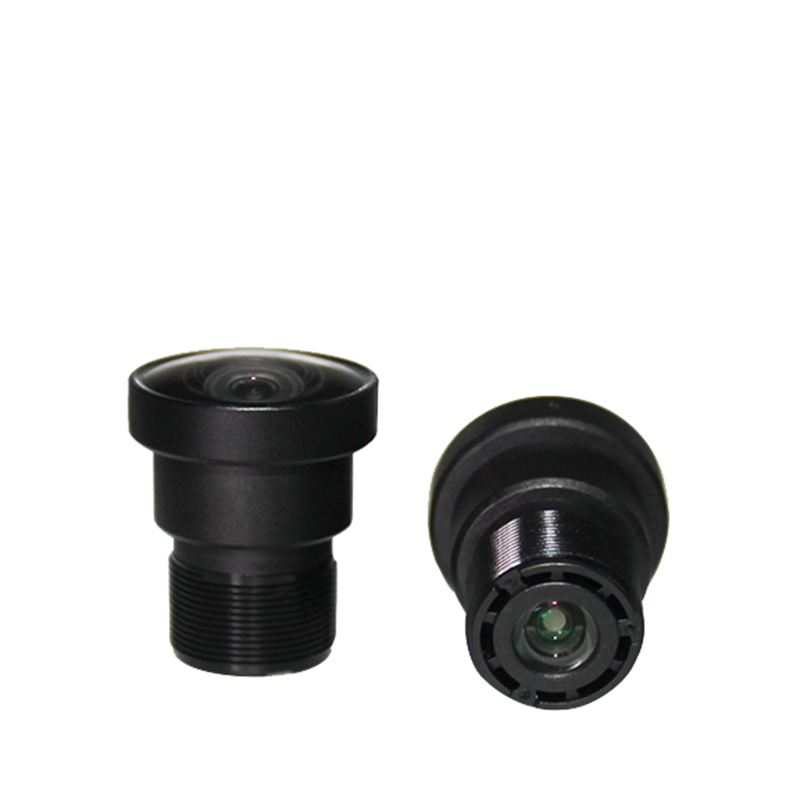

Enter the JSD6628. This isn’t your average lens; it is an optical measuring tool designed to break the laws of traditional trade-offs.

Here is how this industrial powerhouse manages to keep things straight while looking wide.

1. The "Wide But Flat" Magic (102° FOV + <3% Distortion)

Usually, in optics, you have to pick one: a wide view OR low distortion. The JSD6628 refuses to compromise.
With an EFL of 6.6mm, it delivers a massive 102° Field of View. This allows your device to capture a broad scene from a short distance.

But the real showstopper? Distortion is crushed to less than 3%.
This is the "optical correctness" that algorithms dream of. It means the edges of your image don’t look like they are being sucked into a black hole. For automated inspection systems and mapping drones, this optical linearity saves massive amounts of computing power usually needed for software correction.

2. Feeding the Beast: 1-Inch Sensor & 50MP

Low distortion is useless if the image is blurry. The JSD6628 is designed to feed the "big sensor" market.
While many compact lenses struggle to cover a standard 1/2.3" sensor, the JSD6628 boasts a massive 1/1" (1-inch) Image Circle.

When you pair that surface area with 50MP Resolution, you get a level of clarity that is terrifyingly sharp. We are talking about edge-to-edge sharpness where every pixel counts. This ensures that the data at the corner of the frame is just as reliable as the data in the center.

3. Industrial Muscle in a Compact Package

This lens isn’t for the faint of heart, and it certainly isn't for a point-and-shoot camera. It is built for rigor.

The M16 Thread: Forget the flimsy M12 standards. The M16 thread provides a robust, vibration-resistant connection, essential for maintaining that 50MP alignment in factory settings or on moving drones.

Bright & Fast (F/2.8): The F/2.8 aperture strikes the perfect balance, letting in enough light for high-speed captures without sacrificing depth of field.

Compact Form: Achieving all this within a TTL (Total Track Length) of just 34.49mm is a feat of engineering, making it easy to integrate into compact housing.

The Bottom Line

The JSD6628 is the answer to the engineer's dilemma. It proves you don't need a bulky, expensive setup to get a wide, flat, and high-resolution image.

If your project involves high-end machine vision, precision agriculture, or industrial sensing, stop fighting with distortion software. Fix the problem at the source with the JSD6628. See wider, see sharper, and keep it straight.
