Precision Vision, Compact Power – The JSD6010 Lens: Engineered for Intelligent Imaging

In today’s rapidly evolving era of intelligent vision, the clarity and accuracy of every frame directly impact the judgment and decision-making of systems. As the “eye” of an optical imaging system, the performance of a lens determines the ultimate quality of the image. Now, we are proud to introduce a high-performance fixed-focus lens that combines compact size with exceptional optical precision the JSD6010. With outstanding imaging capabilities and reliable performance, it is the ideal choice for machine vision, smart surveillance, industrial inspection, and more.

I. In-Depth Parameter Analysis: Small Size, Big Capabilities

Model: PN: JSD6010

This is the product model code, representing its unique identity. It also means the lens has been carefully designed and rigorously quality-controlled — a high-cost-performance solution tailored to your imaging needs.

EFL (Focal Length): 6mm | F/NO (Aperture): 2.8

Focal Length 6mm: This is a medium-short focal length, suitable for capturing medium-distance subjects while providing a relatively wide field of view. It is ideal for close-to-mid-range imaging tasks such as equipment monitoring, facial recognition, and behavior analysis.

Aperture F/2.8: A large aperture design allows more light to enter the lens, ensuring brighter images even in low-light environments. It also delivers a shallower depth of field to highlight the main subject while softly blurring the background — improving image contrast and clarity. This is especially beneficial in industrial or outdoor settings with complex lighting conditions.

Field of View (FOV)

Diagonal FOV (DFOV): 78°

Horizontal FOV (HFOV): 60°

Vertical FOV (VFOV): 40°

These FOV metrics indicate that the JSD6010 offers a broad imaging range, capable of covering a horizontal field of 60° and a vertical field of 40°, with a diagonal FOV reaching 78°. This makes it highly suitable for applications requiring a wide monitoring range, such as:

Factory production line monitoring

Real-time scene capture in security surveillance

Lane or intersection monitoring in intelligent transportation

Navigation and obstacle avoidance systems for robotics

A wide FOV means fewer blind spots and more comprehensive coverage, enhancing the reliability and efficiency of the overall system.

Distortion: <0.82%

Distortion is a critical indicator of a lens’s ability to reproduce images faithfully. The JSD6010 achieves distortion of less than 0.82%, which is classified as very low distortion. This ensures that both the center and edges of the image remain sharp and undistorted — a vital feature for:

High-precision industrial inspection (e.g., electronic components, chip appearance)

Machine vision applications involving feature recognition and positioning

AR/VR and 3D modeling, where image authenticity is paramount

Low distortion means more reliable visual data — an indispensable element in high-accuracy systems.

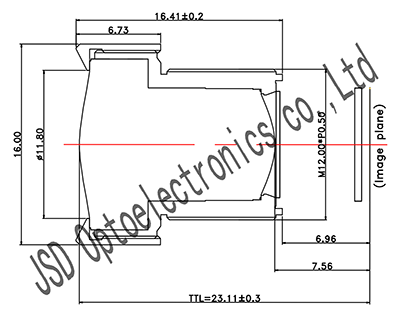

Optical Design: 3G2P | Mount: M12

3G2P (3 Glass + 2 Plastic elements): This optical configuration combines high-quality glass elements to effectively correct aberrations and chromatic dispersion, while plastic elements help reduce cost and weight. The result is excellent image quality delivered at a competitive price point.

M12 Threaded Mount: A standard compact lens mount, ideal for quick installation and integration. Especially suitable for space-constrained embedded vision systems such as drones, smart cameras, and AGVs.

Its compact structure ensures the JSD6010 can deliver stable performance even in tight spaces, making it a perfect match for embedded vision devices.

Resolution: 2MP | Image Circle: 1/1.8"

2MP Resolution: Supports mainstream 2-megapixel sensors, meeting the requirements for high-definition image capture. Ideal for AI-based vision analysis, facial recognition, object detection, and more.

Image Circle matches 1/1.8" Sensors: Precisely matched to the most common small-format image sensor size, ensuring full-frame sharpness without vignetting or edge blur — fully unlocking the potential of the sensor.

II. Recommended Applications: Versatile Use Across Industries

Thanks to its outstanding optical performance, the JSD6010 is widely applicable in the following scenarios:

1. Industrial Inspection & Machine Vision

Inspection of electronic components (e.g., capacitors, resistors, chips)

Precision manufacturing: dimensional measurement and defect detection

Automated assembly line: part localization and identification

Advantages: Low distortion, high resolution, and stable imaging ensure precision and efficiency in inspection tasks.

2. Security & Surveillance

Indoor/outdoor monitoring of medium-sized areas (e.g., entrances, corridors, workshops)

Nighttime or low-light imaging

Wide-area monitoring with fewer blind spots

Advantages: Large F2.8 aperture enhances night performance; wide FOV reduces blind zones for comprehensive security.

3. Smart Robots & AGVs

Visual input for navigation and path planning

Obstacle avoidance and object recognition

Real-time environmental awareness in indoor settings

Advantages: Compact M12 mount is easy to integrate; wide FOV enhances environmental perception.

4. Intelligent Transportation & In-Vehicle Vision

Lane monitoring and traffic violation detection

Intersection monitoring and vehicle/pedestrian flow statistics

Front-end vision for ADAS (Advanced Driver Assistance Systems)

Advantages: High light transmission and low distortion adapt well to complex lighting and weather conditions.

5. Drones & Embedded Vision Devices

Ground monitoring during low-altitude flights

Efficient imaging modules for small devices

Rapid deployment of vision solutions

Advantages: Lightweight M12 interface fits most small camera modules; flexible and easy to deploy.

III. Conclusion: Small Lens, Big Impact

The JSD6010 is more than just a lens — it’s the “intelligent eye” in a vision system. With powerful specifications including 6mm focal length, F2.8 aperture, <0.82% ultra-low distortion, 78° wide FOV, and 2MP high resolution, combined with 3G2P optical design, M12 compact mount, and precise 1/1.8" image circle compatibility, it achieves an outstanding balance between performance and cost.

Whether you’re building a high-precision inspection system, deploying a smart surveillance network, or enabling robots to “see and understand” the world, the JSD6010 will be your trusted visual partner.

See clearer. Measure more accurately. Recognize more intelligently — choose JSD6010 and step into a new era of intelligent vision.

For more product information or customized solutions, please feel free to contact our technical team. We’re ready to provide you with professional optical solutions.
