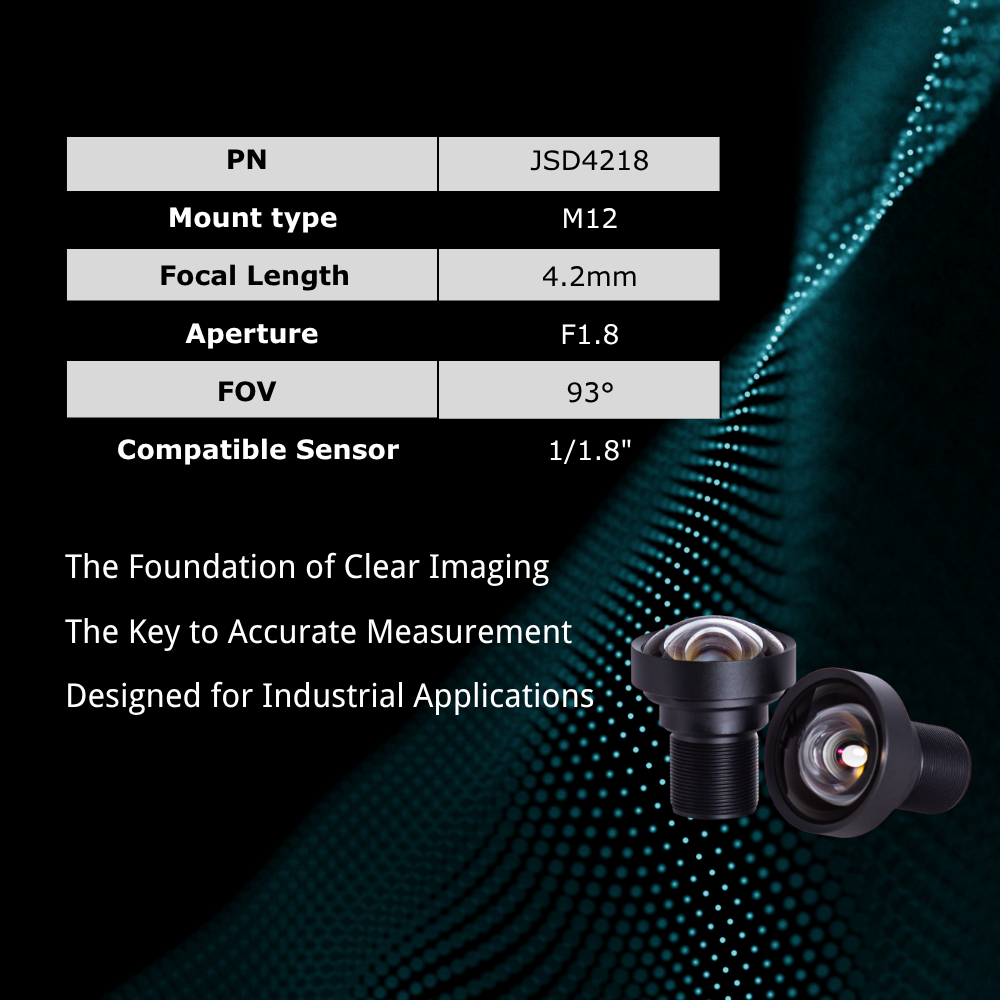

In the fields of machine vision and industrial inspection, every precise image capture relies on the stable support of the core optical performance of the lens. The JSD4218 industrial lens does not rely on exaggerated specifications as a gimmick but is committed to achieving a precise and reliable balance, suitable for harsh industrial scenarios, among key performances such as resolution, light throughput, and geometric fidelity.

The Foundation of Clear Imaging

The essence of industrial inspection lies in extracting reliable data from images. The high resolution of 8 megapixels provided by the JSD4218 ensures rich image detail, laying a solid foundation for subsequent precise measurement and defect identification.

More importantly, its 9.8mm image circle is accurately matched with the 1/1.8" image sensor. This matching effectively avoids vignetting, thereby ensuring bright, uniform, and consistently sharp images across the entire sensor area. This is crucial for vision systems that require full-field analysis.

Meeting the Challenges of Complex Lighting Environments

Lighting conditions on the industrial floor are complex and variable. The F1.8 large aperture of the JSD4218 signifies superior light-gathering capability for the lens.

This enables it to effectively improve the signal-to-noise ratio, resulting in cleaner and more usable images in environments with low ambient light or where high shutter speeds are required (such as capturing fast-moving objects instantaneously). This reduces over-reliance on external supplemental lighting.

The Key to Accurate Measurement

In vision-based precision measurement, geometric distortion in the image directly leads to measurement errors. The JSD4218 strictly controls optical distortion to within -1%, which is a very critical performance parameter.

Extremely low distortion means that the shape and size of the photographed object are highly accurately reproduced in the image. This is highly significant for applications such as dimensional measurement of mechanical parts and alignment, significantly enhancing inspection accuracy and reliability.

Designed for Industrial Applications

The practicality of a lens is reflected in its seamless integration into the industrial environment. Its total track length (TTL) of 30mm and standard M12 mount make it very suitable for integration into space-constrained embedded vision systems, facilitating the miniaturization and standardized design of equipment.

The 93° diagonal field of view (DFOV) provides a moderate perspective that balances breadth and precision, suitable for most production line layouts, allowing sufficient coverage of the work area in a single shot while balancing inspection efficiency and detail requirements.

Focus on Practical Value

The value of the JSD4218 industrial lens lies not in extreme rendering of a single parameter, but in its comprehensive reliability and accuracy as the "eye" at the front end of the system. By ensuring sufficient light intake through the F1.8 large aperture and maintaining strict control over low distortion below -1%, it provides a stable and trustworthy image source for machine vision systems in various industrial application scenarios such as surface defect detection, precision dimensional measurement, and automated assembly positioning.
