In the fields of precision measurement and industrial inspection, lens distortion is a key factor affecting measurement accuracy. The JSD8020, with its combination of an extremely low distortion rate of below 0.54% and a large F2.0 aperture, provides a reliable optical solution for high-precision vision systems.

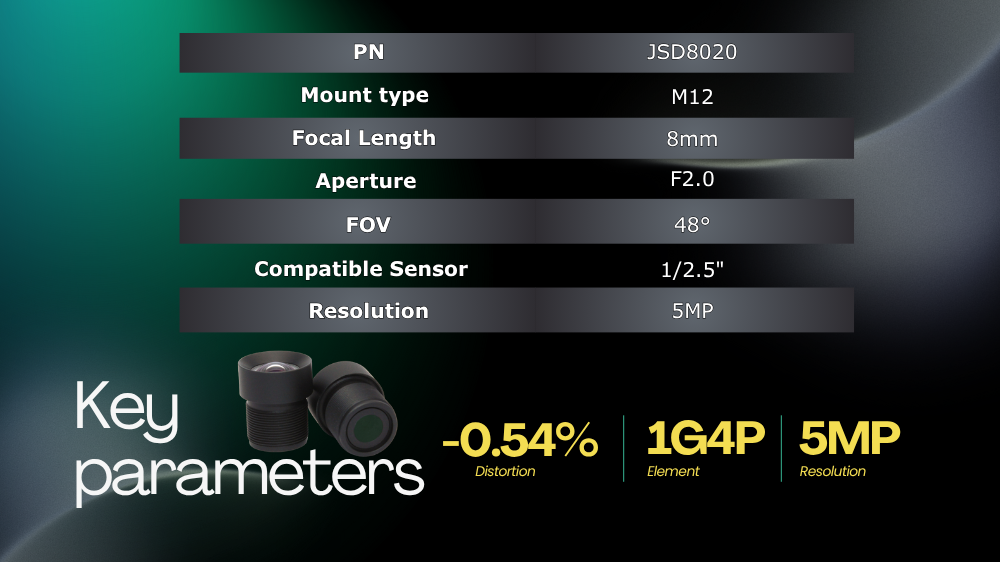

The JSD8020 is a high-performance industrial lens specifically designed for 1/2.5-inch image sensors. Its 8mm focal length offers a 48-degree diagonal field of view, which is well-suited for medium-distance precision inspection applications. The lens supports 5MP high resolution, enabling the capture of detailed images and forming the foundation for fine defect identification and precise dimensional measurement.

Its most notable feature is the extremely low optical distortion rate of less than 0.54%. In industrial vision, distortion causes geometric inaccuracies at the image edges, directly impacting the accuracy of measurement results. By controlling distortion to such a low level, the JSD8020 ensures that the shape and size of photographed objects are highly accurately reproduced in the image.

The lens features an F2.0 large aperture design, providing excellent light-gathering capability. This allows for images with appropriate brightness and clear detail even in environments with less-than-ideal lighting conditions. With a total length of 21.8mm and an M12 interface, it has a compact structure, facilitating integration into space-constrained embedded vision systems.

In terms of optical construction, the JSD8020 adopts a combination of one glass lens and four plastic lenses (1G4P), achieving a balance between optical performance, lightweight design, and cost control. The 8mm image circle precisely matches the 1/2.5-inch sensor target area, ensuring even brightness across the entire image without vignetting at the edges.

The characteristics of the JSD8020 make it highly valuable for applications in several industrial fields:

In precision dimensional measurement, its extremely low distortion rate is its greatest advantage. For inspecting the dimensions of mechanical parts and electronic components, the JSD8020 provides images with high geometric fidelity, avoiding measurement errors caused by image deformation and significantly enhancing the reliability of inspection results.

In surface defect detection, the 5MP high resolution combined with the F2.0 large aperture enables clear capture of minute scratches, dents, or contaminants on product surfaces. This is particularly important for quality inspection of materials like LCD panels and metal sheets.

In intelligent transportation systems, the JSD8020 is suitable for scenarios such as license plate recognition (LPR/ANPR). Its medium focal length and field of view allow the license plate to maintain an appropriate size in the image at a reasonable installation distance, while the low distortion characteristic ensures accurate character shape, improving recognition rates.

Robotic vision guidance is another important application scenario. Robots require precise identification and positioning of workpieces, and the accurate images provided by the JSD8020 form the basis for correct robotic decision-making.

When selecting an industrial lens, several factors need comprehensive consideration. The JSD8020 is especially suitable for application scenarios demanding high geometric fidelity in images.

For systems requiring precision measurement, the low distortion characteristic of the JSD8020 makes it an ideal choice. Compared to standard lenses, it can reduce measurement errors by an order of magnitude, meeting the needs of high-precision industrial inspection.

In environments with variable lighting conditions, the F2.0 large aperture ensures the lens's adaptability, reducing reliance on additional lighting equipment and thereby lowering system complexity and cost.

For integration scenarios with space constraints, the compact size of the JSD8020 allows for easy embedding into various equipment, aligning with the trend of miniaturization in industrial devices.
