JSD0326

Product Overview

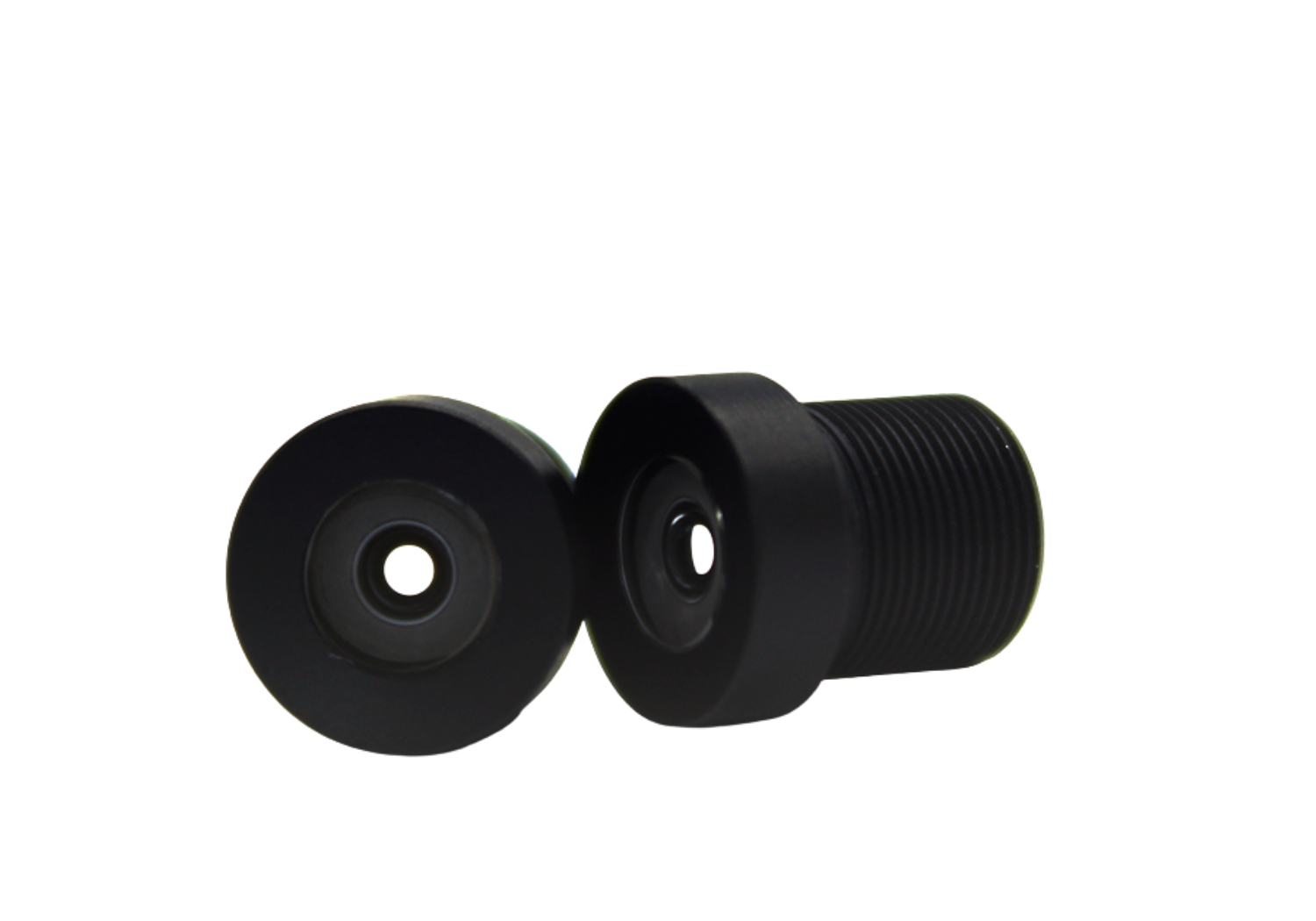

This specialized M12 mount fixed focal lens (PN: JSD0326) is expertly engineered for ultra-miniature 1/15-inch sensors, bridging the gap between standard mounting hardware and microscopic imaging. With an extremely short 0.27mm focal length and F2.6 aperture, it provides an ultra-wide 134° field of view. Featuring an incredibly low profile with a Total Track Length (TTL) of just 3.75mm and 2MP resolution, this lens is ideal for medical endoscopy, specialized industrial inspection, and compact sensor applications requiring a standard M12 interface for tiny sensor formats.

Key Features & Benefits

2MP High Resolution:Optimized to support 2 Megapixel micro-sensors, ensuring sharp, high-definition imaging capabilities essential for detailed diagnostics and precision monitoring.

Ultra-Wide 134° FOV:Delivers an expansive 134-degree field of view, allowing for broad situational awareness and comprehensive coverage in tight spaces or cavities.

Specialized for 1/15" Sensors:Precision-optics designed specifically for the tiny 1/15-inch image circle, ensuring the image is correctly projected without vignetting while using a standard mount.

Extremely Short Focal Length (0.27mm):The micro-optical design allows for a very close working distance and wide coverage, typical of advanced medical and industrial scopes.

Low Distortion Design (<-6.23%):Despite the wide angle, the lens maintains varying distortion below -6.23%, offering a natural and accurate representation of the scene with minimal warping.

Ultra-Compact TTL (3.75mm):With a Total Track Length of only 3.75mm, this lens is incredibly thin, making it perfect for devices where internal depth is severely restricted.

Standard M12 Mount:Houses micro-optics within a standard M12*P0.5 threaded barrel, allowing for easy integration into standard board camera holders and fixtures.

Applications

Medical Endoscopy & Borescopes

Dental Intraoral Cameras

Micro-Industrial Inspection

Bio-Imaging Sensors

Compact Robotics Vision

IoT Vision Modules

Scientific Research Instruments

Specification
