JSD1521

Product Overview

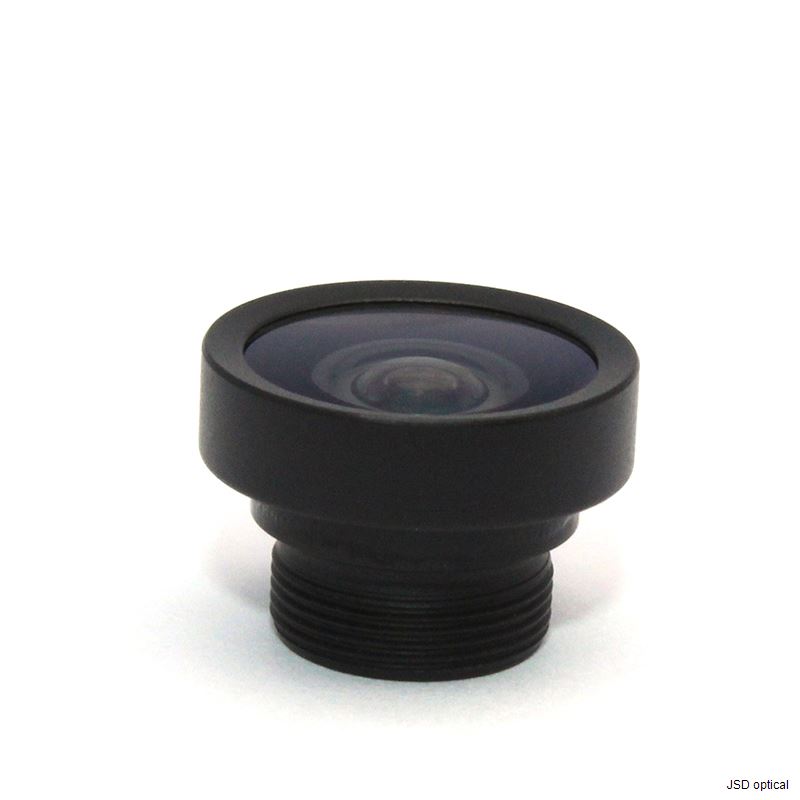

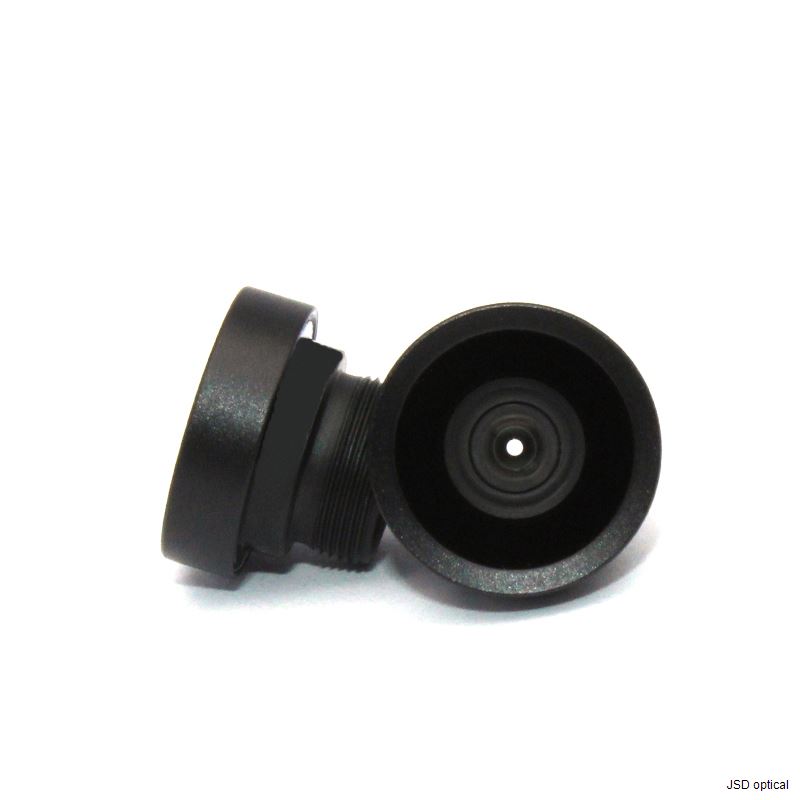

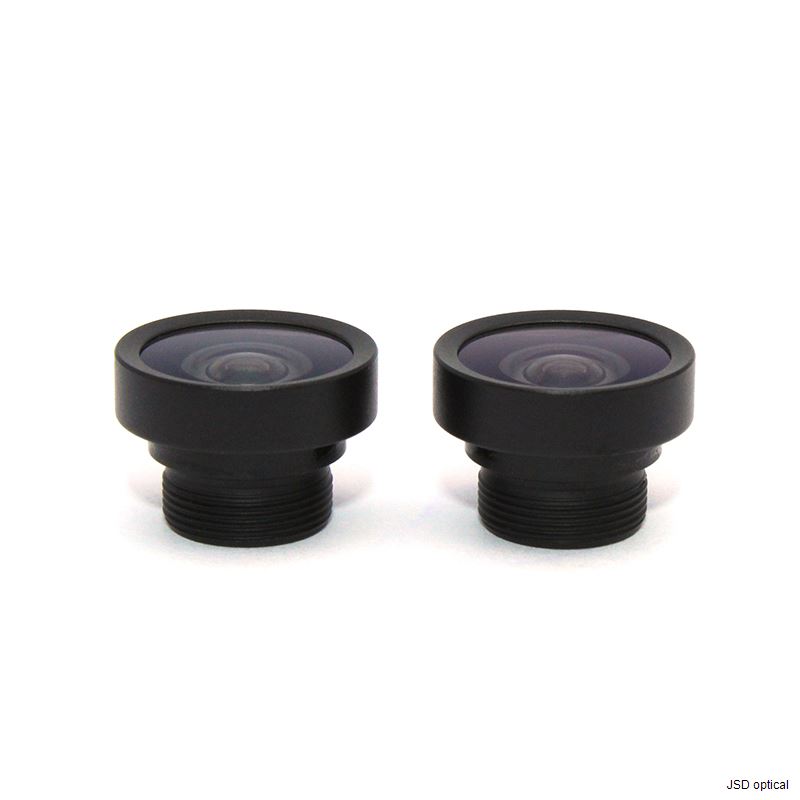

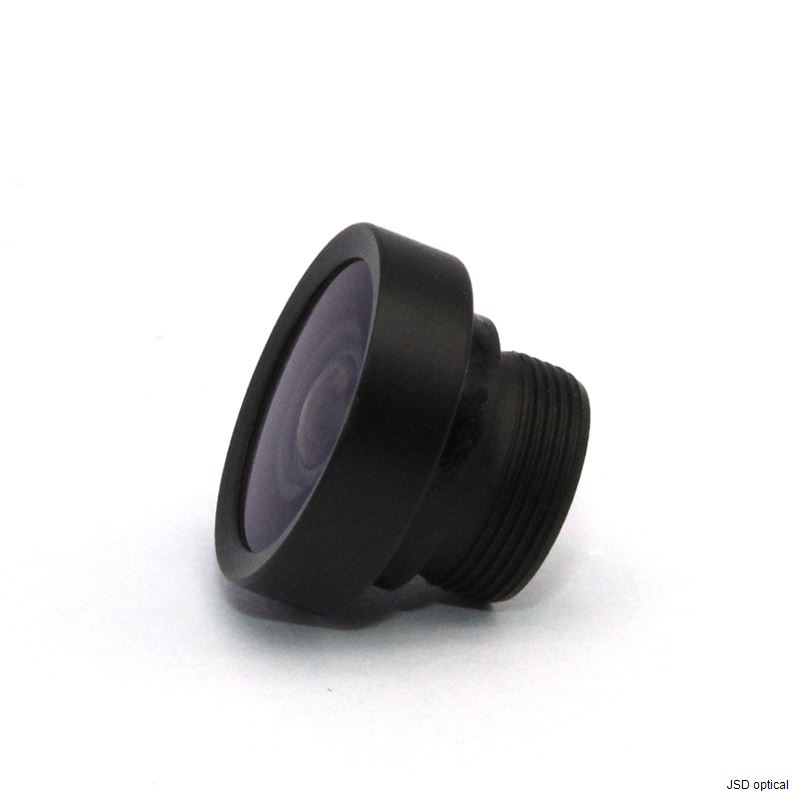

This compact M7 mount fixed focal lens (PN: JSD1521) is specifically engineered for 1/3-inch image sensors, offering expansive coverage in a miniature form factor. With a short 1.6mm focal length and F2.8 aperture, it provides an ultra-wide 151° field of view, making it an ideal solution for automotive imaging, video doorbells, and compact surveillance devices. Featuring 1MP resolution support, this lens delivers reliable image quality and maximum scene capture for applications where situational awareness and broad coverage are critical.

Key Features & Benefits

1MP Resolution:Optimized for standard definition sensors, delivering reliable and clear imaging suitable for cost-effective monitoring and automotive applications.

Ultra-Wide 151° FOV:Provides a massive field of view (Fisheye effect), allowing a single camera to cover a wide area, reducing blind spots in security and vehicle reversing systems.

Optimized for 1/3" Sensors:Designed with an image circle tailored to 1/3" sensors, ensuring the wide-angle capability is fully utilized without hard vignetting on compatible chips.

Compact M7 Design:Featuring a standard M7 thread and a Total Track Length (TTL) of just 10.46mm, this lens integrates seamlessly into space-constrained housings and small electronics.

Wide-Angle Optical Characteristics:With distortion typical of ultra-wide lenses (<56%), it maximizes the viewing angle to capture peripheral details that standard lenses miss.

Cost-Effective Performance:Delivers a perfect balance of wide-angle performance and value, making it suitable for high-volume consumer electronics and industrial sensors.

F2.8 Aperture:Provides adequate light intake for standard operating environments, ensuring consistent performance in diverse lighting conditions.

Applications

Automotive Rear-View & Surround View Cameras

Video Doorbells & Smart Home Intercoms

IoT & Wearable Devices

Robotics (Obstacle Avoidance)

Baby Monitors

Wide-Area Indoor Monitoring

Compact Action Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com

drawing
