JSD1524

Product Overview

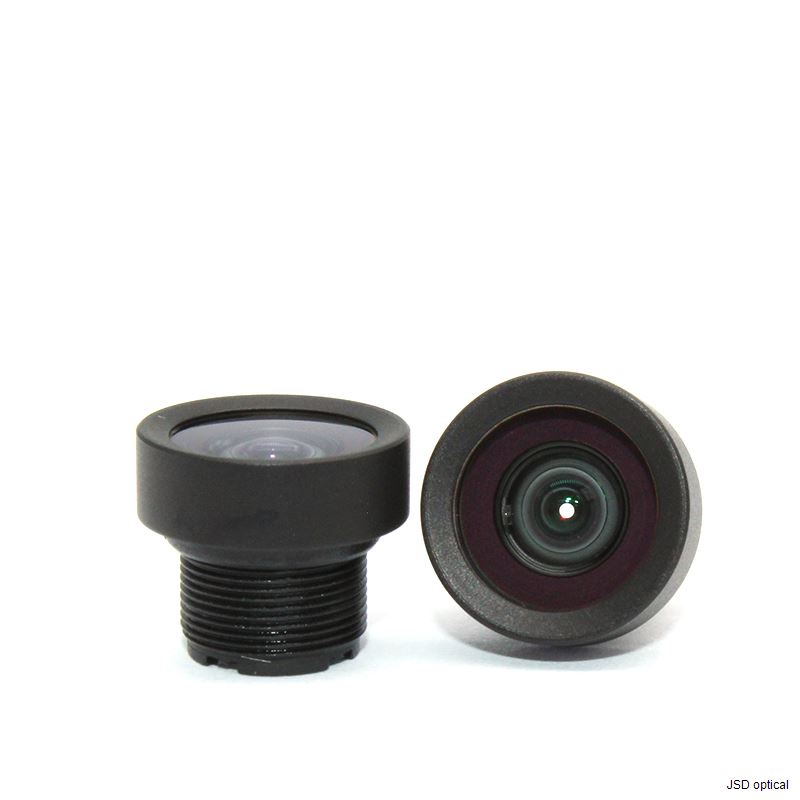

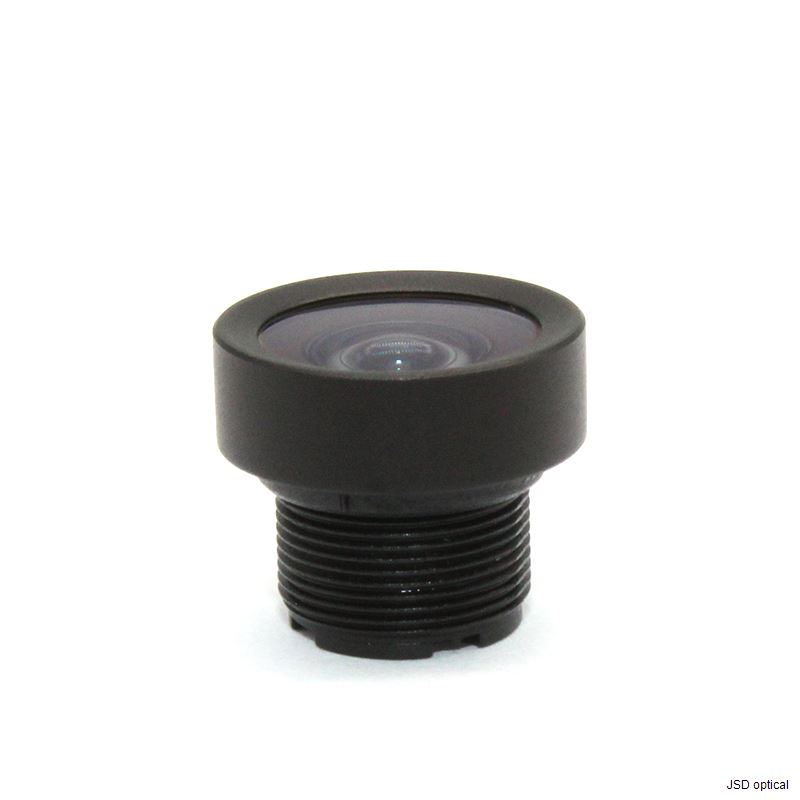

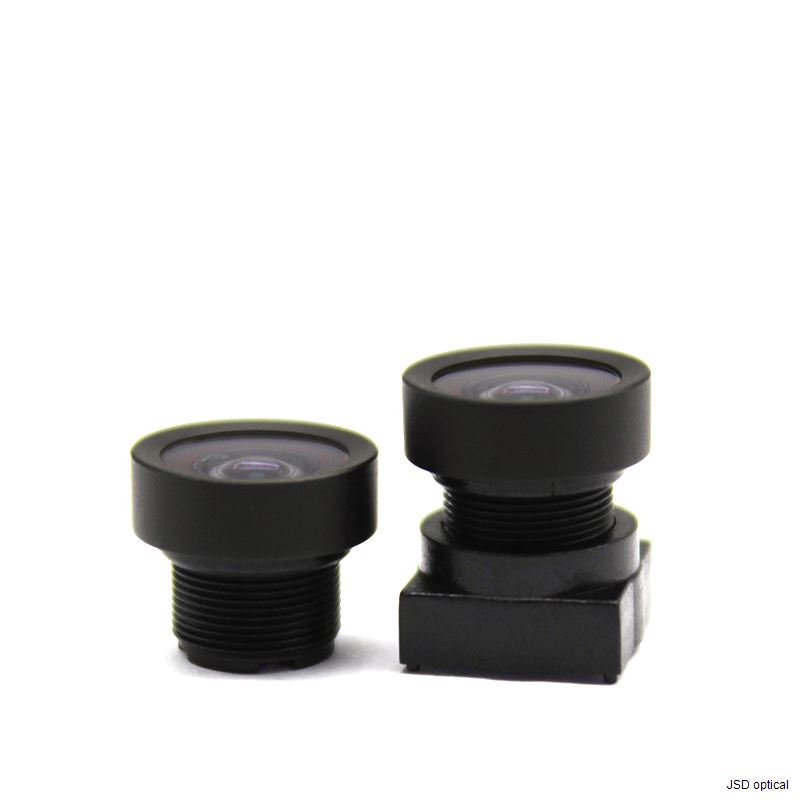

This professional-grade M12 mount fixed focal length lens is precision-engineered for 1/3-inch sensors, delivering high-resolution imaging in a compact form factor. With an ultra-wide 198° field of view facilitated by its 1.61mm focal length and F2.4 aperture, it is exceptionally suited for capturing expansive scenes even in highly confined environments. The lens supports True 3MP resolution, ensuring sharp and detailed image reproduction, and features manual focus for precise adjustment across various working distances. Its ultra-wide-angle design is ideal for applications requiring maximum coverage from a single vantage point, making it a versatile solution for panoramic surveillance and immersive visual experiences.

Key Features & Benefits

• Extreme Wide Field of View (FoV): Offers a massive 213° diagonal field of view, ideal for applications requiring comprehensive coverage, such as panoramic surveillance, dashcams, or immersive VR/AR systems.

• High Light Gathering Capability (F-number): Features a fast F2.4 aperture, ensuring excellent low-light performance and brighter images.

• Ultra-Compact Design: Utilizes a standard M12 thread mount and a very short TTL (Total Track Length) of 15mm, making it suitable for integration into space-constrained devices.

• Short Effective Focal Length (EFL): With an EFL of 1.61mm, the lens maintains a very small form factor while achieving its ultra-wide angle.

• Low Optical Distortion: Carefully designed to maintain a low distortion level of <6.18%, providing a more natural image compared to typical extreme wide-angle lenses.

Technical Specifications

Applications

Panoramic Surveillance System

Fisheye Security Camera

Automotive Wide-Angle Imaging

VR/AR Equipment

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
