JSD1524

Product Overview

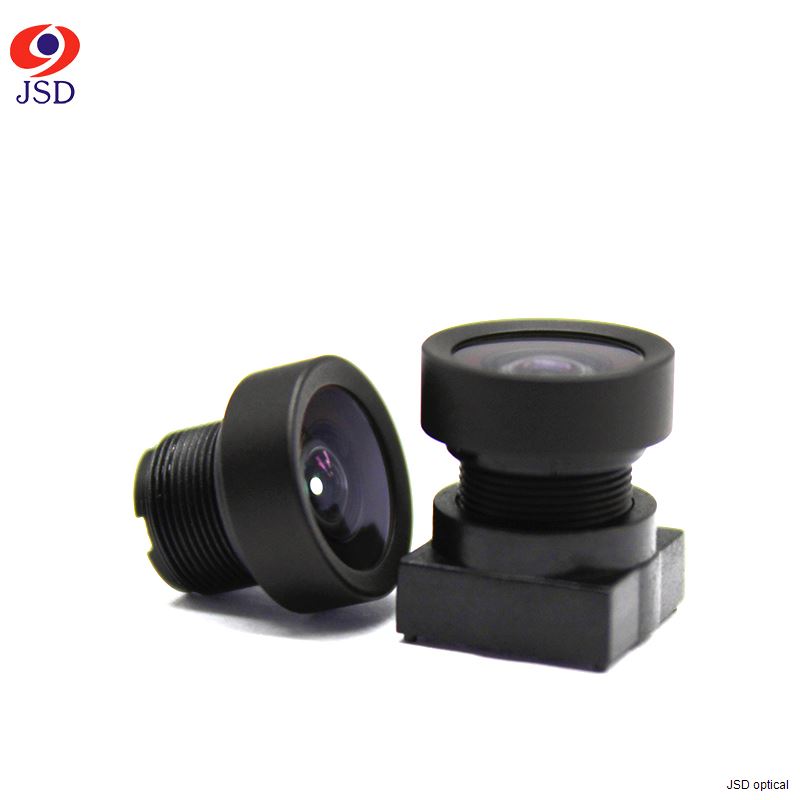

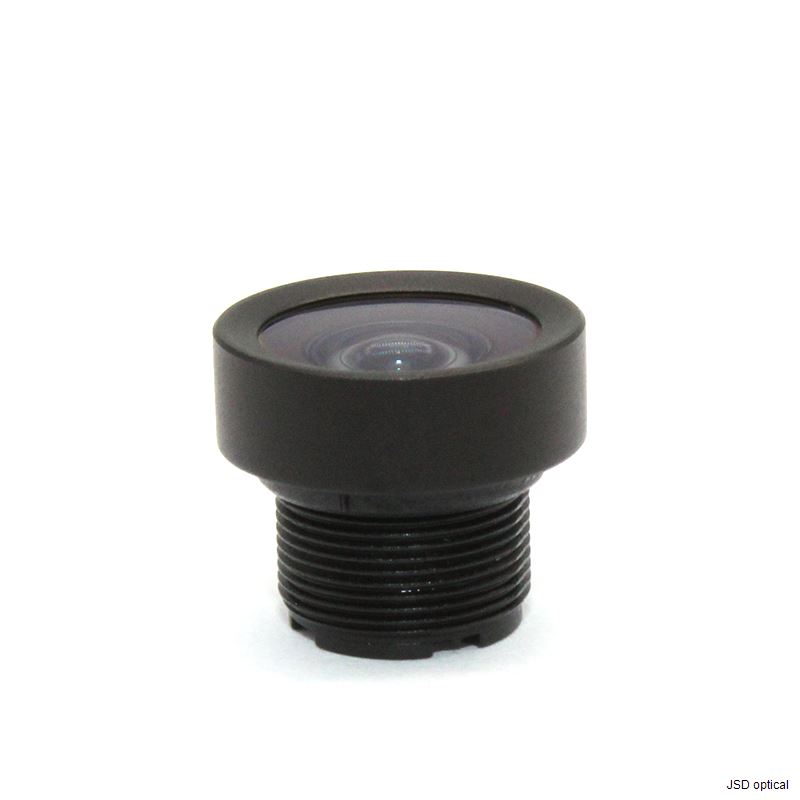

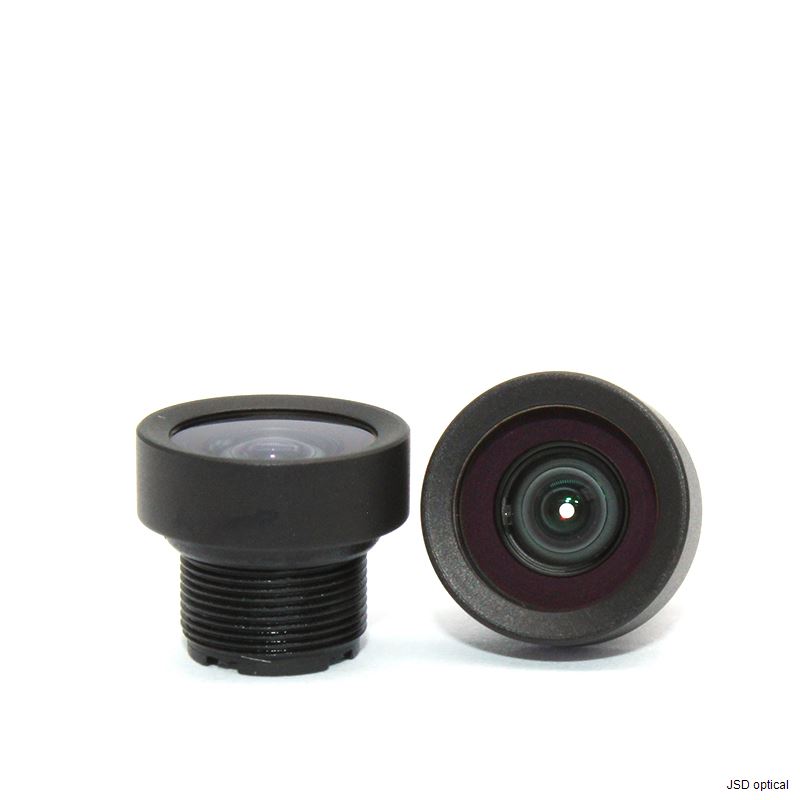

This professional-grade M12 mount fixed focal length lens is precision-engineered for 1/2.8-inch sensors, delivering high-resolution imaging in a compact form factor. With an ultra-wide 213° field of view facilitated by its 1.61mm focal length and F2.4 aperture, it is exceptionally suited for capturing expansive scenes even in highly confined environments. The lens supports True 3MP resolution, ensuring sharp and detailed image reproduction, and features manual focus for precise adjustment across various working distances. Its ultra-wide-angle design is ideal for applications requiring maximum coverage from a single vantage point, making it a versatile solution for panoramic surveillance and immersive visual experiences.

Key Features & Benefits

Ultra-Wide-Angle Lens Design: The 213° angle is characteristic of an ultra-wide-angle or fisheye-type lens, ideal for immersive surveillance, 360° video systems, or capturing an all-encompassing view in tight or confined environments.

Ultra-Wide 213° FOV: With an extremely short focal length, this lens delivers a super-wide horizontal field of view, making it exceptionally effective for monitoring very large or panoramic areas where capturing as much scene information as possible from a single location is essential.

Compact M12 Form Factor: Featuring a standard M12 mount, the lens is designed for highly compact and space-limited imaging systems, enabling straightforward integration into a wide range of embedded vision devices and applications.

Manual Focus Design (F2.4, 1.61mm): The F2.4 aperture allows ample light to enter, supporting reliable performance across varying lighting conditions. Paired with manual focus, it provides users with precise control over the focus distance to ensure optimal clarity for specific applications and working distances.

Optimized for 1/2.8" Sensor: This lens is optically engineered to match 1/2.8" image sensors, ensuring the image circle fully covers the sensor area to reduce vignetting and maintain even edge-to-edge illumination.

Technical Specifications

Applications

Intelligent Traffic Systems (ITS):Applicable for extreme wide-area traffic monitoring at intersections or parking facilities. The massive 213° angle allows for capturing an exceptionally broad overview of traffic flow, pedestrian activity, and vehicle movement across multiple lanes and approaches, facilitating comprehensive traffic analysis and incident monitoring from a single point.

HD Video Conferencing:Serves as a lens for video conferencing systems where an immersive, ultra-wide view is critical. The 213° FOV is ideal for small to medium-sized rooms, ensuring all participants can be included in the frame without a pan-tilt-zoom mechanism, creating a more inclusive and engaging meeting experience.

Security & Surveillance:Suitable for general monitoring scenarios requiring ultra-wide area coverage. The 213° extreme wide field of view enables extensive area monitoring with a single lens, virtually eliminating blind spots in large, open environments like warehouses or aircraft hangars. The F2.4 aperture provides adequate light intake for various lighting conditions.

Machine Vision:The true 3MP resolution supports basic machine vision tasks where an ultra-wide perspective is prioritized over extreme detail. It is suitable for applications requiring a vast field of view, such as monitoring large sections of a process or assembly line, simple object counting over a wide area, or presence verification. The manual focus allows for optimizing sharpness at specific working distances.

Facial Recognition Devices:Can be utilized in scenarios requiring an extremely wide field of view for monitoring group presence or basic identification over large areas, such as entrance halls or open-plan spaces. The 213° angle is beneficial for capturing a significantly broader zone, allowing for the observation of numerous individuals within a wide proximity.
