JSD1537

Product Overview

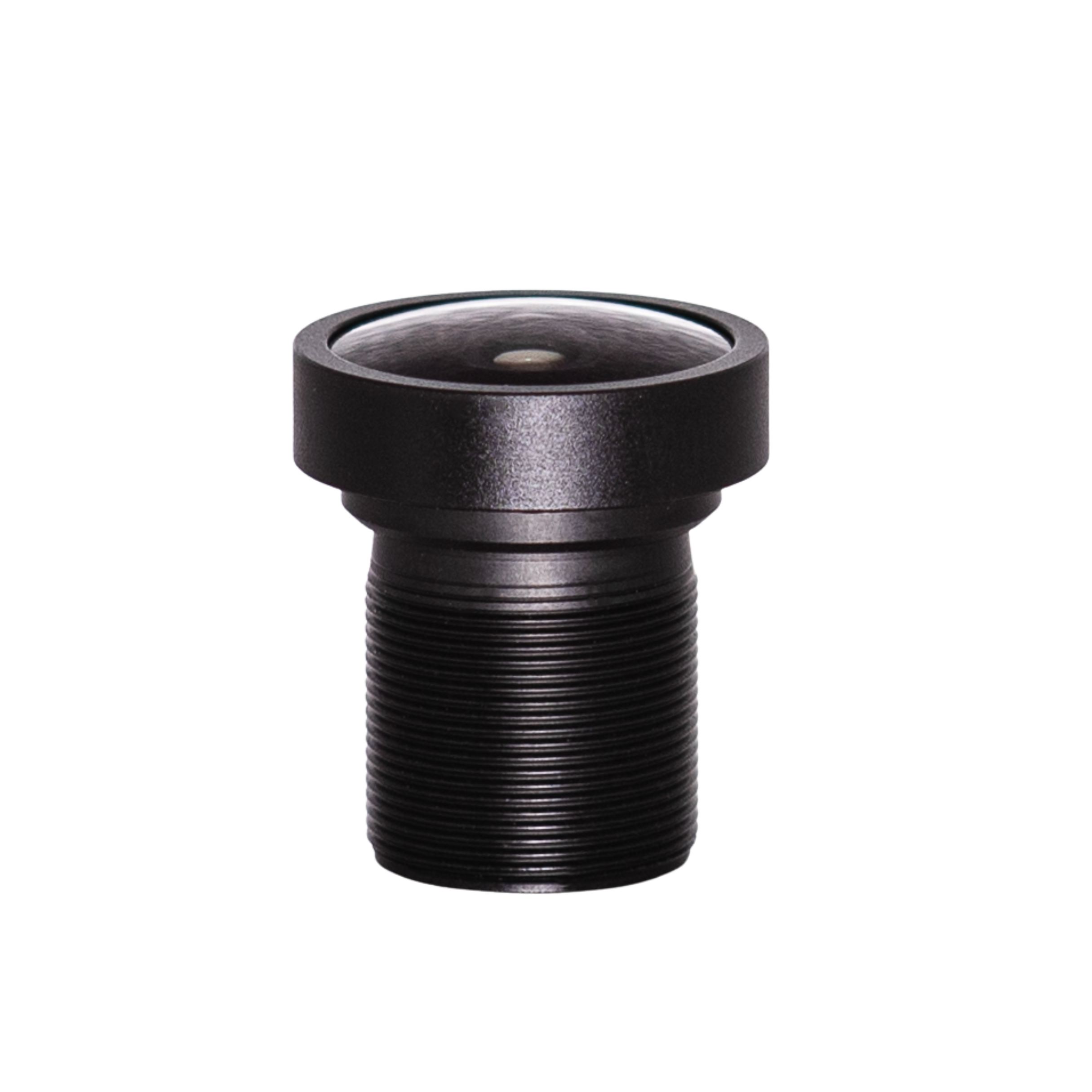

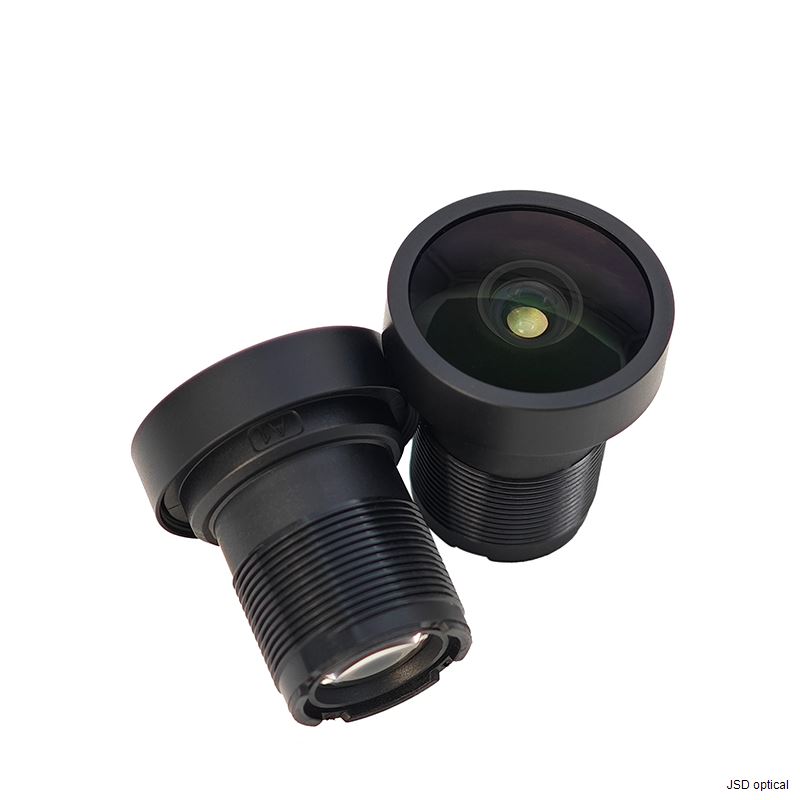

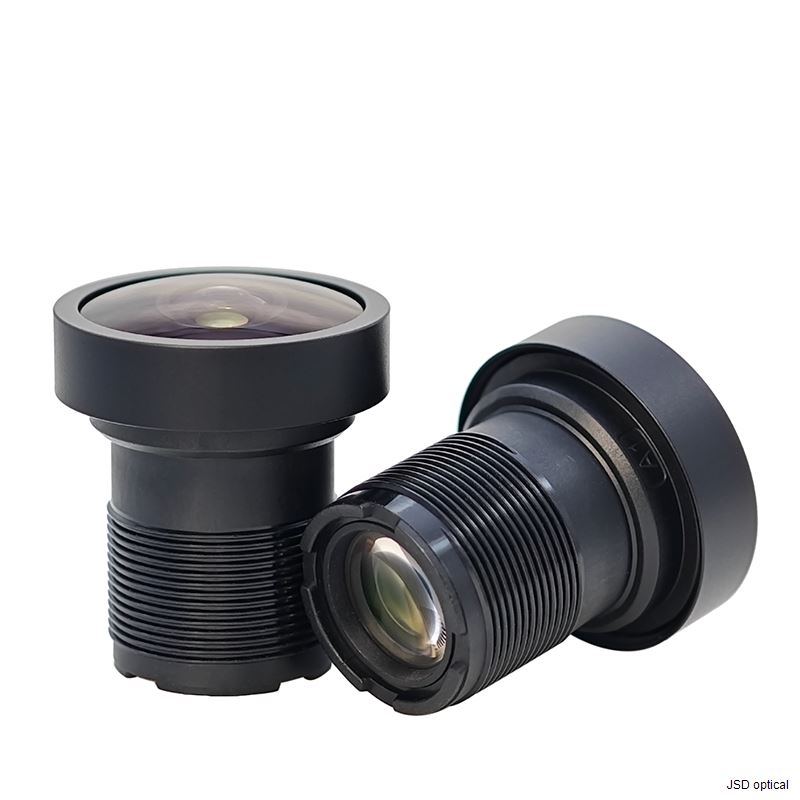

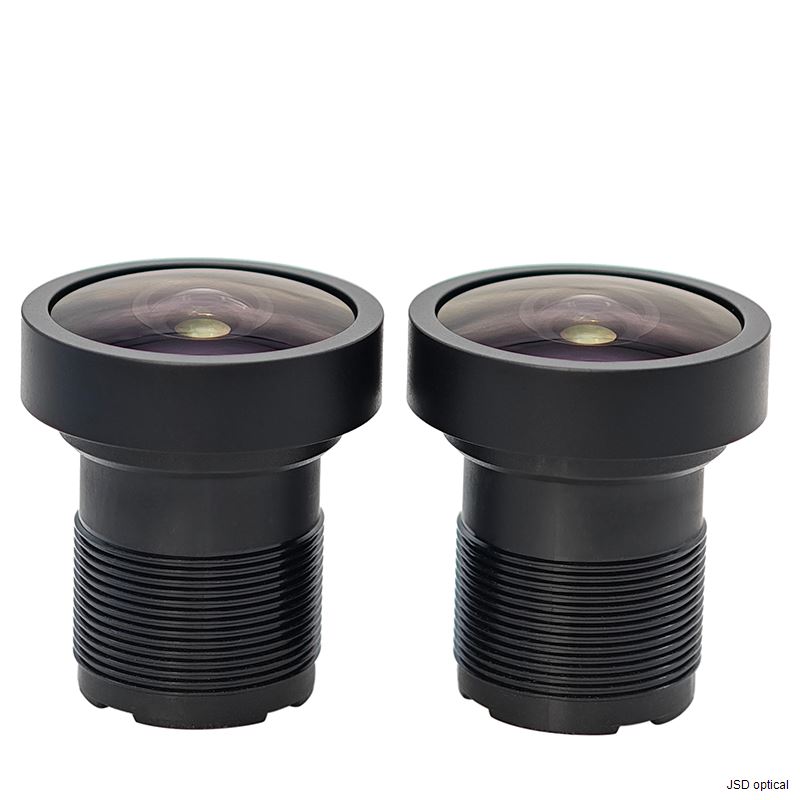

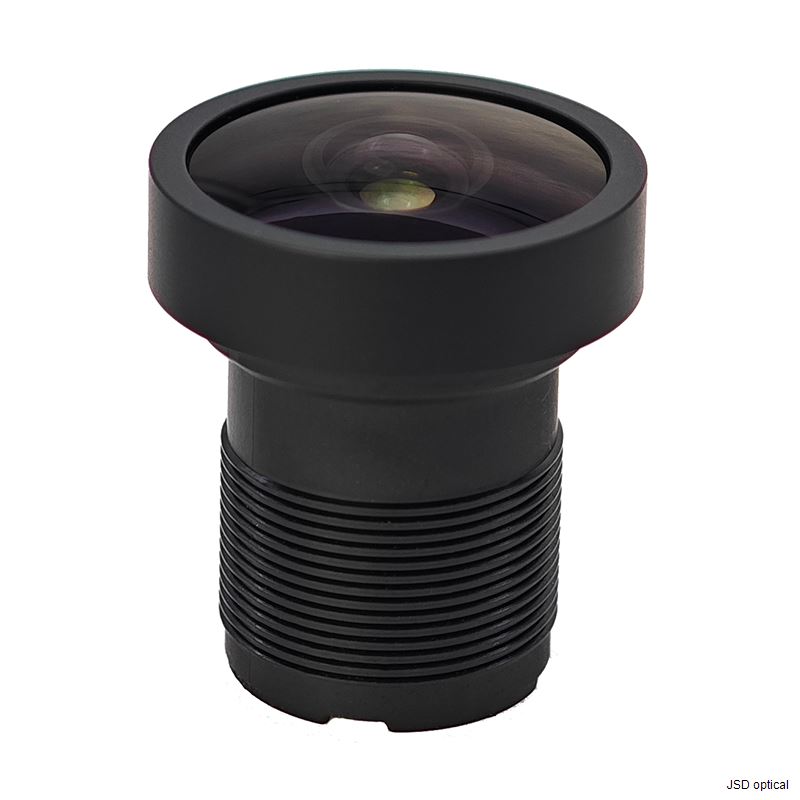

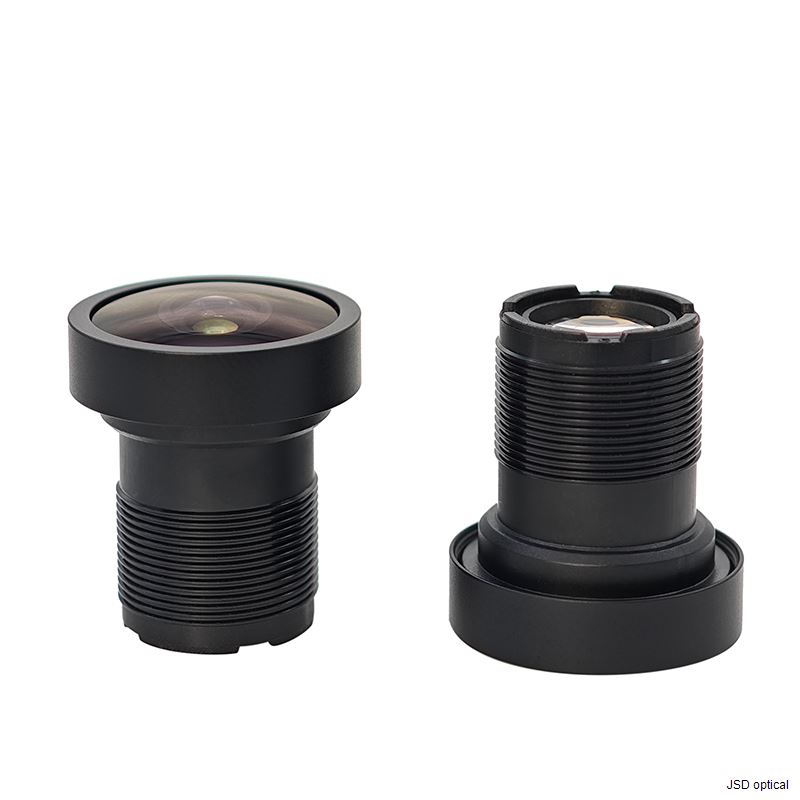

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and immersive fisheye perspective for advanced imaging applications. With a 3.8mm focal length and F1.5 aperture, it provides an ultra-wide 146° field of view, making it ideal for panoramic surveillance, full-room monitoring, and 360° scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this fisheye lens ensures superior image sharpness and maximum peripheral visibility across diverse lighting conditions.

Key Features & Benefits

Enhanced Low-Light Performance: Exceptional F1.5 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

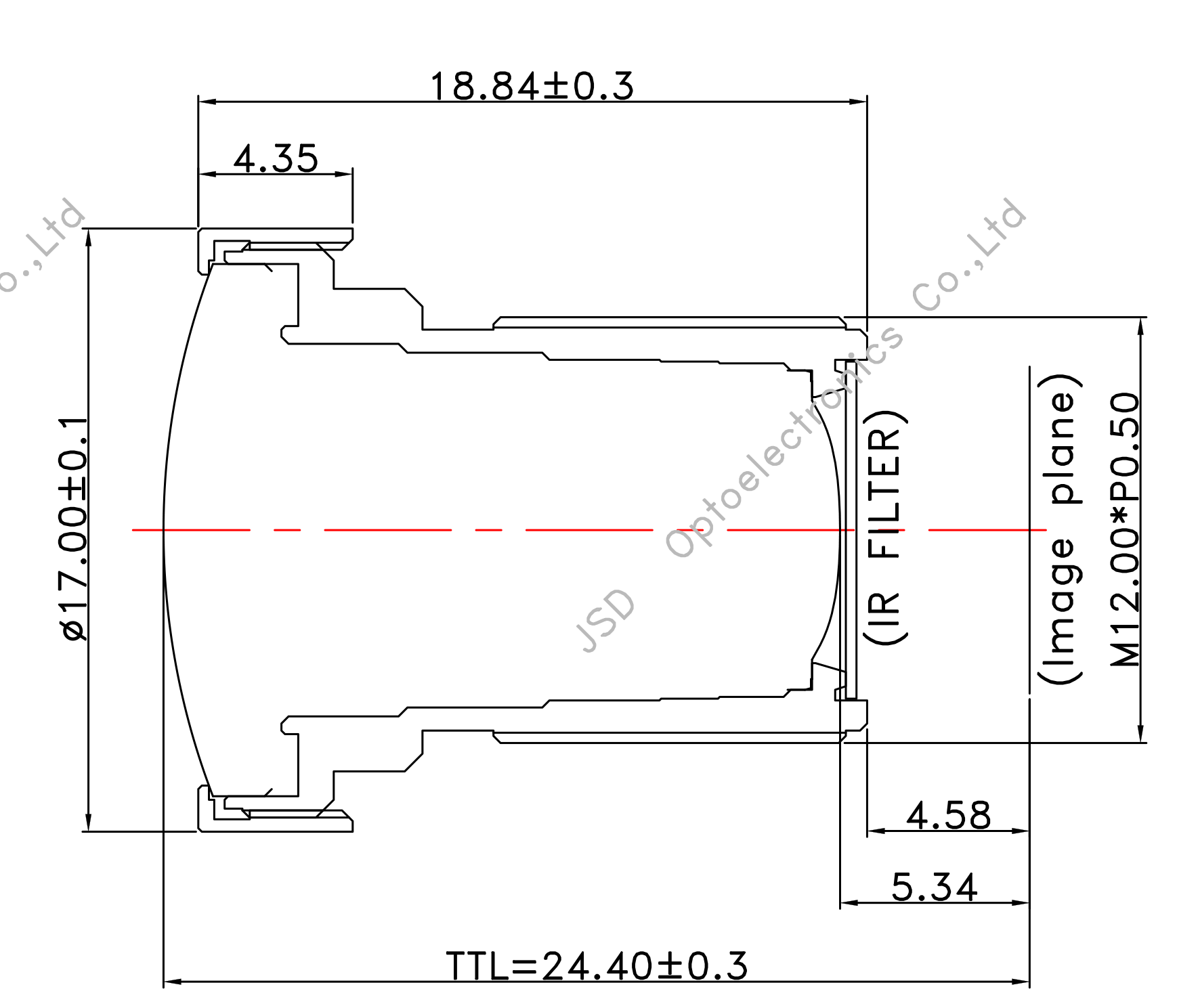

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 146° FOV: Provides an exceptionally wide fisheye field of view ideal for panoramic surveillance, broad environmental monitoring, and maximized area coverage with minimal blind spots.

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Versatile Fisheye Applications: Suited for expansive area monitoring, security surveillance, immersive machine vision, and 360° scene analysis requiring maximum field coverage.

Technical Specifications

Applications

Ultra-Fisheye Wide-Angle Surveillance: Exceptional 146° FOV coverage for complete 360° environment immersion, extreme corner-to-corner visibility, and maximized scene capture with true fisheye perspective.

Crowd Dynamics Analysis: Superior tracking of large group movements, mass gathering analysis, and ultra-high-density area surveillance with minimal occlusion.

Comprehensive Traffic Monitoring: Ultra-wide vehicle tracking across multiple lanes, complete intersection coverage, and panoramic traffic pattern observation with single-lens solution.

Perimeter Security Enhancement: Holistic site boundary coverage, extensive fence line monitoring, and maximized security perimeter protection with 360° visibility.

Facility Wide-Area Management: Complete interior monitoring, extra-large room coverage, and broad open area security assessment with seamless corner-to-corner visibility.

Environmental Panoramic Assessment: Maximum panoramic scene capture, wide landscape monitoring, and enhanced field situational awareness for comprehensive analysis.

Intrusion Detection System Optimization: Enhanced peripheral vision with maximum radial coverage, extended boundary monitoring, and broadened threat detection across all angles.

Immersive Machine Vision: Complete scene acquisition for panoramic inspection, full-field measurement, and 360° defect detection capabilities.
