JSD1611

Product Overview

This ultra-fast M8 mount fixed focal lens (PN: JSD1611) is expertly engineered for miniature 1/6-inch sensors, distinguishing itself with superior low-light capabilities. With a 1.5mm focal length and an impressively bright F1.1 aperture, it provides a natural 91° field of view, making it ideal for biometric systems, compact monitoring, and applications requiring high visibility in dim conditions. Featuring 2MP resolution and a compact mechanical design, this lens ensures clear, low-distortion imaging for space-constrained devices.

Key Features & Benefits

Super Bright F1.1 Aperture:Features an exceptionally large F1.1 aperture, allowing maximum light intake to the sensor. This ensures vivid, noise-free images even in challenging low-light or night-time environments.

2MP HD Resolution:Optimized to support 2 Megapixel sensors, delivering sharp and defined imaging suitable for facial recognition, video conferencing, and standard security tasks.

Natural 91° FOV:Provides a standard wide 91-degree field of view that offers a perfect balance between scene coverage and object detail, avoiding the extreme curvature of fisheye lenses.

Perfect Sensor Match:Engineered specifically for 1/6" sensors, ensuring the image circle aligns perfectly with the sensor active area to prevent vignetting.

Low Distortion Design (<-5.4%):Advanced optical engineering keeps distortion below 5.4%, maintaining accurate spatial geometry and straight lines, which is critical for machine vision and scanning.

Compact M8 Build:Features a standard M8 thread with a short Total Track Length (TTL) of just 9.6mm, allowing for seamless integration into ultra-thin housings and miniature electronics.

Applications

Biometric Face Recognition

Low-Light IoT Sensors

Compact Webcams & Laptop Cameras

Smart Home Peep-hole Cameras

Medical Imaging Devices

Wearable Body Cameras

Embedded Vision Systems

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

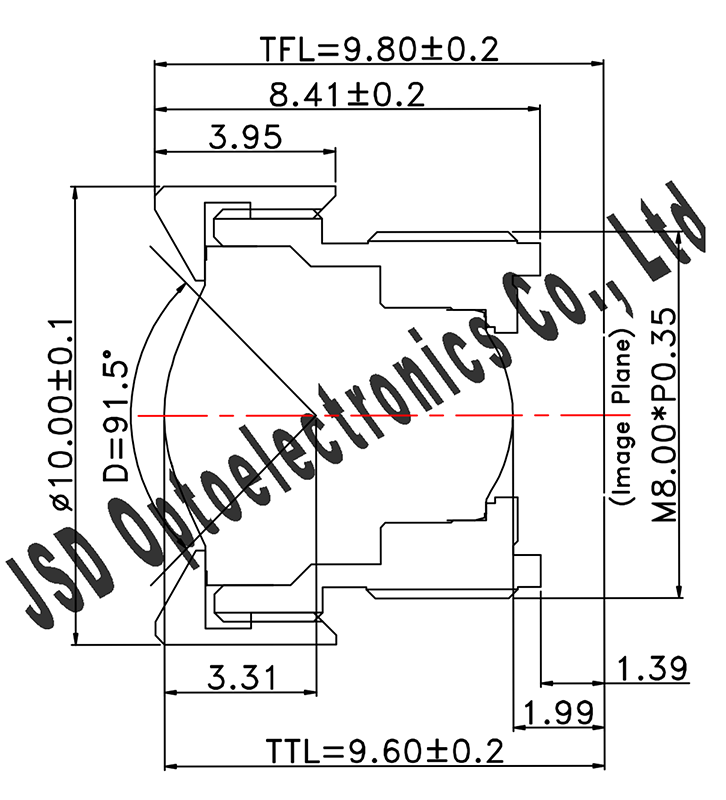

drawing
