JSD1630

Product Overview

This precision M10 mount fixed focal lens (PN: JSD1630) is expertly engineered for 1/3-inch image sensors, designed specifically for applications requiring high magnification and geometric accuracy. With a long 16mm focal length and F3.0 aperture, it provides a narrow 21° field of view, making it ideal for capturing distant details, reading text (OCR), and precise industrial inspection. Featuring an advanced optical design with virtually zero distortion (<-0.04%), this lens ensures straight lines remain straight, providing true-to-life spatial representation for measurement and scanning tasks.

Key Features & Benefits

Ultra-Low Distortion (<-0.04%):Features exceptional optical correction with less than 0.04% distortion, eliminating the "fisheye" effect and ensuring near-perfect geometric accuracy for measurement and OCR applications.

Telephoto 16mm Focal Length:The long focal length brings distant objects closer, offering high magnification and detail capture suitable for specific target monitoring rather than wide-area surveillance.

Narrow 21° Field of View:Provides a focused, tight viewing angle that concentrates pixels on the subject, maximizing resolution density for object identification and license plate recognition.

Optimized for 1/3" Sensors:Engineered to match the optical format of 1/3" sensors, ensuring the image circle fits perfectly without vignetting.

1MP Resolution Support:Delivers reliable clarity and contrast for standard definition machine vision and industrial scanning requirements.

Unique M10 Mount:Built with a standard M10 thread (Note: distinct from common M12 mounts) and a TTL of 21.7mm, offering a specific form factor for compatible camera housings.

Precise Optical Glass:Constructed to maintain image sharpness and stability, crucial for automated visual systems.

Applications

Optical Character Recognition (OCR) Systems

License Plate Recognition (LPR/ANPR)

Industrial Inspection & Metrology

Barcode & QR Code Scanners

Biometric Identification (Iris/Face)

Medical Imaging Equipment

Telephoto Surveillance (Corridors/Tunnels)

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com

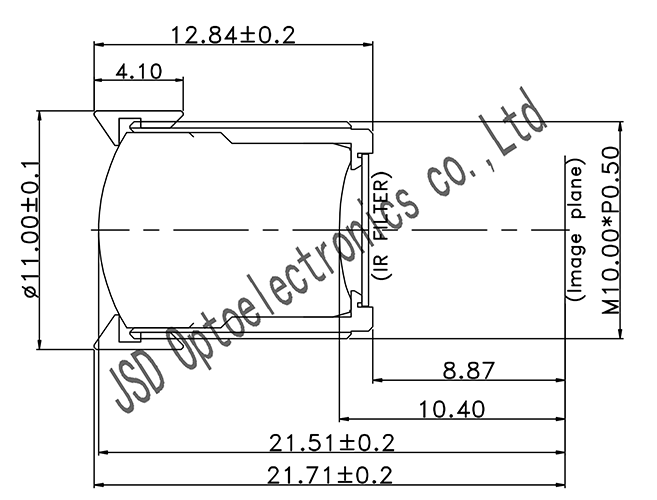

drawing
