JSD2017

Product Overview

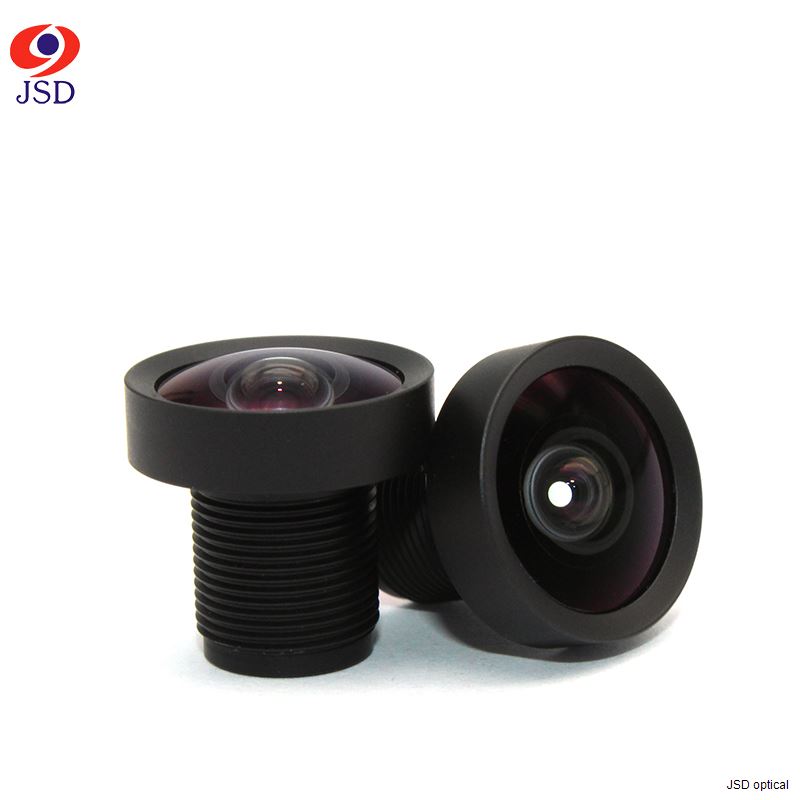

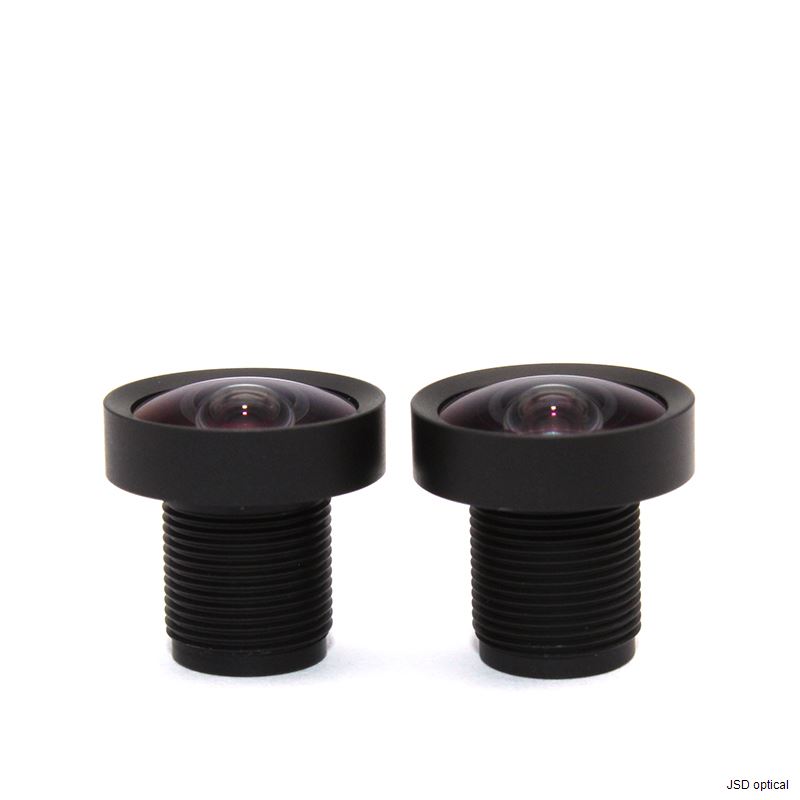

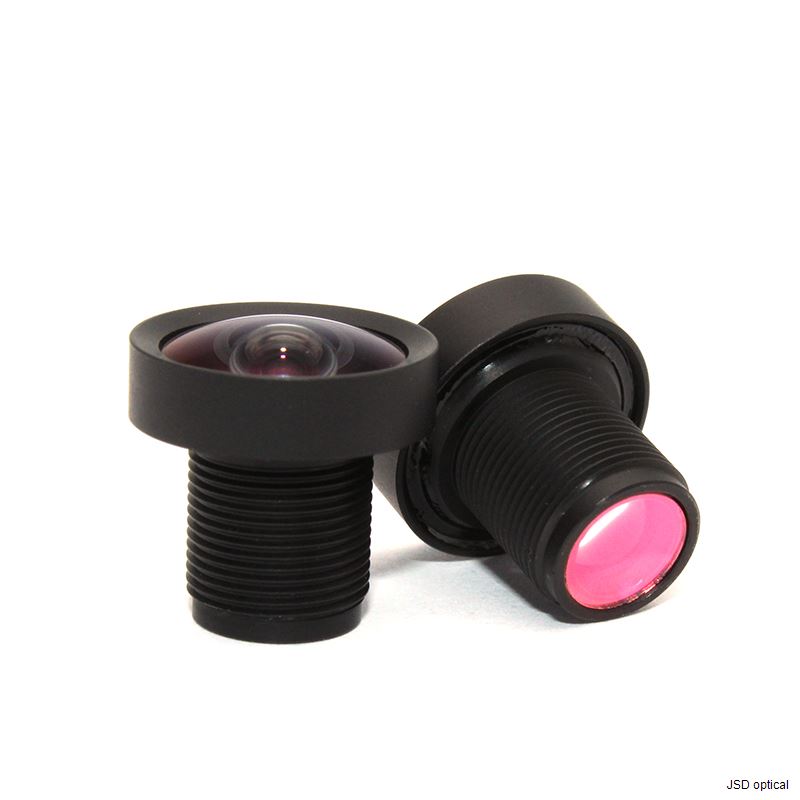

This compact M8 mount fixed focal lens (PN: JSD2017) is precision-engineered for 1/3-inch image sensors, delivering high-definition clarity for wide-angle imaging applications. With a short 1.9mm focal length and a bright F2.0 aperture, it provides a massive 163° field of view, making it an excellent choice for automotive cameras, VR devices, and wide-area security monitoring. Featuring 3MP resolution support and a robust optical design, this lens ensures sharp image capture with expansive coverage in a miniature form factor.

Key Features & Benefits

3MP High-Definition Resolution:Optimized to support 3 Megapixel sensors, delivering crisp video and clear images, ensuring reliable detail retention for HD applications.

Ultra-Wide 163° FOV:Offers an expansive panoramic field of view, significantly reducing the number of cameras needed to cover a large area and eliminating blind spots.

Optimized for 1/3" Sensors:Specifically designed with an image circle tailored for 1/3" sensors, ensuring maximum sensor utilization and edge-to-edge clarity.

Bright F2.0 Aperture:The large aperture allows for superior light intake, providing excellent low-light performance and clear imaging in varying lighting environments.

Compact M8 Design:Featuring a standard M8 thread and a Total Track Length (TTL) of 15.99mm, this lens is ideal for space-constrained devices and lightweight embedded systems.

Wide-Angle Optical Performance:Engineered with characteristic barrel distortion (<-25%) typical of ultra-wide lenses, providing a "fisheye" perspective that captures maximum scene context.

Applications

Automotive Cameras (Dash Cams, Rear View)

VR / 360° Panorama Cameras

Wide-Area Security Surveillance

Video Doorbells / Smart Home Devices

Drone (FPV) & Aerial Imaging

Sports Action Cameras

Robotics & Machine Vision

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com

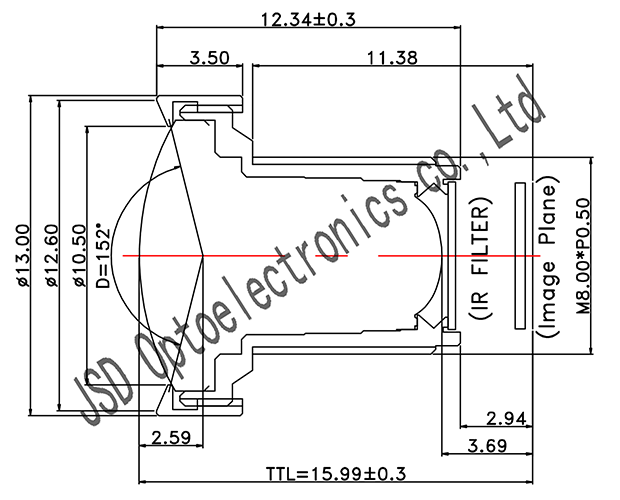

Drawing
