JSD2828

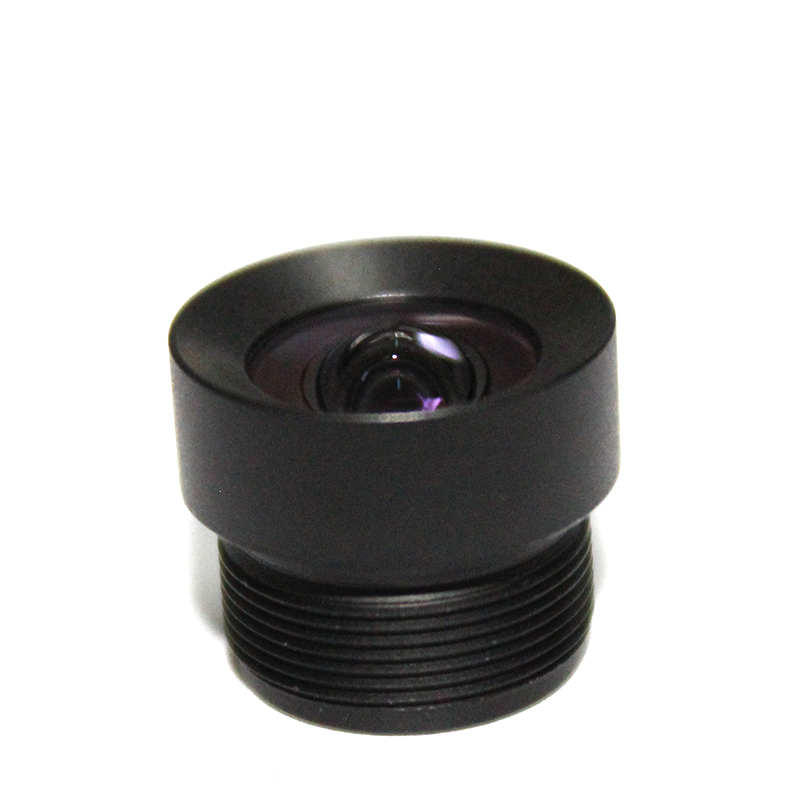

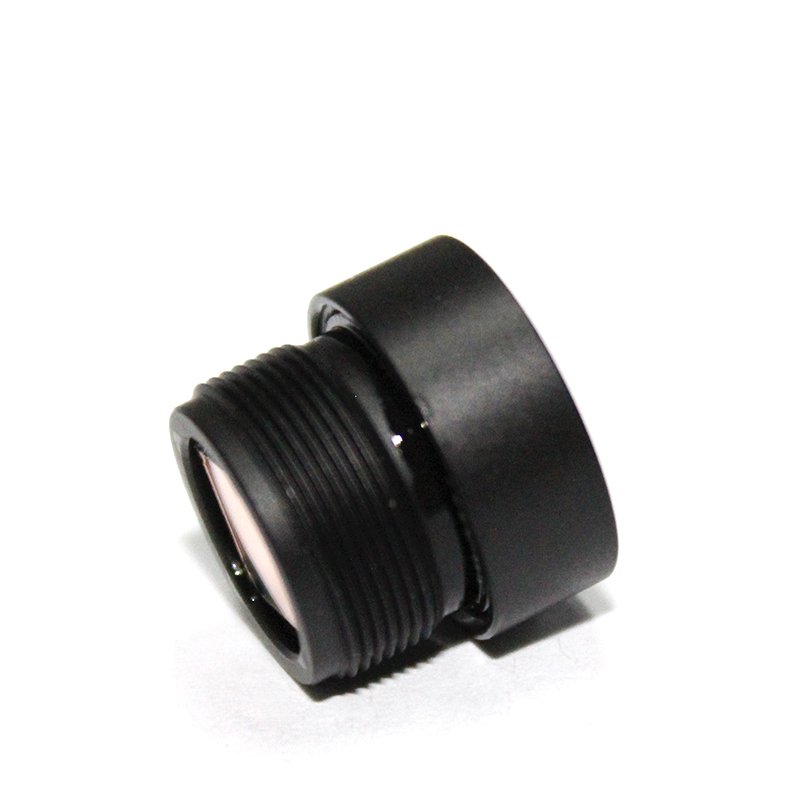

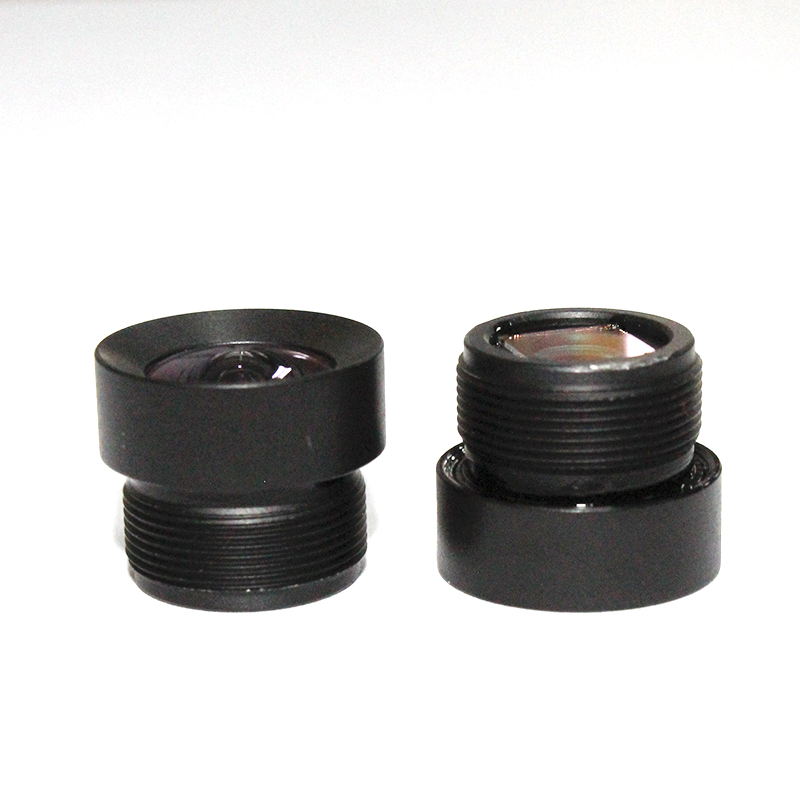

S mount lens ultra wide angle lens large aperture
PN: JSD2828
HFOV 94°
Max image circle 6.8mm
TTL 13.5mm
Dis: 1.5%
- Information
- Related Products
Description
The 2.8mm low distortion M12 lens has very low distortion 1.2%, HFOV is 94 degree on 1/2.7” sensor. Short TTL 13.5mm suitable for small cameras.
Perfectly compatible with the SmartSens SC2232 and other 1/2.7" sensors.
Application
l 3D Printing
l Portable Scanning
l Wearable camera
Specification
|
| |
Model | JS2828 | |
Image sensor | 1/2.7” | |
Image Circle | 6.6mm | |
Resolution | 5MP | |
Focal Length | 2.8mm | |
Aperture | F2.8 | |
TTL | 13.5mm | |
FOV | DFOV 105° HFOV 94° VFOV 60° | |
Distortion | 1.2% | |
