JSD4118

Product Overview

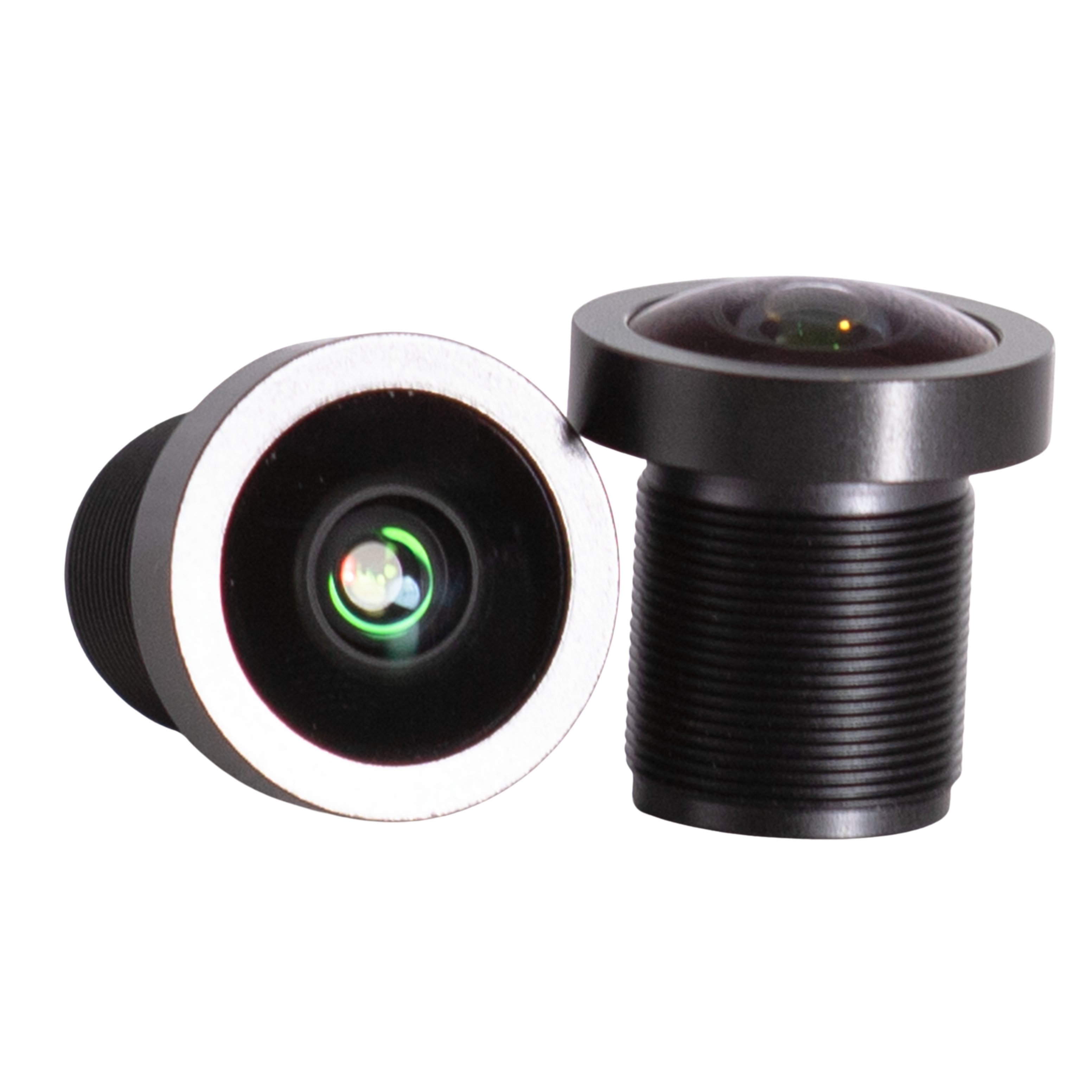

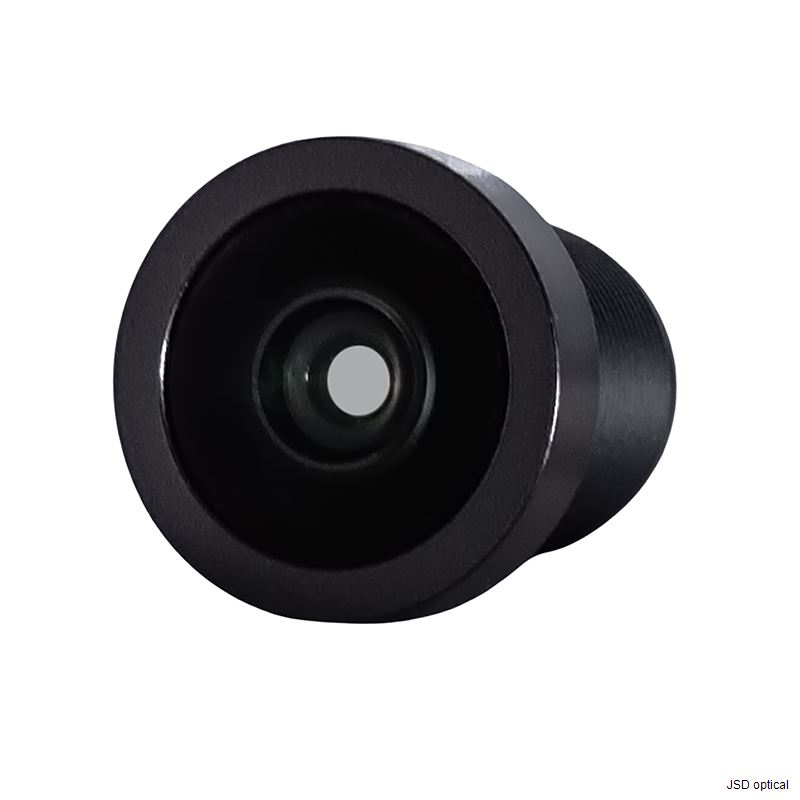

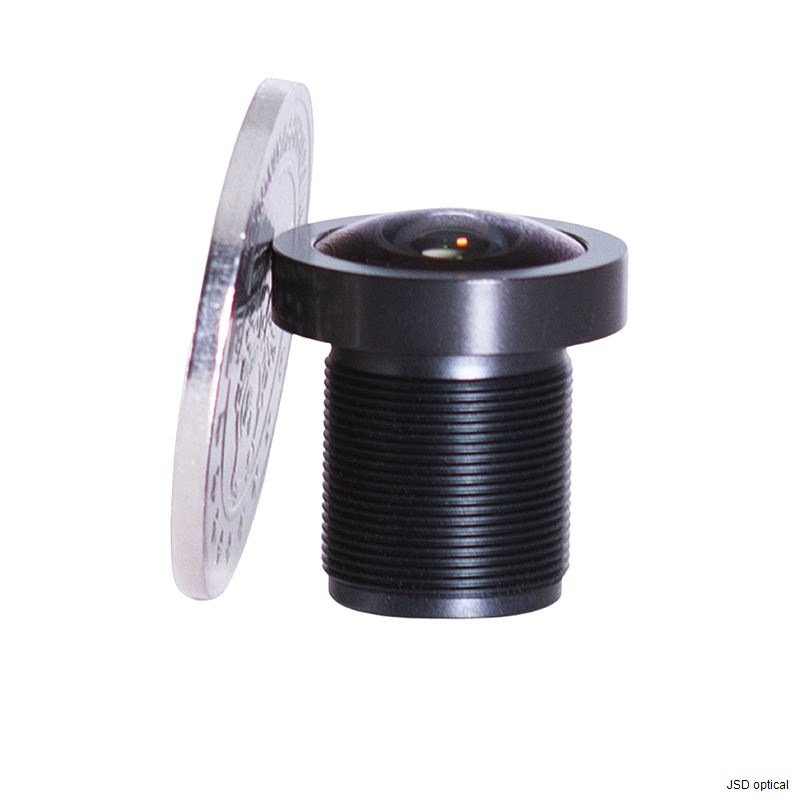

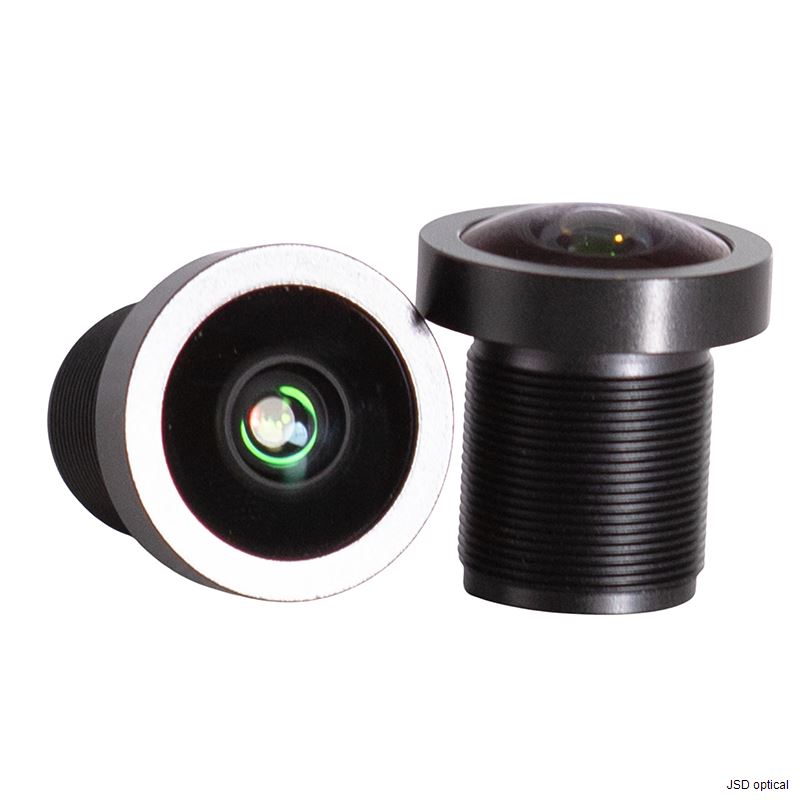

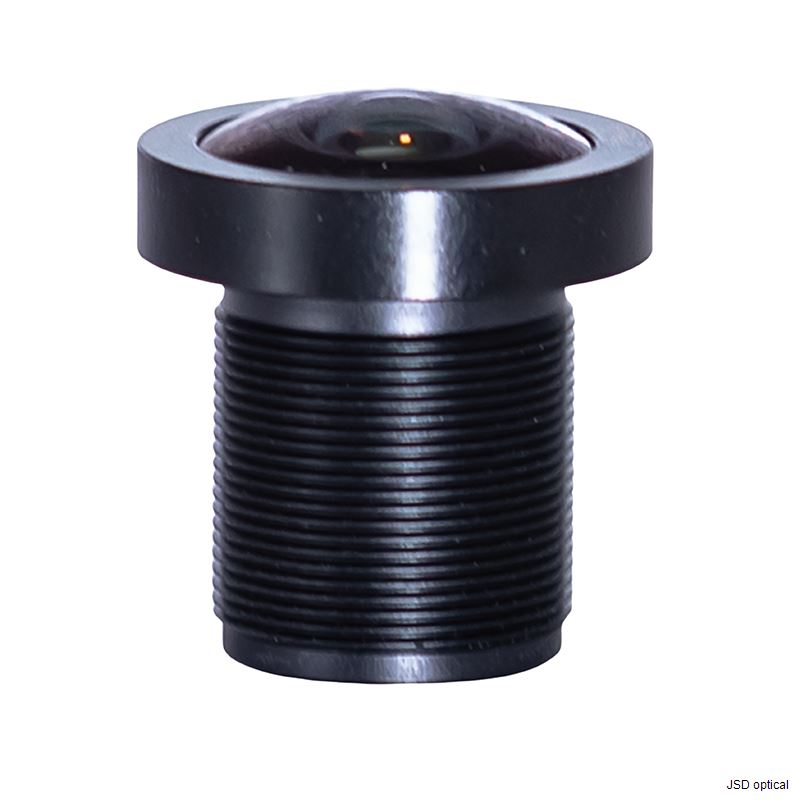

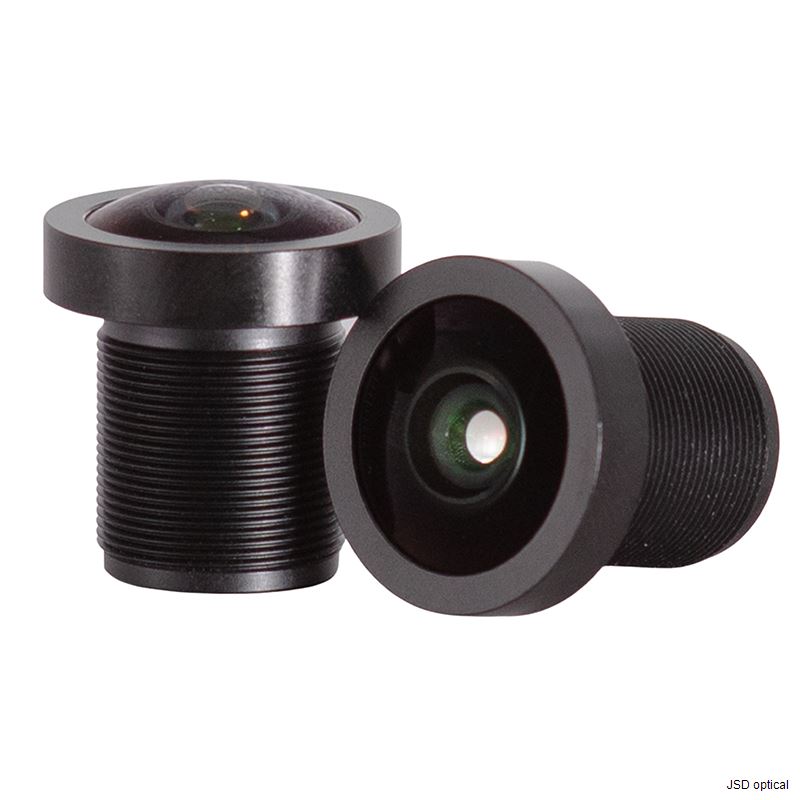

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and wide coverage for immersive imaging applications. With an 8mm focal length and F1.8 aperture, it provides an expansive 130° field of view, making it ideal for panoramic surveillance, broad-area monitoring, and wide-scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and enhanced peripheral visibility across diverse lighting conditions.

Key Features & Benefits

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Wide 130° FOV: Provides an ultra-wide field of view ideal for panoramic surveillance, broad environmental monitoring, and large-area scene capture with minimal blind spots.

Enhanced Optical Performance: Advanced lens design maintains image clarity across the entire wide field, balancing brightness and detail even at the periphery.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Versatile Wide-Angle Applications: Suited for wide-area monitoring, traffic scene analysis, security surveillance, and machine vision tasks requiring extensive coverage.

Technical Specifications

Applications

Wide-Area Surveillance: Broad coverage for open-space monitoring, large environment oversight, and expansive area observation.

Perimeter Protection: Comprehensive coverage for site boundaries, fence lines, and extended security perimeters.

Crowd Monitoring: Effective tracking of group movements, gathering analysis, and high-density area surveillance.

Traffic Flow Analysis: Wide-angle vehicle tracking, multi-lane monitoring, and intersection activity observation.

Facility Management: Expanded interior monitoring, large room coverage, and open area security assessment.

Environmental Observation: Panoramic scene capture, landscape monitoring, and wide field situational awareness.

Intrusion Detection: Enhanced peripheral vision, boundary monitoring, and expanded threat detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
