JSD41693

Product Overview

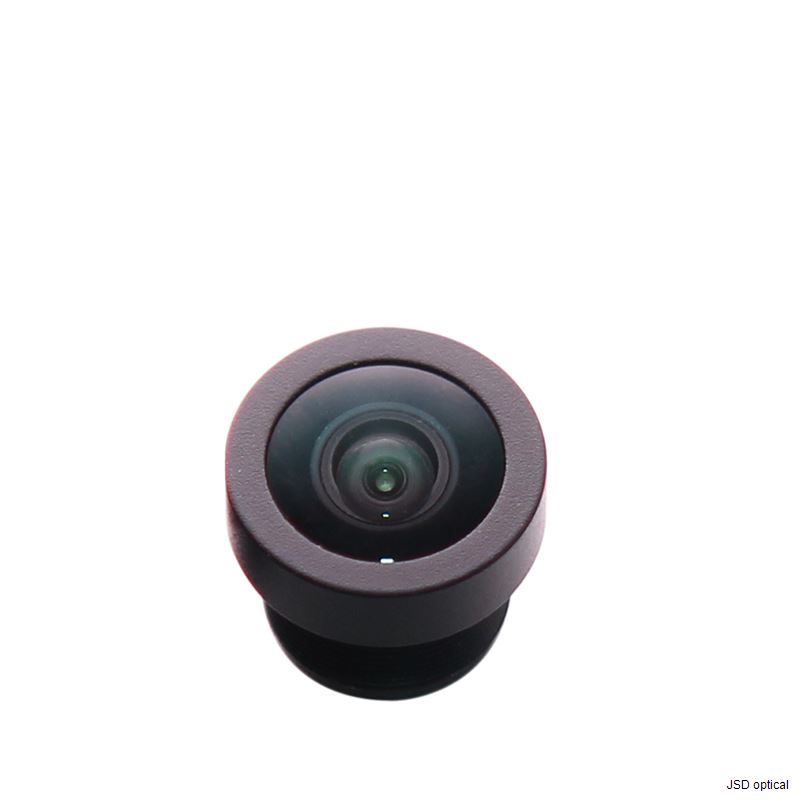

This professional-grade M18 mount fixed focal lens is expertly engineered for large 1-inch format sensors, delivering exceptional clarity and strictly controlled geometry for high-end imaging applications. With an 8mm focal length and F2.4 aperture, it provides a versatile 75° field of view, making it an ideal solution for Intelligent Transportation Systems (ITS), high-precision machine vision, and industrial inspection. Featuring 12MP resolution (PN: JSD41693) and an ultra-low distortion design (<-0.5%), this lens ensures superior image sharpness and virtually flat geometric representation, fully utilizing the substantial surface area of 1-inch sensors.

Key Features & Benefits

12MP Ultra-High Resolution: Delivers crisp, high-definition 4K+ imaging with exceptional detail retention, ensuring clarity suitable for complex scenes and high-accuracy recognition tasks.

Optimized for 1" Sensors: Engineered specifically for large 1-inch sensors, featuring a massive image circle that eliminates vignetting and maximizes light capture and resolution—a capability typically found in larger C-mount lenses but here offered in a board lens format.

Ultra-Low Distortion (<-0.5%): Advanced optical optimization minimizes barrel distortion to less than 0.5%, maintaining absolute straight-line accuracy and true-to-life image representation, essential for measurement, metrology, and OCR.

Versatile 75° FOV: Provides a standard wide 75° field of view, offering a natural perspective with an excellent balance of area coverage and object detail, suitable for monitoring broad zones without fisheye deformation.

Robust M18 Mechanical Design: Features a larger, durable M18 thread (to accommodate the large optical elements required for 1" sensors) and a TTL (Total Track Length) of 40mm, designed for stability and reliability in industrial environments.

High-Contrast Imaging: The optical design is tuned to produce high-contrast images across the entire sensor plane, critical for edge detection algorithms in machine vision and traffic analysis.

Applications

Intelligent Transportation Systems (ITS) & Traffic Monitoring

High-End Machine Vision & Industrial Inspection

Autonomous Mobile Robots (AMR)

Optical Character Recognition (OCR)

High-Resolution Surveillance

Smart City Sensors

Defect Detection & Metrology

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
