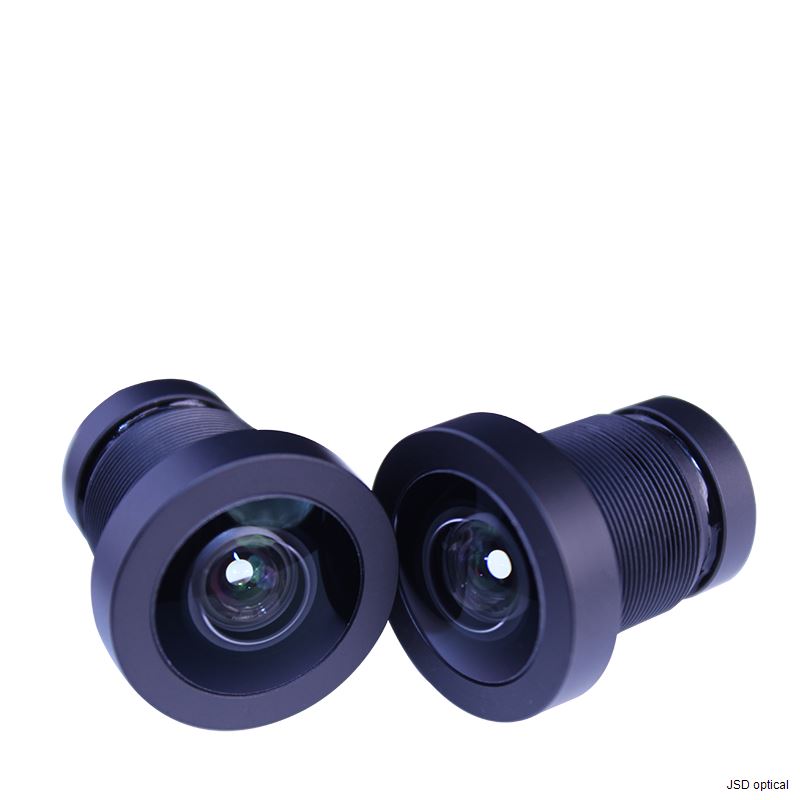

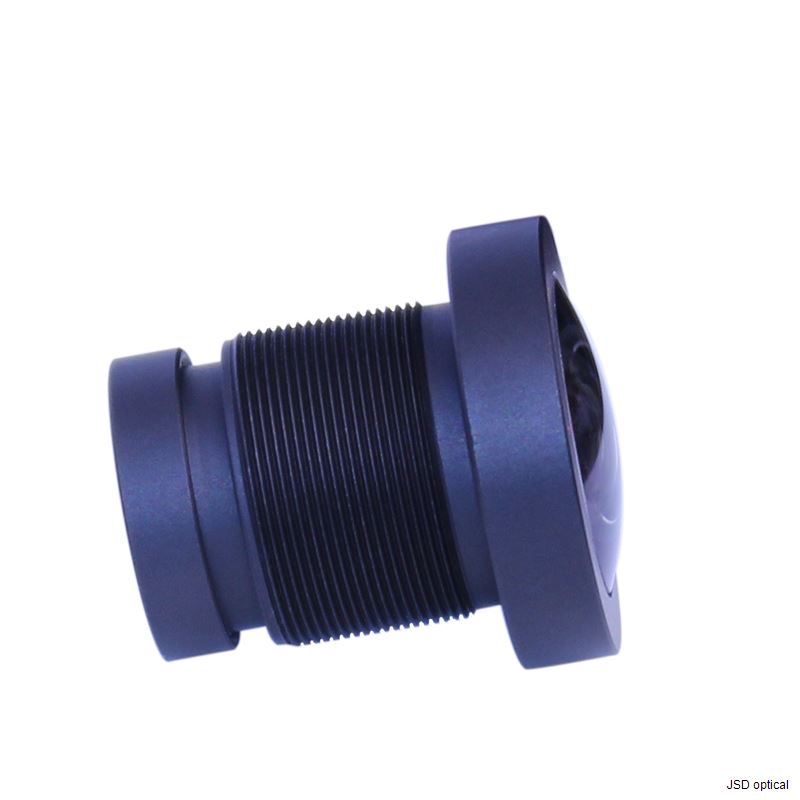

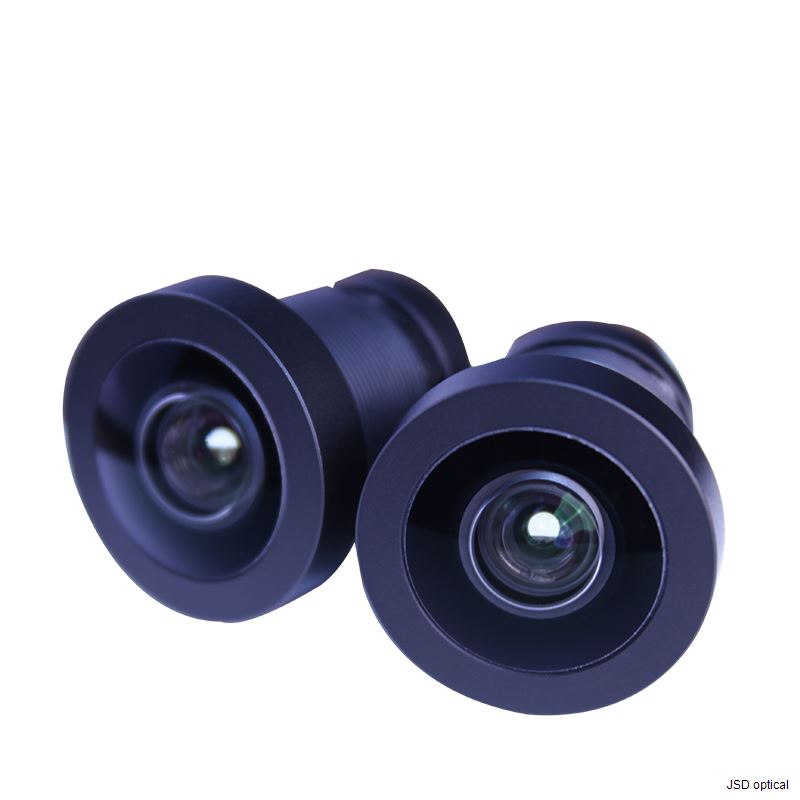

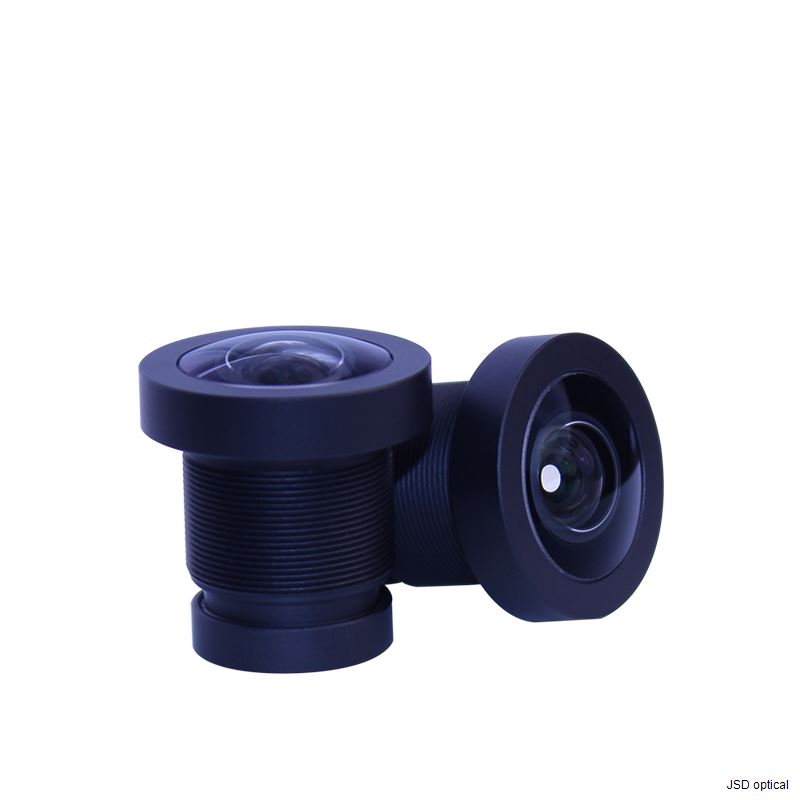

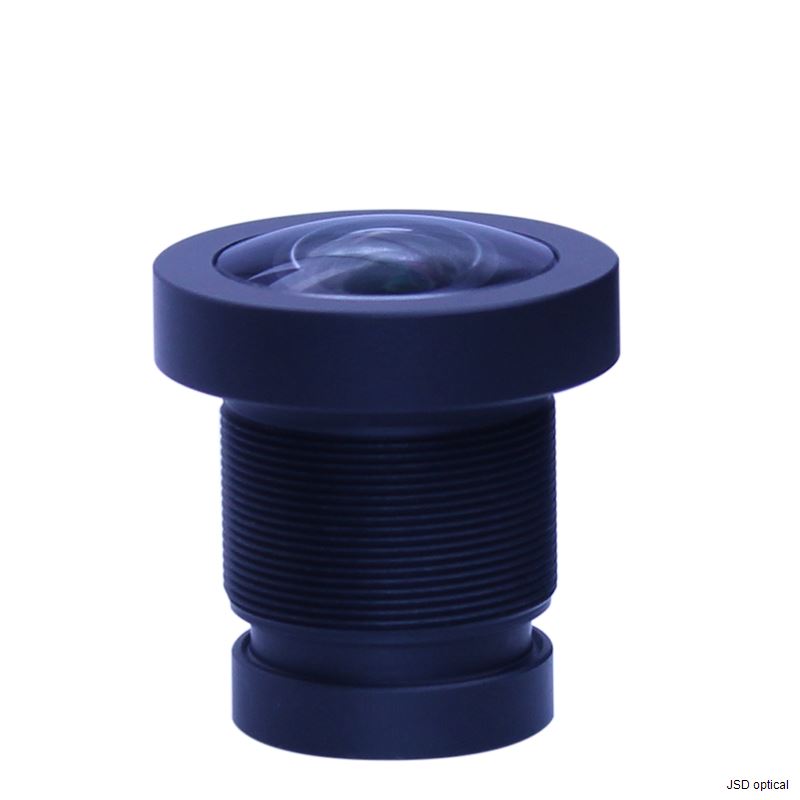

M16 4.65mm F2.4 Fixed Focal Lens for 1/1.55" Sensor - 50MP Ultra-High Resolution, 126° FOV Low Distortion

M16 Lens, 50MP High Resolution Lens, 1/1.55" Sensor Lens, 4.65mm Fixed Focal Lens, 126° Wide Angle, Low Distortion, JSD5042

Product Overview

This professional-grade M16 mount fixed focal lens (PN: JSD5042) is expertly engineered for large format 1/1.55-inch sensors, delivering industry-leading clarity for advanced imaging applications. With a 4.65mm effective focal length and F2.4 aperture, it provides an expansive 126° field of view, making it ideal for high-end surveillance, automotive imaging, and precision machine vision. Featuring remarkable 50MP resolution, this lens ensures superior image sharpness and exceptional detail retention from the center to the edge, fully supporting the latest high-resolution sensors.

Key Features & Benefits

50MP Ultra-High Resolution:Designed to resolve 50 megapixels, this lens delivers crystal-clear, high-definition imaging with extreme detail, making it perfect for AI analysis and recognition algorithms.

Large Sensor Coverage:Specifically optimized for 1/1.55" sensors, providing a large image circle that fully utilizes the sensor's active area without vignetting.

Wide 126° Field of View:Offers a broad 126° diagonal viewing angle, ideal for capturing extensive scenes in a single frame, such as wide-area traffic monitoring or panoramic security.

Controlled Optical Distortion:Engineered with a low distortion design (<-10.3%), maintaining a natural geometric representation of the scene despite the wide viewing angle.

Robust M16 Mount Design:Featuring a standard M16 thread and a Total Track Length (TTL) of 27mm, this lens offers a stable and durable interface for industrial and commercial cameras.

Precision Optical Engineering:With an F2.4 aperture and 4.65mm focal length, the lens achieves a perfect balance between light intake and depth of field for consistent performance.

Applications

High-Resolution Surveillance Systems

Intelligent Transportation Systems (ITS) & Traffic Analysis

Automotive Cameras (ADAS/DMS)

High-Precision Machine Vision

Drone & Aerial Mapping

Video Conferencing & Smart Home Devices

Industrial Inspection & Automation

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

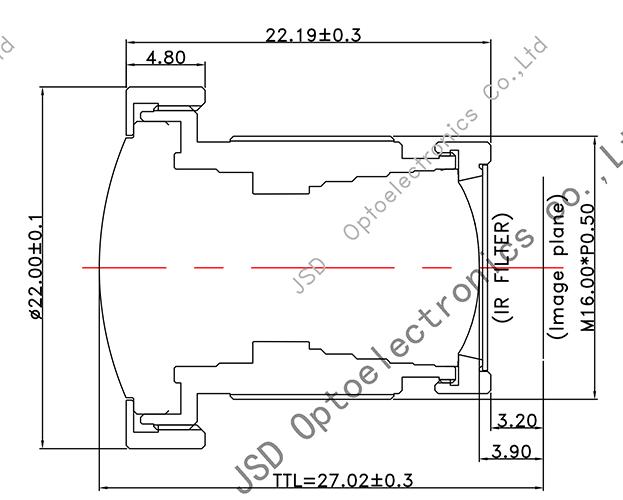

drawing
