JSD5042

Product Overview

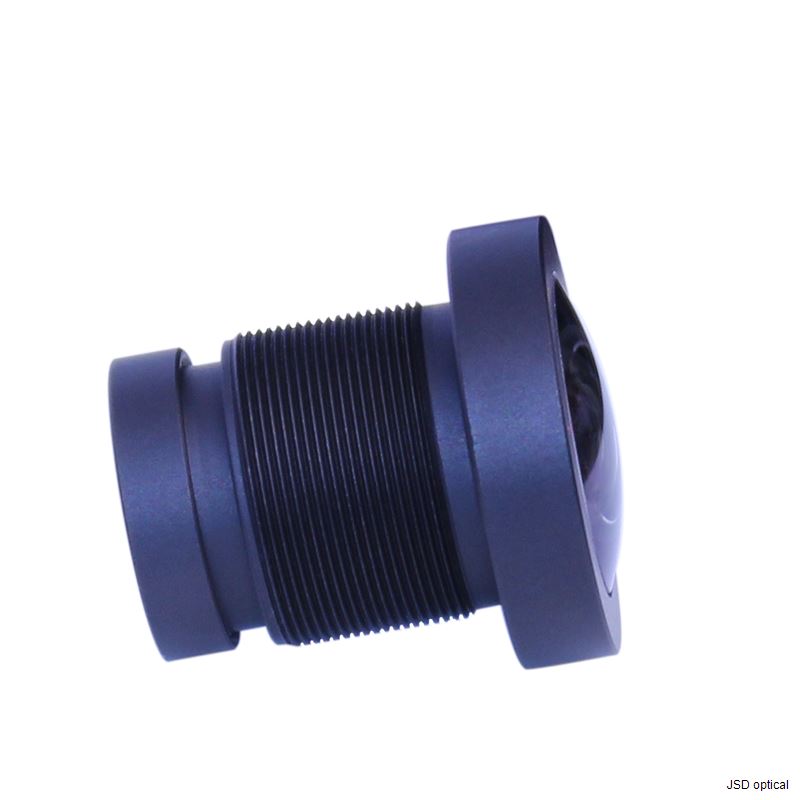

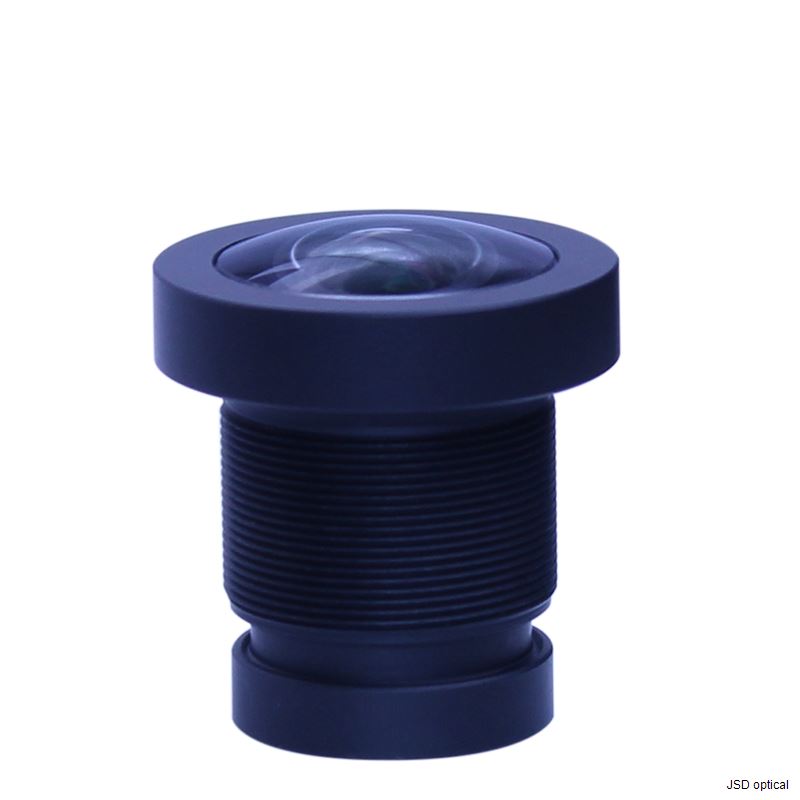

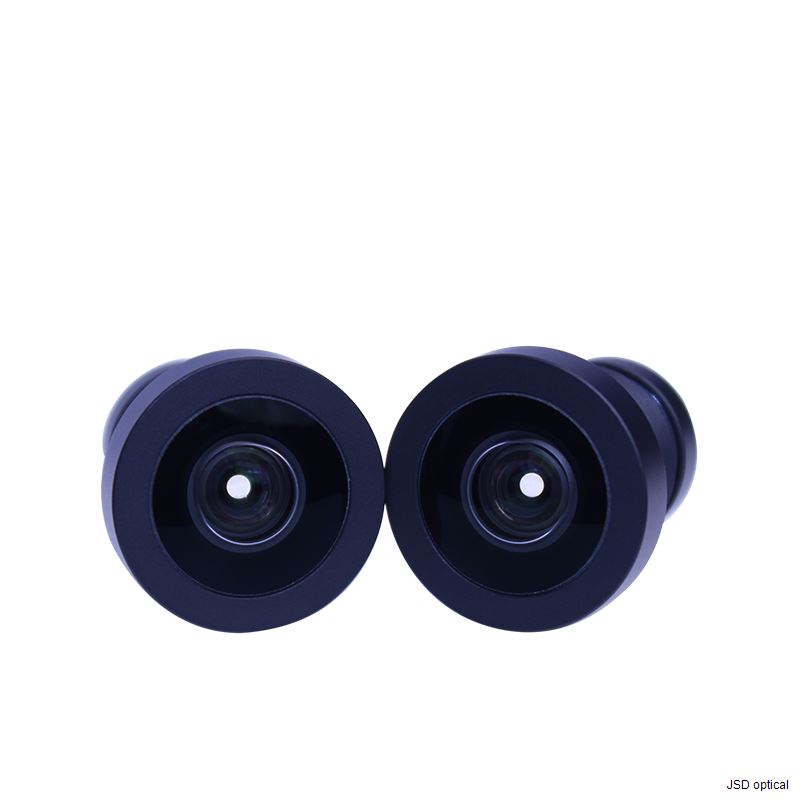

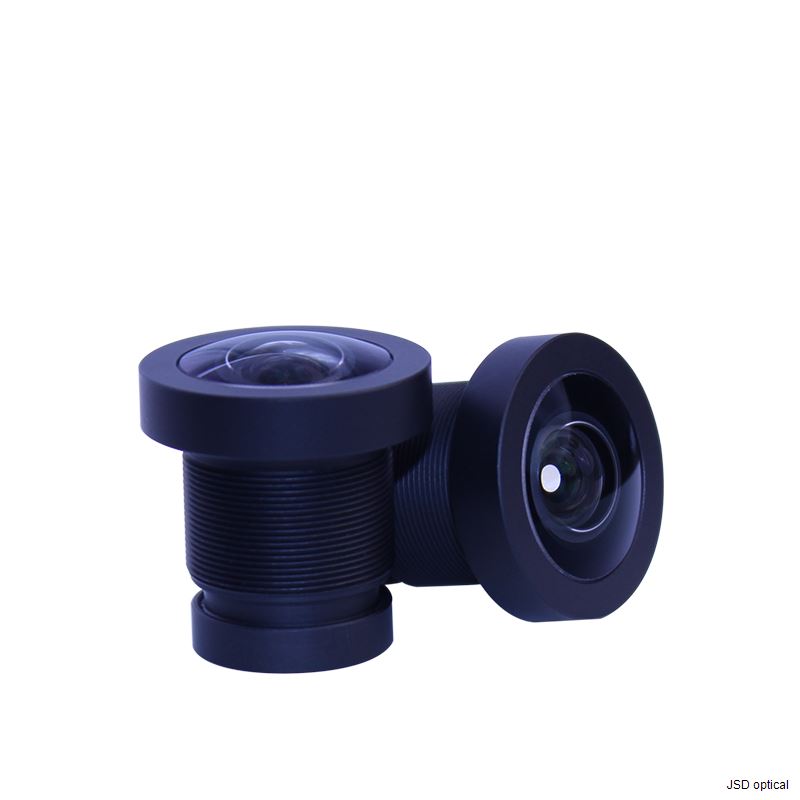

This professional-grade M16 mount fixed focal lens (PN: JSD5042) is expertly engineered for large-format 2/3-inch sensors, delivering industry-leading clarity for advanced imaging applications. With a 4.65mm effective focal length and F2.4 aperture, it provides an ultra-wide 137° field of view, making it ideal for high-end surveillance, intelligent transportation systems, and panoramic scene capture. Featuring remarkable 50MP resolution, this lens ensures superior image sharpness and exceptional detail retention from center to edge, fully supporting the latest generation of high-pixel-count sensors.

Key Features & Benefits

50MP Ultra-High Resolution:Designed to resolve 50 megapixels, this lens delivers crystal-clear imaging with extreme detail, ensuring precise recognition and analysis even in complex, dense scenes.

Optimized for 2/3" Sensors:Engineered specifically for 2/3" image sensors, featuring a large image circle that fully utilizes the sensor's capabilities without vignetting, providing superior light gathering compared to smaller formats.

Ultra-Wide 137° FOV:Provides an expansive 137° field of view, ideal for broad-area monitoring and panoramic applications where capturing the maximum amount of information in a single frame is critical.

Controlled Optical Distortion:Advanced optical design maintains distortion at <-10.3%, offering a balanced wide-angle perspective with managed geometric curvature for realistic scene representation.

Precision Optical Design:With an F2.4 aperture and 4.65mm focal length, the lens achieves a perfect balance of depth of field and light transmission for consistent performance in varying lighting conditions.

Robust M16 Build:Featuring a standard M16 thread and a Total Track Length (TTL) of 27mm, this lens offers a stable, durable interface suitable for industrial cameras and harsh operating environments.

Wide Application Versatility:Perfectly suited for high-resolution tasks such as traffic enforcement, detailed crowd monitoring, and industrial inspection requiring wide coverage and high pixel density.

Applications

Wide-Area Surveillance

Intelligent Transportation Systems (ITS) & Traffic Analysis

High-End Machine Vision

Environmental Monitoring Systems

Smart City Applications

Drone & Aerial Mapping

Intrusion Detection Systems

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

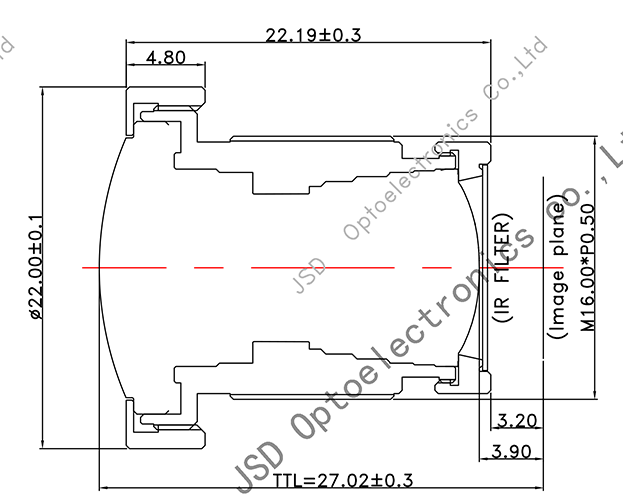

drawing
